Advance Tabco FS-1-1620-18L Compartment Sinks
Description

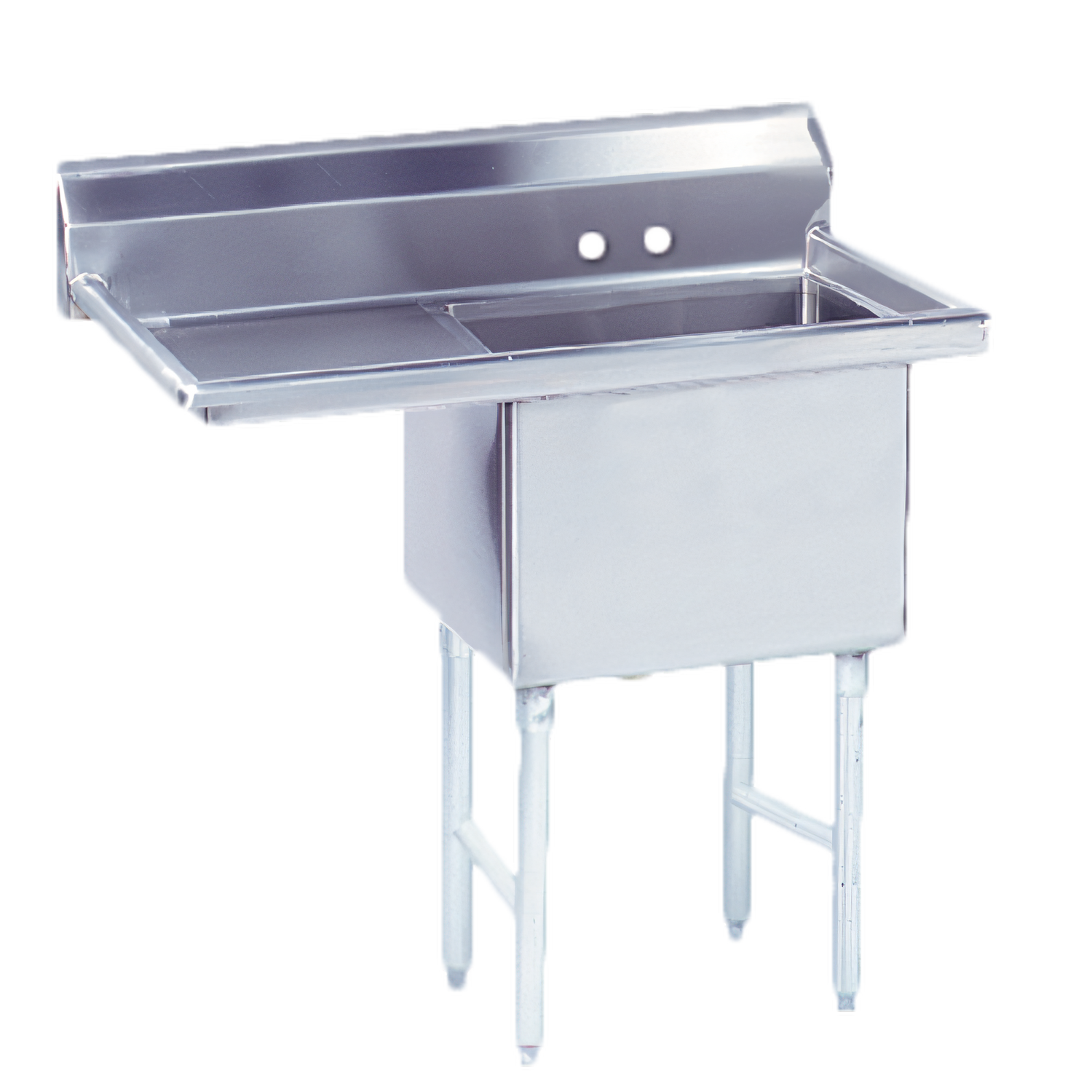

Advance Tabco FS-1-1620-18L Fabricated Sink
14-Gauge 304 Stainless Steel • 1 Compartment • 18" Left Drainboard • NSFEngineered for the rigors of commercial kitchens, the Advance Tabco FS-1-1620-18L delivers enduring strength, sanitary performance, and everyday convenience in a compact footprint. A heavy-duty 14 gauge, type 304 stainless steel body, TIG-welded seams, and a rolled rim edge give this one-compartment sink the muscle to handle constant pot-scrubbing, produce prep, and warewashing—all while the 18" left-side drainboard keeps workflow organized and counters dry.
Key Features
- 14 ga. 304 stainless steel bowl and drainboard—corrosion-resistant & built for heavy duty use
- 16" × 20" bowl with 14" depth for increased capacity
- 3/4" coved bowl corners and satin-blended welds meet strict NSF sanitation standards
- Full 8" backsplash with tile edge simplifies wall installation & prevents moisture intrusion
- Rolled rim edge adds strength and protects against denting

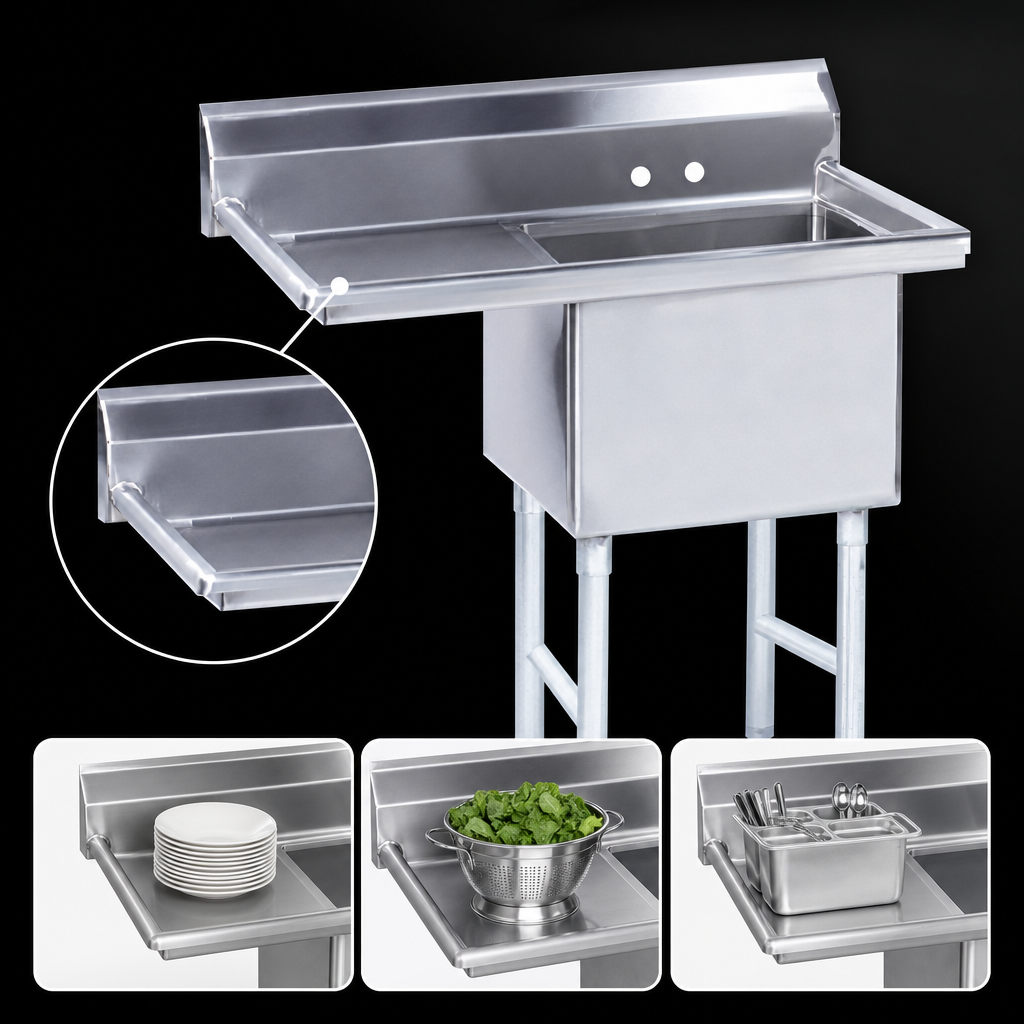

- 18" left drainboard is creased & pitched for fast drainage
- Pre-punched 8" on-center faucet holes (1/2" IPS hot & cold supply)
- Center-mounted 1 ½" IPS stainless steel basket drain (included)
- 1 ⅝" O.D. stainless steel legs with adjustable side cross-bracing
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- NSF certified & ready for code-compliant installation
At-a-Glance Specs
| Model | FS-1-1620-18L |
|---|---|
| Compartments | 1 |
| Bowl Size (W × L × D) | 16" × 20" × 14" |
| Drainboard | 18" (Left) |
| Overall Dimensions (F/B × L/R) | 26" × 36 ½" |
| Gauge / Material | 14 ga. type 304 stainless steel |
| Faucet Holes | 2 holes on 8" centers, 1/2" IPS |
| Drain | 1 ½" IPS S/S basket strainer (center mounted) |
| Legs / Feet | 1 ⅝" Ø S/S legs with adjustable cross-bracing & 1" bullet feet |
| Weight | Approx. 80 lb. |
| Certifications | NSF |
Need a different drainboard length, bowl depth, or extra accessories? Reach out to our team—Advance Tabco offers a full range of Smart Fabrication™ modifications to fit your exact workflow.
