Advance Tabco FRG-48 Commercial Faucets & Plumbing
Description

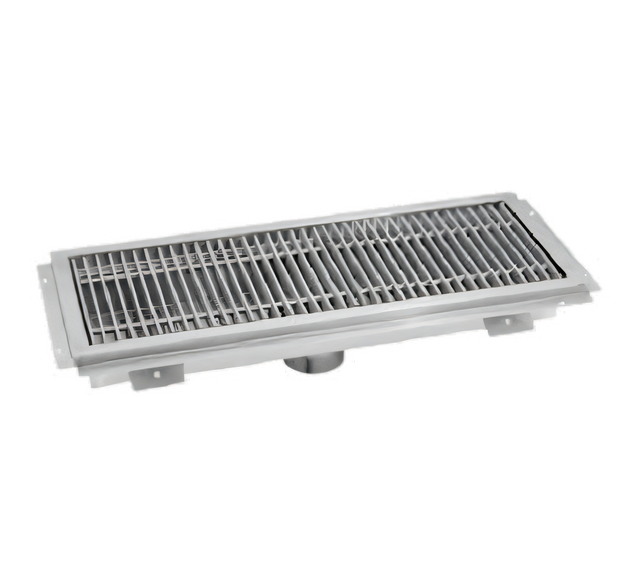

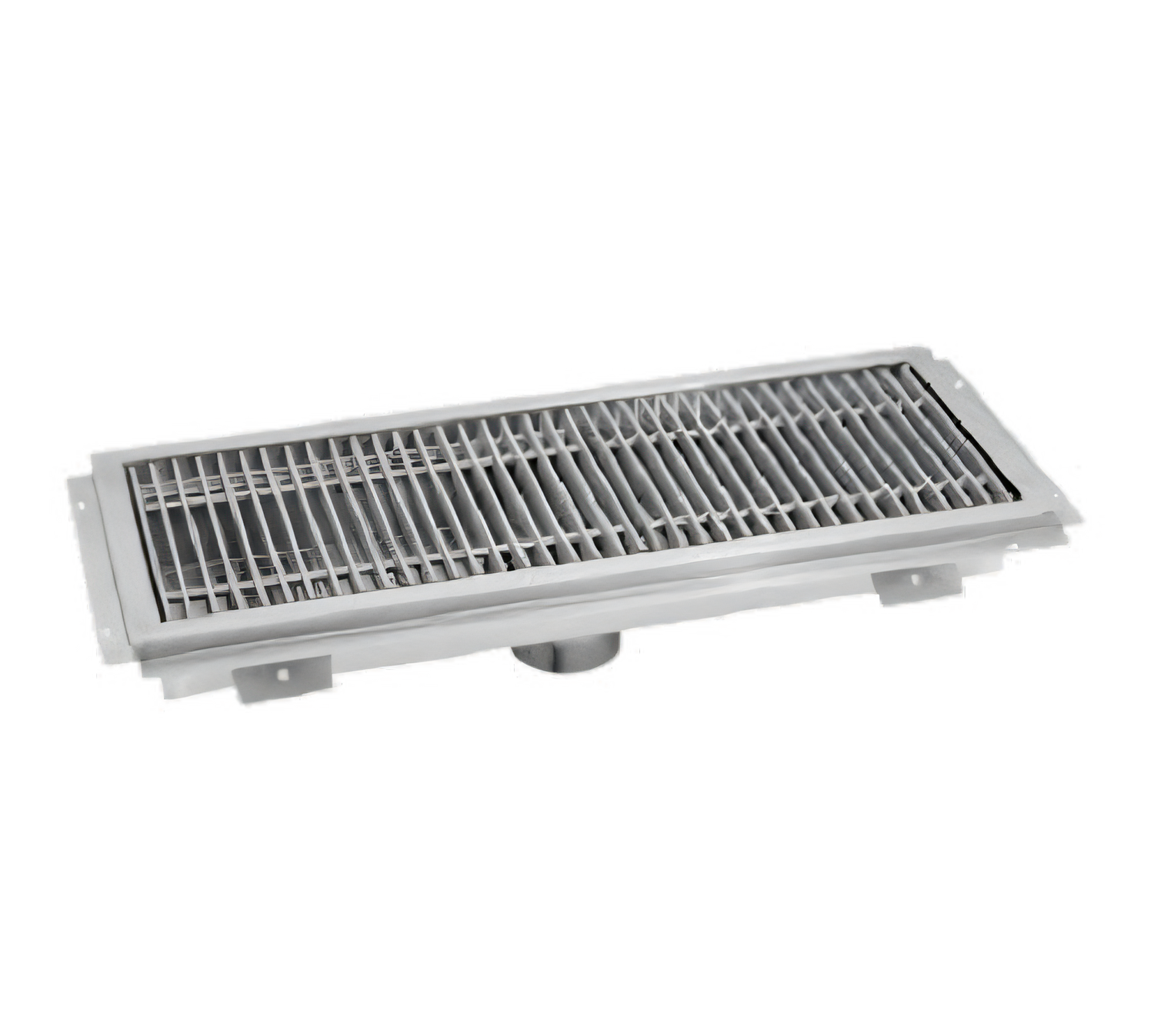

Advance Tabco 48" x 12" Stainless Steel Floor Water Receptacle
Model FRG-748 | NSF Certified | 2" Deep Low-ProfileBuilt for demanding commercial environments, this 14-gauge type 304 stainless steel water receptacle keeps work areas safe and sanitary. The included subway-style grate, precision TIG welding, and NSF certification ensure lasting performance wherever floor drainage is a must.
Key Features
- 14 ga 304 stainless steel trough — corrosion resistant & easy to sanitize
- Low 2" depth reduces concrete excavation and speeds installation
- Stainless steel “Subway-Style” grate:
- 3/16" × 1" solid bars
- 9/16" inside clearance for optimal flow
- Heavy-duty, ADA compliant gap upgrade available (FT-5)
- Single 4" O.D. outlet with 3" long sleeve accepts up to 4" waste pipe
- Removable perforated strainer basket with handle catches solids before they enter the drain line
- Creased & pitched floor directs water toward the drain for full evacuation
- Perimeter flange with 3/4" vertical tile step mounts directly to the sub-floor
- All external corners welded & polished to a satin finish
- NSF listed for food-service & institutional use
Specifications
| Model | FRG-748 |
|---|---|
| Overall Length | 48" (50" with flange) |
| Overall Width | 12" (14" with flange) |
| Trough Depth | 2" |
| Material | 14 ga Type 304 Stainless Steel |
| Grate Material | 304 SS, 3/16" × 1" bars, subway pattern |
| Outlet Size | 4" O.D. sleeve (field-cuttable) |
| Drain Count | 1 (centered, lengths under 96") |
| Shipping Weight | Approx. 82 lb |
| Certifications | NSF |
Popular Accessories (sold separately)
- FT-1 Anti-splash guard (factory installed per ft.)
- FT-2 Replacement strainer basket
- FT-3 Custom depth (2" – 6") per foot
- FT-4 Alternate outlet diameters (2" – 8")
- FT-5 ADA-compliant grate upgrade (7/16" gap) per foot
Need a different size? Advance Tabco can fabricate custom lengths, widths, or depths. Contact our Smart Fabrication team for a quote.
