Description

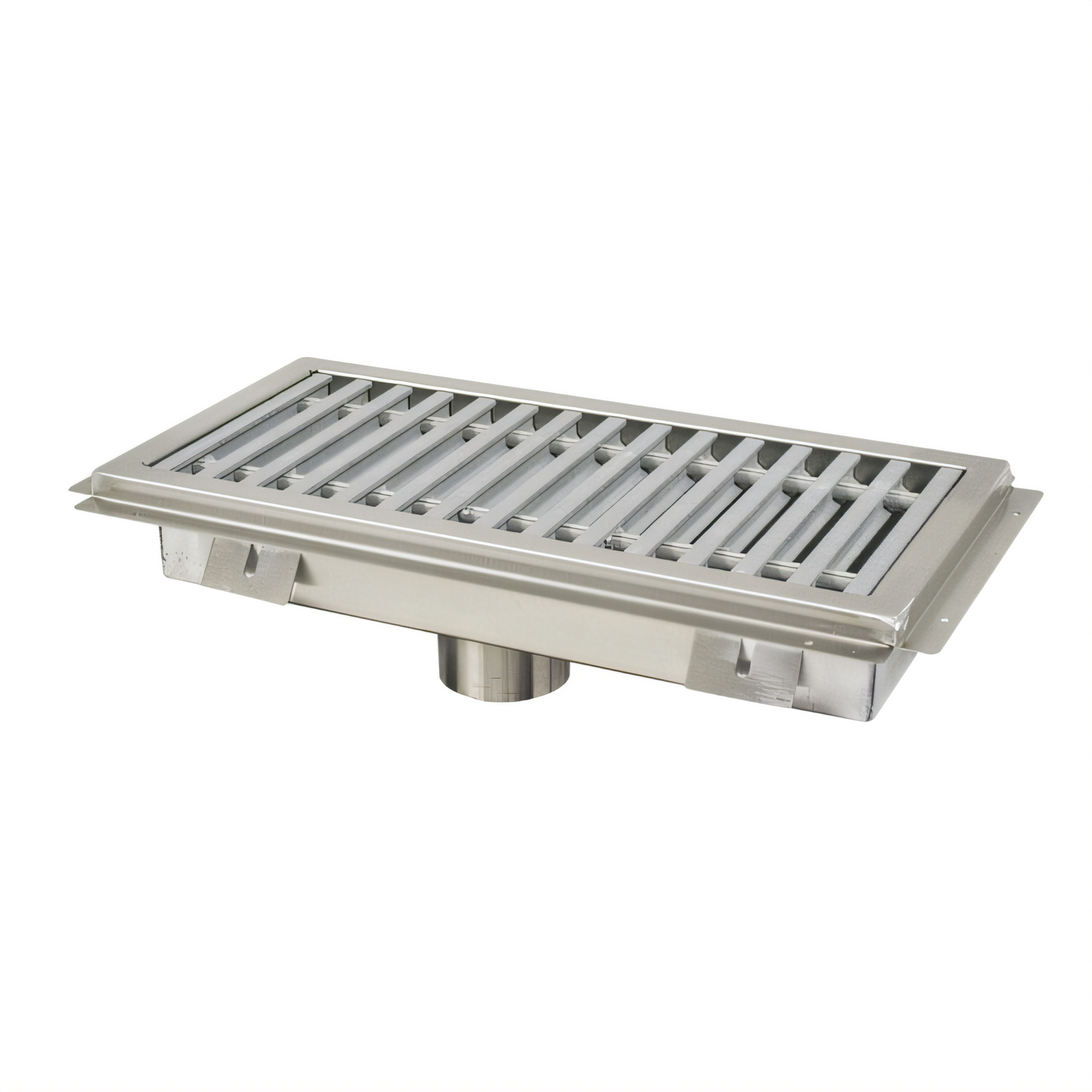

Advance Tabco 96" × 24" Fiberglass-Grate Floor Trough, 4" Deep

Model FFTG-2496 | NSF Listed | Dual 4" Drains

Control floor runoff and keep work areas sanitary with this heavy-duty, stainless steel trough topped by a lightweight, non-slip fiberglass grate—engineered by Advance Tabco for the toughest food-service, processing and industrial wash-down environments.

Key Features

  • Generous 96" length × 24" width handles high-volume splash zones.
  • 4" overall depth with creased floor and ¼" per-foot pitch for rapid drainage.
  • (2) factory-installed 4" O.D. × 3" L waste sleeves—one at each end of the trough.
  • Removable perforated 4" stainless steel strainer basket with easy-lift handle traps solids before they enter the waste line.
  • Gray fiberglass “subway-style” grate: non-slip medium-grit surface, corrosion-resistant, 7/8" inside bar spacing.
  • 14-gauge 304 stainless steel trough body—TIG welded, polished corners, built for decades of service.
  • 3/4" perimeter flange drops below finished tile for a flush, sanitary installation.
  • NSF certified—fully compliant for commercial food-service operations.

Typical Applications

  • Commercial kitchens & dish rooms
  • Meat, seafood & poultry processing
  • Breweries, distilleries & beverage bottling lines
  • Produce prep & clean-in-place (CIP) areas

Specifications

Model FFTG-2496
Overall length 96" (2438 mm)
Overall width 24" (610 mm)
Trough depth 4" (102 mm)
Number of drains 2
Drain outlet 4" O.D. × 3" L stainless sleeve (accepts 4" waste pipe)
Grate type Fiberglass composite, non-slip, 7/8" spacing
Trough material 14-ga 304 stainless steel
Approx. shipping weight 153 lb (69 kg)
Certification NSF

Included with Purchase

  • Fiberglass grate sections (ship loose for installation)
  • (2) stainless steel strainer baskets—one for each drain

Optional Accessories (sold separately)

  • FT-1 anti-splash guard (factory-installed, per linear foot)
  • FT-2 replacement strainer basket
  • FT-3 custom trough depth (2"–6")
  • FT-4 alternate drain outlet size (2"–8" dia.)
  • FT-5 A.D.A.-compliant stainless steel grate (7/16" gap)
Installation Note: Set trough level on a solid sub-floor and connect drain sleeves to 4" DWV piping using plumber-supplied couplings. Finish tile should be laid flush with the perimeter flange for best performance and hygiene.

Need a different length or configuration? Advance Tabco offers custom fabrication—contact us for a quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

4.0in

Width

96.0in

Depth

24.0in

Shipping Weight

153.0lbs

Width (long side)

85" - 96" (8 ft)

Depth (short side)

24"

Grate Construction

fiberglass grates

Trough Construction

14 ga stainless steel trough

Deep (pan depth)

4"

Pan Type

non anti-splash

Grate Type

subway-style grating

Specifications

Floor Trough, 96"W x 24"D x 4" deep, with fiberglass grating, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE:This unit supplied with 2 drain openings), NSF
