Advance Tabco FFTG-1896 Commercial Faucets & Plumbing
Description

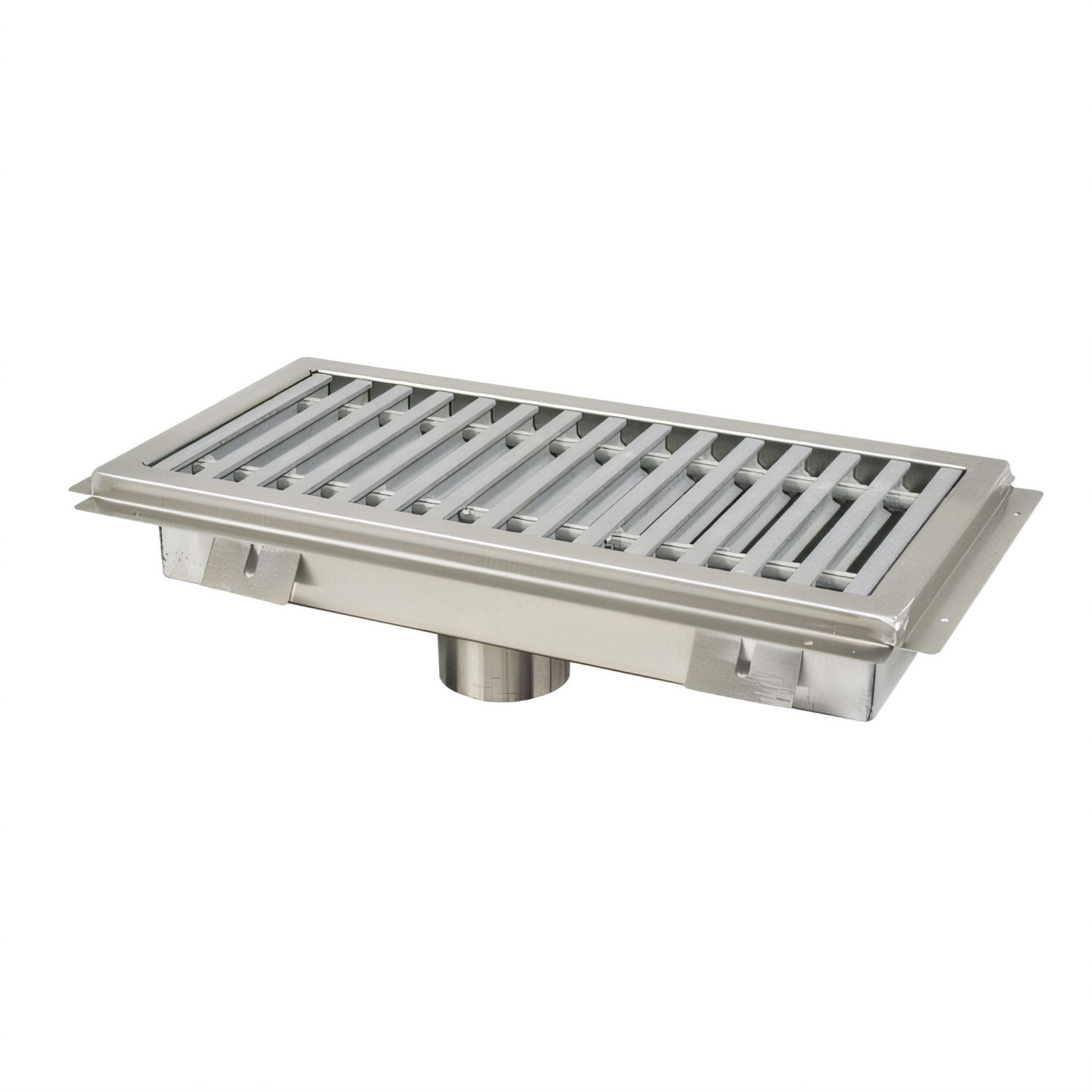

Advance Tabco 96" × 18" Floor Trough – Fiberglass Grate, Dual 4" Drains
4" Inside Depth • NSF ListedEngineered for high–volume water removal in commercial kitchens, dish rooms and production areas, this heavy-duty Advance Tabco floor trough combines a rugged 304 stainless steel body with a lightweight, non-slip fiberglass grate. At 96" long it ships with two 4" O.D. outlets and matching stainless steel basket strainers to keep solids out of your waste line.
Key Features
- 14-ga 304 stainless steel trough – all TIG-welded, corners ground & satin-polished
- Grey fiberglass “Subway-Style” grate with medium-grit, non-slip surface (7/8" bar spacing)
- 4" deep interior creased & pitched toward waste for fast, complete drainage
- Two removable perforated 304 SS basket strainers with lift handles
- (2) 4" O.D. × 3" L plumbing sleeves – accepts up to 4" waste pipe
- 3/4" perimeter tile ledge for a flush, trip-free floor finish
- Continuous flange mounts directly to the subfloor for a rock-solid install
- NSF certified for foodservice & institutional use
Specifications
| Overall length | 96" (2438 mm) |
|---|---|
| Overall width | 18" (457 mm) |
| Internal depth | 4" (102 mm) |
| Grate material | Fiberglass composite, 5/8" × 1" bars, non-slip grit |
| Drain openings | 2 (required on troughs 96" & longer) |
| Outlet size | 4" O.D. sleeve, 3" long |
| Strainer baskets | 304 SS, perforated, removable (2 included) |
| Trough material | 14-ga 304 stainless steel |
| Finish | Satin polish |
| Approx. ship weight | 125 lb (57 kg) |
| Certifications | NSF |
Popular Upgrades & Accessories
- FT-1 factory-installed anti-splash guard (priced per foot)
- FT-2 replacement stainless steel strainer basket
- FT-3 custom trough depth (2"–6")
- FT-4 alternate drain outlet diameters (2"–8")
- FT-5 ADA-compliant stainless grate (7/16" gap)
Accessories sold separately – contact us for pricing & lead times.
Installation Notes
- Set trough level and fasten flange to subfloor prior to pouring surrounding concrete or laying tile.
- Plumb outlets with a minimum 1/4" per foot pitch for proper flow.
- Field connection to sanitary line must be completed by a licensed plumber.
