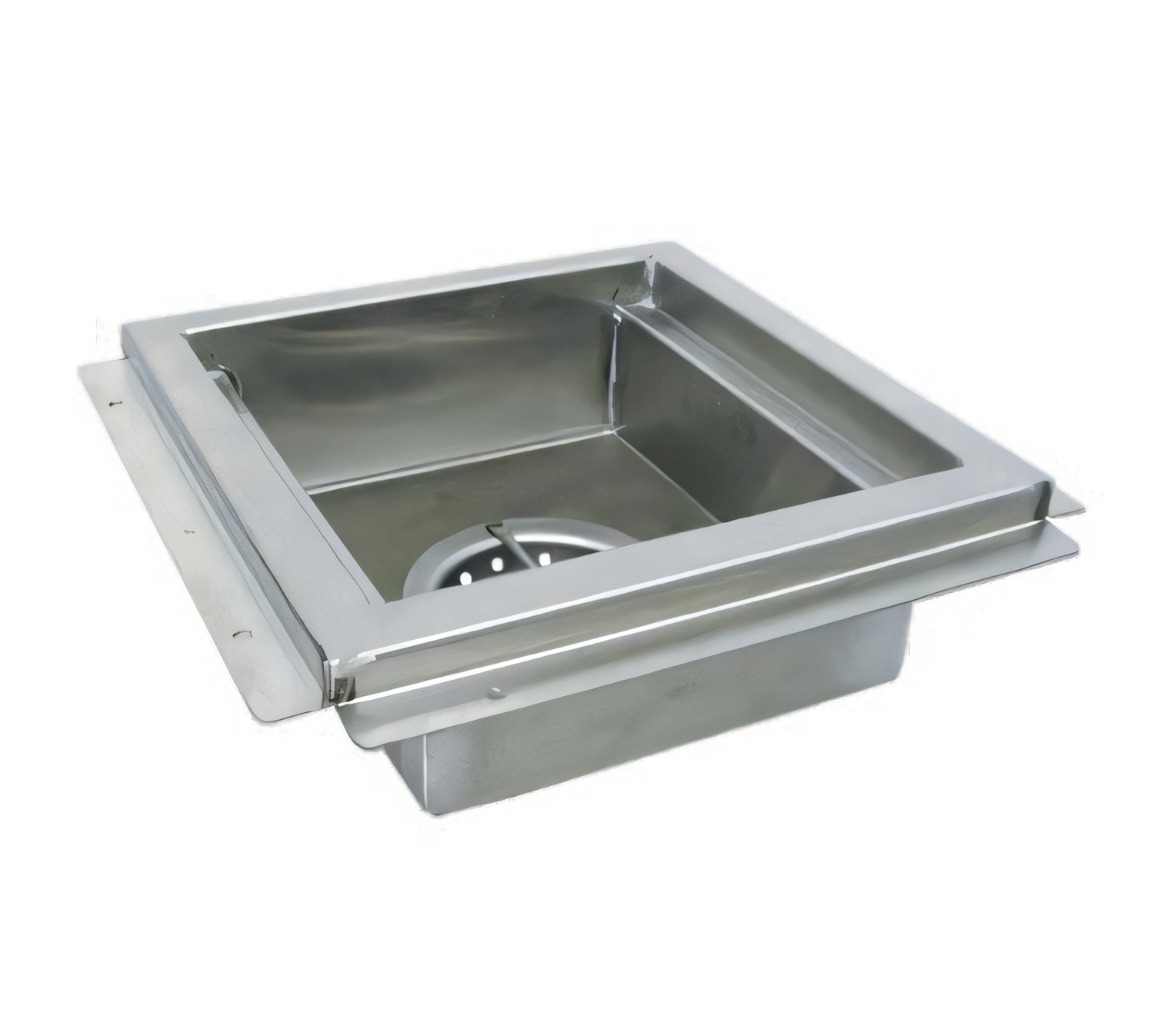

Advance Tabco 12" x 12" Square Stainless Steel Floor Drain, 4" Deep, Without Grate
Advance Tabco 12" x 12" Square Stainless Steel Floor Drain, 4" Deep, Without Grate
Includes Removable Strainer Basket and 4" O.D. Plumbing Sleeve
Compact square floor drain with a removable basket and subfloor-ready flange for dependable drainage in tiled commercial floors.
- 12" x 12" square floor drain with a 4" depth for compact floor installations.
- Stainless steel construction with TIG-welded seams and polished external corners.
- Includes a removable perforated stainless steel strainer basket with handle.
- Accommodates up to a 4" waste pipe and includes a 4" O.D. x 3" plumbing sleeve.
- Creased, pitched design helps direct flow toward the waste outlet for proper drainage.
- Supplied without a grate; optional stainless steel grate is available.
Overall Dimensions:
12.0"W x 12.0"D x 4.0"HProduct Weight:
26.0 lbRemovable Strainer Basket
Perforated stainless steel basket with handle is included for easy debris removal and cleaning.
4-Inch Waste Pipe Capacity
The waste receptacle is designed to accommodate up to a 4" waste pipe.
Plumbing Sleeve Included
Includes a 4" O.D. by 3" long plumbing sleeve for installation.
Pitched Drain Body
Interior is pitched toward the waste outlet to support proper drainage.
Tile-Friendly Mounting Design
Perimeter flange mounts directly to the subfloor and a 3/4" vertical step is designed to accommodate floor tile installation.
Welded Stainless Steel Construction
All TIG welded with external corners welded and polished to a satin finish.
No Grate Included
This floor drain is supplied without a grate; optional FD-1 stainless steel grate is available.
