Advance Tabco FC-WM-80KV Hand Sinks
Description

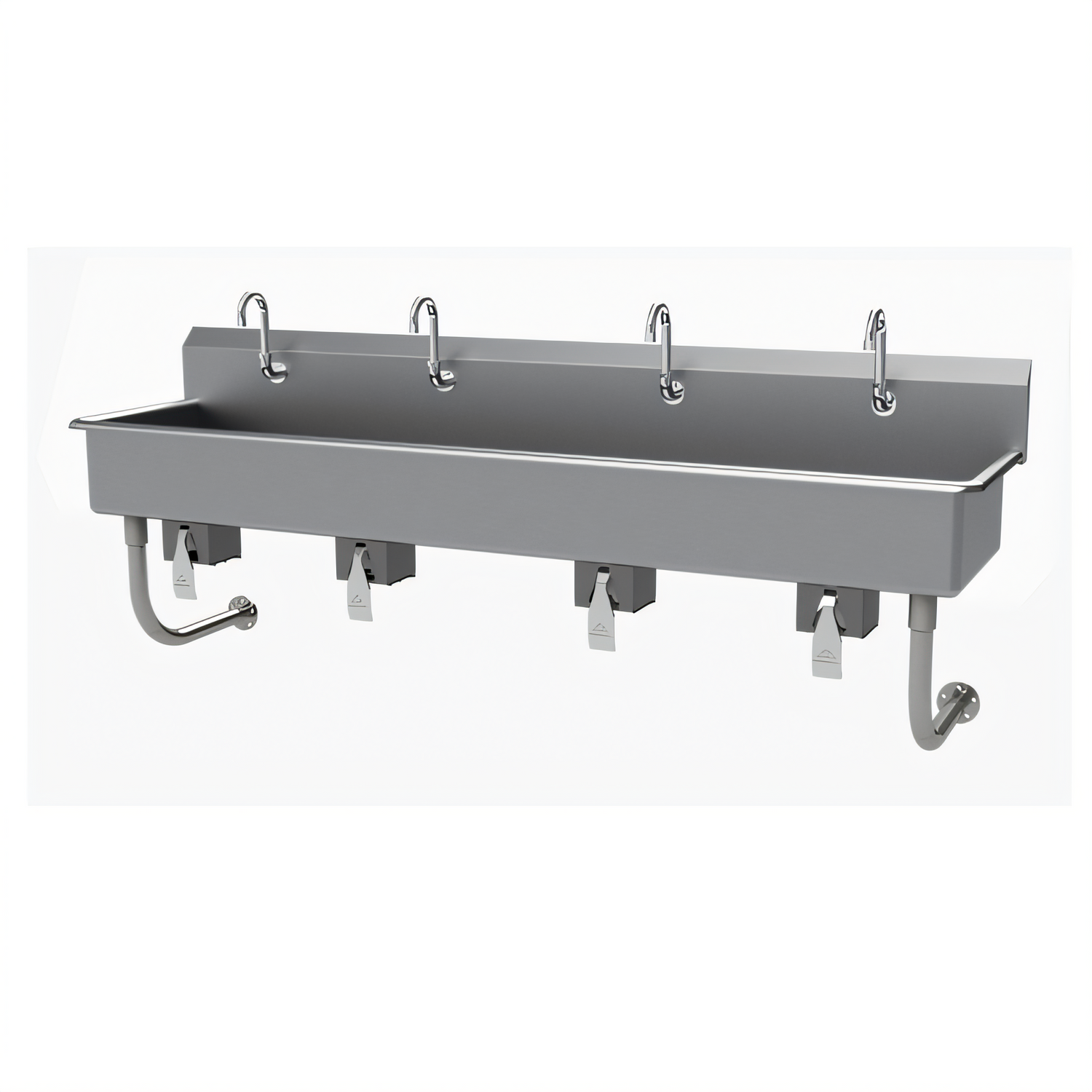

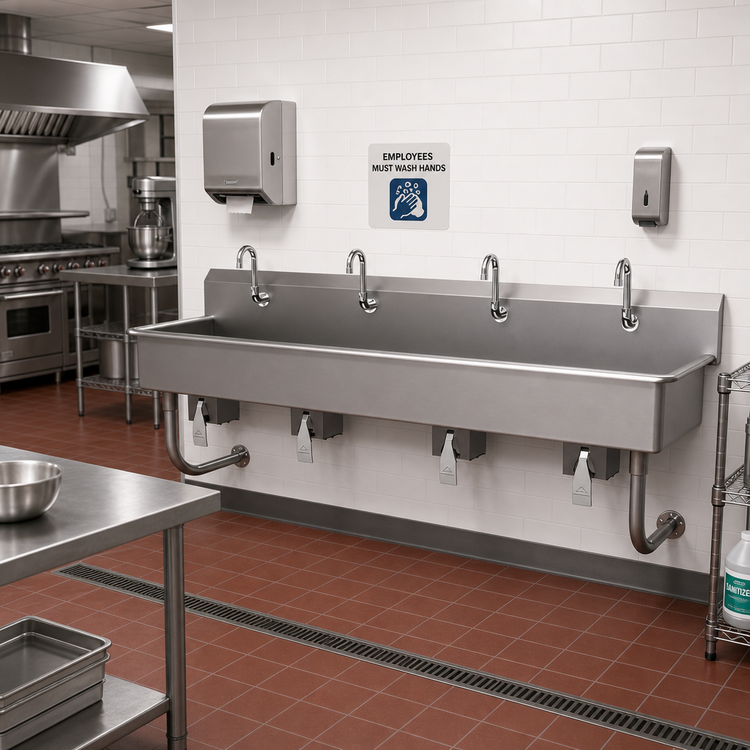

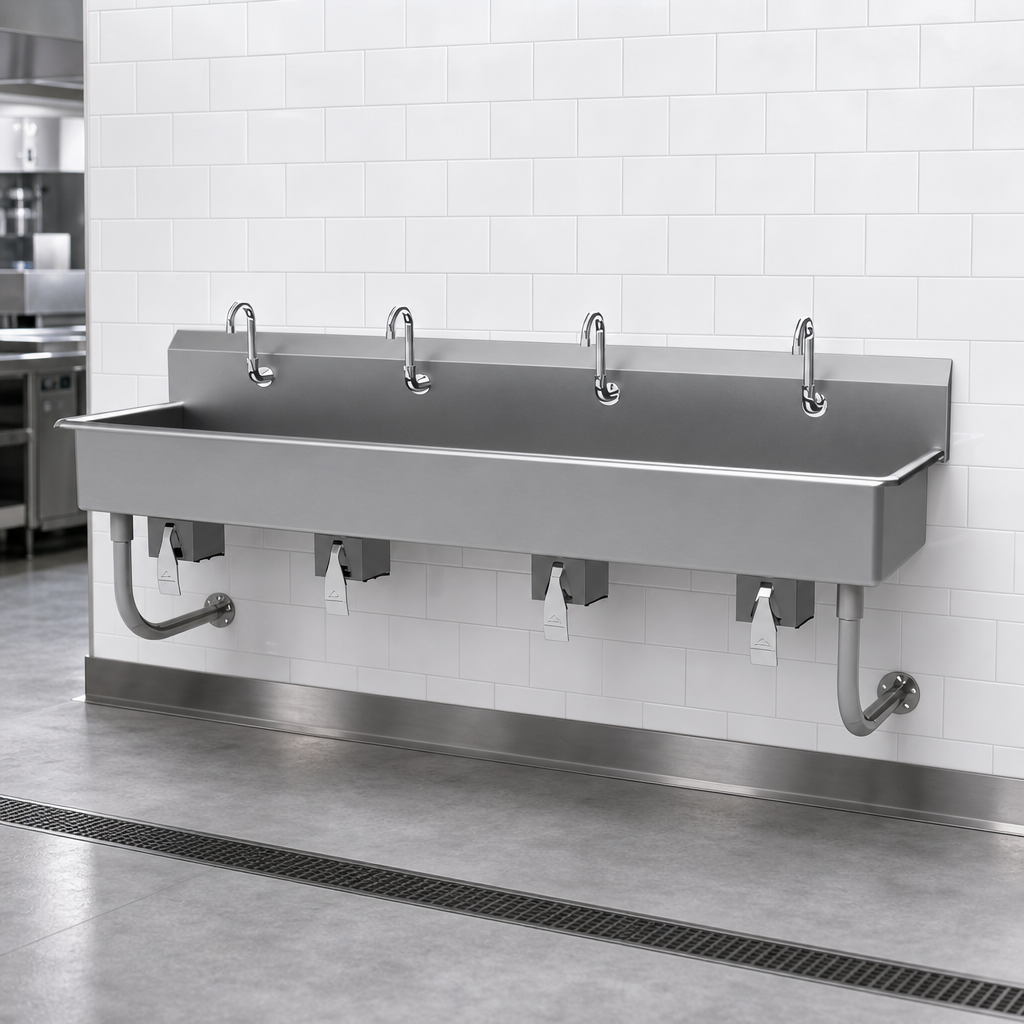

Advance Tabco FC-WM-80KV Knee-Operated Multi-Wash Hand Sink – 4 Stations
Built for high-volume hand-washing in food-service, manufacturing, and healthcare facilities, this wall-mounted, 4-station sink delivers hygienic, hands-free operation and the legendary durability of 16-gauge 304 stainless steel.
Why You’ll Love It- Hands-free knee valves keep every station sanitary and touch-free.
- Full 80 inch width with four gooseneck spouts lets multiple users wash simultaneously without crowding.
- 8-½ inch integral backsplash contains splashes and simplifies wall clean-up.
- Two heavy-duty stainless “Z” brackets and tubular wall supports provide rigid, space-saving installation.
- NSF listed for peace-of-mind code compliance.
| Model | FC-WM-80KV |
|---|---|
| Stations / Valves / Spouts | 4 stations | 4 knee valves | 4 gooseneck spouts |
| Overall Dimensions | 80" W × 19-1/2" D × 29-1/2" H |
| Bowl Size (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8-1/2" integral |
| Faucet Holes | 4 × single-hole (one per station, splash-mount) |
| Drain | 3-1/2" rear basket drain (K-6) included |
| Material & Gauge | 16 ga. type 304 stainless steel, satin finish |
| Mounting Hardware | 2 × stainless “Z” brackets & tubular wall supports (1-5/8" Ø) |
| Certifications | NSF Listed |
| Shipping Weight | Approx. 130 lb |
- Sink body with integral backsplash & splash-mount faucet punchings
- 4 × chrome-plated knee pedals (Advance Tabco 7-PS-32)
- 4 × K-121 gooseneck spouts
- 1 × 3-1/2" stainless rear basket drain (K-6)
- 2 × stainless “Z” wall brackets
- Tubular stainless wall support assembly
- Mount wall brackets 42-1/2" from finished floor to bracket top, then slide sink into place.
- Connect 3/8" NPT water supplies to knee valves; outlet lines run directly to each faucet spout.
- Single rear drain connection simplifies plumbing.
Detailed rough-in drawings ship with the unit and are available from Advance Tabco upon request.
Upgrade your high-traffic wash area with the FC-WM-80KV and experience fast, hygienic, multi-user throughput backed by Advance Tabco’s industry-leading quality.
