Description

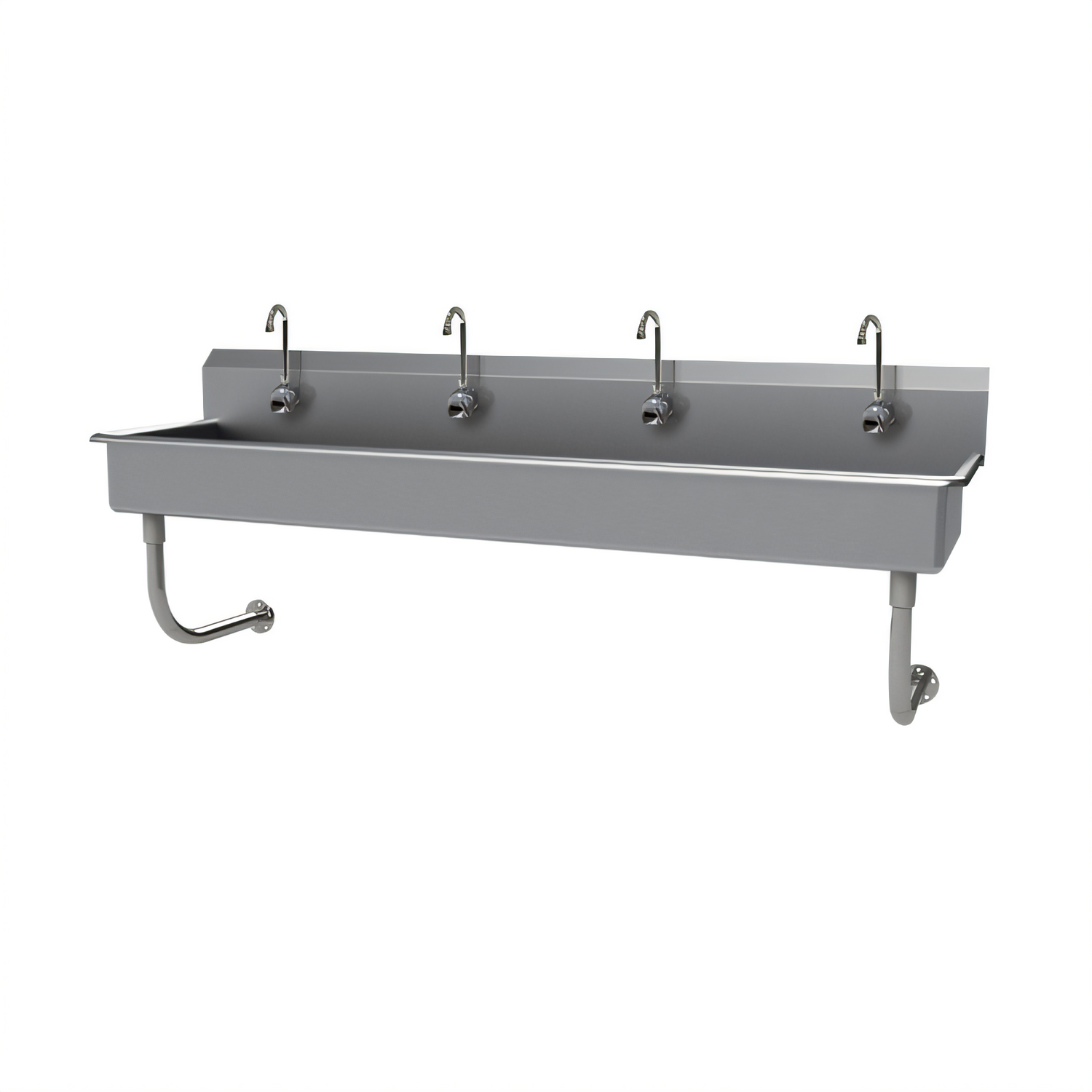

Advance Tabco FC-WM-80-EFADA | 4-Station ADA Wall-Mounted Multi-Wash Hand Sink with Electronic Faucets

Give staff and guests quick, touch-free access to hygienic hand-washing. Built from heavy-duty 16 gauge 304 stainless steel and finished with four hands-free electronic faucets, this 80 inch Advance Tabco multi-station sink stands up to the busiest foodservice, healthcare, and industrial environments while meeting NSF and ADA requirements.

Key Features

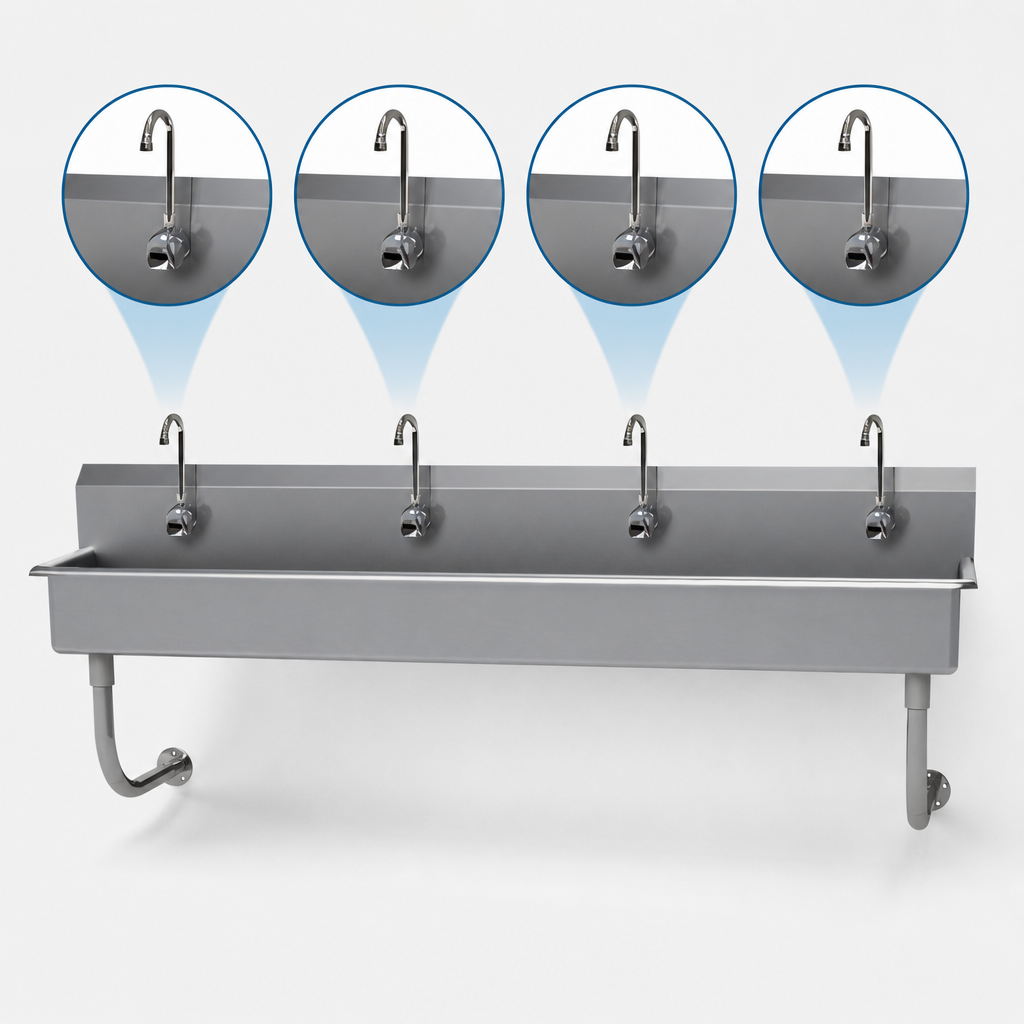

  • (4) Advance Tabco K-175 splash-mounted electronic faucets for completely hands-free operation.
  • 80 in. long, 4-station layout keeps traffic flowing during peak periods.
  • ADA-compliant 5 in. deep bowls and open tubular wall supports provide required knee & toe clearance.
  • Integral 8-1/2 in. backsplash contains splashes and protects surrounding walls.
  • Punched at the factory with (4) single faucet holes—no field drilling needed.
  • Includes 3-1/2 in. rear basket drain for fast, code-compliant installation.
  • All TIG-welded seams blended to a smooth satin finish for easy cleaning.
  • Stainless steel “Z” mounting brackets and 1-5/8 in. tubular braces deliver rock-solid wall support and full floor clearance.
  • NSF listed, lead-free, and Prop 65 labeled.
Dimensions
Overall Width 80 in. (2032 mm)
Overall Depth 19-1/2 in. (495 mm)
Overall Height 25-1/2 in. (648 mm)
Bowl Size (each) 16 in. front-to-back × 5 in. deep
Backsplash Height 8-1/2 in.
Stations / Faucets 4
Construction & Materials
  • Sink body: 16 ga. type 304 stainless steel.
  • Wall supports: 1-5/8 in. O.D. tubular 304 stainless steel.
  • Finish: Satin polish resists corrosion and wipes clean quickly.
  • Backplate & brackets: stainless steel “Z” design for easy wall mounting.
Electronic Faucet Package
Model (4) Advance Tabco K-175 splash-mount faucets
Activation Infrared sensor—completely hands-free
Flow Rate 2.2 GPM aerators (optional 0.5 GPM low-flow aerators available)
Power 100–240 VAC adapter (included) or battery back-up
Compliance NSF/ANSI 61 & 372 lead-free, UL-listed control box
Certifications & Compliance
  • NSF listed sink & faucet components
  • ADA compliant knee/toe clearance & bowl depth
  • Lead-free to NSF/ANSI 61/9 & 372
  • California Prop 65 labeled
California Proposition 65: This equipment may expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit p65warnings.ca.gov.

Need additional stations, different gauge steel, or a custom faucet setup? Advance Tabco offers made-to-order configurations—contact us for a quote.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

80.0in

Depth

19.5in

Shipping Weight

100.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

5" deep

Faucet

faucet included

Features

multi-station

Style

wall mounted

Bowl Width (left to right)

20" & up

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (4) electronic faucets, 80"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
