Advance Tabco  |  SKU: FC-WM-80EF  |  UPC: 747545211569

Advance Tabco FC-WM-80EF Hand Sinks

$6,157.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Installation & operation Parts list Installation manual 2
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

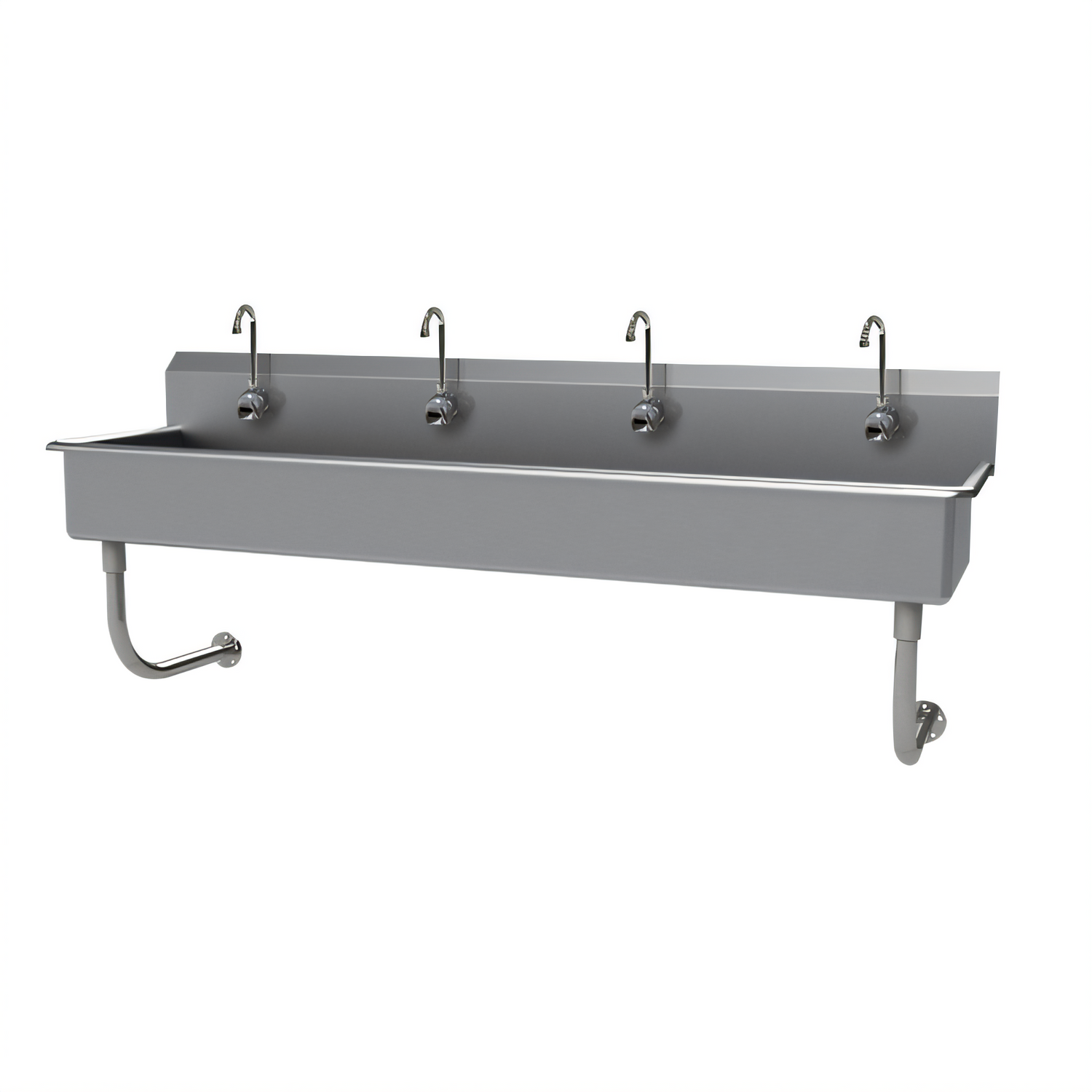

Advance Tabco FC-WM-80EF Multi-Wash Hand Sink – 4 Station, Hands-Free

80" wall-mounted stainless sink with (4) K-175 electronic faucets

Create a quick, touch-free hand-wash point for up to four users at once. The FC-WM-80EF combines rugged 16-gauge 304 stainless steel construction with NSF-listed electronic faucets, keeping your team sanitation-compliant without slowing them down.

At a glance

  • 4-station design – perfect for busy prep areas, production rooms & classrooms
  • Hands-free K-175 splash-mount faucets with infrared sensors & 2.2 GPM aerators
  • Heavy-duty 16 ga type 304 stainless steel sink body & tubular wall supports
  • 8 in. deep, 16 in. front-to-back bowl with generous 8 ½ in. backsplash
  • Factory-punched single faucet hole at each station for fast installation
  • Includes (1) 3 ½ in. K-6 rear basket drain – keeps solids out of your plumbing
  • TIG-welded, satin-polished seams for a sleek, easy-clean finish
  • “Z” wall brackets & tubular braces provide full knee clearance underneath
  • NSF listed & conforms to ANSI/NSF 2 for food-service splash zones

Why operators love it

  • Zero-touch activation reduces cross-contamination and water waste.
  • Four users wash simultaneously, shortening wait times during peak hours.
  • All-stainless build stands up to harsh cleaners and heavy daily use.
  • Open-base wall mount keeps the floor clear for easy sweeping and mopping.
  • Simple drop-in installation: hang the Z brackets, connect water & drain, done.

Technical specifications

Model FC-WM-80EF
Stations / Faucets 4 electronic (sensor-activated) K-175 faucets included
Overall dimensions 80 W × 19 ½ D × 29 ½ H (to rim)
Bowl size (each) 16 in. front-to-back × 8 in. deep
Backsplash height 8 ½ in.
Material / gauge 16 ga type 304 stainless steel
Mounting hardware Stainless “Z” wall brackets & tubular cross-bracing
Drain 3 ½ in. K-6 basket-type, rear outlet
Certifications NSF, Lead-Free components (NSF 61/9)
Power (faucets) 100-240 VAC adapter (included) – one per sink

What’s included

  • (1) 80 in. wall-mount sink body
  • (4) Advance Tabco K-175 electronic hands-free faucets
  • (1) 3 ½ in. K-6 basket drain assembly
  • (2) Stainless “Z” wall brackets with hardware
  • Pre-installed tubular stainless support frame
  • Universal AC power adapter & control box for faucets
  • Installation & operation manual
California Prop 65 Notice: This equipment can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Advance Tabco continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

80.0in

Depth

19.5in

Shipping Weight

120.0lbs

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (4) electronic faucets, 80"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (4) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
