Advance Tabco FC-WM-60KV Hand Sinks
Description

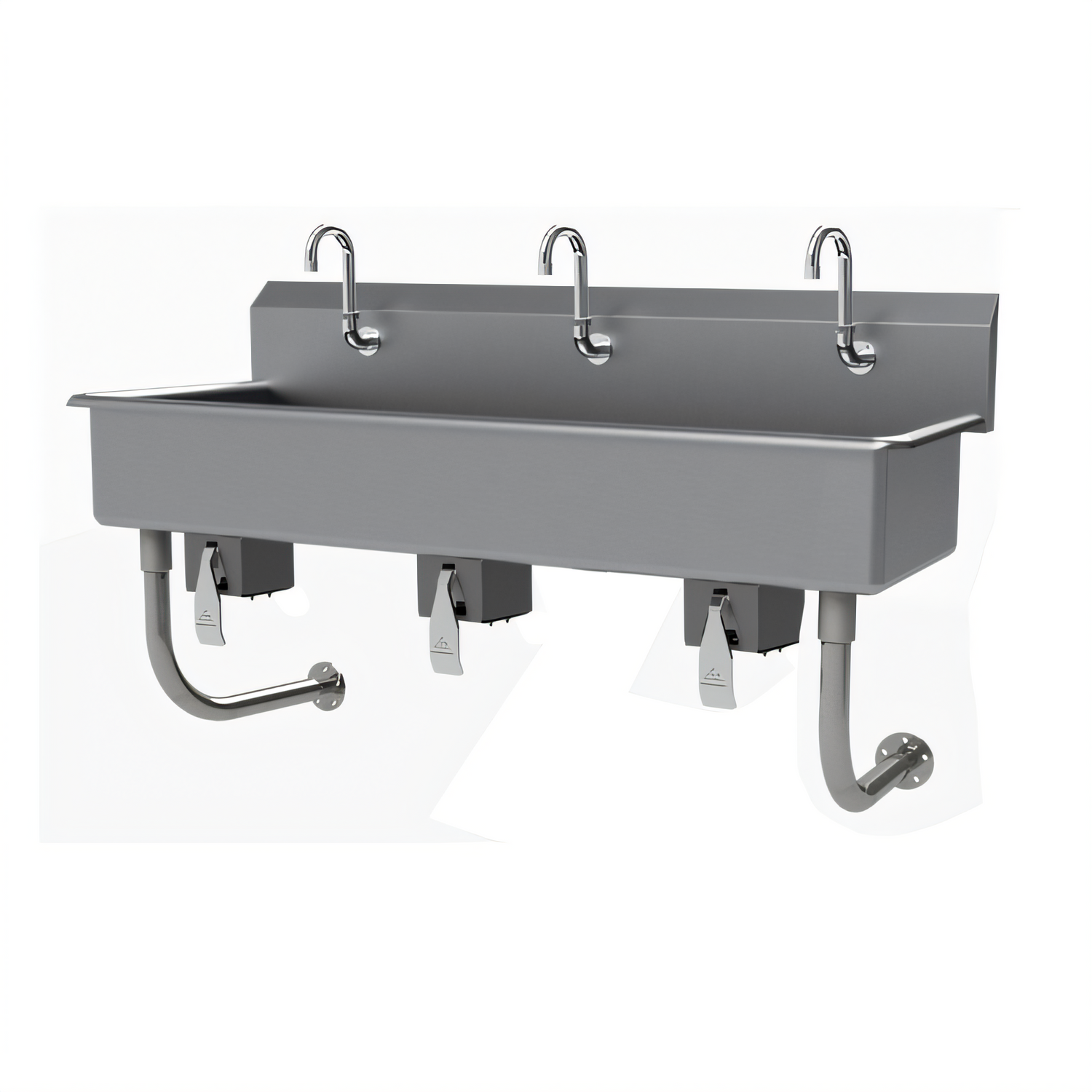

Advance Tabco FC-WM-60KV Multi-Wash Hand Sink
60" Wall-Mounted • 3-Station • Knee-OperatedBuilt for demanding food-service, healthcare and industrial wash-areas, the FC-WM-60KV delivers three completely hands-free stations in one ultra-durable, wall-mounted unit. Knee valves keep hands away from contamination, while heavy-gauge 304 stainless steel construction stands up to the toughest sanitation regimens.
Key Features
- Hands-free washing with (3) 7-PS-32 knee mixing valves—just press and wash.
- (3) K-121 gooseneck spouts; single-hole, splash-mount design.
- Spacious 16" front-to-back bowl, 8" deep for full forearm clearance.
- 8-1/2" integral backsplash protects surrounding walls from splatter.
- Rugged 16-gauge, type 304 stainless steel with sanitary satin finish.
- Open floor space thanks to tubular stainless steel wall support brackets.
- (2) stainless steel “Z” wall brackets included for quick, secure mounting.
- 3-1/2" K-6 rear basket drain with removable strainer—no extra kit required.
- NSF listed for food-contact safety.
At-a-Glance Specifications
| Model | FC-WM-60KV |
|---|---|
| Stations | 3 |
| Overall Dimensions (W × D × H) | 60" × 19-1/2" × 29-1/2" |
| Bowl Size (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8-1/2" |
| Material / Gauge | 16-ga. type 304 stainless steel |
| Faucet Configuration | (3) single-hole splash-mount, gooseneck spouts |
| Valves | (3) knee-operated mixing valves |
| Drain | 3-1/2" rear basket drain (included) |
| Mounting | Wall-mounted with “Z” brackets & tubular supports |
| Certifications | NSF |
| Approx. Shipping Weight | 105 lb |
What’s Included
- Sink body with integral backsplash
- (3) knee valves & (3) gooseneck spouts
- (1) 3-1/2" basket drain assembly
- (2) stainless steel “Z” wall brackets
- (2) tubular stainless steel support brackets
Easy Installation
- Mount “Z” brackets 42-1/2" from finished floor, then slide sink into place.
- Connect 3/8" hot & cold supplies to each knee valve and route to spouts.
- Attach P-trap and waste line to included 3-1/2" drain.
For tempered water, add an Advance Tabco K-425 thermostatic mixing valve (sold separately).
