Advance Tabco FC-WM-60EFADA Hand Sinks
Description

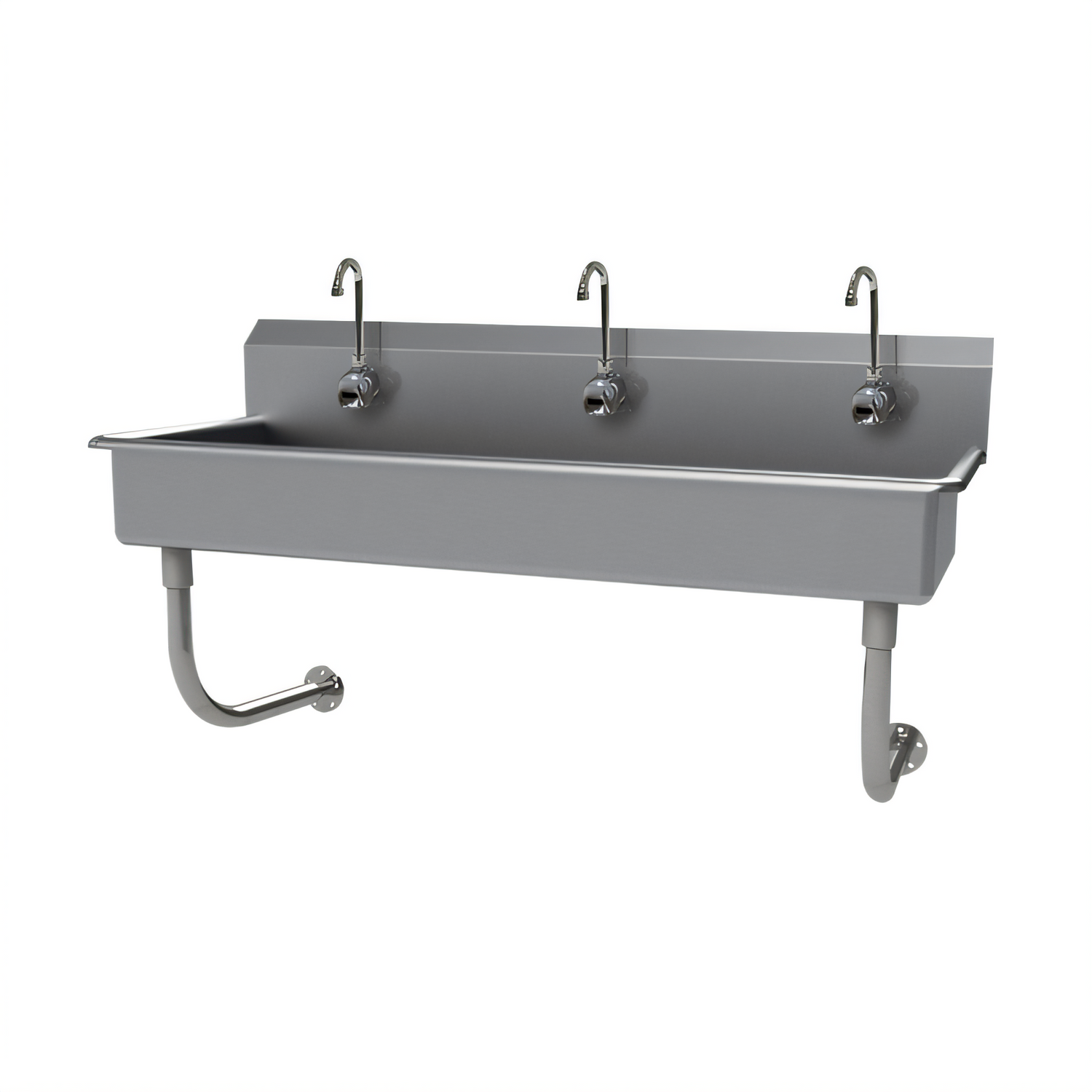

60" ADA-Compliant Multi-Station Hand Sink with 3 Electronic Faucets

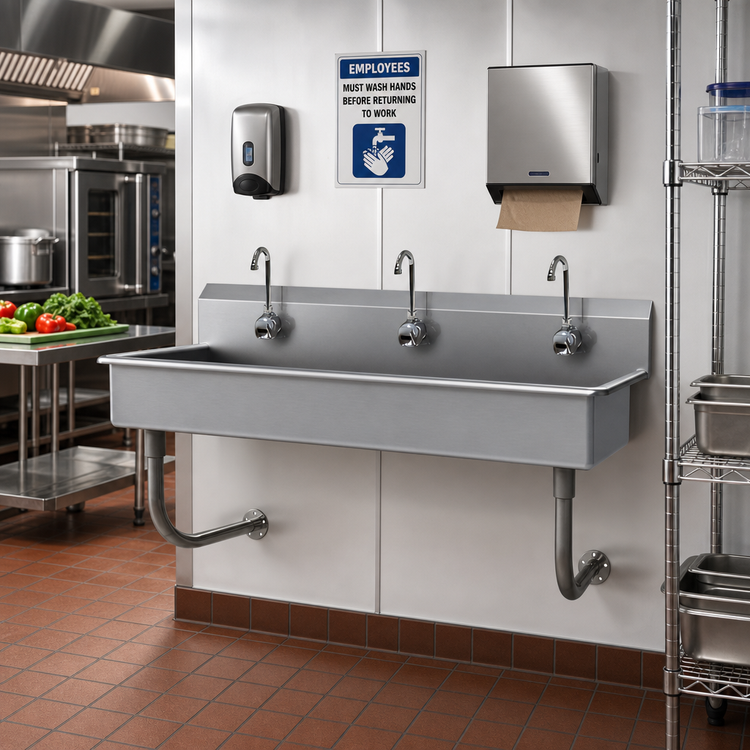

Advance Tabco Model FC-WM-60-EFADABuilt for high-traffic environments that demand strict hand-hygiene, this wall-mounted Advance Tabco Multiwash hand sink serves up to three users simultaneously while meeting ADA reach-range requirements. Durable 16-gauge type 304 stainless steel construction, integrated sensor faucets, and full knee clearance make it the professional choice for schools, healthcare, foodservice, laboratories and more.
Key Features

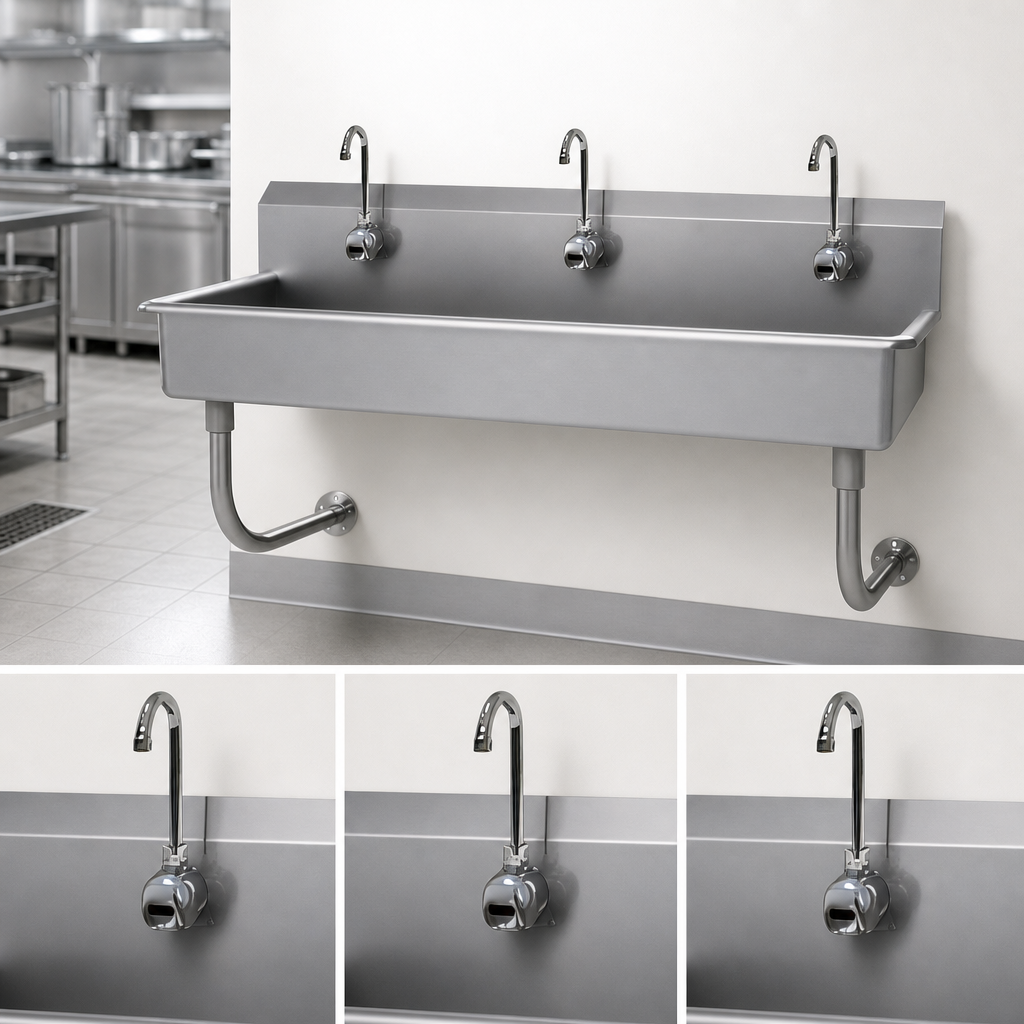

- Three (3) K-175 hands-free splash-mount faucets with built-in sensors
- 60" W x 19 - 1/2" D overall footprint – ideal for multi-user wash stations
- 5" deep x 16" front-to-back bowls – ADA compliant
- 8-1/2" high integral backsplash reduces wall splatter and simplifies installation
- Single faucet hole punched at each station, factory-installed
- 3-1/2" K-6 rear basket drain included (one per sink)
- 16-gauge type 304 stainless steel sink and 1-5/8" tubular wall supports
- All TIG-welded seams, blended to a sanitary satin finish
- Stainless steel “Z” wall brackets provide quick, rigid mounting and full knee clearance
- NSF listed & Prop 65 compliant
- UL-listed plug-in power adapter (100–240 V) for electronic faucets included
Technical Specifications
| Model | FC-WM-60-EFADA |
|---|---|
| User Stations | 3 |
| Overall Dimensions | 60" W × 19 - 1/2" D × 25 - 1/2" H |
| Bowl Size (each) | 16" F-to-B × 5" deep |
| Backsplash Height | 8 - 1/2" |
| Material / Gauge | Type 304 stainless steel, 16 ga. |
| Faucets | 3 × K-175 electronic, splash-mount, 2.2 GPM aerator |
| Drain | 3 - 1/2" K-6 rear basket drain (included) |
| Mounting | Wall-mount with stainless “Z” brackets & tubular supports |
| Compliance | NSF, ADA, Prop 65 |
| Power | 100–240 VAC adapter, < 1 A draw (per faucet control box) |
Installation Highlights
- Mount wall “Z” brackets 42-1/2" above finished floor, then slide sink into place.
- Connect 3/8" NPT hot & cold supplies to each faucet’s control box.
- P-trap and waste line rough-in centered 6" below sink bottom.
Complete installation instructions ship with the unit and are available from Advance Tabco.
