Advance Tabco | SKU:
FC-WM-60EF
Advance Tabco FC-WM-60EF Hand Sinks
$4,938.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-WM-60EF Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-WM-60EF Hand Sinks
$4,938.00
Unit price
/
Unavailable
Description

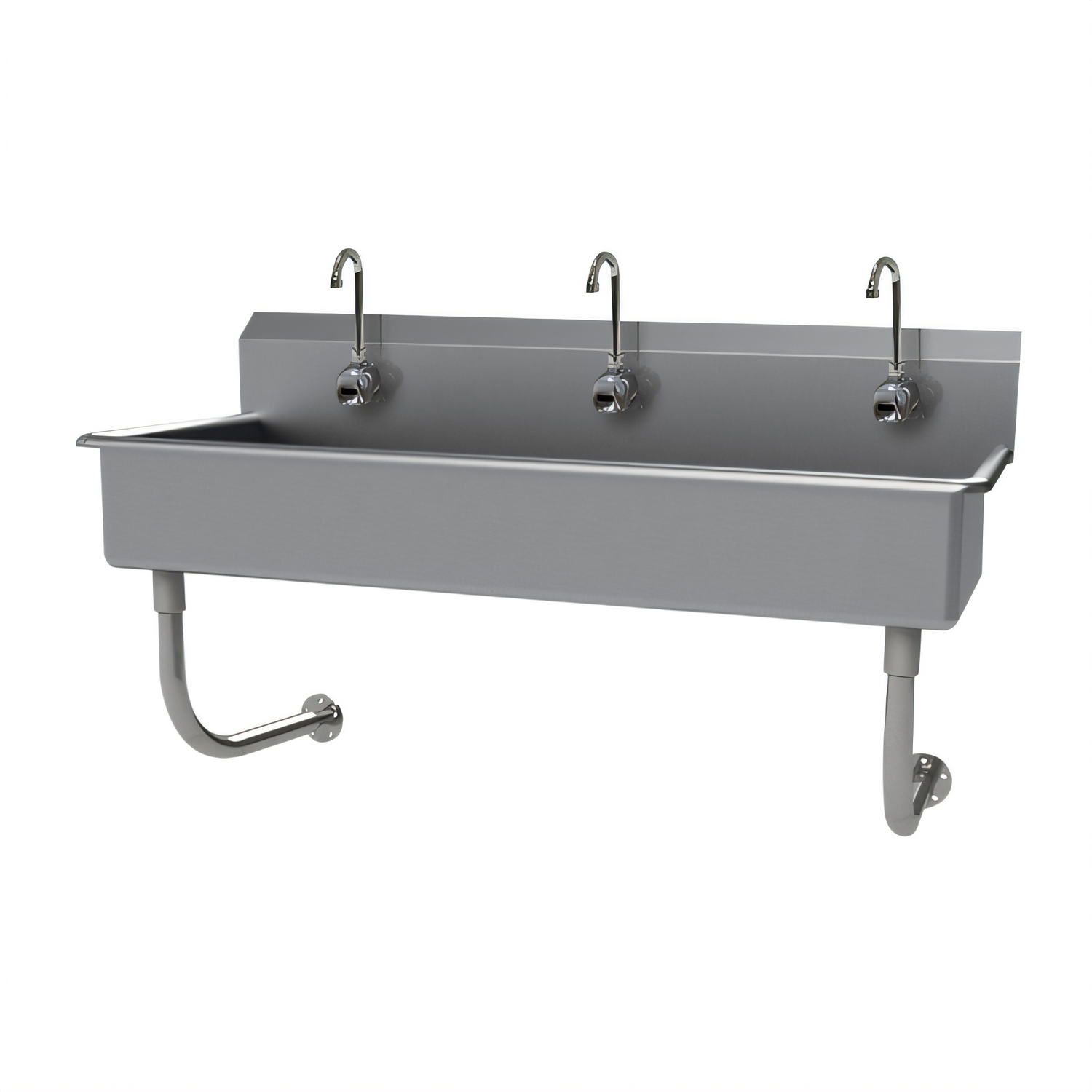

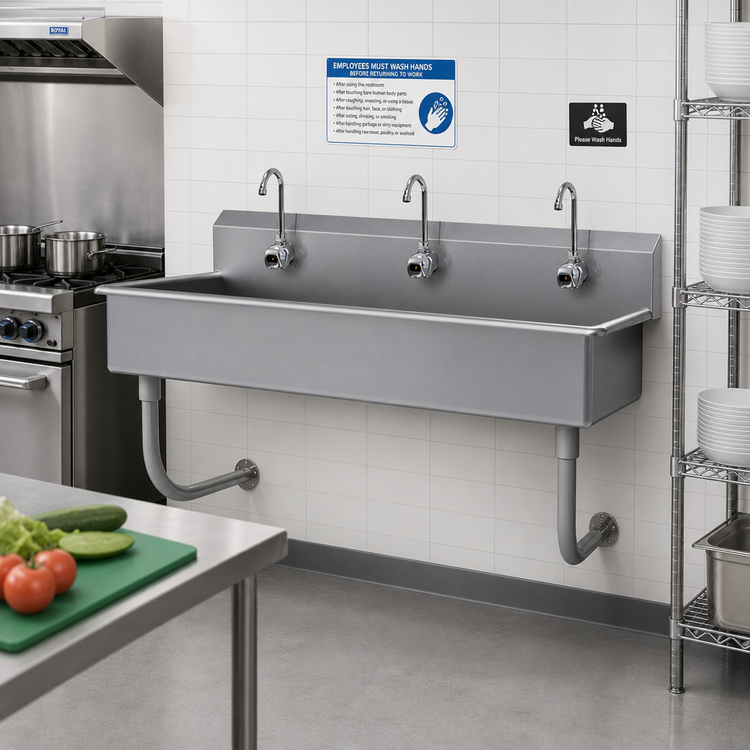

Advance Tabco FC-WM-60EF Multi-Station Hand-Washing Sink
60 in. • 3 Electronic Splash-Mount Faucets • NSF CertifiedBuilt for busy kitchens, laboratories and industrial wash areas, the FC-WM-60EF delivers touch-free hygiene in a rugged, wall-hung design that keeps floor space clear and maintenance simple.
Key Features

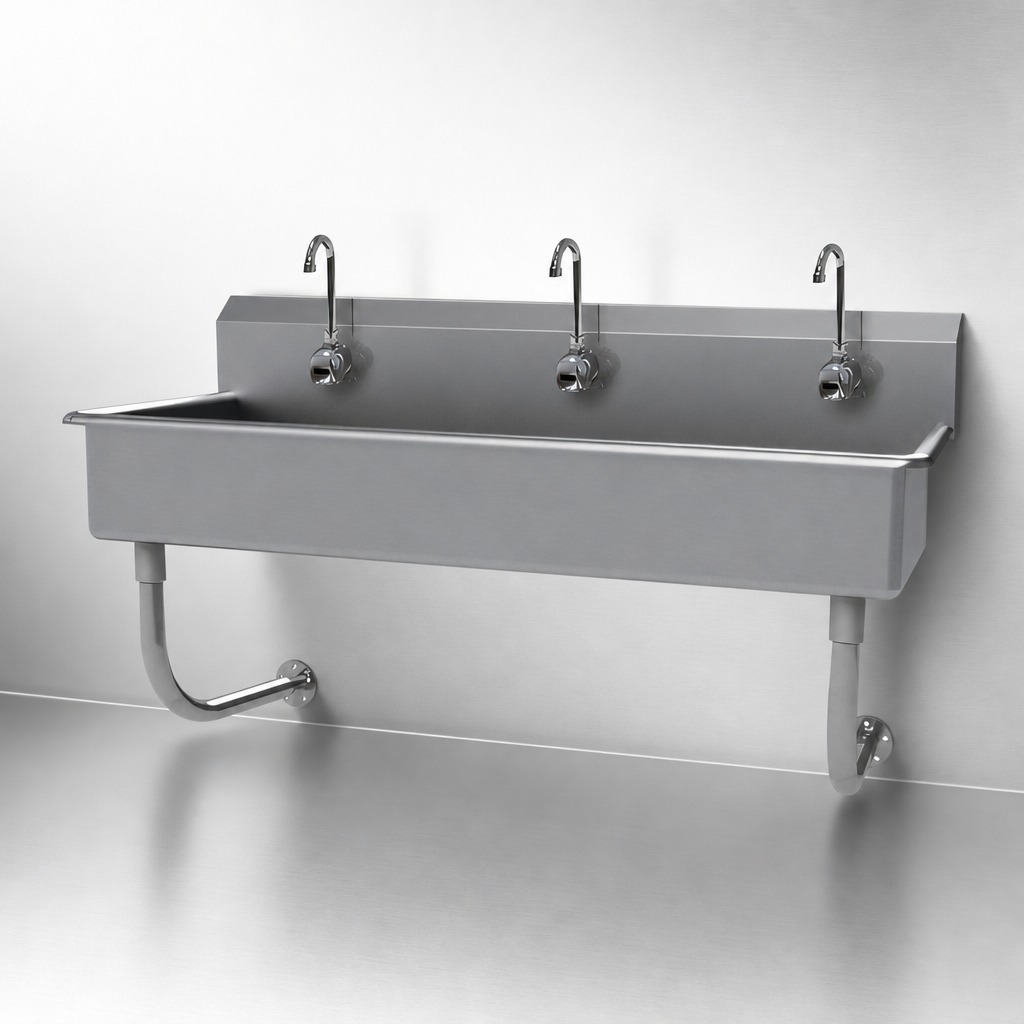

- (3) K-175 electronic faucets provide completely hands-free operation.
- 16 ga. type 304 stainless steel construction resists corrosion and dents.
- 60" W × 19-1/2" D overall with a generous 16" front-to-back bowl.
- 8 in. bowl depth & 8-1/2 in. backsplash with single faucet punch at each station.
- 3-1/2" K-6 rear basket drain keeps debris out of the waste line.
- Stainless “Z” wall brackets & 1-5/8" tubular supports give full under-clearance for cleaning or ADA aisle space.
- All TIG-welded seams are blended to a sanitary satin finish.
- Universal 100-240 V power adapter and control box included—just mount, plumb & plug in.
Why It Matters
- Touch-free activation reduces cross-contamination risks in food-service and healthcare settings.
- Wall mounting eliminates legs that collect dirt and simplifies floor sanitation.
- Heavy-duty 16-ga. build extends service life in high-traffic environments.
- Modular FC-WM series lets you mix lengths to create the perfect wash line as your operation grows.
Technical Specifications
| Model | FC-WM-60EF |
|---|---|
| Stations | 3 |
| Faucet Type | K-175 electronic, splash-mount (2.2 GPM) |
| Overall Dimensions | 60" W × 19-1/2" D × 29-1/2" H |
| Bowl Size (each) | 16" F-to-B × 8" D |
| Backsplash Height | 8-1/2" |
| Drain | 3-1/2" rear basket drain, 1 outlet |
| Material | 16 ga. 304 stainless steel |
| Supports | 1-5/8" tubular 304 stainless + stainless “Z” wall brackets |
| Power | AC adapter 100-240 V, <1 Amp, 6' cord (UL listed) |
| Certifications | NSF Listed, Lead-Free (NSF/ANSI 61/9) |
What’s in the Box
- FC-WM-60EF stainless wall-mounted sink
- (3) K-175 hands-free faucets with control box & power adapter
- (1) 3-1/2" K-6 rear basket drain assembly
- Stainless “Z” mounting brackets & tubular wall supports
- Installation & operation manual
California Proposition 65 Notice:
This product can expose you to chemicals, including lead, which are known to the State of California
to cause cancer or birth defects or other reproductive harm.
Learn more
Need a different length or ADA 5" deep bowl model? Call our product specialists at 1-800-645-3166.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
29.5in
Width
60.0in
Depth
19.5in
Shipping Weight
84.0lbs
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Width (left to right)
20" & up
Faucet
faucet included
Bowl Height (rim to drain)
8" deep
Style
wall mounted
Features
multi-station
Specifications
Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (3) electronic faucets, 60"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
