Advance Tabco FC-WM-60-ADA-F Hand Sinks

$3,263.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

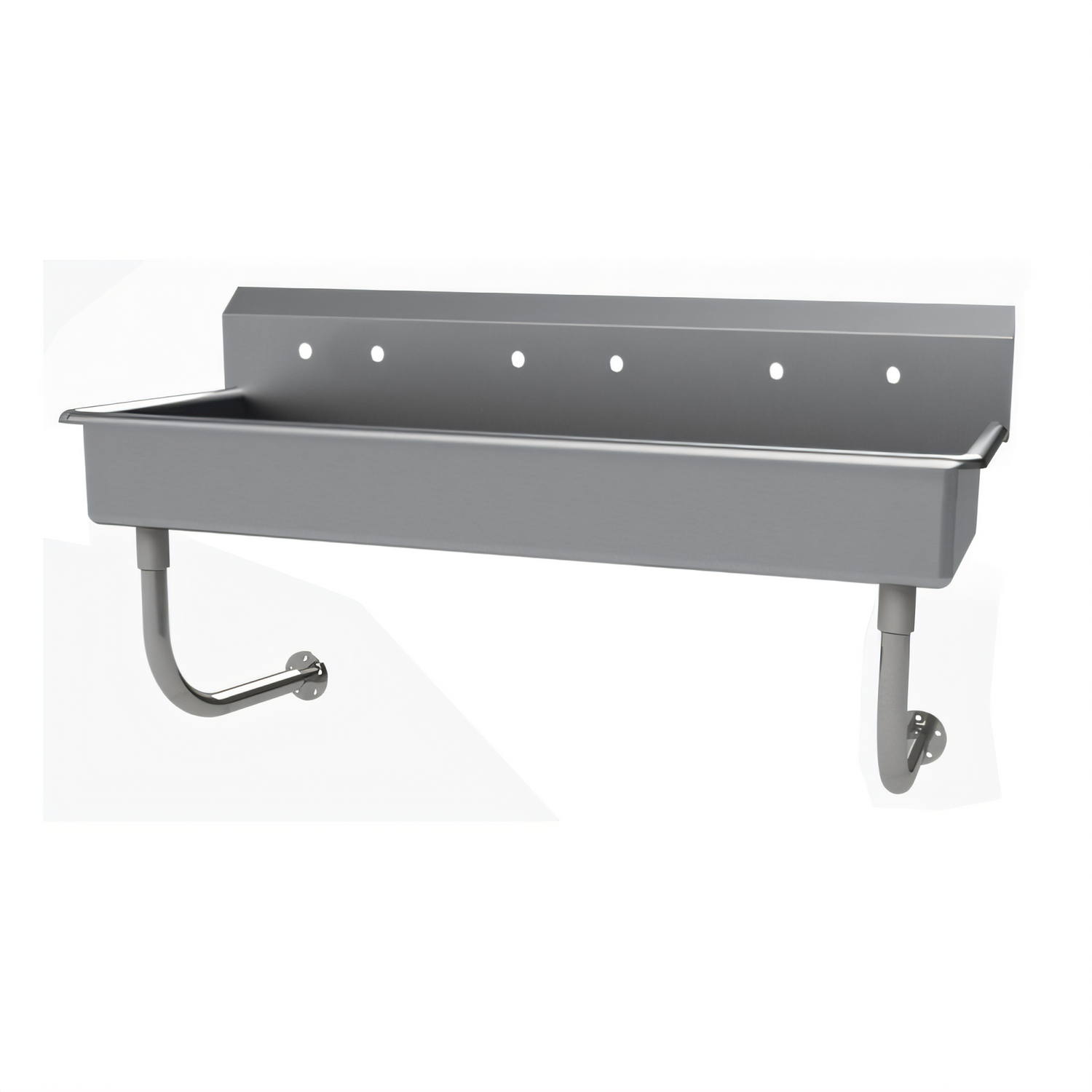

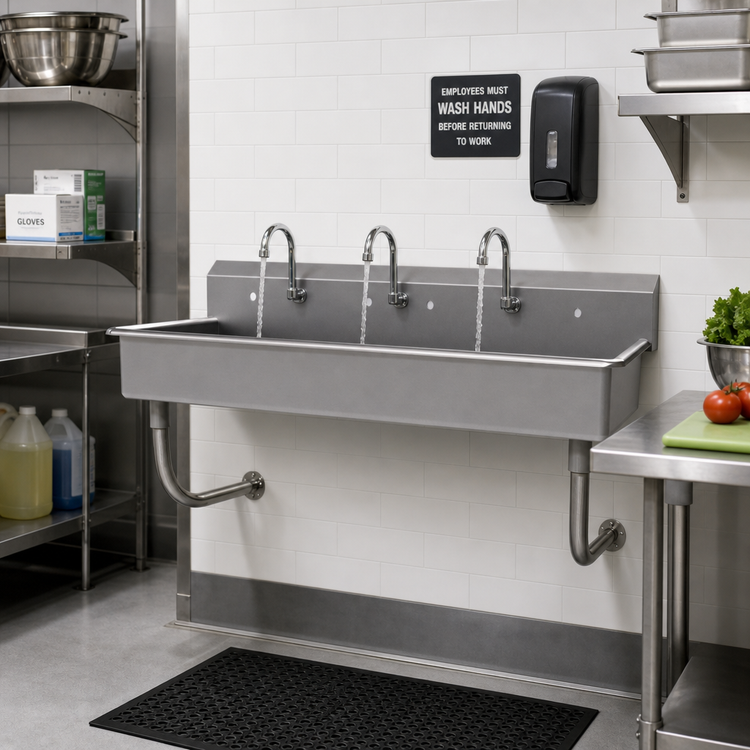

Advance Tabco 60" ADA Multi-Wash Hand Sink – 3 Stations

Model FC-WM-60-ADA-F

Purpose-built for high-traffic environments, this wall-mounted, three-station hand sink pairs heavy-duty 16 ga. type 304 stainless steel with ADA-compliant design—delivering the durability, hygiene and accessibility required in today’s food-service, healthcare and industrial facilities.

Key Features
  • Generous 60" width accommodates three users simultaneously to reduce wait times.
  • 5" deep, 16" front-to-back bowl meets ADA knee-clearance requirements for wheelchair access.

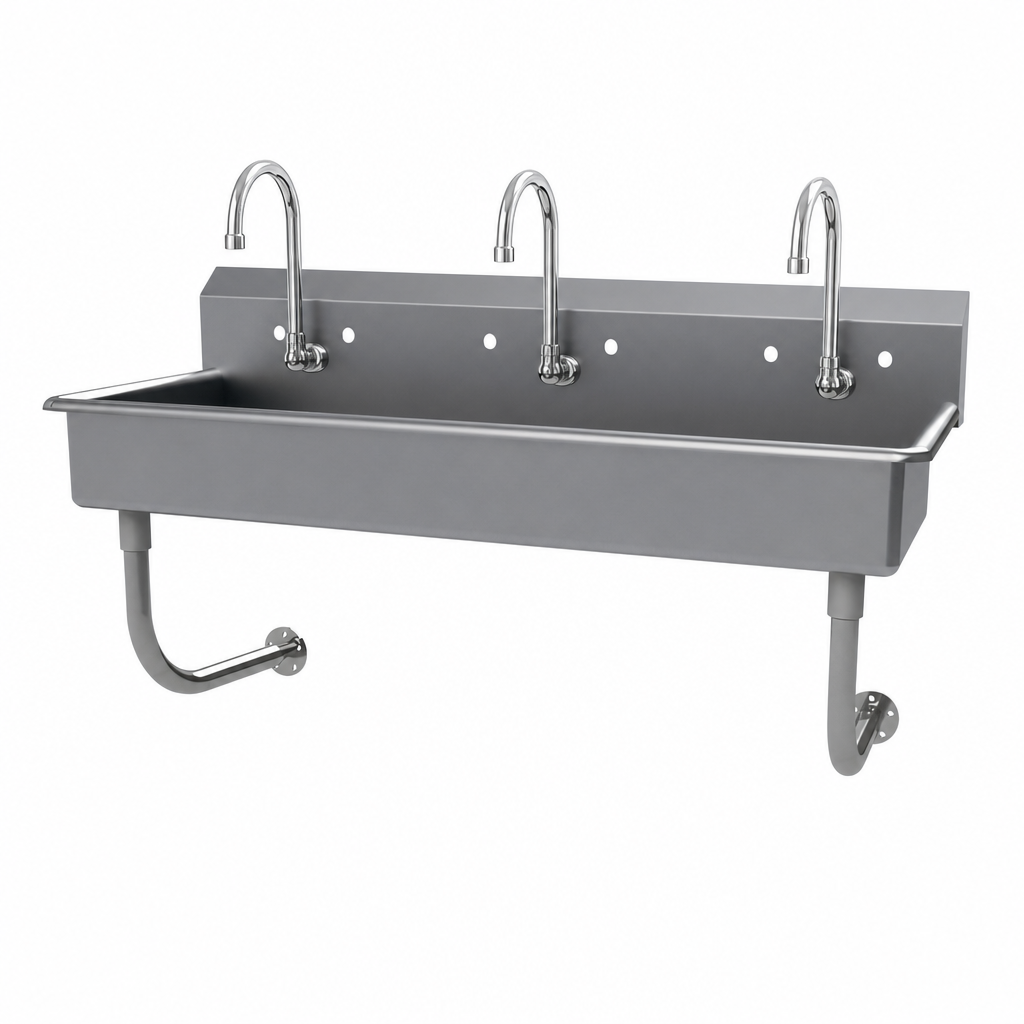

  • Includes (3) K-161-LU 8 ½" gooseneck faucets with sanitary wrist-blade handles (8" on-center).
  • Integral 8 ½" backsplash guards walls against water and soap residue.
  • Pre-punched splash with three sets of 8" O.C. faucet holes for easy faucet replacement or upgrade.
  • 3 ½" rear basket drain (K-6) included—keeps solids out of the plumbing line.
  • All TIG-welded seams blended to a smooth satin finish for easy cleaning and a professional look.
  • Heavy-gauge 304 stainless steel resists corrosion, dents and harsh cleaners.
  • Stainless “Z” wall brackets & tubular supports provide rock-solid mounting while leaving floor space clear for full accessibility.
  • NSF listed for food-service sanitation and fully ADA compliant.
Perfect For
  • Commercial kitchens & commissaries
  • Hospitals, clinics & laboratories
  • Manufacturing & warehouse wash-up areas
  • Schools, arenas & public restrooms
Specifications
Overall Width 60" / 1524 mm
Overall Depth 19 ½" / 495 mm
Overall Height 25 ½" / 648 mm (to rim)
Backsplash Height 8 ½" / 216 mm
Bowl Size (each) 16" front-to-back × 5" deep
Stations 3
Faucets Included (3) K-161-LU gooseneck w/ wrist blades, 8" O.C.
Drain Single 3 ½" rear basket (K-6)
Material / Gauge 16-ga. type 304 stainless steel
Mounting Wall mount – stainless “Z” brackets & tubular supports
Finish Satin polish
Certifications NSF Listed, ADA Compliant

Need a different length or valve style? Ask about additional Advance Tabco multi-station sink models and custom fabrication options.

California Proposition 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov .

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

60.0in

Depth

19.5in

Shipping Weight

87.0lbs

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, includes (3) faucets with wrist blades, 60"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (3) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
