Advance Tabco  |  SKU: FC-WM-40KV  |  UPC: 747545211248

Advance Tabco FC-WM-40KV Hand Sinks

$3,168.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

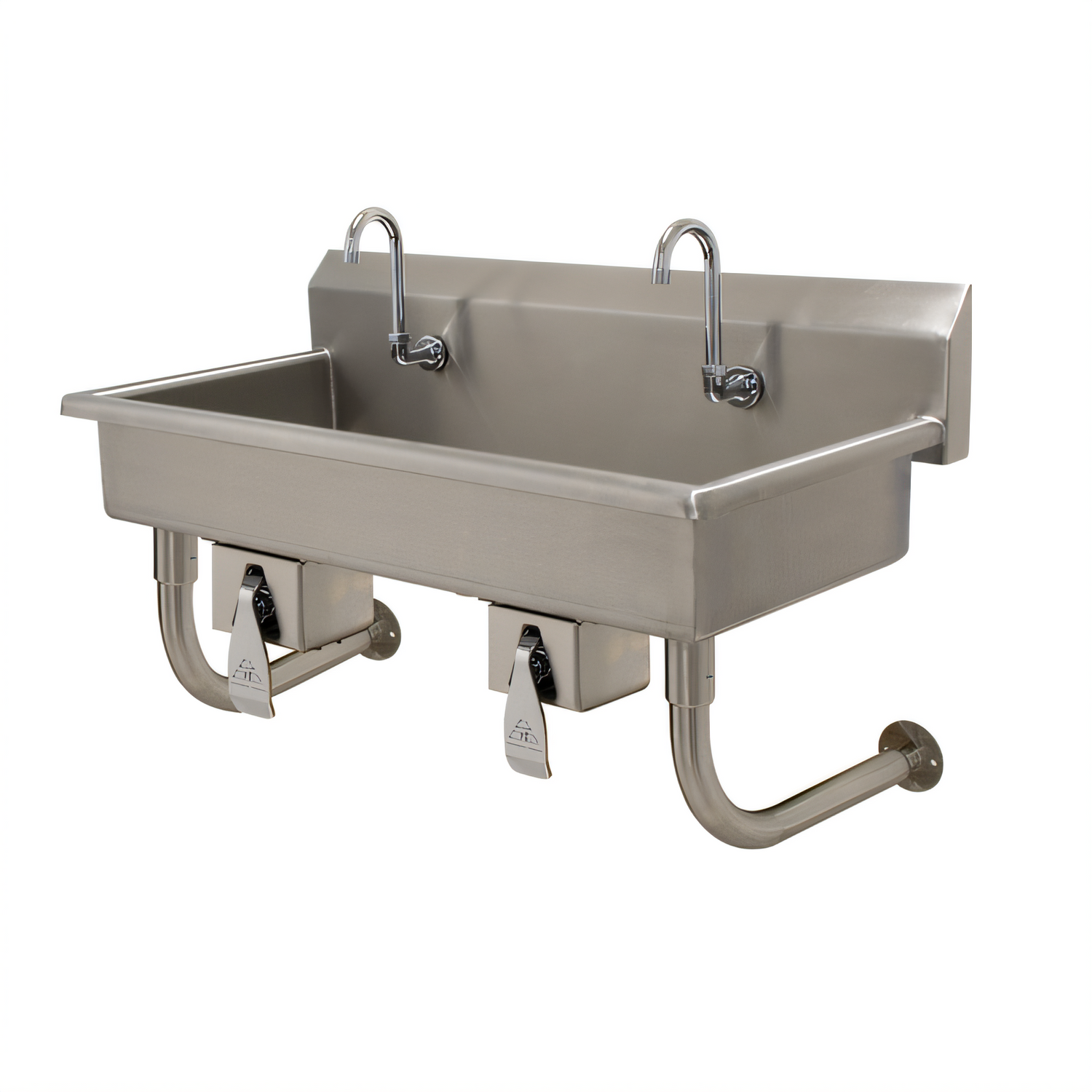

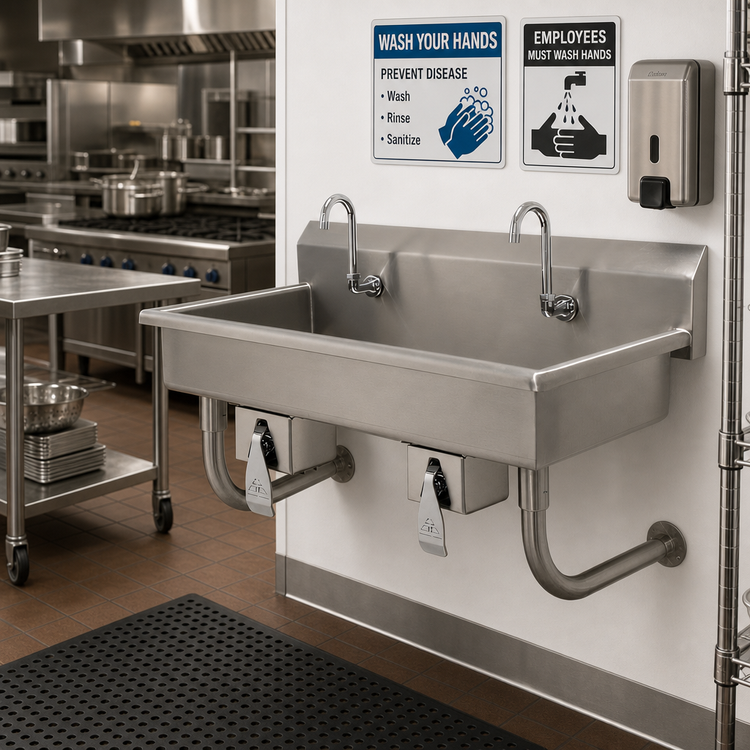

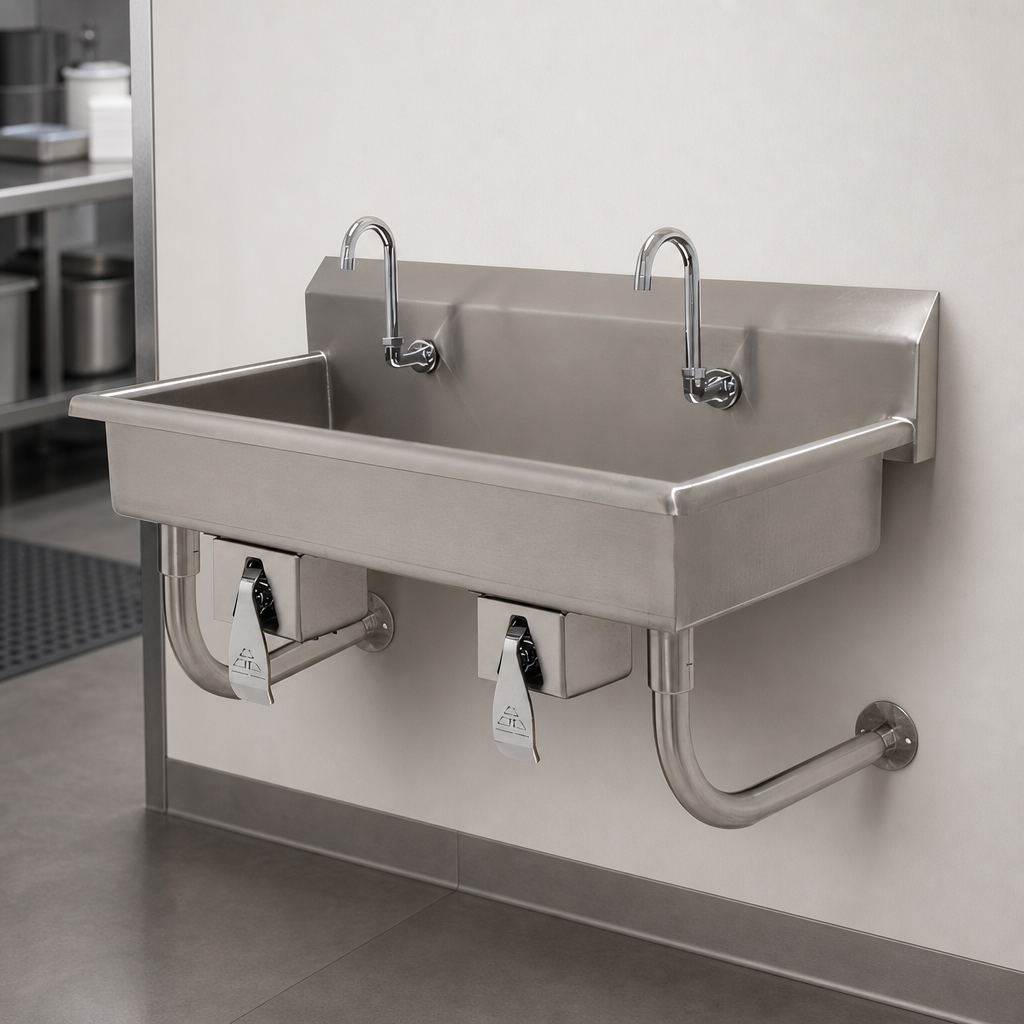

Advance Tabco 40″ Knee-Operated Multi-Wash Hand Sink

Model FC-WM-40KV | 2-Station | NSF Listed

Built for high-volume hand-washing in commercial kitchens, laboratories and industrial settings, this wall-mounted Advance Tabco sink delivers hands-free hygiene, heavy-duty durability and full NSF compliance in a compact 40 inch footprint.

Highlights

  • Hands-free knee valve activation keeps hands clear of contaminated surfaces.
  • Two gooseneck spouts with single-hole splash-mount configuration.
  • 8-½″ high backsplash protects walls and contains splashes.
  • 16 gauge, type 304 stainless steel sink body with satin finish.
  • TIG-welded seams blended for a smooth, easy-to-sanitize surface.
  • Wall-mount “Z” brackets plus tubular stainless steel support braces for unobstructed floor clearance.
  • Includes 3-½″ K-6 rear basket drain and mounting hardware.
  • NSF certified for foodservice hand-wash stations.

At-a-Glance Specifications

Overall width 40″ (1016 mm)
Overall depth 19-½″ (495 mm)
Overall height 29-½″ (749 mm) to top of backsplash
Bowl size (each) 16″ front-to-back × 8″ deep
Number of stations 2
Backsplash height 8-½″
Faucet holes (2) single holes, 4″ OC, splash-mount
Faucet style Gooseneck spouts (K-121)
Operation Knee-operated mixing valves (7-PS-32)
Drain 3-½″ K-6 rear basket drain (included)
Material & gauge 16 ga 304 stainless steel sink & supports
Mounting type Wall mounted with stainless “Z” brackets
Compliance NSF, lead-free components

What’s Included

  • 40″ two-station sink assembly
  • (2) Knee valves with built-in tempering mixers
  • (2) Gooseneck spouts
  • (1) 3-½″ rear basket drain
  • (2) Stainless steel wall “Z” brackets
  • Tubular stainless steel wall supports & hardware

Installation Notes

  • Mount brackets to studded or masonry wall at 42-½″ AFF to top of bracket.
  • Connect ⅜″ hot & cold supplies to knee valves; outlet lines run to each spout.
  • Installer responsible for local plumbing code compliance.

Advance Tabco continually improves products; specifications are subject to change without notice.

California Prop 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

40.0in

Depth

19.5in

Shipping Weight

82.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
