Advance Tabco  |  SKU: FC-WM-40EFADA  |  UPC: 747545211651

Advance Tabco FC-WM-40EFADA Hand Sinks

$3,825.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation manual 2 Troubleshooting manual
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

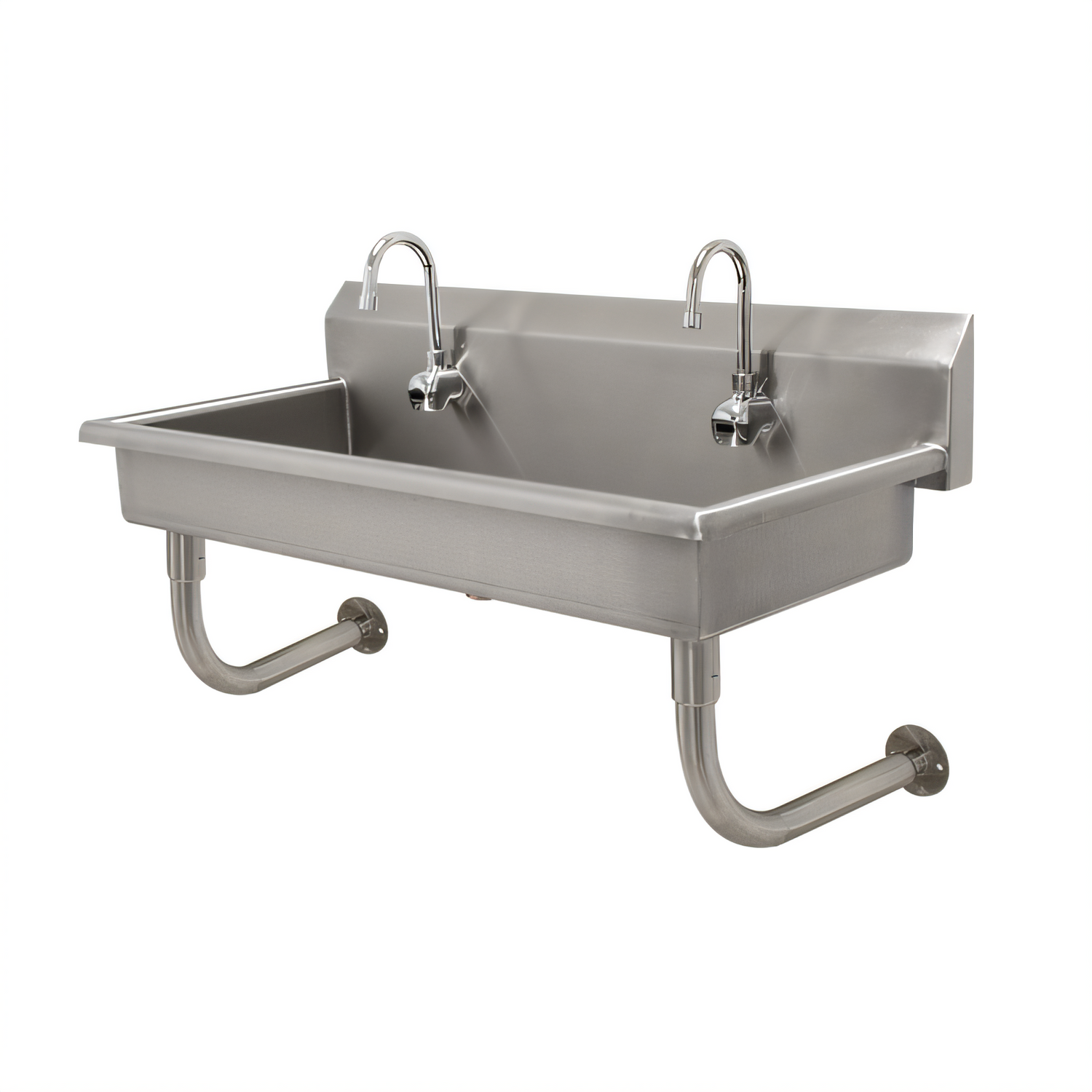

Advance Tabco FC-WM-40-EFADA Multi-Wash Hand Sink

40" Wall-Mounted, 2-Station | Dual Hands-Free Electronic Faucets | NSF & ADA Compliant

Give staff and guests a fast, hygienic way to wash up. Built from heavy-gauge 304 stainless steel and equipped with splash-mounted, sensor-activated faucets, this two-station advance Tabco sink combines rugged durability with touch-free convenience that meets today’s toughest safety and accessibility standards.

Key features

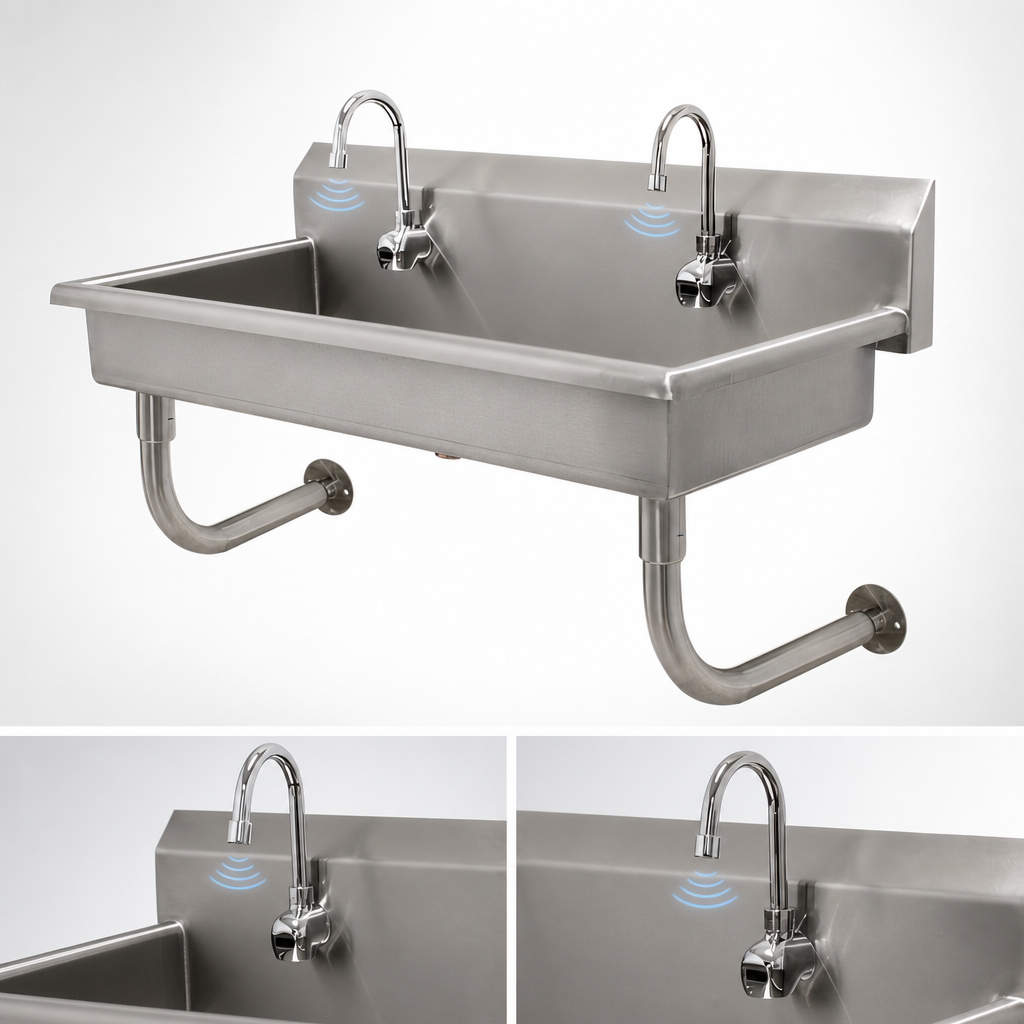

  • (2) K-175 electronic splash-mount faucets provide hygienic, hands-free operation (2.2 GPM aerators; low-flow 0.5 GPM available).
  • ADA-compliant 5" deep, 16" front-to-back bowl for comfortable wheelchair access.
  • 8-1/2" integral backsplash is pre-punched with single faucet holes to contain splatter and speed installation.
  • 3-1/2" K-6 rear basket drain keeps plumbing clear of the user zone.
  • 16 ga. type 304 stainless steel throughout—TIG welded, blended and polished to a satin finish.
  • 1-5/8" tubular stainless steel wall supports and factory-installed “Z” brackets give full knee clearance beneath the sink.
  • Includes UL-listed 100–240 VAC power adapter and solenoid control box for each faucet.
  • Conforms to NSF/ANSI 61 & 9 (lead-free) and holds full NSF listing for food-service use.

At-a-glance specifications

Model FC-WM-40-EFADA
Stations / Faucets 2
Overall size 40" W × 19-1/2" D × 25-1/2" H (to top of backsplash)
Bowl size 16" front-to-back × 5" deep (continuous trough style)
Backsplash height 8-1/2"
Drain (1) 3-1/2" rear basket drain included
Material thickness 16 ga. (0.062")
Mounting style Wall-mounted, tubular S/S supports & “Z” brackets
Power requirement 100–240 VAC, <1 A (adapter supplied)
Certifications NSF, ADA, Lead-Free (NSF/ANSI 61 / 9)

Perfect for

  • Commercial kitchens & commissaries
  • Food processing & packaging lines
  • Healthcare & laboratory wash rooms
  • School, stadium & arena concessions
Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Specifications subject to change without notice. Images may show optional accessories.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.5in

Shipping Weight

62.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Style

wall mounted

Bowl Width (left to right)

20" & up

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (2) electronic faucets, 40"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF, ADA compliant
