Advance Tabco  |  SKU: FC-WM-40EF  |  UPC: 747545211231

Advance Tabco FC-WM-40EF Hand Sinks

$3,869.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Installation & operation Parts list Installation manual 2
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

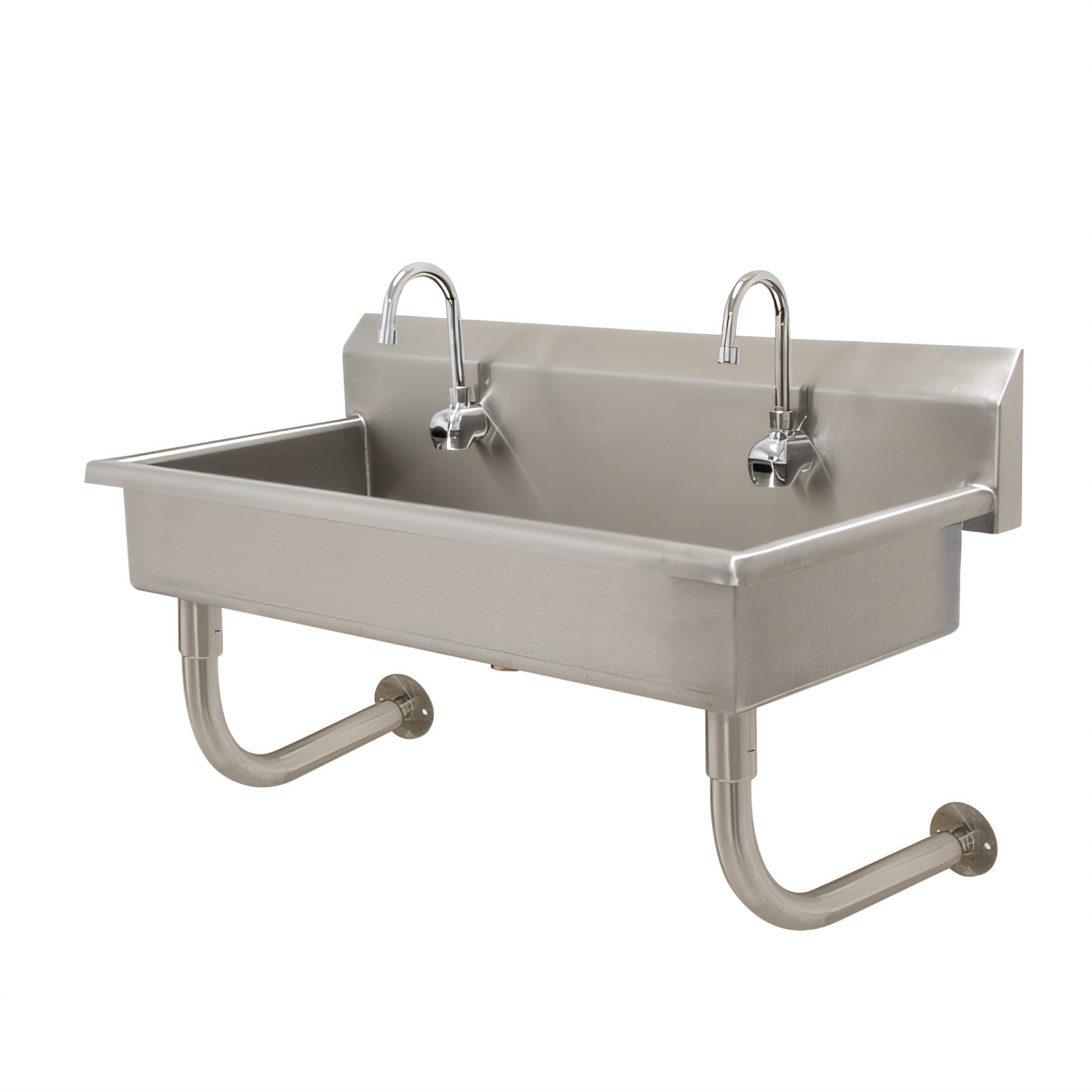

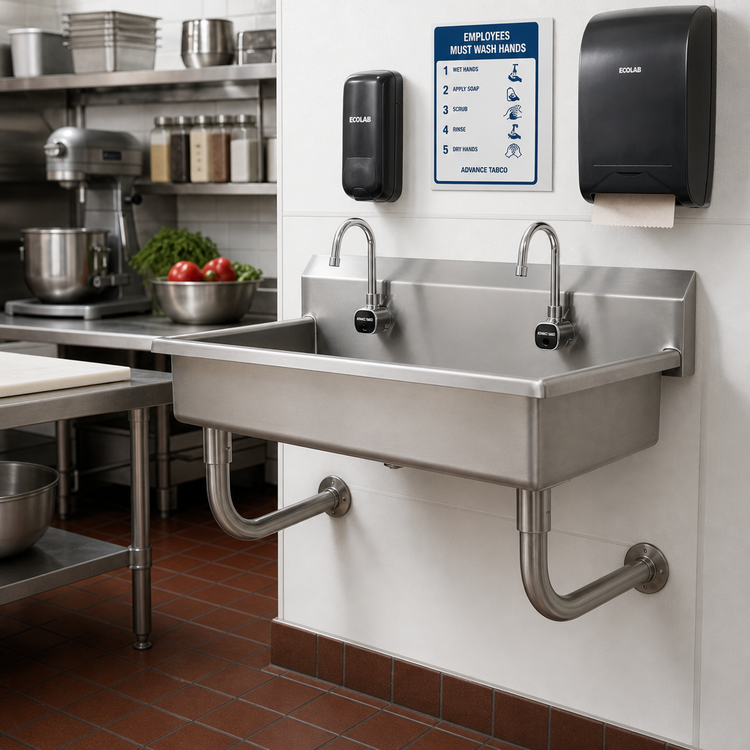

Advance Tabco FC-WM-40EF Two-Station Electronic Wall-Mounted Hand Sink

40" multi-wash sink  |  16-gauge 304 stainless steel  |  NSF listed

Built for high-volume, hygiene-critical environments, this two-user Advance Tabco hand sink pairs heavy-duty stainless-steel construction with touch-free K-175 sensor faucets to keep cross-contamination in check while standing up to years of commercial abuse.

Key Features

  • Hands-free K-175 electronic splash-mount faucets (2 included) with 2.2 GPM swing spouts and adjustable mixing valves.
  • 40" wide shared bowl, 16" front-to-back and 8" deep—ample space for two users at once.
  • 8-1/2" high backsplash contains splashes and arrives pre-punched with single-hole mounts for each faucet.
  • All TIG-welded 16-gauge type 304 stainless steel with a sanitary satin finish.
  • 3-1/2" K-6 rear basket drain included for quick, code-compliant installation.

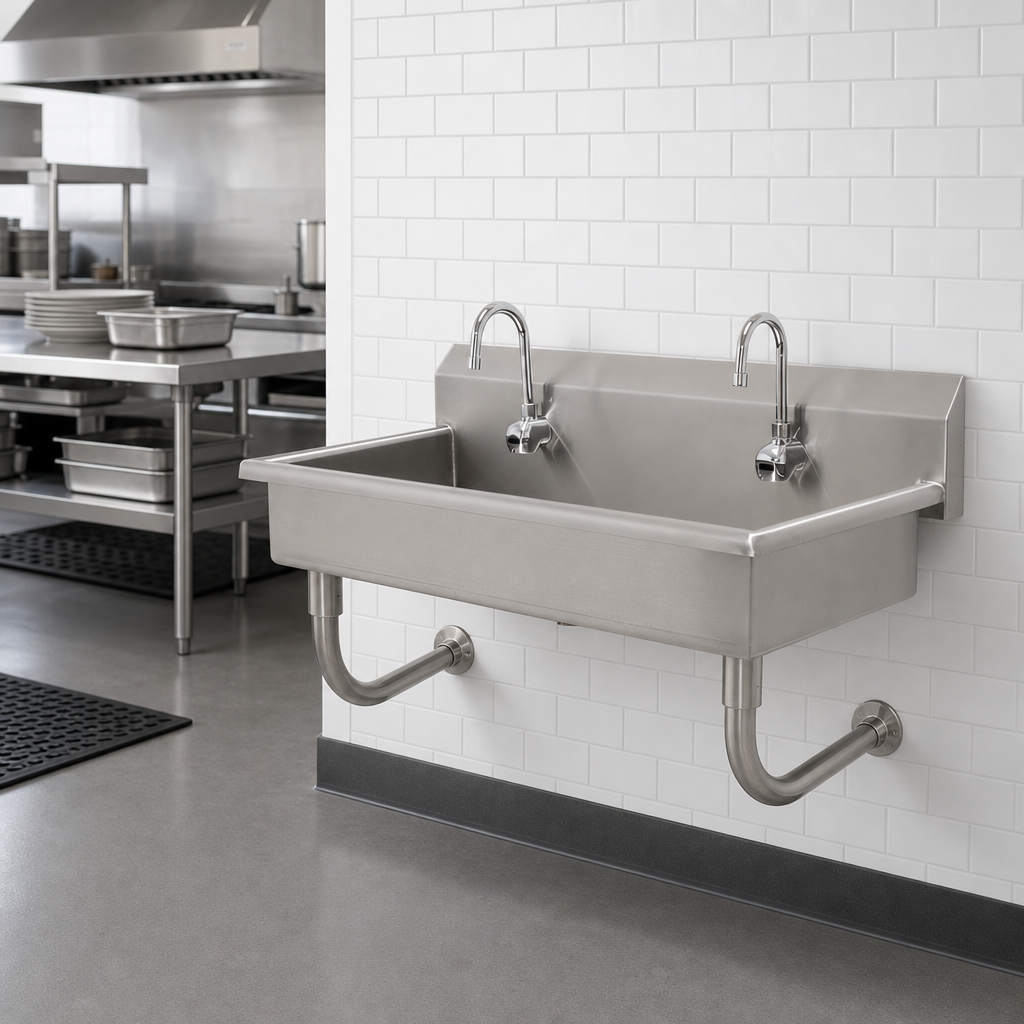

  • Stainless steel “Z” wall brackets and 1 ⅝" tubular front supports provide full knee clearance.
  • NSF certified for hand-washing stations in food-service and laboratory settings.

Ideal Uses

  • Restaurant & institutional kitchens
  • Food-processing & packaging lines
  • Breweries, dairies & beverage plants
  • Laboratories & clean rooms
  • Industrial assembly areas

Specifications

Model FC-WM-40EF
Number of stations 2
Overall dimensions 40" W × 19-1/2" D × 29-1/2" H
Bowl size 40" W × 16" F-B × 8" D (shared basin)
Backsplash height 8-1/2"
Material 16-gauge type 304 stainless steel
Faucets (2) K-175 sensor-activated, splash-mount, 2.2 GPM
Drain 3-1/2" K-6 rear basket drain
Mounting Wall—stainless “Z” brackets & tubular supports
Compliance NSF, UL (faucet control box), Lead-free (NSF/ANSI 61/9)
Approx. shipping weight 65 lb

Power: Universal 100–240 VAC adapter (included) connects to the UL-listed solenoid control box mounted beneath the sink.

What’s in the Box

  • Advance Tabco FC-WM-40EF sink body
  • (2) K-175 hands-free faucets with control boxes & power adapters
  • (1) 3-1/2" K-6 rear basket drain assembly
  • Stainless steel “Z” wall brackets & tubular front supports
  • Installation hardware & instructions
California Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Advance Tabco reserves the right to modify product design and specifications without notice.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

40.0in

Depth

19.5in

Shipping Weight

65.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (2) electronic faucets, 40"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
