Advance Tabco FC-WM-40-ADA Hand Sinks
Description

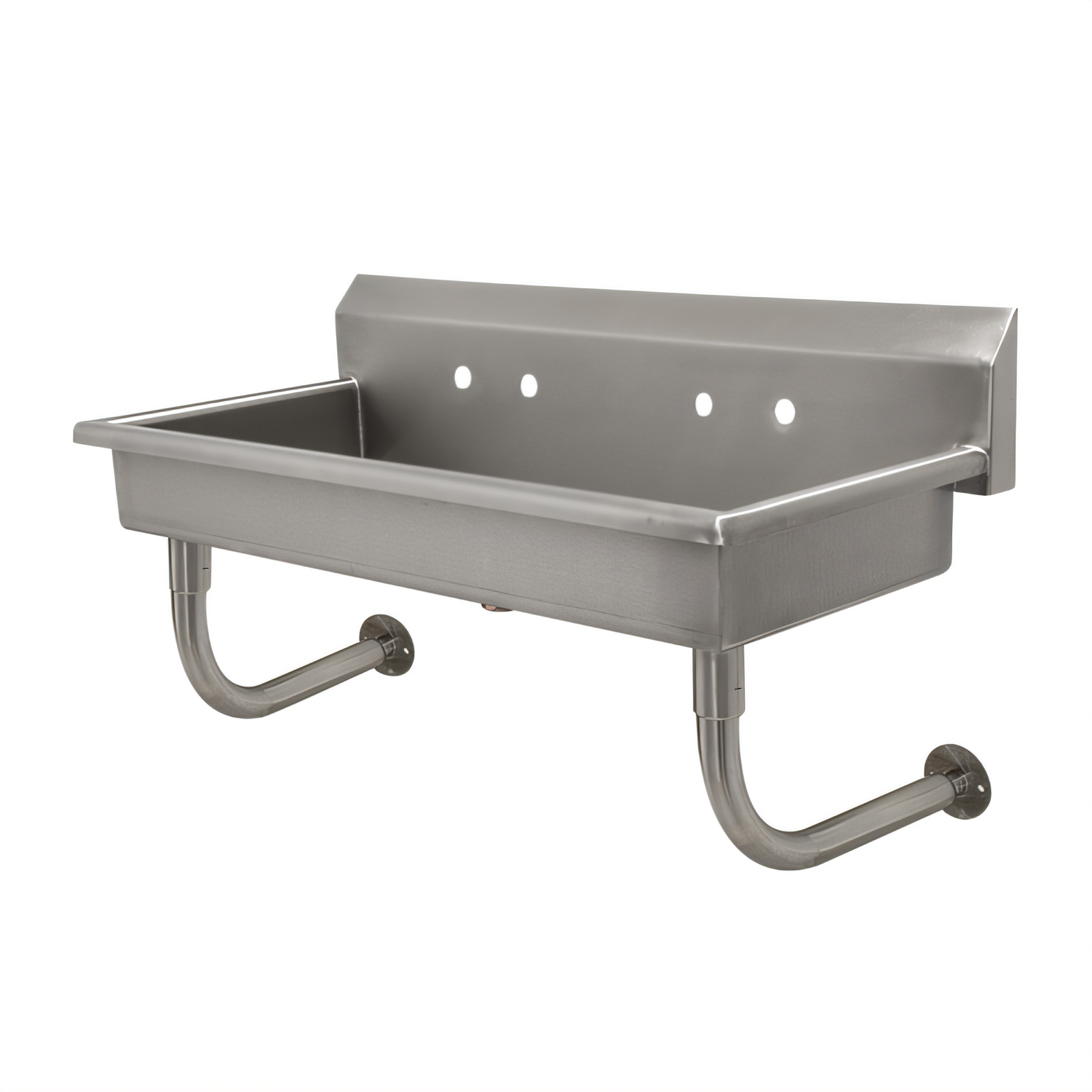

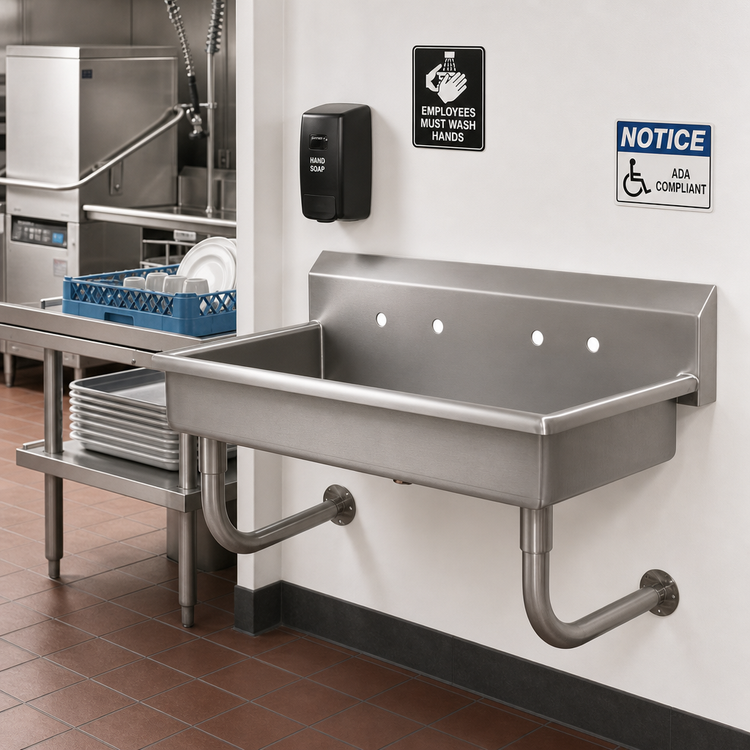

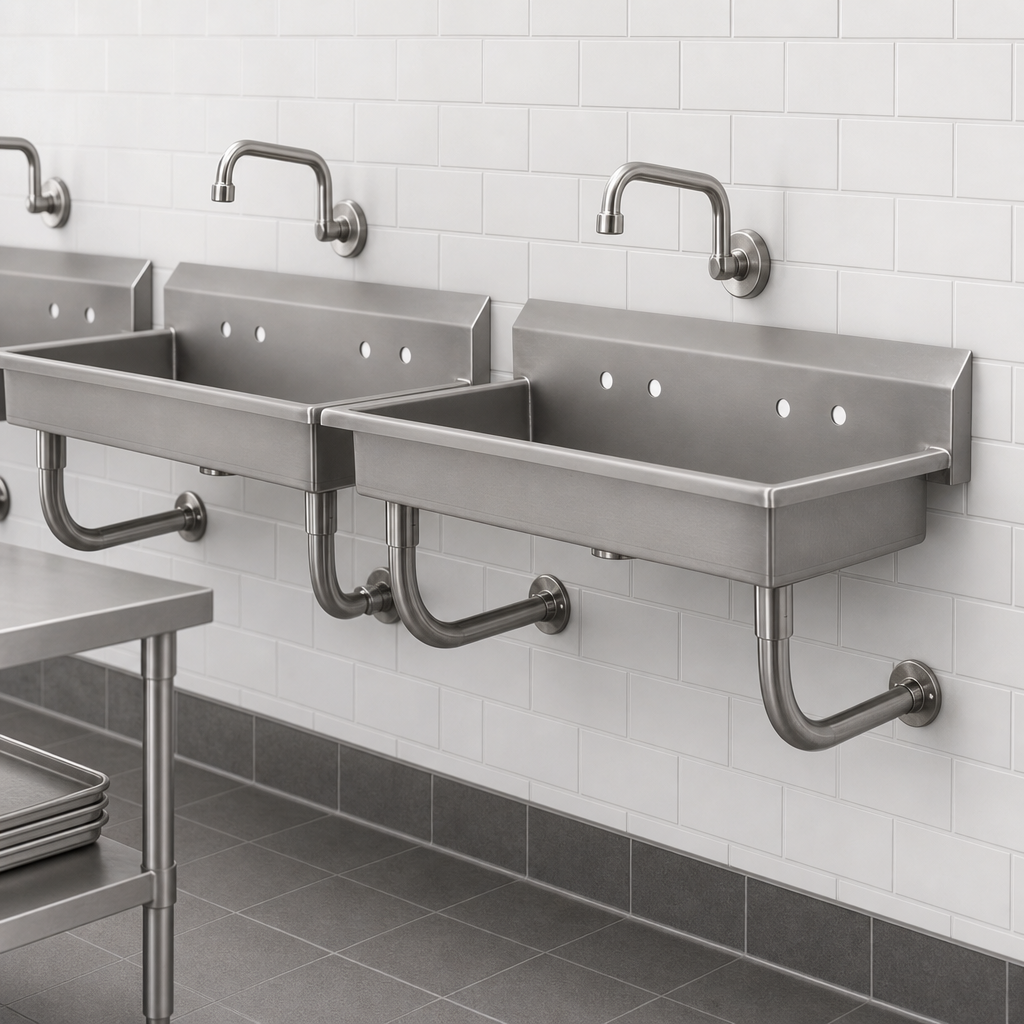

Advance Tabco 40" ADA Multi-Wash Hand Sink – Wall Mounted, 2-Station
Model: FC-WM-40-ADA (faucets sold separately)Engineered for high-traffic hand-washing in commercial environments, this 40" Advance Tabco multi-station sink combines space-saving wall mounting with full ADA compliance. Heavy-duty 16 gauge, type 304 stainless steel and TIG-welded seams deliver the durability and hygiene you need for kitchens, labs, and manufacturing wash areas.
Key Features
- Two user stations – perfect for compact prep areas or production lines
- ADA compliant 5" deep bowl provides required knee clearance
- 16 gauge 304 stainless steel with satin finish resists corrosion and cleans fast
- 8 ½" integral backsplash keeps surrounding walls dry and sanitary
- Punched with two sets of 8" on-center faucet holes (splash-mount faucets not included)
- 3 ½" K-6 rear basket drain supplied for simple plumbing hook-up
- Stainless steel “Z” wall brackets and 1 ⅝" tubular supports give full under-sink clearance
- NSF listed for foodservice use
At-a-Glance Specifications
| Overall width | 40" (1016 mm) |
|---|---|
| Overall depth | 19 ½" (495 mm) |
| Overall height | 25 ½" (648 mm) to top of backsplash |
| Bowl size (each) | 16" front-to-back × 14" left-to-right × 5" deep |
| Backsplash height | 8 ½" |
| Number of stations | 2 |
| Faucet holes | (2) sets, 8" O.C., 1 ⅛" dia. |
| Drain size / location | 3 ½" basket drain, rear-mounted |
| Material / gauge | 304 stainless steel, 16 ga. |
| Mounting hardware | Stainless “Z” brackets & tubular wall supports (included) |
| Compliance | NSF & ADA |
| Approx. ship weight | 62 lb |
Ideal Applications
- Restaurant & institutional kitchens
- Food & beverage production lines
- Clean rooms and laboratories
- School, stadium & arena concession areas
Advance Tabco reserves the right to modify design or dimensions without notice. Need a different length or depth? Ask us about custom Smart Fabrication options.
