Advance Tabco  |  SKU: FC-WM-2219KV  |  UPC: 747545211897

Advance Tabco FC-WM-2219KV Hand Sinks

$1,712.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

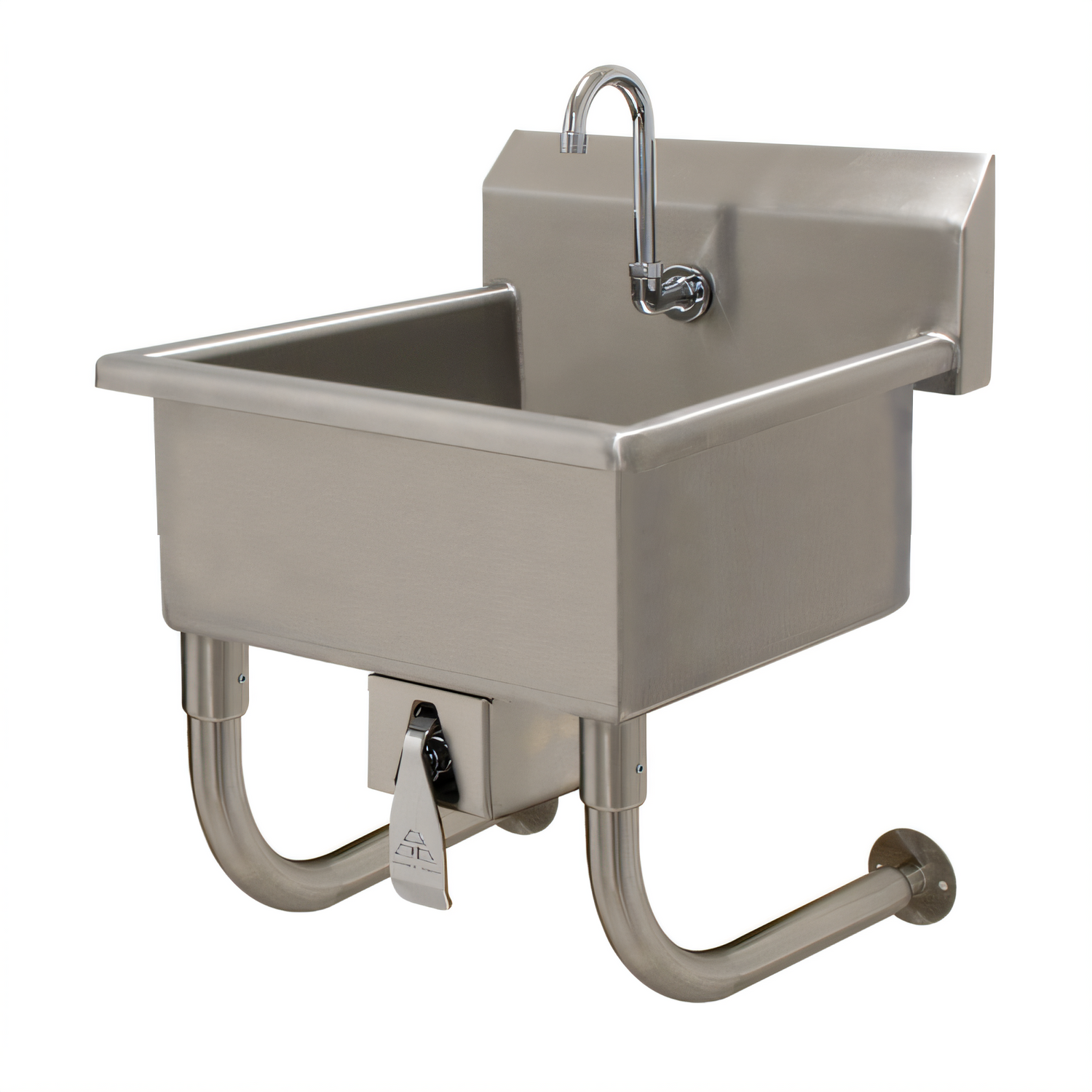

Advance Tabco FC-WM-2219KV Knee-Operated Service Sink

Wall-Mounted • 20" W x 19-1/2" D x 8" Bowl Depth • NSF

Built for the toughest janitorial, food-service and maintenance environments, the FC-WM-2219KV delivers hands-free operation, rock-solid 16-gauge stainless steel construction and full under-sink clearance in a compact, wall-mounted footprint.

Key Features

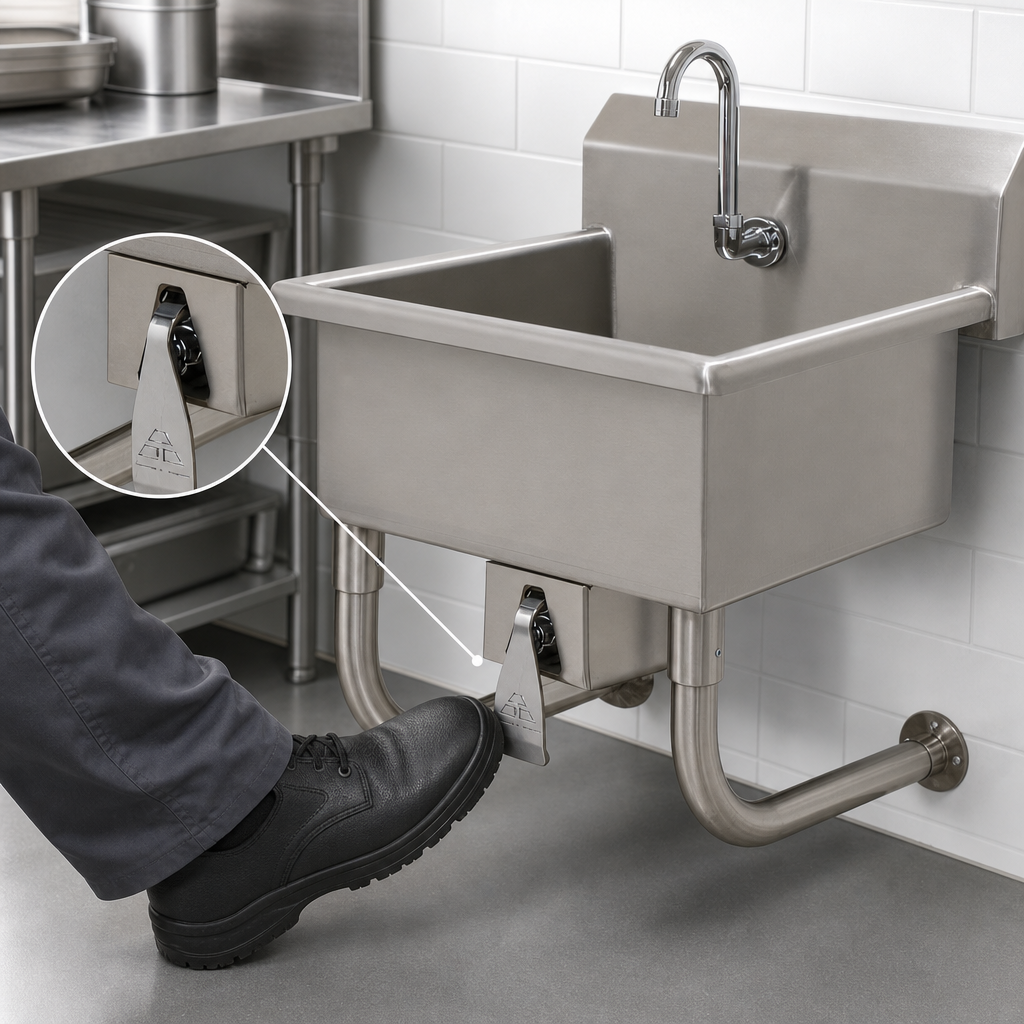

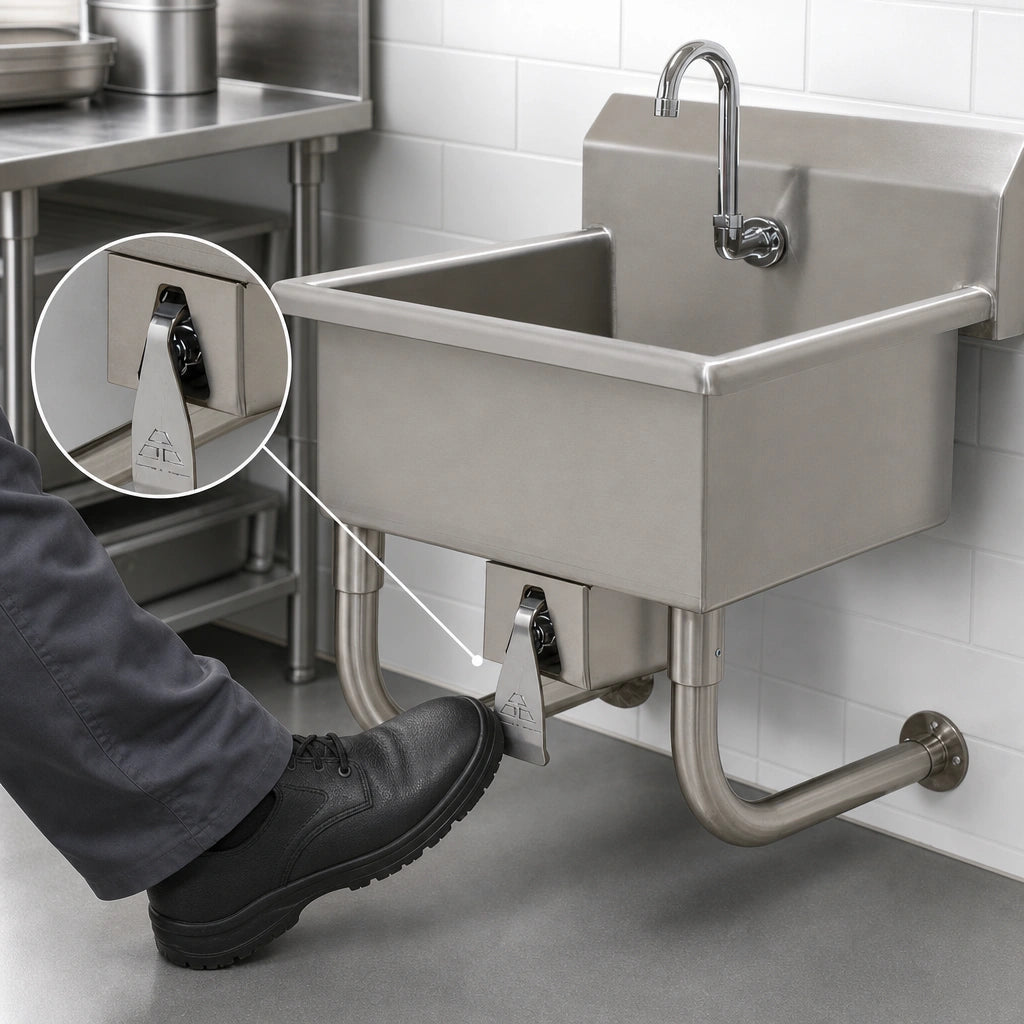

  • Hands-free 7-PS-32 knee valve minimizes cross-contamination.
  • Single 3-1/2" splash-mount faucet hole with included K-121 gooseneck spout.
  • 8-1/2" high integral backsplash helps contain overspray and protects walls.
  • Deep 8" bowl forged from heavy 16-ga, type 304 stainless steel for maximum durability.
  • TIG-welded seams blended to a sanitary satin finish.
  • Die-formed 1-5/8" tubular wall brackets plus stainless gussets provide rigid support and leave the floor completely open for easy cleaning.
  • Includes K-6 1-1/2" basket drain & strainer plate.
  • NSF listed; faucets meet NSF/ANSI 61 & AB 1953 lead-free standards.

At-a-Glance Specifications

Model # FC-WM-2219KV
Mounting Type Wall mount with “Z” bracket & tubular supports (hardware included)
Overall Dimensions Approx. 23" W x 23" D*
Usable Bowl Size 20" W x 19-1/2" D x 8" deep
Backsplash Height 8-1/2"
Material / Gauge 16-ga type 304 stainless steel
Faucet Provision (1) single-hole, splash-mount – gooseneck spout included
Valve Type Knee-operated mixing valve (7-PS-32)
Drain K-6 1-1/2" basket drain & strainer
Net Weight 62 lb
Certifications NSF, Lead-Free (NSF/ANSI 61/9, AB 1953)

*All dimensions are typical; ±0.5" tolerance per manufacturer.

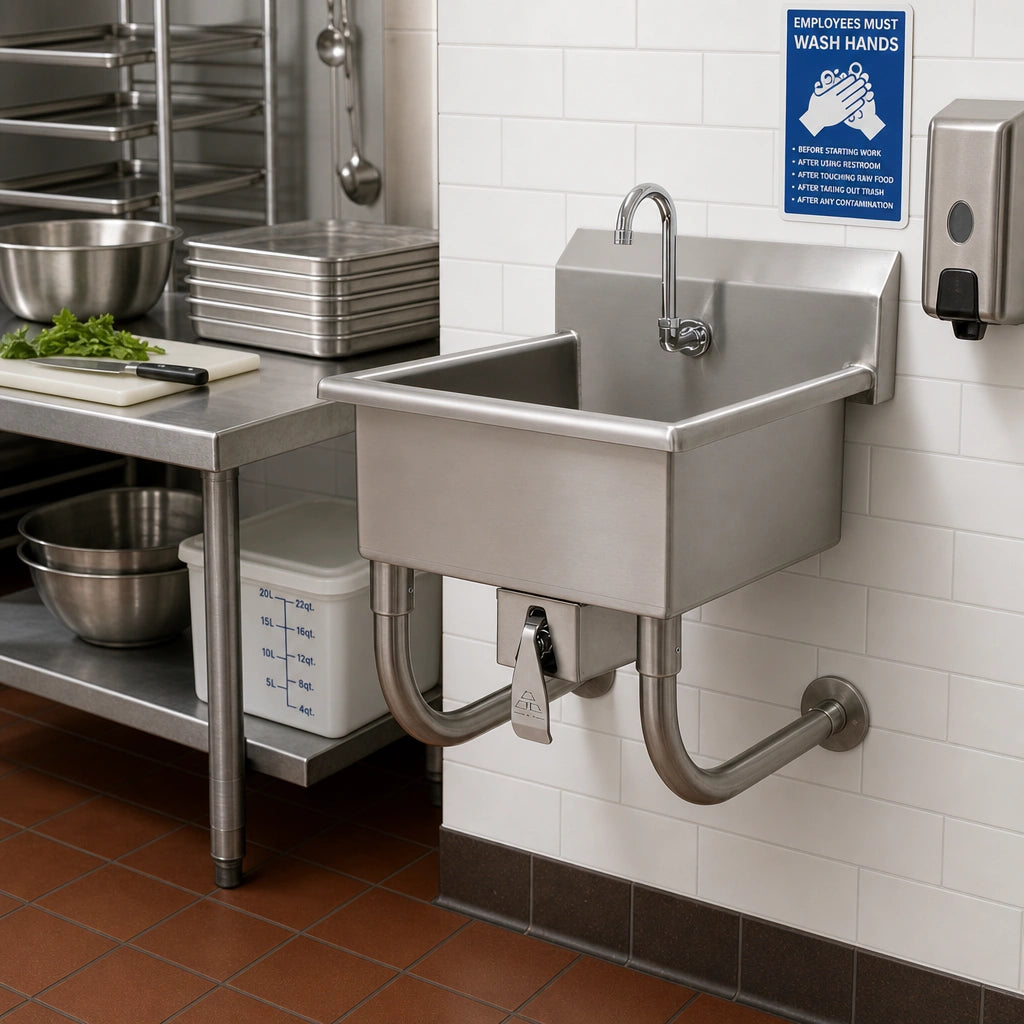

Ideal Applications

  • Janitorial & custodial closets
  • Commercial kitchens & dish rooms
  • Healthcare and laboratory service areas
  • Maintenance shops & utility rooms

What’s Included

  • Service sink with integrated backsplash
  • (2) Stainless steel tubular wall supports & “Z” mounting bracket
  • 7-PS-32 knee valve assembly
  • K-121 gooseneck spout
  • K-6 1-1/2" basket drain with strainer plate
  • Installation instructions
California Prop 65 Notice: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit p65warnings.ca.gov.

Upgrade your facility with the Advance Tabco FC-WM-2219KV—engineered for hygiene, durability and the everyday demands of professional sanitation.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

19.0in

Width

23.0in

Depth

23.0in

Shipping Weight

62.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with knee valve, 20"W x 19-1/2"D x 8" deep bowl, 16 ga stainless steel 8-1/2"H backsplash, single faucet hole, gooseneck spout, includes 1-1/2" basket drain, stainless steel tubular wall supports, NSF
