Advance Tabco  |  SKU: FC-WM-2219EF  |  UPC: 747545211873

Advance Tabco FC-WM-2219EF Hand Sinks

$2,062.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Troubleshooting manual Installation & operation Installation manual 2 Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

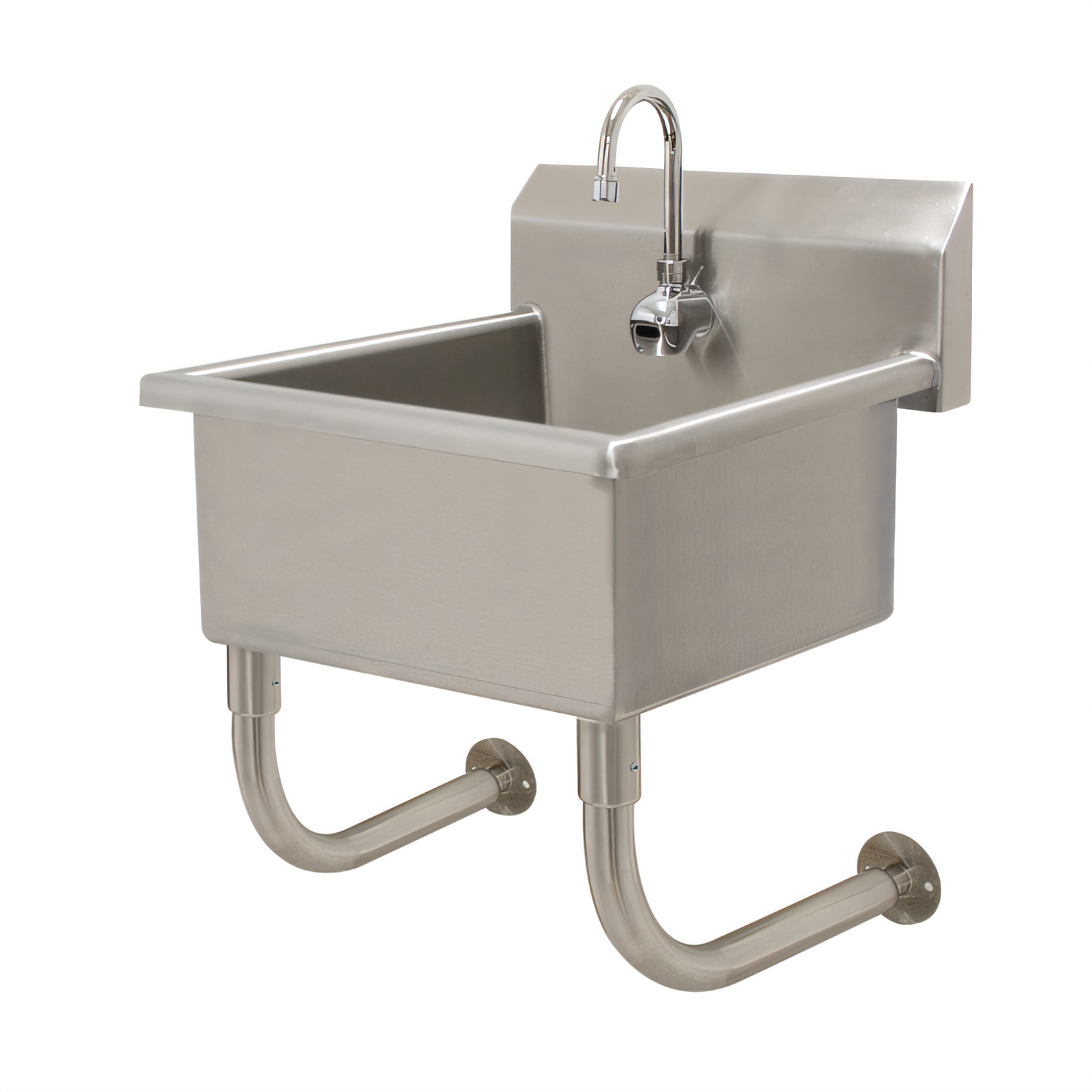

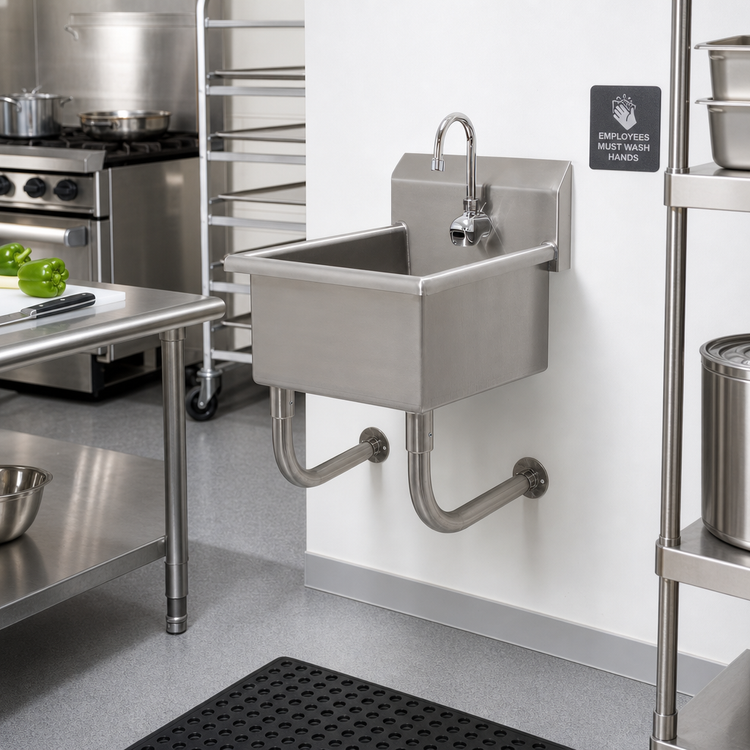

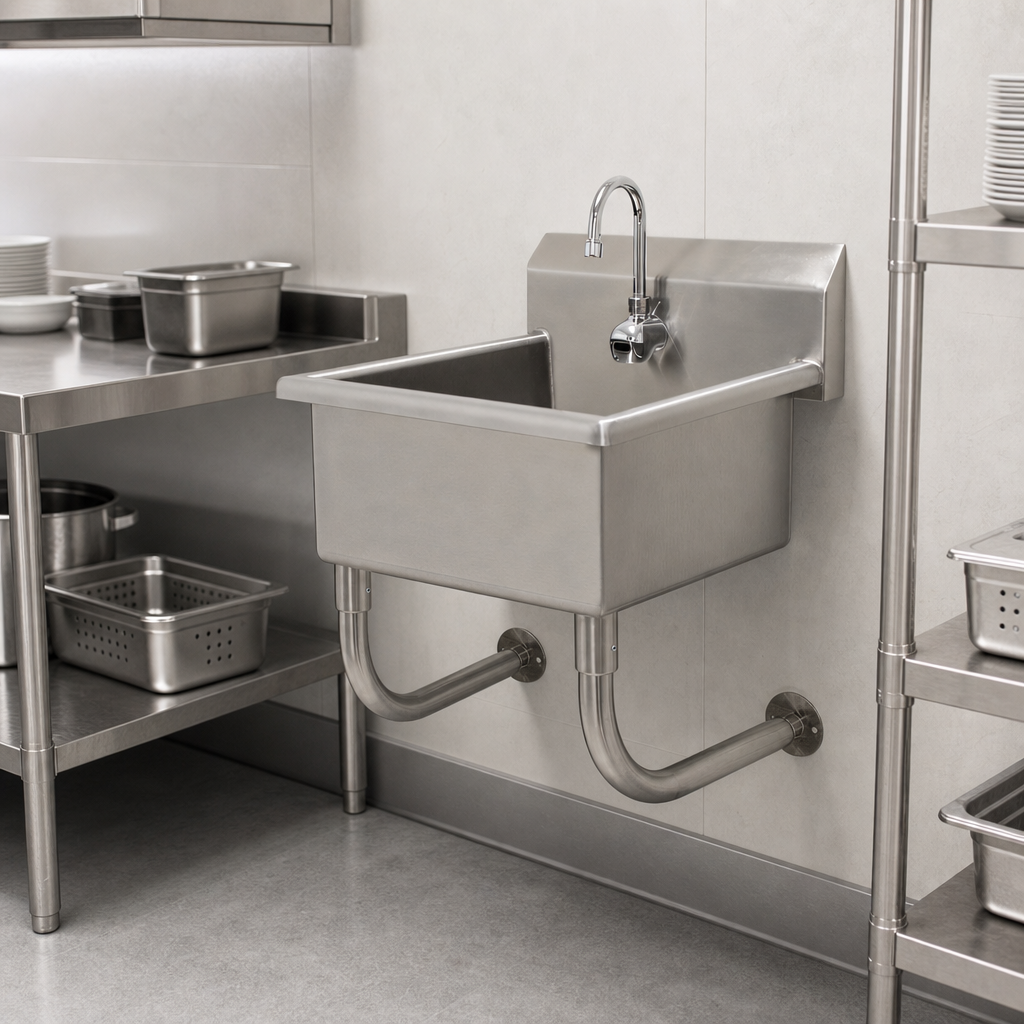

Advance Tabco Wall-Mounted Service Sink w/ Electronic Faucet – 20" x 19-1/2" Bowl

Model FC-WM-2219EF | NSF Listed

Built for the toughest janitorial, food-service and facility-maintenance tasks, this one-station service sink pairs heavy-duty 16-gauge stainless steel construction with a hygienic, hands-free electronic faucet. Full wall clearance keeps floors unobstructed and easy to clean.

Key Features

  • Spacious 20" W x 19-1/2" D x 10" deep bowl contains mop buckets and bulky equipment.
  • 8-1/2" integral backsplash shields surrounding walls from splatter.
  • K-175 splash-mounted electronic faucet delivers touch-free operation  (2.2 GPM aerator included).
  • Factory-punched single faucet hole simplifies installation.
  • Rugged TIG-welded 16-ga. type 304 stainless steel resists corrosion and chemical cleaners.
  • Includes K-6 1-1/2" basket drain with removable strainer plate.
  • Two 1-5/8" tubular stainless steel wall supports provide rock-solid stability and full floor clearance.
  • Supplied stainless steel “Z” bracket for quick, secure wall mounting.
  • NSF certified; faucet meets NSF/ANSI 61 & AB 1953 lead-free standards.

Typical Applications

  • Custodial closets & maintenance rooms
  • Commercial kitchen dish areas & prep zones
  • Healthcare, laboratory & pharmaceutical sanitation
  • Animal care, grooming & veterinary facilities

Specifications

Manufacturer Advance Tabco
Model FC-WM-2219EF
Construction 16-ga. type 304 stainless steel, all TIG-welded
Bowl Dimensions 20" W × 19-1/2" D × 10" H
Backsplash Height 8-1/2"
Overall Width 23"
Mounting Wall-mounted with stainless steel “Z” bracket & dual tubular supports
Faucet K-175 electronic, splash-mount, single-hole, 2.2 GPM
Drain K-6 1-1/2" basket drain with strainer
Shipping Weight ≈ 52 lb
Certifications NSF Listed, Lead-Free (NSF/ANSI 61 & AB 1953)

What’s Included

  • Stainless steel wall-mounted service sink
  • K-175 electronic faucet with control box & AC adapter
  • Stainless steel “Z” wall bracket
  • (2) 1-5/8" tubular stainless steel wall supports
  • K-6 basket drain & strainer plate
  • Installation hardware & instructions
California Prop 65 Warning: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For details, visit P65Warnings.ca.gov.

Need a custom size or added accessories? Ask us about Advance Tabco Smart Fabrication™ options.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

31.5in

Width

23.0in

Depth

23.0in

Shipping Weight

52.0lbs

Bowl Height (rim to drain)

10" deep

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Faucet

faucet included

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with electronic faucet, 20"W x 19-1/2"D x 10" deep bowl, 16 ga stainless steel 8-1/2"H backsplash, single faucet hole, includes 1-1/2" basket drain, stainless steel tubular wall supports, NSF
