Advance Tabco  |  SKU: FC-WM-120KV  |  UPC: 747545211316

Advance Tabco FC-WM-120KV Hand Sinks

$6,641.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

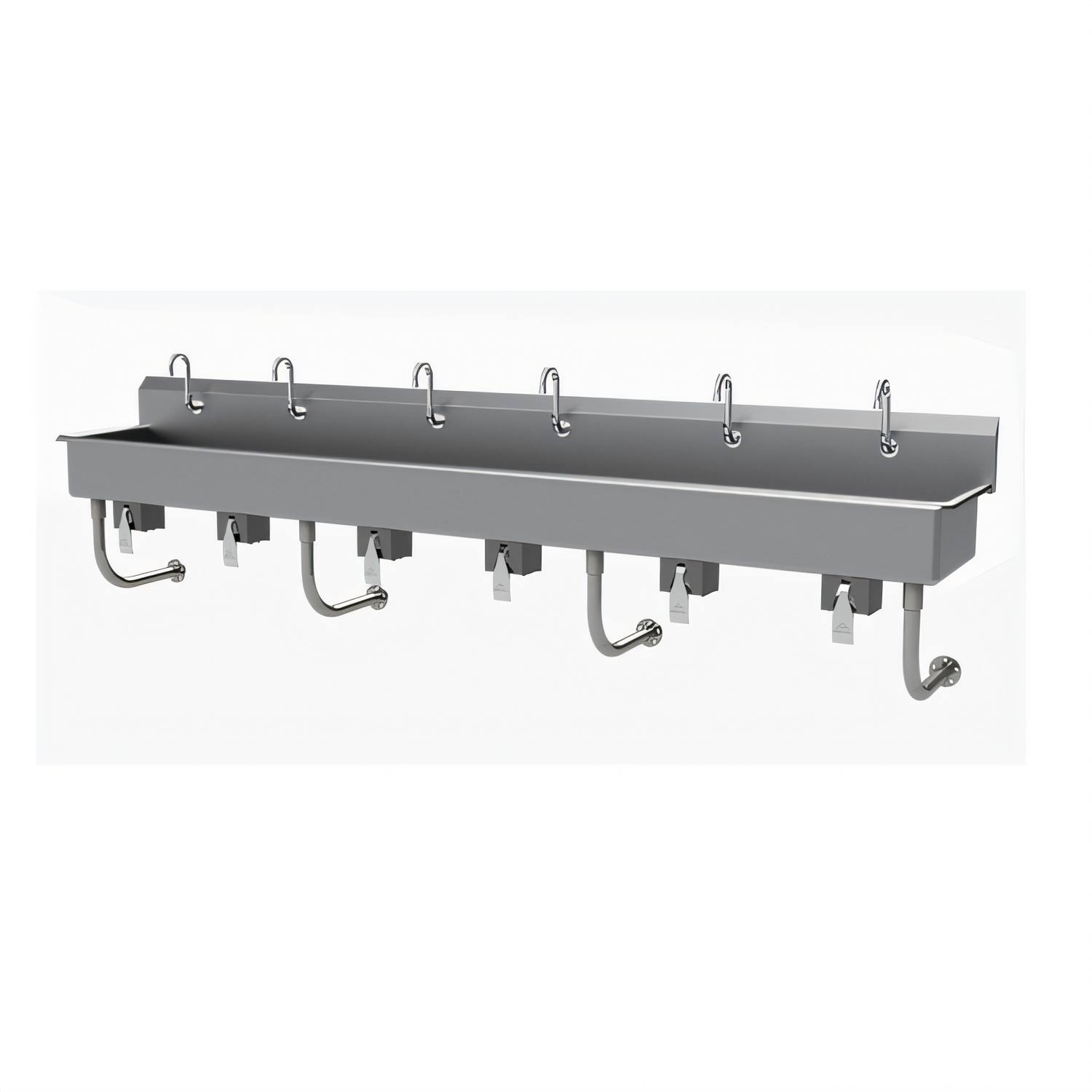

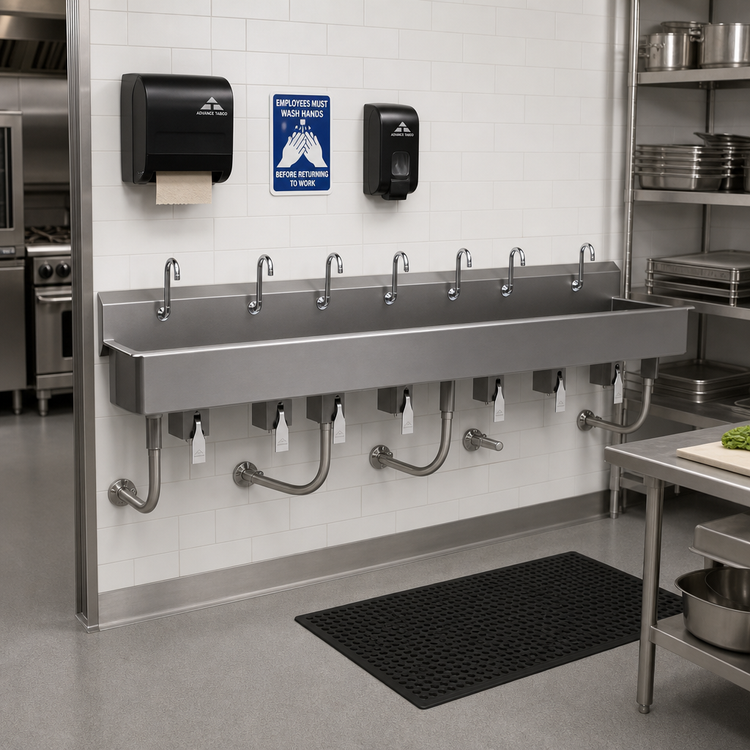

Advance Tabco FC-WM-120KV 120" Multi-Station Knee-Operated Hand Sink

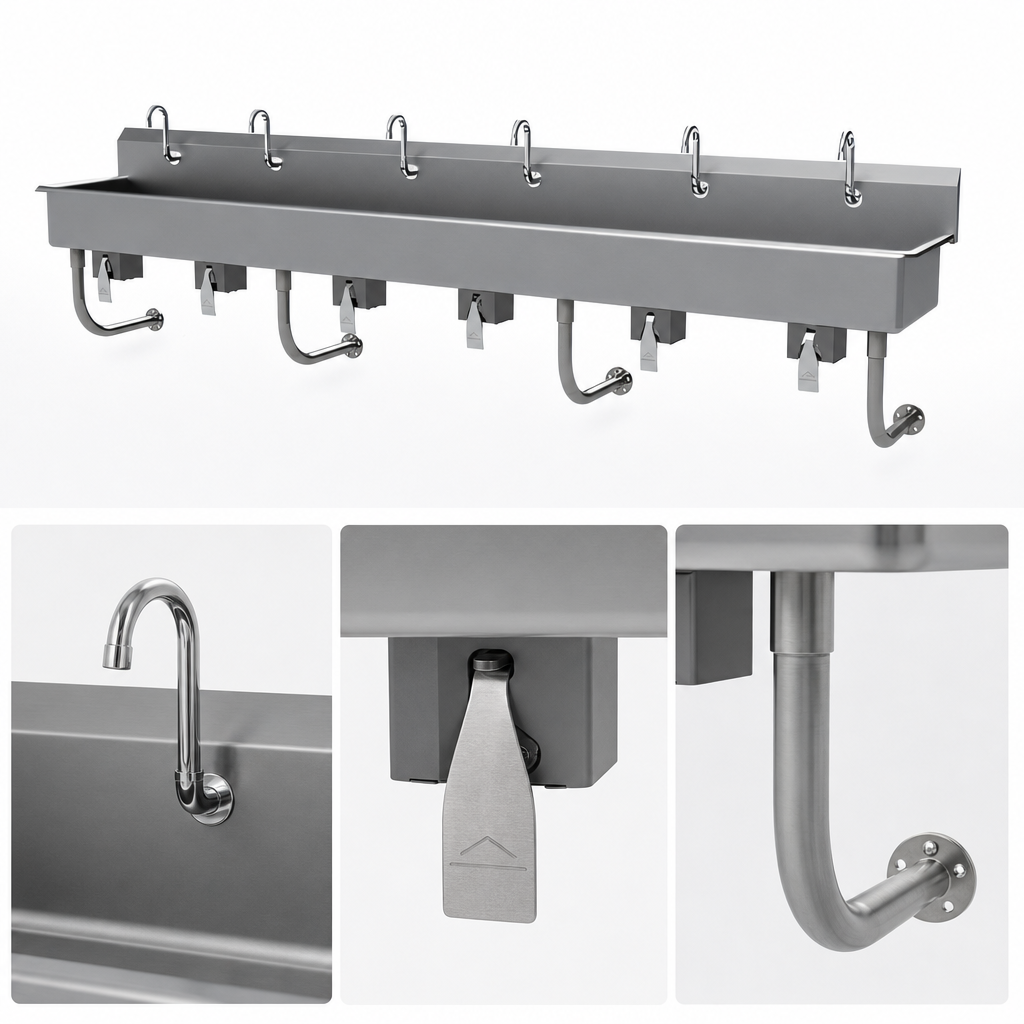

6 user stations • Wall mounted • NSF certified

Built for the busiest prep rooms, commissaries, and production lines, this 120 inch Advance Tabco multi-wash sink delivers fast, hygienic handwashing for up to six team members at once. Heavy-duty 16 ga. 304 stainless steel, full knee valve operation, and a space-saving wall mount design combine for a sanitary, code-ready solution that’s made to last.

Key benefits

  • Hands-free knee valves (one per station) activate water flow without touching the faucet.
  • 6 high-arc gooseneck spouts provide generous clearance for easy washing.
  • 8 ½" integral backsplash protects surrounding walls and simplifies clean-up.
  • Fully TIG-welded 16 ga. type 304 stainless steel stands up to daily commercial use and harsh cleaners.
  • Two tubular stainless steel wall supports & “Z” brackets keep the area below the sink completely clear.
  • Punched with 6 single faucet holes—no onsite drilling required.
  • Includes 3 ½" rear basket drain(s) to trap debris and speed installation.
  • NSF listed for safe use in foodservice, healthcare, laboratory and industrial environments.

At-a-glance specs

Model FC-WM-120KV
User stations 6
Overall width 120" (3048 mm)
Overall depth 19 ½" (495 mm)
Overall height 29 ½" (749 mm) to deck
Bowl size (each) 16" front-to-back × 8" deep
Backsplash height 8 ½"
Material / gauge 16 ga. type 304 stainless steel, satin finish
Faucet type (6) splash-mount single-hole gooseneck spouts
Valve type (6) 7-PS-32 knee valves, chrome plated, lead-free
Drains supplied (3) K-6 3 ½" stainless basket drains
Mounting hardware (2) stainless “Z” wall brackets & tubular supports (1 ⅝" Ø)
Approx. weight 198 lb
Certifications NSF, Prop 65

Ideal for

  • High-volume commercial kitchens & cafeterias
  • Food & beverage processing plants
  • Pharmaceutical, biotech, and laboratory clean rooms
  • Industrial facilities requiring multiple hand-wash points

Wall anchors, supply lines, and P-traps are field-supplied to meet local plumbing codes and site conditions.

California Prop 65 Warning: This equipment can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

120.0in

Depth

19.5in

Shipping Weight

198.0lbs

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with knee valve, 120"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
