Advance Tabco FC-WM-120EF Hand Sinks
Description

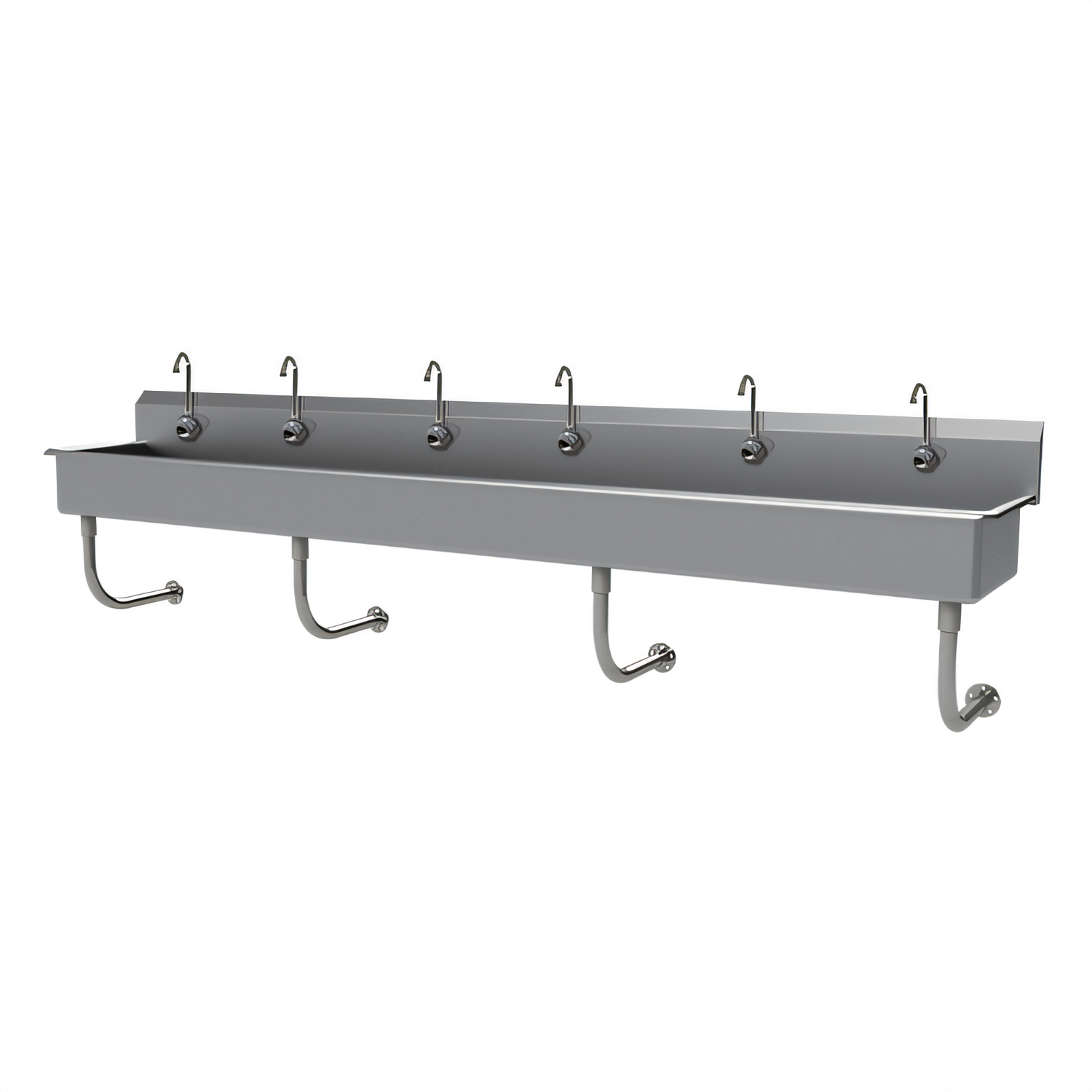

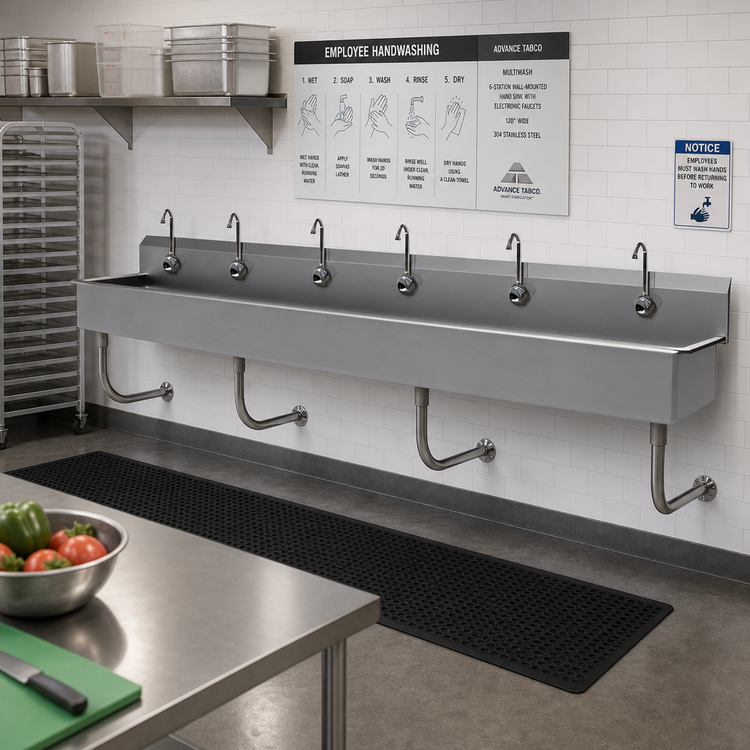

Advance Tabco 120" Multi-Wash 6-Station Electronic Hand Sink
Model FC-WM-120EF • NSF Listed • 16 ga 304 Stainless SteelEngineered for high-volume hand-washing, this wall-mounted, six-station sink pairs Advance Tabco’s heavy-duty construction with touch-free K-175 electronic faucets. From food-service prep lines to industrial facilities, it delivers a hygienic, space-saving solution that keeps traffic moving and floors clear.
Why You’ll Love It

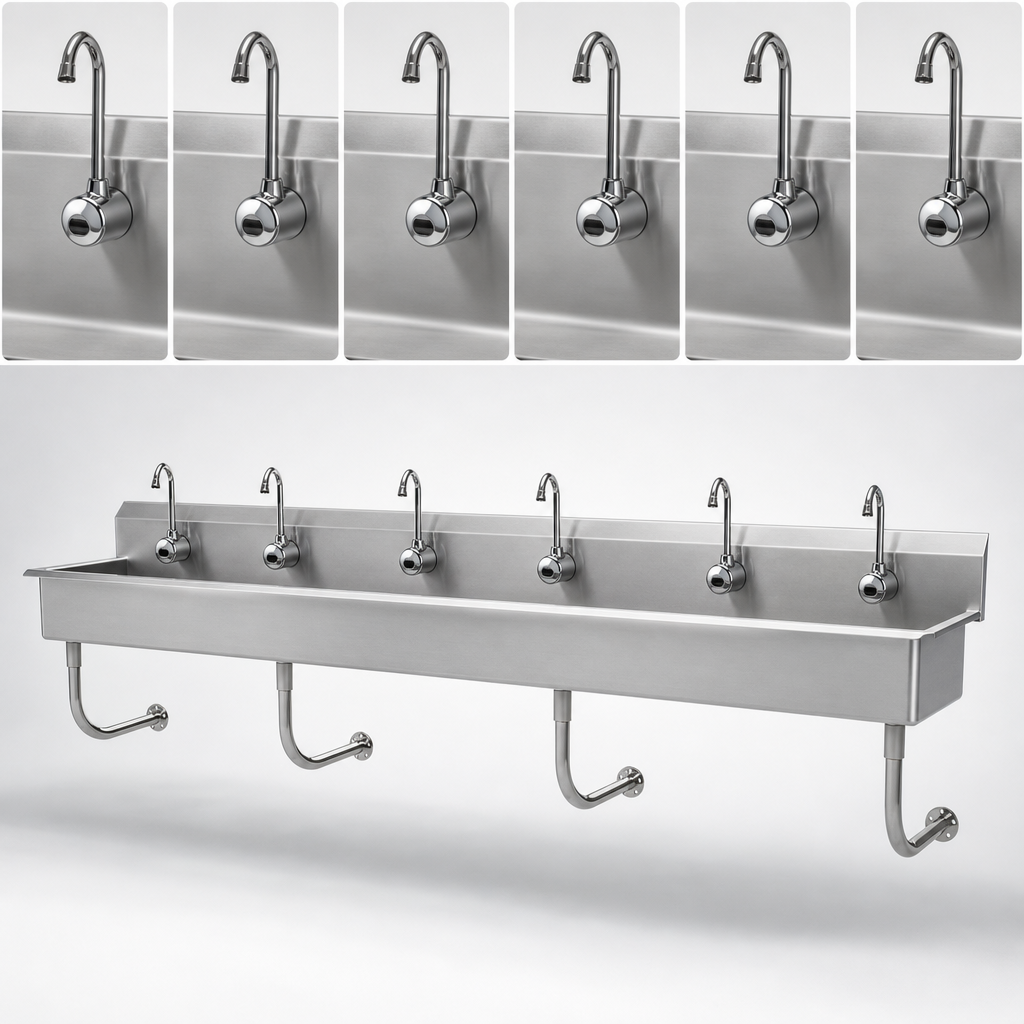

- Six hands-free sensor faucets reduce cross-contamination and water waste.
- 120" wide one-piece bowl gives every user 20" of elbow room.
- 16 gauge Type 304 stainless steel resists corrosion, dents & harsh cleaners.
- All TIG-welded seams are blended to a smooth, satin finish for easy wipe-down.
- 8-½" high backsplash contains splashes and speeds clean-up.
- Included “Z” wall brackets and tubular supports provide full knee clearance.
- (3) 3-½" K-6 rear basket drains speed drainage and catch debris.
- NSF certified for food-service use and lead-free compliant.
Specifications
| Stations / Faucets | 6 K-175 splash-mount electronic faucets (hands-free) |
|---|---|
| Overall Dimensions | 120" W × 19-½" D × 29-½" H |
| Bowl Dimensions (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8-½" |
| Material & Gauge | 16 ga 304 stainless steel sink & 1-5/8" Ø tubular supports |
| Drain(s) | (3) 3-½" rear K-6 basket drains |
| Mounting | Wall-mounted on stainless steel “Z” brackets (included) |
| Water Inlet | 3/8" NPT female per faucet (supply lines included) |
| Electrical | Adapter 100-240 VAC, <1 A, 6' cord (one per faucet) |
| Certifications | NSF, Lead-Free (NSF/ANSI 61 & 372) |
Installation Highlights
- Mount wall brackets 42-½" from finished floor to top of bracket.
- Slip sink over brackets, then secure tubular supports to wall for rigid stability.
- Rough-in drain & hot/cold supplies per included plumbing chart.
- Each faucet ships with 100-240 V power adapter and control box—no batteries required.
Need a different length, bowl depth or faucet style? Ask about Advance Tabco’s full Multi-Wash series to configure the perfect hand-washing station for your operation.
