Advance Tabco FC-WM-120-ADA Hand Sinks
Advance Tabco FC-WM-120-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-WM-120-ADA Hand Sinks
Description

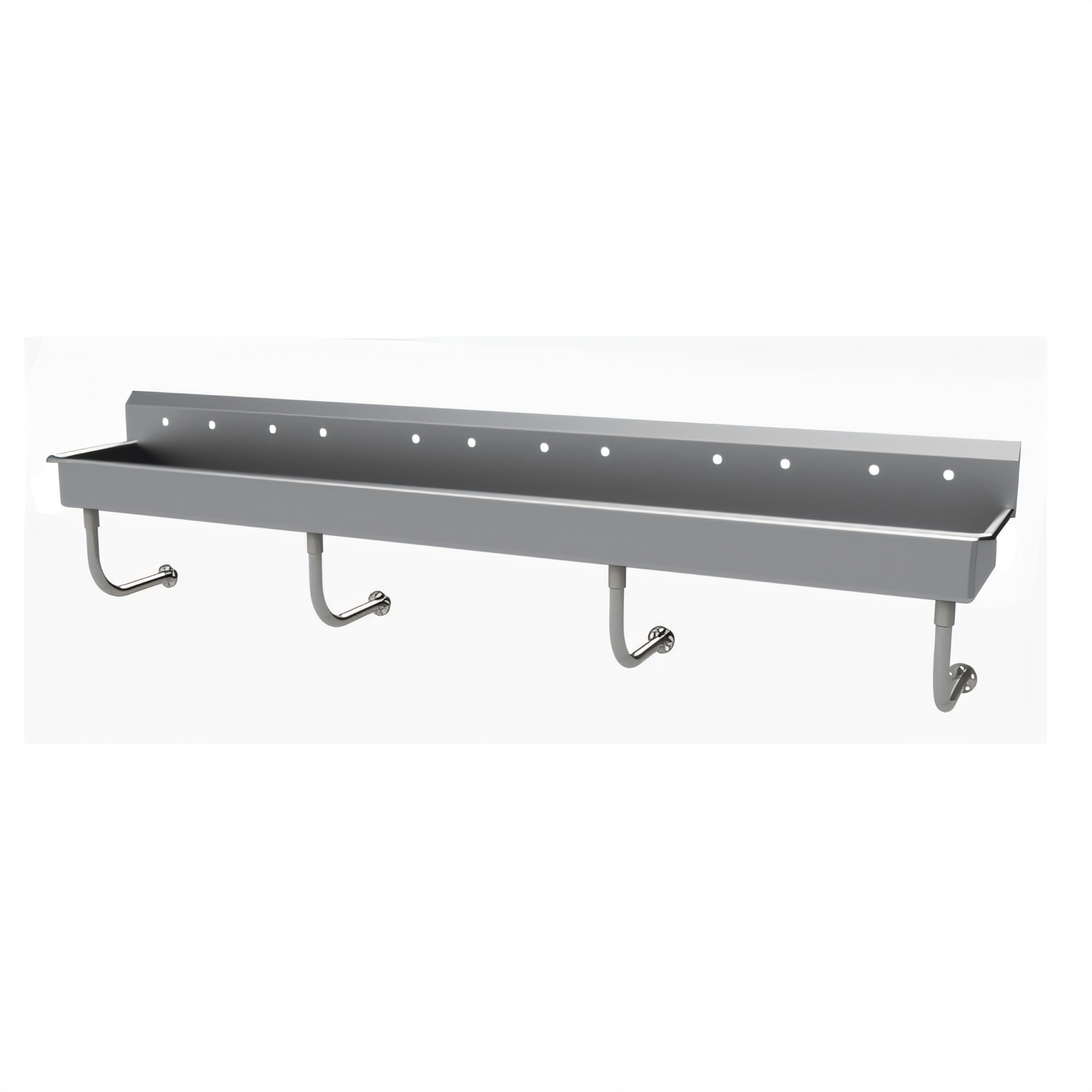

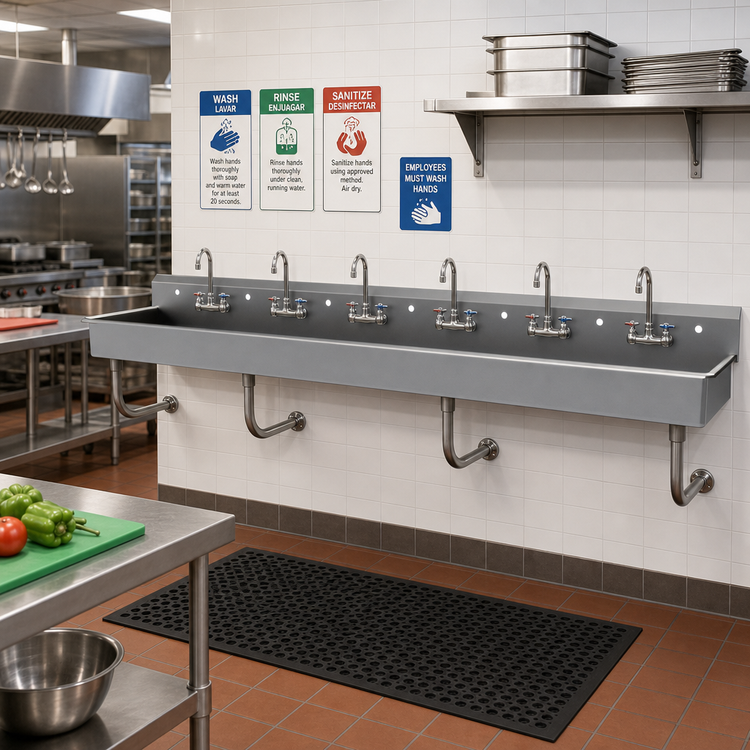

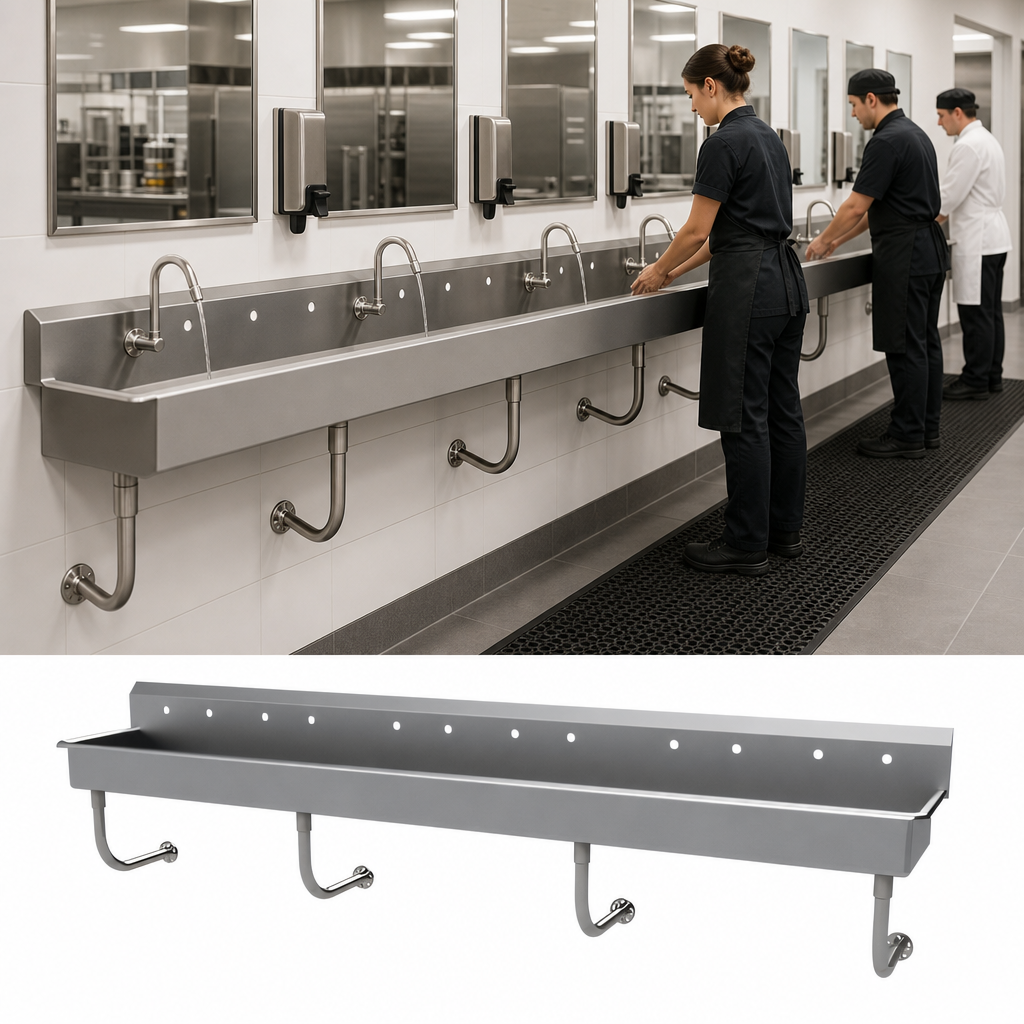

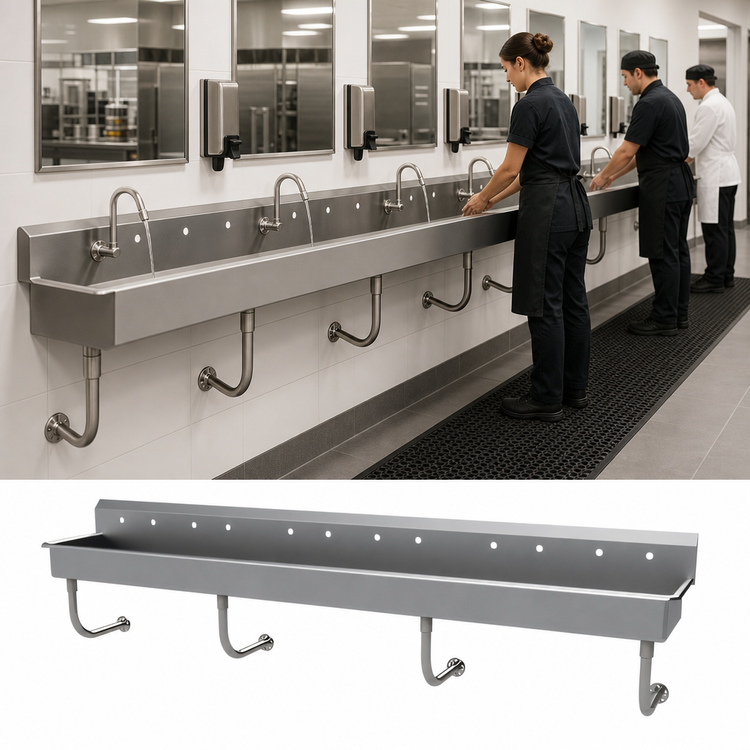

Advance Tabco 120" ADA Wall-Mounted Multi-Station Hand Sink
Model FC-WM-120-ADA | 16 Ga 304 SS | 6 StationsBuilt for the busiest prep areas, corridors and restrooms, this 10-foot Advance Tabco Multiwash sink delivers simultaneous hand-washing for up to six users while satisfying NSF sanitation standards and ADA reach-range requirements. The heavy-gauge, one-piece stainless bowl and full-height backsplash wipe down in seconds, and the open, wall-mount design keeps your floor completely clear for storage or fast mopping.
Key Benefits
- ADA-compliant 5" deep bowl keeps the front rim within reach for wheelchair users.
- Six sets of pre-punched 8" on-center splash-mount faucet holes—select the manual, electronic or knee-/toe-operated faucets that best suit your facility (sold separately).
- 8-1/2" high integral backsplash protects walls and contains splashes.
- TIG-welded 16 ga type 304 stainless steel with a satin finish resists corrosion and simplifies clean-up.
- (3) 3-1/2" rear basket drains trap debris before it reaches your plumbing.
- Stainless “Z” wall brackets and 1 5/8" tubular supports deliver rock-solid stability with full knee-clearance underneath.
- NSF listed for food-service use and ready to help meet HACCP hand-wash protocols.
At-a-Glance Specs
| Overall size | 120" W × 19-1/2" D × 25-1/2" H |
|---|---|
| Bowl size (one continuous bowl) | 16" front-to-back × 5" deep |
| Backsplash height | 8-1/2" |
| Number of stations | 6 |
| Faucet mounting | (6) splash-mount sets, 8" on center, holes only |
| Drains | (3) 3-1/2" K-6 rear basket drains (included) |
| Material / gauge | 16 ga type 304 stainless steel |
| Mounting style | Wall mount – “Z” brackets and tubular supports included |
| Certifications | NSF, ADA compliant |
| Approx. shipping weight | 147 lb |
Ideal For
- School cafeterias & corridors
- Hospitals, clinics & labs
- Food-processing or packaging rooms
- Warehouses & fulfillment centers
- Stadiums, amusement parks & other public venues
What’s Included
- 120" wall-mounted sink with integral 8-1/2" backsplash
- Stainless steel “Z” wall brackets & tubular support frame
- (3) 3-1/2" rear basket drains with strainers
- Installation & operation manual
Faucets, supply lines and P-traps are not included and must be chosen separately to match the 8" O.C. hole pattern.
