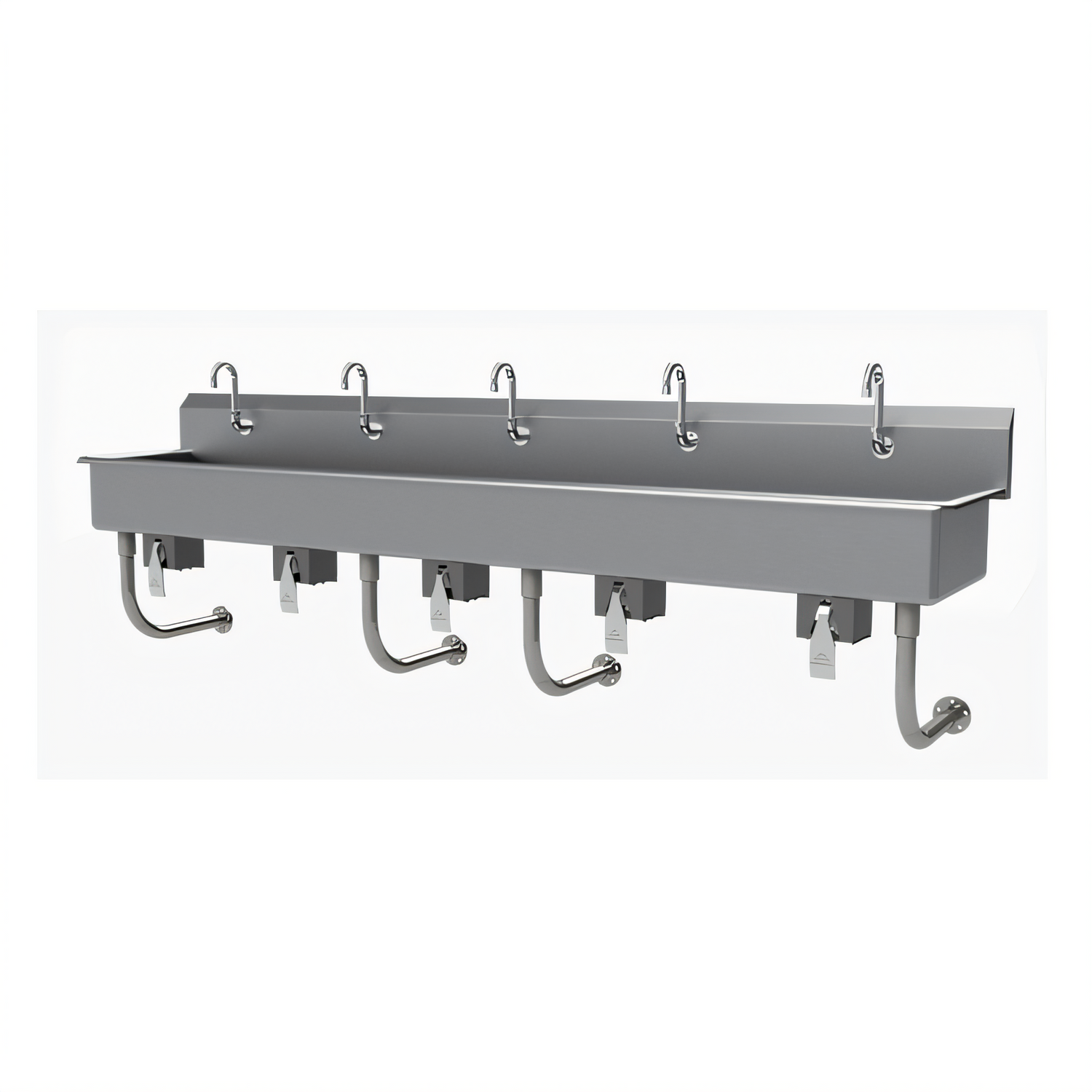

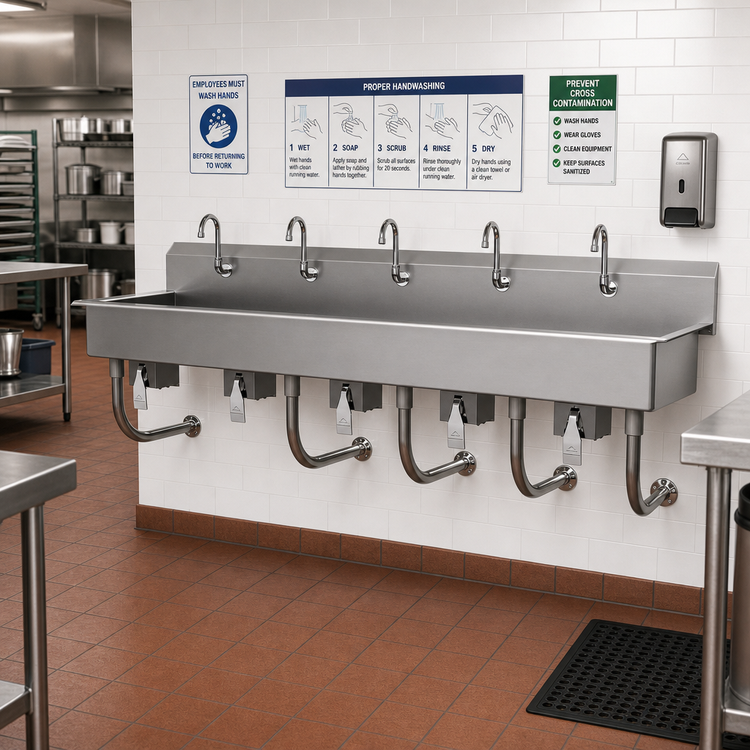

Advance Tabco FC-WM-100KV 5-Station Wall-Mounted Knee-Operated Multiwash Hand Sink

16 Gauge 304 Stainless Steel Construction with 8-1/2 Inch Backsplash

Built for busy commercial wash stations, this five-position wall-mounted sink delivers durable hands-free handwashing with included knee valves and gooseneck spouts.

  • Five-station wall-mounted hand sink designed for multi-user handwashing areas.
  • Knee-operated design supports hands-free use and helps improve sanitation.
  • 16-gauge 304 stainless steel construction with TIG-welded satin finish for long service life.
  • 8-1/2-inch backsplash and 8-inch deep bowl help contain splashes.
  • Includes gooseneck spouts, rear basket drain, and tubular stainless steel supports for open clearance underneath.
  • NSF listed for commercial foodservice and sanitation applications.

Overall Dimensions:

100.0"W x 19.5"D x 29.5"H

Product Weight:

165.0 lb
Standard Faucet Note: Conforms to NSF 61/9 lead free requirements. Notice for use in California: Proposition 65 - This faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65Warnings.ca.gov (nc)

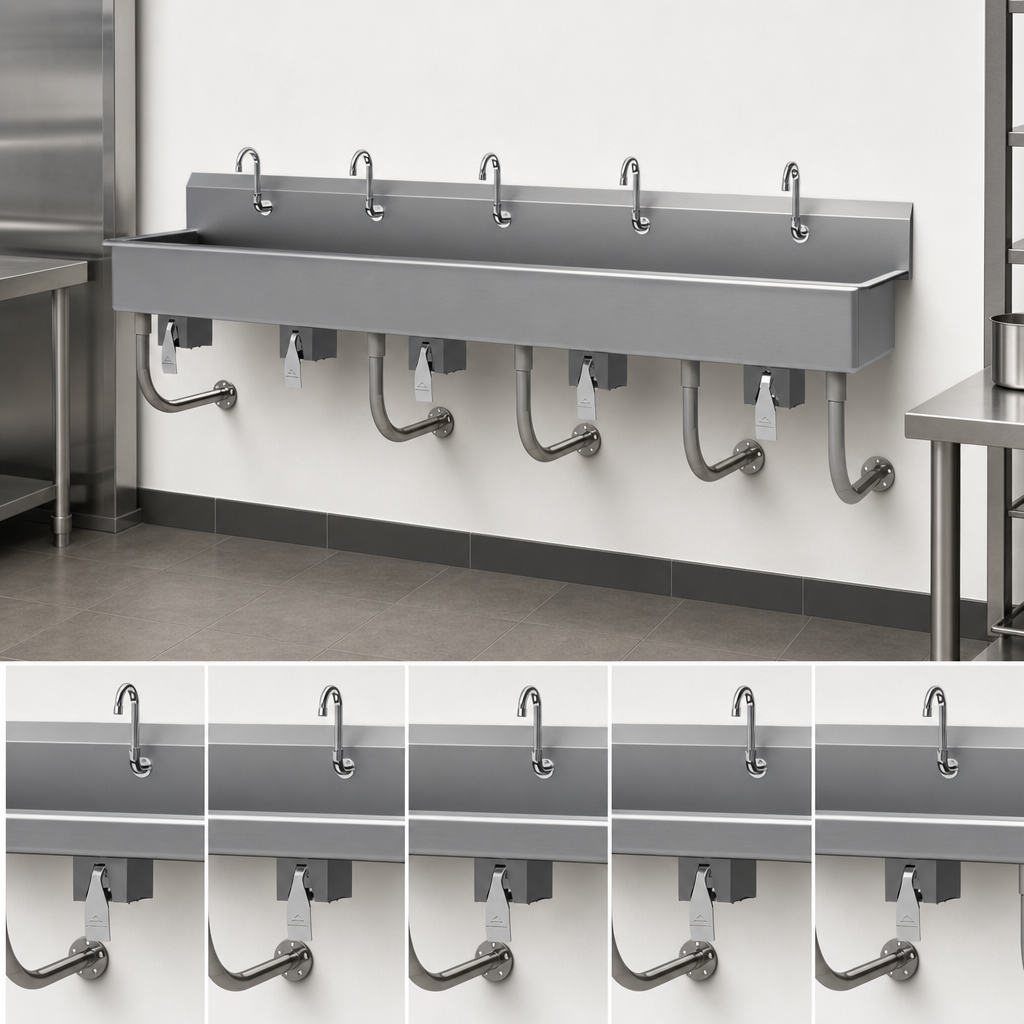

Five-Station Layout

Provides five faucet positions for simultaneous handwashing access.

Knee-Operated Controls

Includes 7-PS-32 knee valves for hands-free water activation.

304 Stainless Steel Construction

Built from 16 gauge 304 stainless steel with TIG-welded seams and a satin finish.

8-1/2 Inch Backsplash

Helps protect the wall from splash-back during use.

8 Inch Deep Bowl

The sink bowl provides a practical 16 inch front-to-back wash area.

Single Faucet Holes with Gooseneck Spouts

Punched for one faucet hole at each station and supplied with gooseneck spouts.

Tubular Stainless Steel Wall Supports

Support brackets help secure the unit and allow full clearance underneath.

Rear Basket Drain

Includes a 3-1/2 inch rear basket drain for drainage and cleanup.

Type Hand Wash Sink
Style Multi-Station
Installation Type Wall Mounted
Controls Knee Operated
Material 304 Stainless Steel
Finish Satin
Stations 5
Faucet Holes 5
Bowl Depth 16 Inches Front-to-Back
Bowl Height 8 Inches Deep
Backsplash Height 8.5 Inches
Drain Size 3.5 Inches
Shipping Width 100 Inches
Shipping Depth 20 Inches
Shipping Height 30 Inches
Shipping Weight 165 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Optional mixing valve PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

This model has five stations.
Yes. The cutsheet says the sink includes 7-PS-32 knee valves and K-121 spouts.
The overall size is 100 inches wide by 19-1/2 inches deep by 29-1/2 inches high.
The bowl size is 16 inches front-to-back and 8 inches deep.
It is constructed from 16 gauge 304 stainless steel.
Yes, the product is NSF listed.
