Advance Tabco  |  SKU: FC-WM-100EFADA  |  UPC: 747545211712

Advance Tabco FC-WM-100EFADA Hand Sinks

$7,226.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Troubleshooting manual Installation manual 2 Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

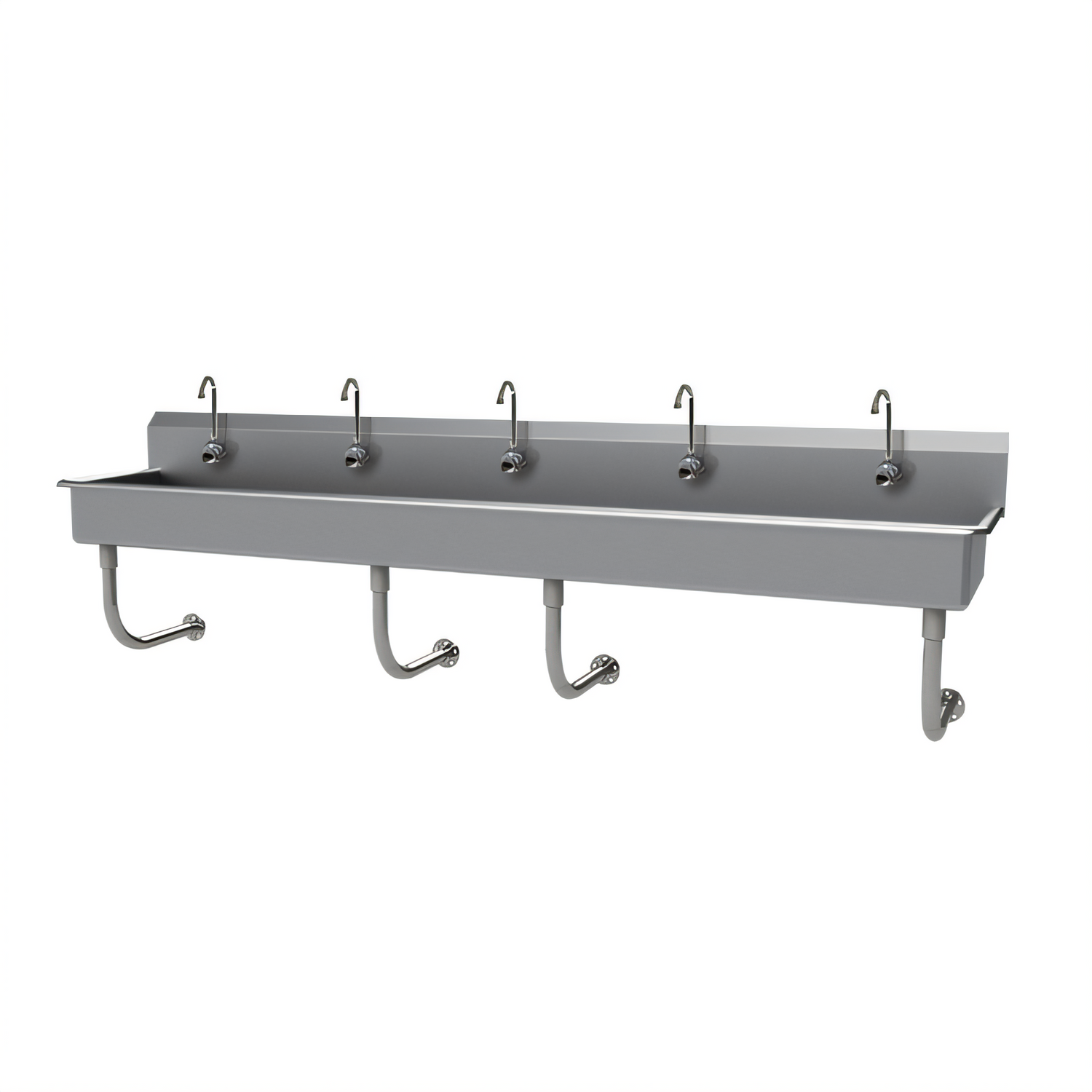

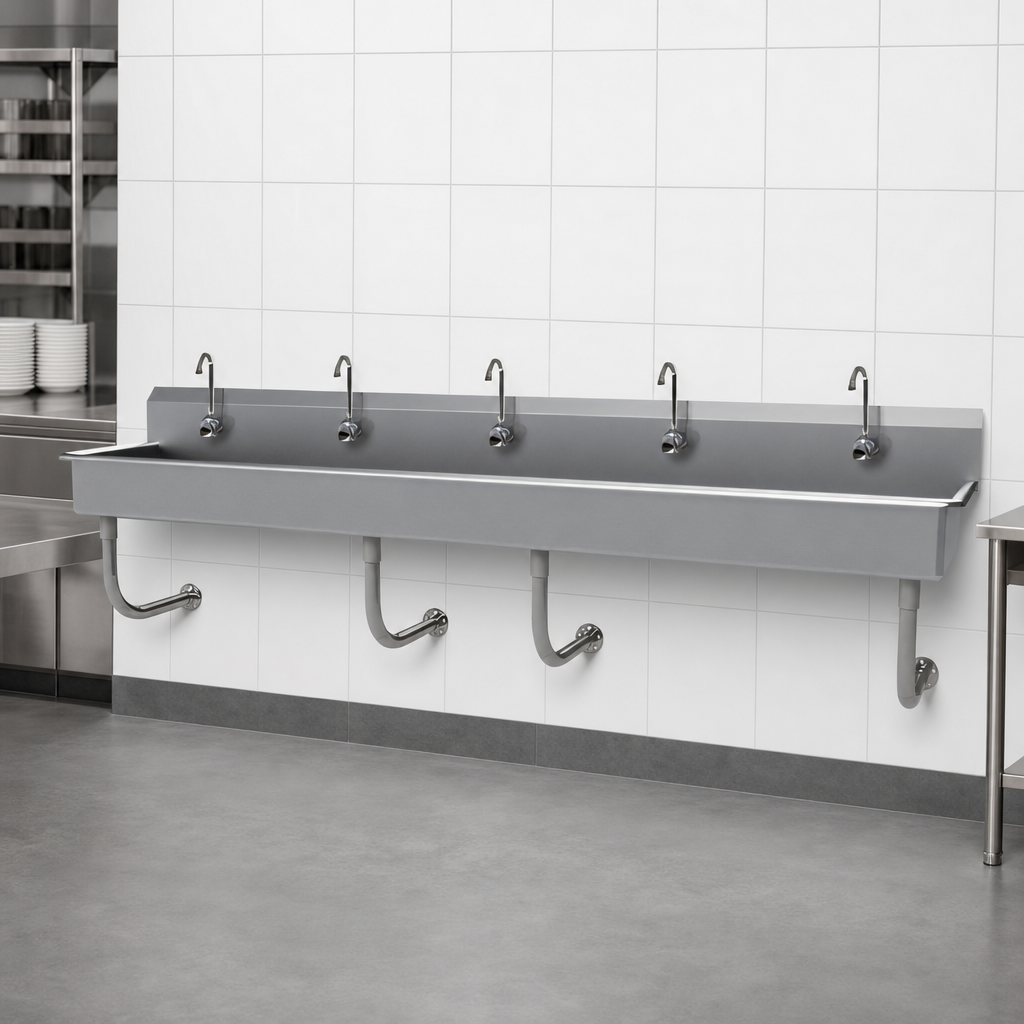

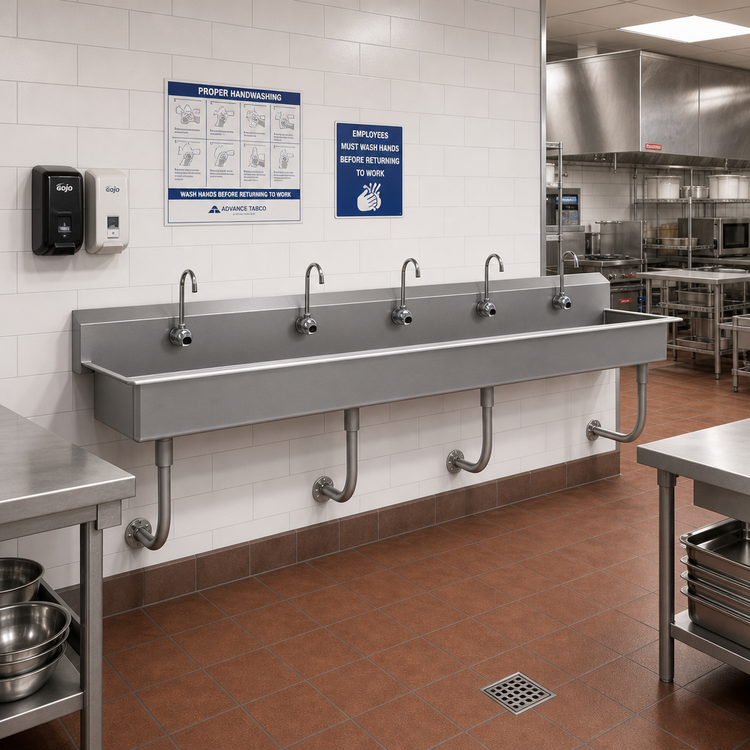

Advance Tabco 100" Multi-Wash Wall-Mounted Hand Sink – 5 Station

Model FC-WM-100-EFADA | Hands-Free Electronic Faucets

Equip your high-volume kitchen, lab, or production line with safe, simultaneous hand-washing for up to five users. Fabricated from heavy-duty 16 ga. type 304 stainless steel and supplied with K-175 touch-free faucets, this Advance Tabco ADA multi-station sink delivers industry-leading durability, hygiene, and accessibility in one streamlined package.

Why You’ll Love It

  • Five (5) splash-mount K-175 electronic faucets for completely touch-free operation
  • ADA-compliant 5" deep bowl and open knee clearance for wheelchair access
  • Generous 100" width lets multiple employees wash without crowding
  • 8 ½" integral backsplash protects walls and contains splashes
  • Two 3 ½" K-6 rear basket drains keep solids out of plumbing lines
  • TIG-welded seams ground and polished to a uniform satin finish
  • 16 ga. 304 stainless steel resists corrosion, chemicals & everyday abuse
  • Stainless steel “Z” wall brackets & 1 ⅝" tubular supports provide rock-solid, wall-hung installation with full floor clearance
  • NSF listed for foodservice use & built to Advance Tabco’s exacting standards
  • Ships pre-assembled—mount, connect water & power, and you’re ready to wash

At-a-Glance Specs

Overall Width 100" (2540 mm)
Overall Depth 19 ½" (495 mm)
Overall Height
(to top of backsplash)		 25 ½" (648 mm)
Bowl Size (each station) 16" front-to-back × 5" deep
Backsplash Height 8 ½"
Stations / Faucets 5
Faucet Model K-175 Splash-Mount Electronic, 2.2 GPM aerator
Drain(s) (2) 3 ½" rear basket drains (K-6)
Material & Gauge 16 ga. Type 304 stainless steel
Mounting Method Wall-mounted using stainless “Z” brackets & tubular supports (included)
Certifications NSF, ADA

Looking for a different length, faucet style, or custom modification? Ask about Advance Tabco’s Smart Fabrication™ program.

Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

100.0in

Depth

19.5in

Shipping Weight

121.0lbs

Features

multi-station

Faucet

faucet included

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (5) electronic faucets, 100"W x 19-1/2"D x 25-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports NSF, ADA compliant
