Advance Tabco  |  SKU: FC-WM-100EF  |  UPC: 747545211330

Advance Tabco FC-WM-100EF Hand Sinks

$7,301.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation Installation manual 2 Troubleshooting manual
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

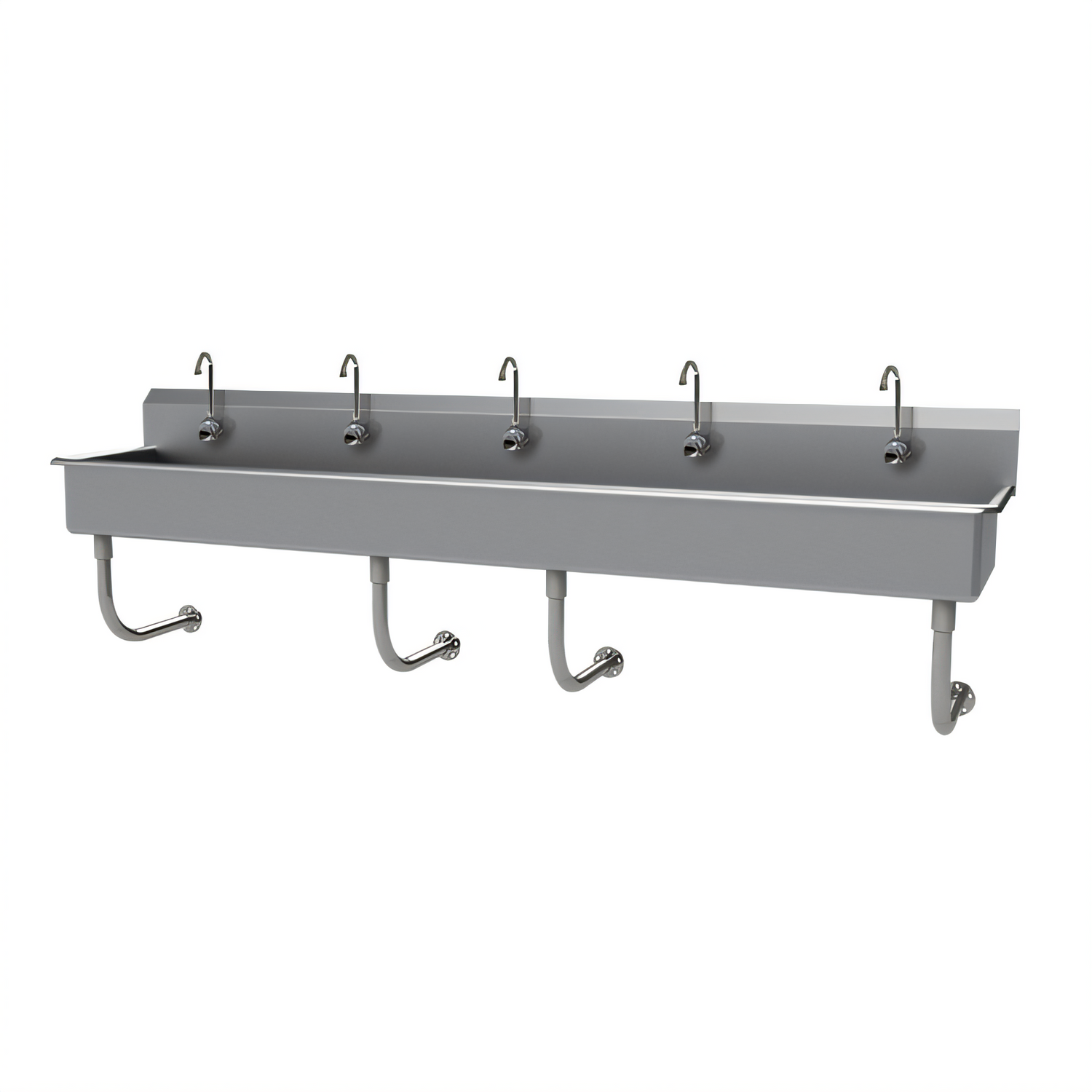

Advance Tabco FC-WM-100EF Multi-Wash Hand Sink

100" Wall-Mounted • 5 Hands-Free Stations • 16 ga. 304 Stainless Steel

Built for high-traffic environments that demand uncompromising sanitation, the FC-WM-100EF packs five electronic, sensor-activated faucets into a single, rugged sink. The all-welded 16 gauge 304 stainless steel body, full-height backsplash and open-leg design make cleaning fast while keeping users safe and separate from splash zones.

Key Features

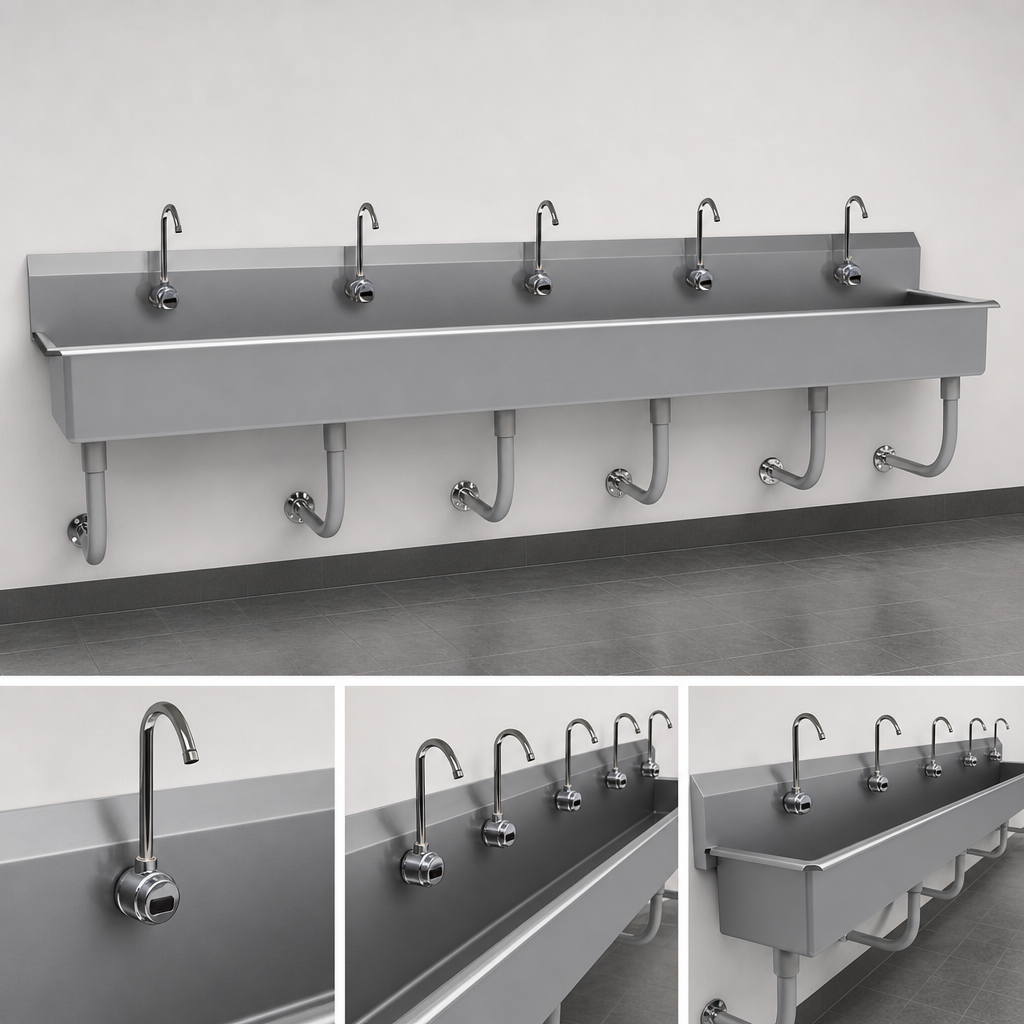

  • Five Advance Tabco K-175 splash-mount electronic faucets for true hands-free operation.
  • Generous 100" width accommodates five users simultaneously without crowding.
  • Standard 8" deep bowl with 16" front-to-back working space helps contain vigorous scrubbing.
  • 8-1/2" backsplash protects surrounding walls and simplifies cleanup.
  • Punched with a single faucet hole at each station for easy maintenance or retrofit.
  • Includes 3-1/2" rear basket drain for quick, clog-resistant drainage.
  • All TIG-welded 16 ga. type 304 stainless steel construction with smooth satin finish.
  • Tubular stainless steel wall supports and “Z” brackets provide rock-solid mounting with full knee clearance beneath.
  • UL-listed control box and universal 100-240 V AC adapter (6' cord) supplied—no hardwiring required.
  • NSF listed and conforms to ANSI/NSF 61/9 lead-free requirements.

At-a-Glance Specifications

Model FC-WM-100EF
Stations / Faucets 5 electronic (infrared) splash-mount faucets
Overall Dimensions 100" W × 19-1/2" D × 29-1/2" H
Bowl Size 16" front-to-back × 8" deep
Backsplash Height 8-1/2"
Drain 3-1/2" rear basket drain included
Material / Gauge Type 304 stainless steel / 16 ga.
Mounting Wall mounted, stainless “Z” brackets & tubular supports
Faucet Flow Rate 2.2 GPM aerator (optional 0.5 GPM low-flow aerator)
Power <1 A @ 100-240 VAC (adapter included)
Certifications NSF Listed; ANSI/NSF 61/9 Lead-Free

Ideal For

  • Commercial & institutional kitchens
  • Food and beverage processing plants
  • Laboratories & clean rooms
  • Schools, stadiums & arenas
  • Breweries, wineries & taprooms
California Prop 65 Notice: This product can expose you to chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

29.5in

Width

100.0in

Depth

19.5in

Shipping Weight

125.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Bowl Height (rim to drain)

8" deep

Style

wall mounted

Features

multi-station

Specifications

Multiwash Hand Sink, splash mount faucet provision, wall mounted, with (5) electronic faucets, 100"W x 19-1/2"D x 29-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, NSF
