Advance Tabco FC-WM-100 Hand Sinks
Description

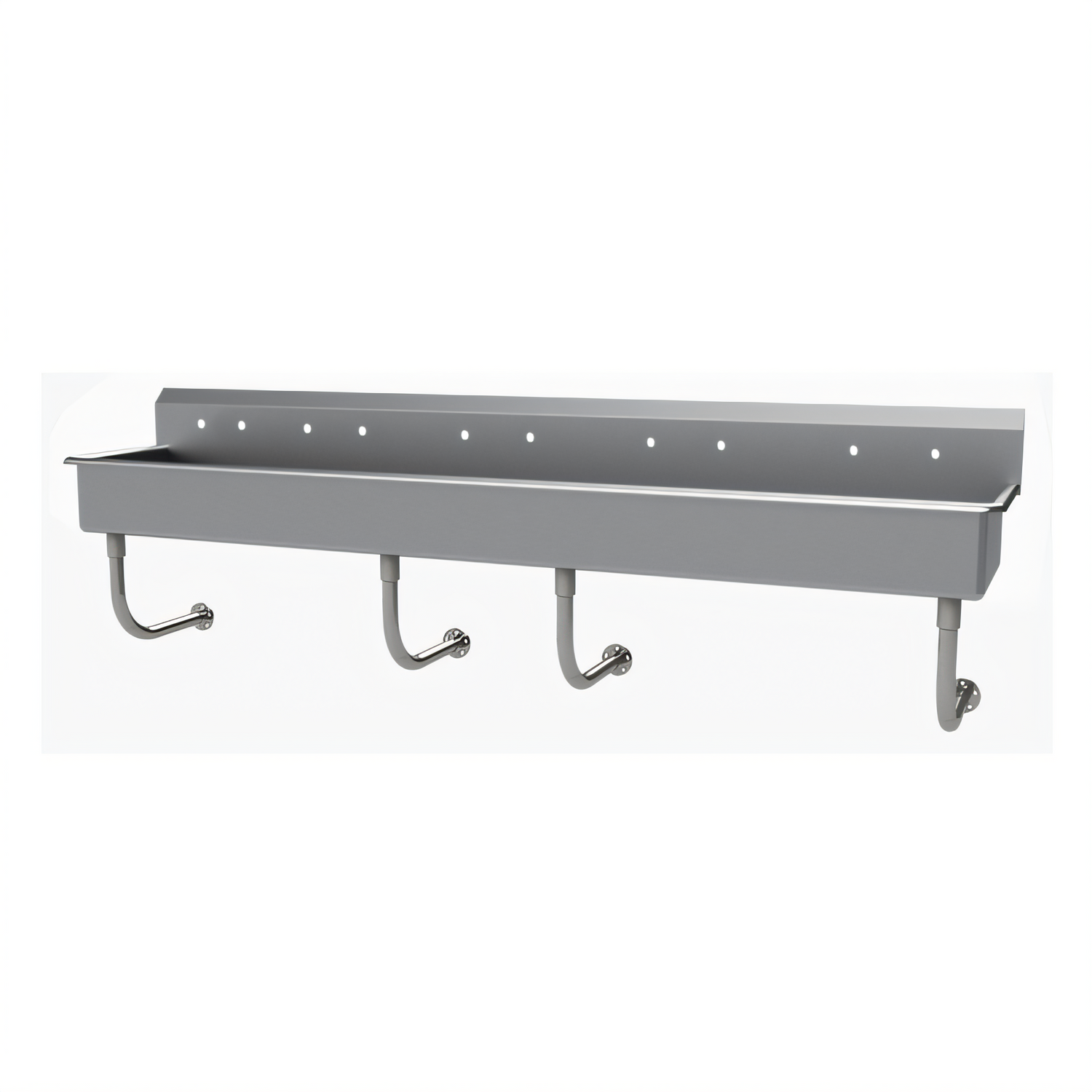

Advance Tabco FC-WM-100 Multi-Wash Hand Sink – 5 Station, 100" Wide
16 ga. 304 SS wall-mount sink | splash-mount faucet punchings | NSF listedGive your high-traffic prep, production, or rest-room area a durable, easy-to-clean hand-washing solution. The Advance Tabco FC-WM-100 delivers five generous sink stations in a single, 100" wide unit built from heavy-duty 16-gauge Type 304 stainless steel. From its TIG-welded bowl to its full-length 8 ½" backsplash, every detail is engineered for long-term sanitation and operator convenience.
Why you’ll love it
- Five user stations – perfect for busy kitchens, schools, healthcare, and manufacturing facilities.
- 16 ga. Type 304 stainless steel construction resists corrosion and heavy daily use.
- TIG-welded seams blended to a smooth satin finish for easy wipe-down.
- Full 8 ½" backsplash with (5) 8" O.C. faucet punchings – accepts most splash-mount faucets (sold separately).
- Spacious 16" front-to-back x 8" deep bowl keeps overspray contained.
- (2) 3 ½" rear basket drains included for quick hook-up.
- 1 5/8" tubular stainless steel support brackets provide rock-solid wall mounting and full knee clearance below.
- Supplied stainless “Z” wall brackets make installation fast and secure.
- NSF certified for guaranteed food-safe performance.
Technical Specifications
| Model No. | FC-WM-100 |
|---|---|
| Stations | 5 |
| Overall Dimensions | 100" W × 19 ½" D × 29 ½" H |
| Bowl Size (each) | 16" F-B × 8" deep |
| Backsplash Height | 8 ½" |
| Faucet Holes | (5) sets, 8" on-center, ⅞" dia. |
| Drain(s) | (2) 3 ½" basket drains (rear) |
| Material / Gauge | 16 ga. Type 304 stainless steel |
| Mounting | Wall-mount, stainless “Z” brackets & tubular supports included |
| Compliance | NSF Listed |
| Weight | Approx. 125 lb (shipping) |
Quick Install Tips
- Mount wall brackets 42 ½" above finished floor to bracket top, then slide sink into place.
- Standard 3/8" NPT water inlets & 1 ½" drain connections (follow local code).
- Compatible with Advance Tabco K-159 gooseneck or any 8" O.C. splash-mount faucet (ordered separately).
Faucets and supply lines are not included. California customers: installing a faucet may require Prop 65 warning signage.
