Advance Tabco FC-WM-100-ADA Hand Sinks
Description

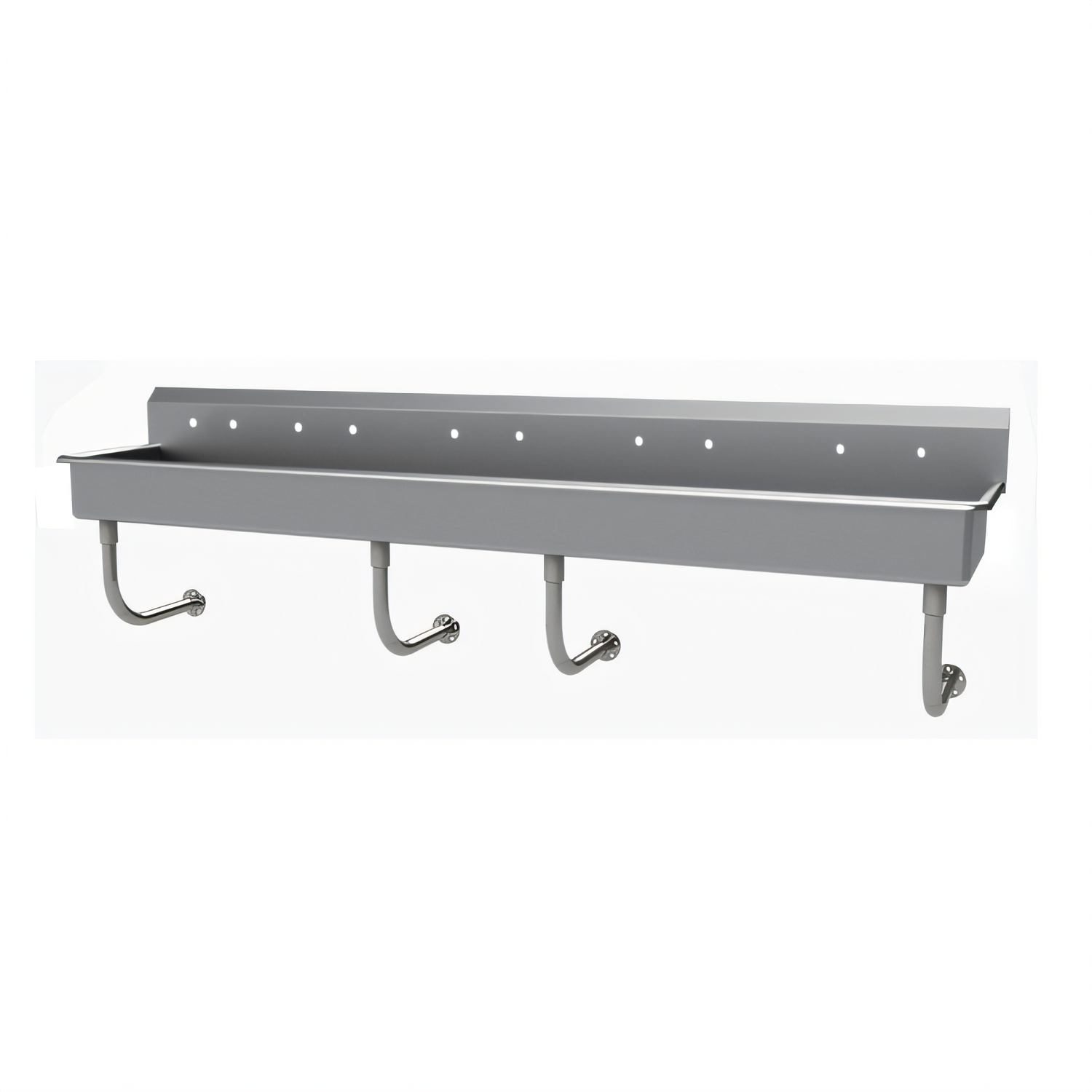

Advance Tabco FC-WM-100-ADA Five-Station Wall-Mounted Hand Sink
100" ADA-compliant multi-wash hand sink – faucet-readyBuilt for continuous, high-volume use in foodservice, healthcare, education and industrial settings, this 5-station Advance Tabco hand sink delivers ADA accessibility, rock-solid stainless-steel durability and a space-saving wall-mount design. Just add the 8"-center faucets of your choice and keep compliant hand-washing moving.
Why you’ll love it
- Five user stations – 100" wide sink accommodates busy traffic without bottlenecks.
- ADA bowl depth – 5" deep x 16" front-to-back bowls meet accessibility requirements while minimizing splash.
- Faucet-ready splash – (5) sets of 8" on-center holes make installing any deck-mount or splash-mount faucets fast and easy.
- Premium 16 ga 304 stainless steel – TIG-welded construction resists corrosion and cleans up in seconds.
- 8-1/2" integral backsplash – Protects surrounding walls and hides pre-punched faucet holes.
- Efficient drainage – (2) 3-1/2" K-6 rear basket drains speed water removal and capture debris.
- Open-base clearance – 1-5/8" dia tubular 304 SS wall supports leave the floor completely open for wheelchair access and easy cleaning.
- NSF listed & ADA compliant – Ready for any health department inspection.
At-a-glance specs
| Model | FC-WM-100-ADA (no faucets) |
|---|---|
| Stations | 5 |
| Overall dimensions | 100" W × 19-1/2" D × 25-1/2" H (to top of backsplash) |
| Bowl size (each) | 16" front-to-back × 5" deep |
| Backsplash height | 8-1/2" |
| Faucet holes | (5) sets, 8" on center, 1-1/8" dia. |
| Drain(s) included | (2) 3-1/2" K-6 rear basket drains |
| Material / Gauge | Type 304 stainless steel / 16 gauge |
| Wall mounting | Stainless steel “Z” brackets + tubular SS supports (included) |
| Certifications | NSF, ADA |
| Approx. weight | 122 lb (55 kg) |
Easy install
- Mount the supplied “Z” brackets 42-1/2" above finished floor, then lock the sink into place.
- Standard 3/8" NPT water inlets behind each faucet location.
- Drains exit out the rear for straightforward tie-in to existing waste lines.
Advance Tabco continually improves products; specifications are subject to change without notice.
