Advance Tabco  |  SKU: FC-WM-1-EFADA  |  UPC: 747545211835

Advance Tabco FC-WM-1-EFADA Hand Sinks

$3,057.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation manual 2 Installation & operation Troubleshooting manual
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

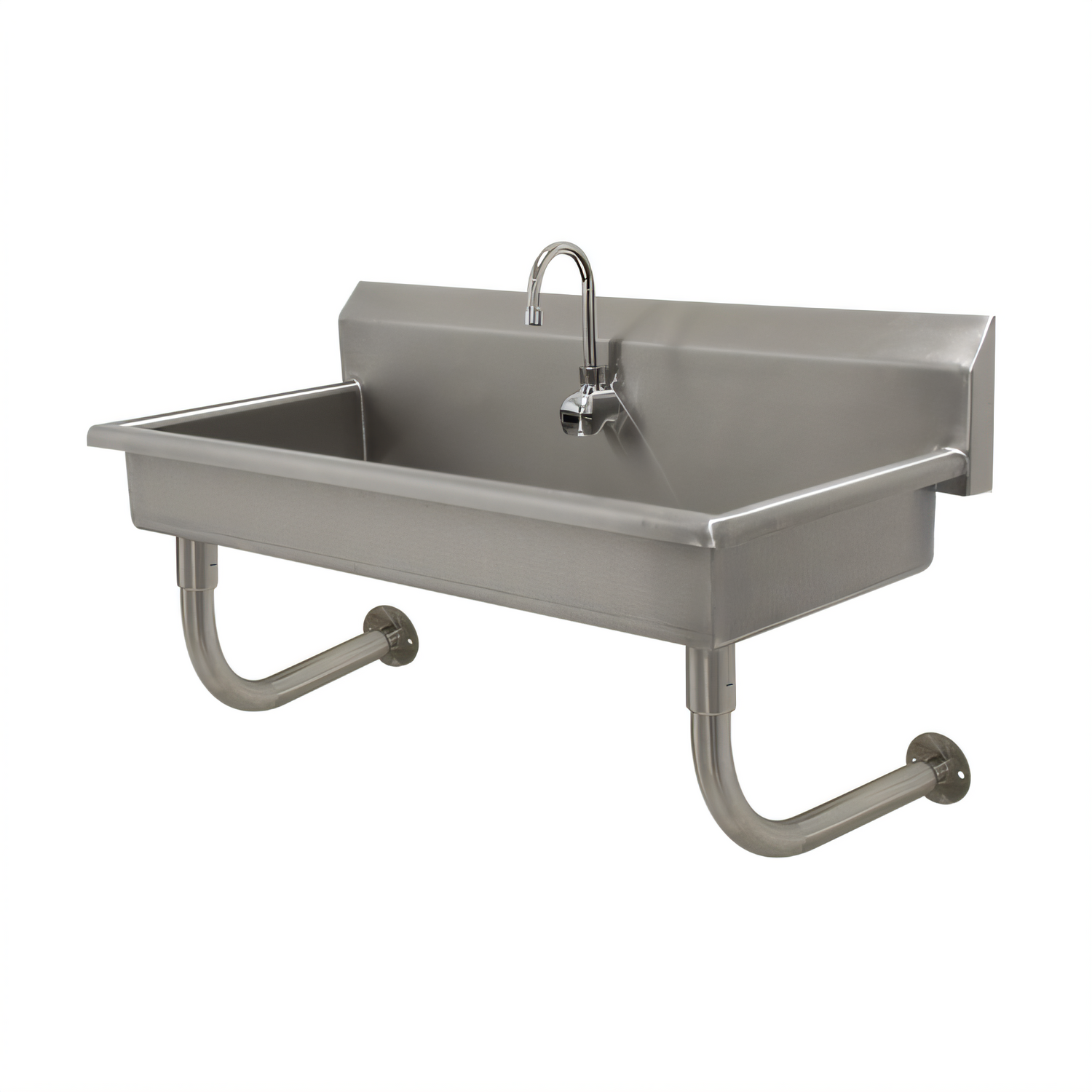

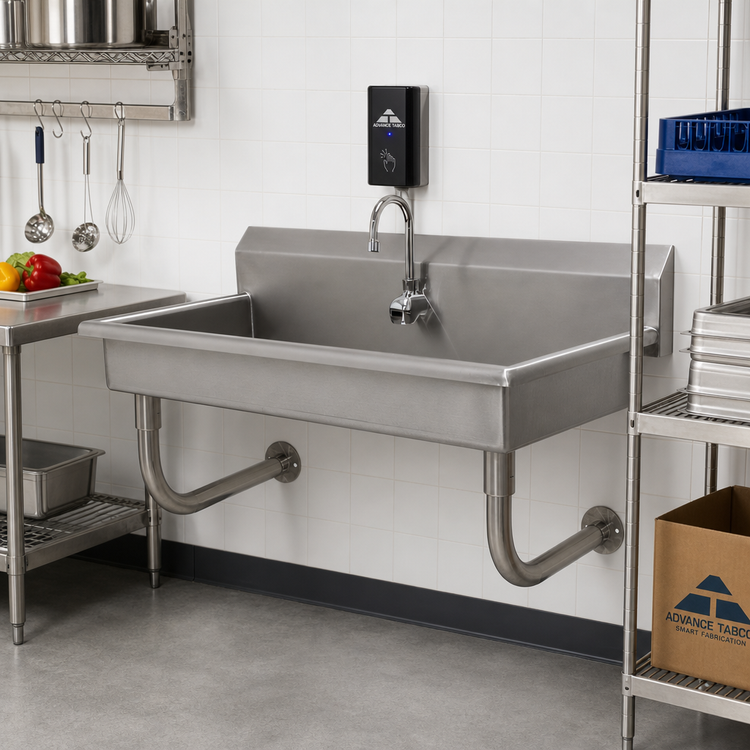

Advance Tabco FC-WM-1-EFADA 40" Wall-Mounted Service Sink

One-station, ADA compliant, with K-175 electronic faucet

Built for demanding commercial, educational, and institutional environments, this 16-gauge 304 stainless steel service sink delivers rugged durability, easy sanitation, and full ADA clearance beneath the bowl. The included hands-free electronic faucet promotes hygiene while the heavy-duty tubular supports keep the work area open for wheelchair access and floor cleaning.

Why you’ll love it

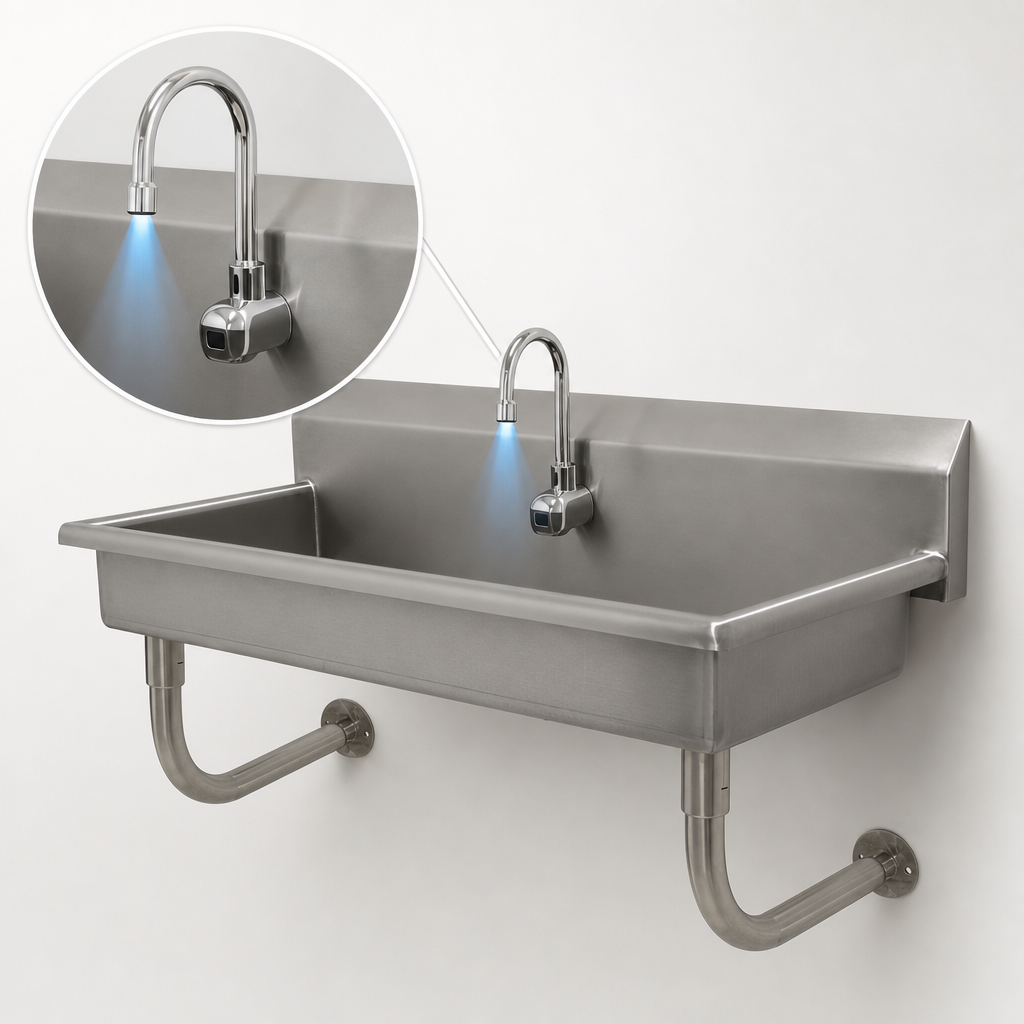

  • Hands-free operation: K-175 splash-mounted electronic faucet with 2.2 GPM swing spout.
  • All-around 304 stainless steel – sink, brackets, gussets & tubular wall supports.
  • Generous 40" wide work area with a 14" × 5" deep bowl for buckets, mop heads, and more.
  • 8 ½" high integral backsplash contains splashes and comes pre-punched with one faucet hole.
  • Includes 1 ½" basket drain (K-6) for quick debris capture and clog prevention.
  • TIG-welded seams are satin-blended for a smooth, easy-to-clean finish.
  • Wall-mount “Z” brackets & tubular supports provide full knee clearance and fast installation.
  • NSF Listed & fully ADA compliant for hassle-free code approvals.

At-a-glance specifications

Model FC-WM-1-EFADA
Overall dimensions 40" W × 19 ¾" D × 25 ½" H
Bowl size (L × W × D) 14" front-to-back × 37" left-to-right × 5" deep
Backsplash height 8 ½"
Material & gauge 16 ga type 304 stainless steel
Faucet K-175 electronic, splash-mount, single-hole, 2.2 GPM
Drain K-6, 1 ½" basket drain (3 ½" opening)
Mounting hardware (2) stainless steel “Z” wall brackets & tubular wall supports
Weight Approx. 62 lb
Certifications NSF, ADA, NSF 61/9 lead-free faucet

What’s included

  • Advance Tabco FC-WM-1-EFADA sink
  • K-175 electronic faucet (control box & adapter)
  • K-6 1 ½" basket drain
  • (2) stainless steel wall “Z” brackets with hardware
  • Tubular stainless steel wall supports
  • Installation & operation manual

Standard faucet components meet NSF 61 Section 9 & AB 1953 lead-free requirements.

California Proposition 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.75in

Shipping Weight

62.0lbs

Bowl Height (rim to drain)

5" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Style

wall mounted

Specifications

Service Sink, splash mount faucet provision, wall mounted, with electronic faucet, 40"W x 19-3/4"D x 25-1/2"H (overall), 14" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) faucet hole, includes 1-1/2" basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant, NSF
