Advance Tabco  |  SKU: FC-WM-1-ADA  |  UPC: 747545211811

Advance Tabco FC-WM-1-ADA Hand Sinks

$2,288.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

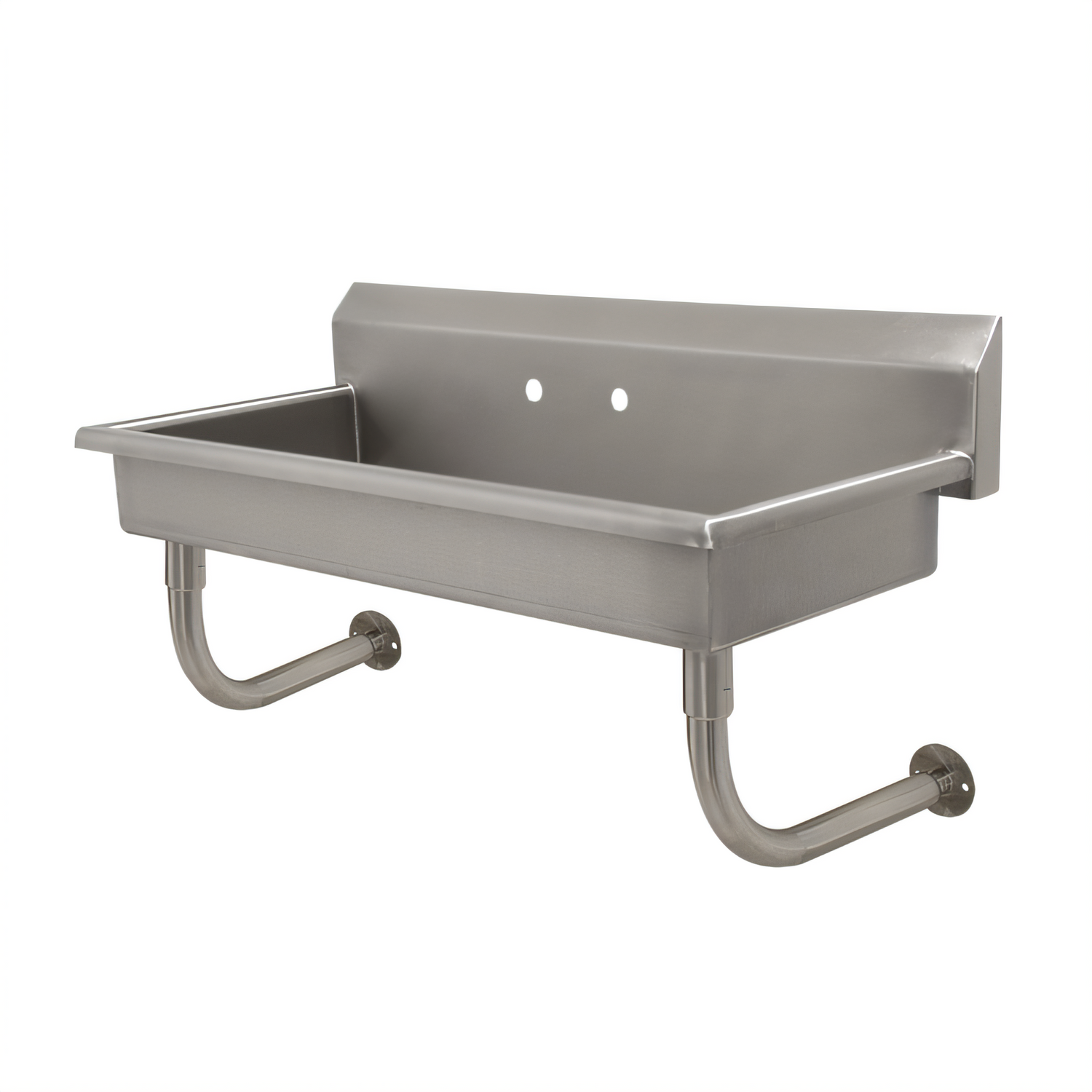

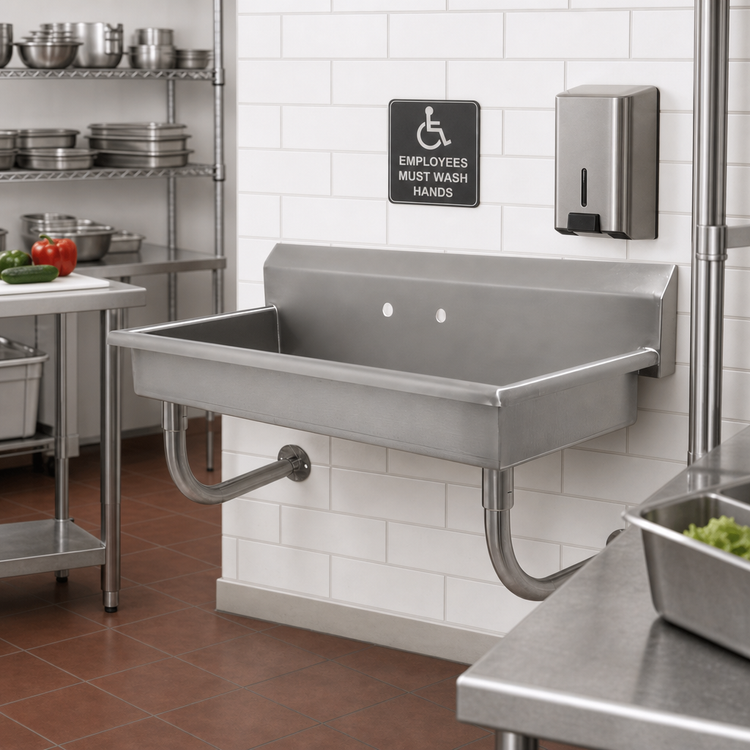

Advance Tabco FC-WM-1-ADA Wall-Mounted Service Sink

40" one-station, 16 ga. 304 stainless steel – ADA compliant

Built for demanding commercial environments, the Advance Tabco FC-WM-1-ADA delivers a rugged, easy-to-clean work sink that meets both NSF and ADA requirements. 16-gauge 304 stainless steel construction, a full 8 ½" backsplash, and included tubular wall supports provide years of reliable, code-compliant performance while keeping the floor area completely open for unobstructed wheelchair access.

Why you’ll love it

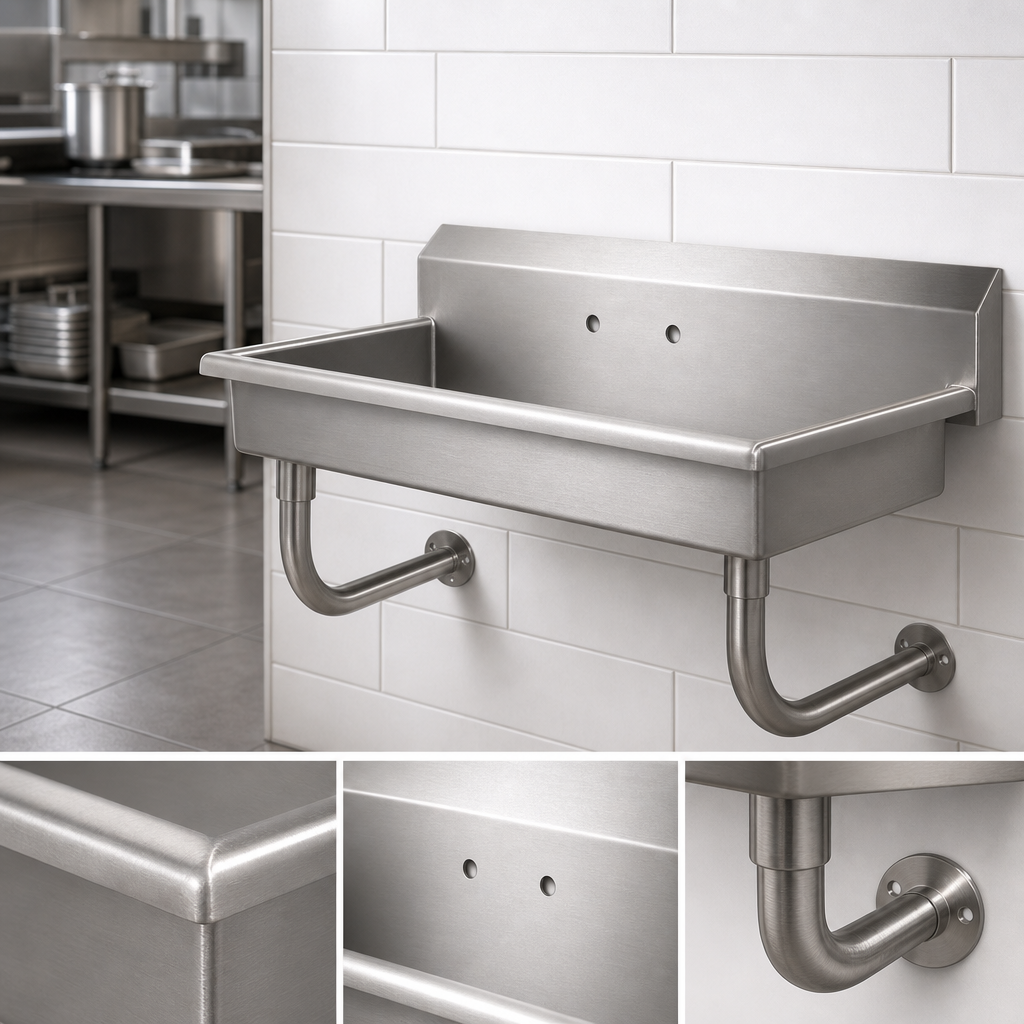

  • All-welded 16 ga. 304 stainless steel resists dents, rust, and harsh cleaning chemicals.
  • Generous 40" width offers ample workspace for janitorial buckets and equipment.
  • 8 ½" high backsplash with pre-punched 8" on-center faucet holes simplifies splash-mount faucet installation (faucet not included).
  • ADA knee clearance: open area below the bowl thanks to 1 5⁄8" tubular stainless wall supports—no legs to get in the way.
  • 5" deep bowl with 14" front-to-back interior easily accommodates mop buckets and fills without excessive splashing.
  • Includes 1 ½" basket drain for fast, clog-resistant water removal.
  • NSF certified for food-service sanitation and safety.

Technical specifications

Model FC-WM-1-ADA (no faucet included)
Overall size (W × D × H) 40" × 19 ¾" × 25 ½"
Bowl size (W × F/B × Depth) 40" × 14" × 5"
Backsplash height 8 ½"
Faucet mounting Splash mount, 8" on-center holes (1 set)
Drain 1 ½" basket drain (included)
Material / gauge 304 series stainless steel, 16 ga.
Wall supports 1 5⁄8" tubular 304 stainless supports with supplied “Z” mounting brackets
Certifications ADA, NSF
Shipping weight Approx. 62 lb

Installation notes

  • Mount “Z” brackets 42 ½" above finished floor to top of bracket for proper ADA height.
  • Requires splash-mount faucet with 8" centers (sold separately).
  • 1 ½" drain outlet ready for standard P-trap connection.

Refer to the included installation guide for full wall-bracket and plumbing details.

California Prop 65: This product can expose you to chemicals, including lead, known to the State of California to cause cancer or reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

25.5in

Width

40.0in

Depth

19.75in

Shipping Weight

62.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

wall mounted

Faucet

faucet not included

Bowl Height (rim to drain)

5" deep

Specifications

Service Sink, splash mount faucet provision, wall mounted, 40"W x 19-3/4"D x 25-1/2"H (overall), 14" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, includes 1-1/2" basket drain, 16 gauge 304 stainless steel construction, tubular stainless steel wall supports, ADA compliant, NSF
