Advance Tabco FC-WM-1-ADA-F Hand Sinks
Description

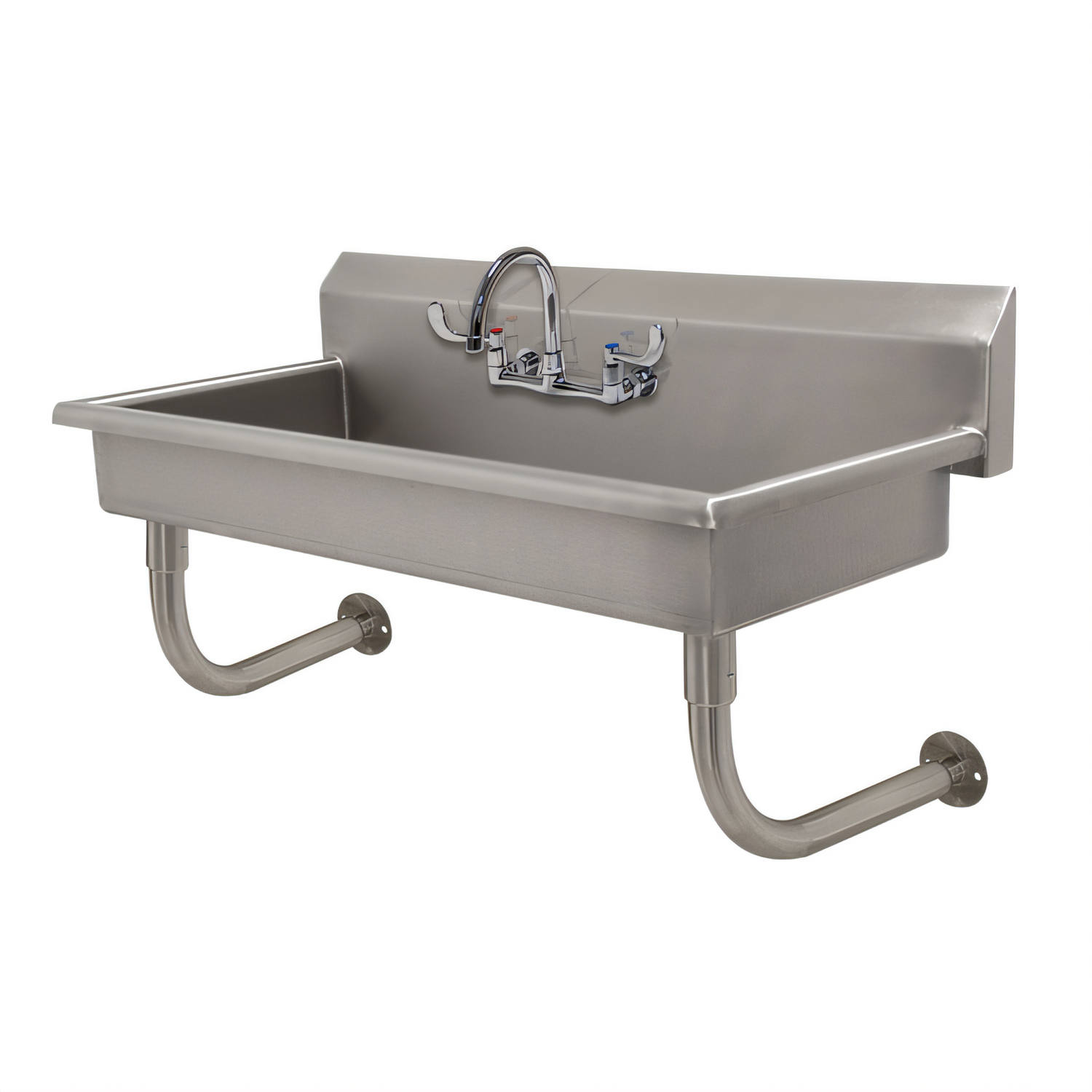

Advance Tabco FC-WM-1-ADA-F | Wall-Mounted ADA Service Sink with Faucet
40 in. stainless steel • 1 station • NSF & ADA compliantEngineered for the toughest janitorial, laboratory and back-of-house tasks, this heavy-duty Advance Tabco service sink delivers unbeatable durability, true ADA knee clearance and worry-free NSF sanitation—all in a space-saving wall-mount design.
Why you’ll love it
- All 16 ga type 304 stainless steel bowl & deck with satin finish.
- Integral 8-1/2 in. backsplash pre-punched with one set of 8 in. O.C. faucet holes.
- Includes K-161-LU 6 in. gooseneck splash-mount faucet with ADA wrist-blade handles.
- 5 in. deep, 14 in. front-to-back bowl is ideal for filling mop buckets or rinsing equipment.
- 1-1/2 in. basket strainer drain (K-6) supplied—no extra kit required.
- (2) 1-5/8 in. Ø tubular 304 SS wall supports plus “Z” mounting brackets for rock-solid installation.
- Open under-sink area offers 30 in. width × 12 in. height for wheelchair access.
- NSF listed; faucet components conform to NSF/ANSI 61 Sect. 9.
Perfect for
- Maintenance & janitorial closets
- Healthcare, research & laboratory settings
- Commercial kitchens & food-prep rooms
- Schools, stadiums & public venues
Technical specifications
| Manufacturer | Advance Tabco |
|---|---|
| Model | FC-WM-1-ADA-F |
| Stations | 1 |
| Mount type | Wall mounted (tubular supports & “Z” brackets included) |
| Overall size | 40 W × 19-3/4 D × 25-1/2 H in.* |
| Bowl size | 14 in. front-to-back × 5 in. deep |
| Backsplash height | 8-1/2 in. |
| Faucet holes | (1) set, 8 in. on center |
| Faucet included | K-161-LU gooseneck, wrist-blade handles |
| Drain connection | 1-1/2 in. basket strainer (rear outlet) |
| Material / gauge | 16 ga type 304 stainless steel |
| Wall supports | (2) 1-5/8 in. Ø tubular 304 SS |
| Clear knee space | 30 in. W × 12 in. H (ADA) |
| Shipping weight | ≈ 64 lb |
| Certifications | NSF, ADA compliant |
*Height measured from bottom of supports to top of backsplash.
Fast installation
- Mount “Z” brackets 42-1/2 in. above finished floor, then slide sink into place.
- Seal backsplash with food-grade silicone.
- Connect 3/8 in. hot & cold supplies to faucet and 1-1/2 in. drain to waste line.
- Verify local code requirements before installation.
Get the rugged performance and code compliance you need—add this Advance Tabco service sink to your cart today and keep your operation running smoothly.
