Advance Tabco FC-FM-80FV Hand Sinks
Description

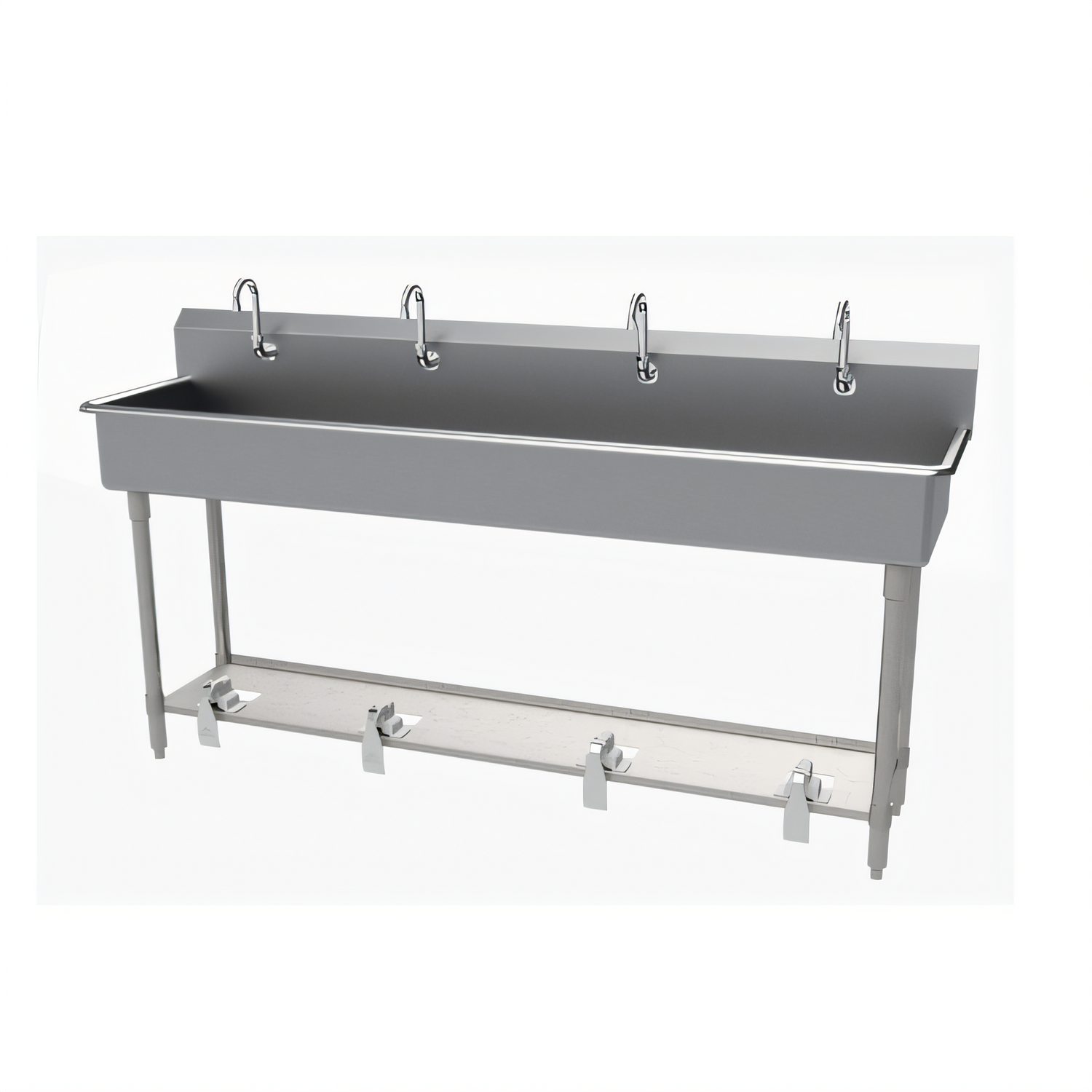

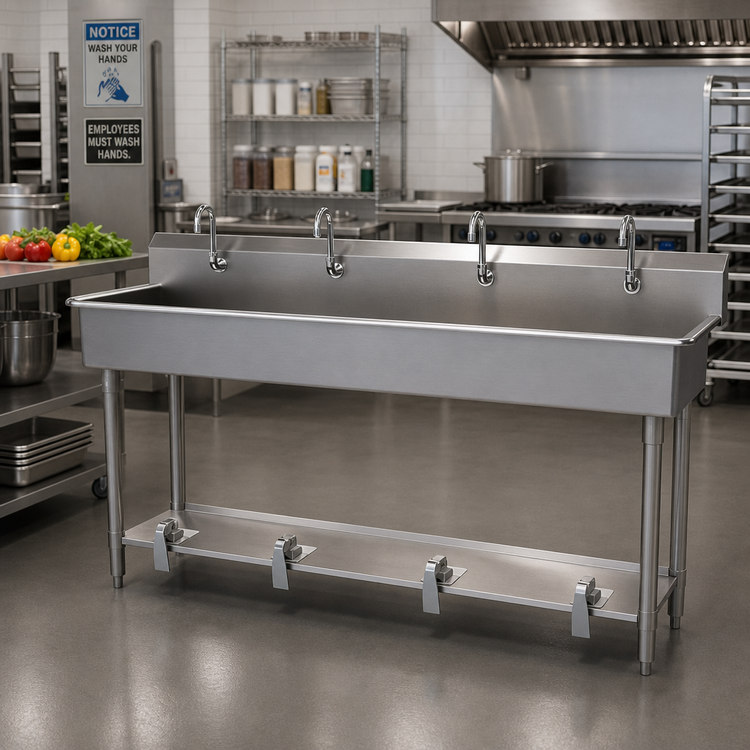

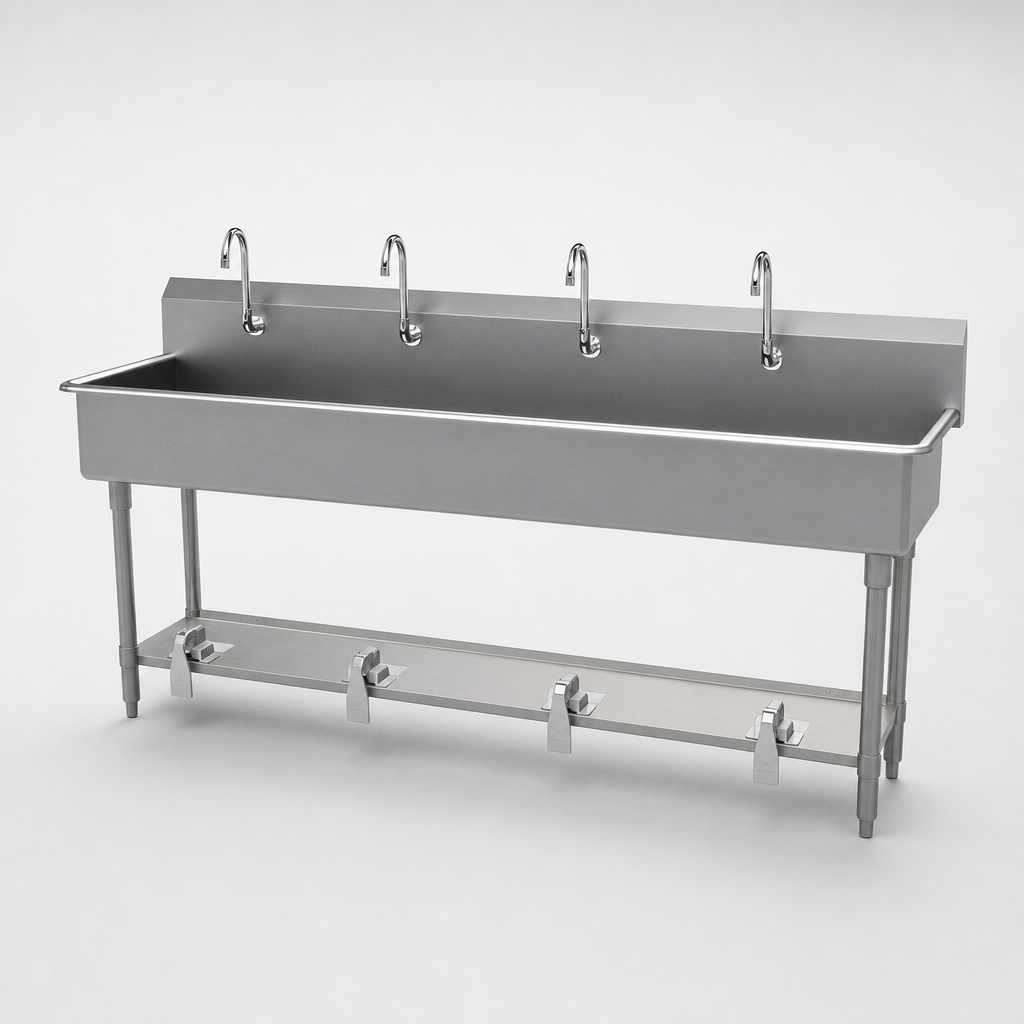

Advance Tabco FC-FM-80FV Four-Station Toe-Push Hand Sink – 80"
16 ga 304 stainless steel • Splash-mount gooseneck spouts • NSF listedEngineered for fast-paced, high-volume environments, the Advance Tabco FC-FM-80FV multi-user hand sink delivers touch-free sanitation via four toe-operated valves. Heavy-duty 16 gauge type 304 stainless steel, a full-length 8 ½″ backsplash, and TIG-welded construction ensure years of reliable service in commercial kitchens, food-processing plants, laboratories, and industrial facilities.
Key benefits
- Hands remain germ-free thanks to toe-push (K-104) valves – no wrist or elbow contact required.
- Four single-hole stations with included K-121 splash-mount gooseneck spouts for generous clearance.
- Rugged 16 ga type 304 stainless steel; all TIG-welded and blended to a satin finish.
- Full-width 80″ bowl with 16″ front-to-back working surface and 8″ depth handles the rush with ease.
- Integrated 8 ½″ backsplash protects walls and keeps water where it belongs.
- 1 5⁄8″ tubular stainless steel legs with adjustable flanged feet and rear pedal support bar add rock-solid stability.
- Pre-punched for plumbing, complete with 3 ½″ rear basket drain and stainless “Z” wall brackets.
- NSF listed; faucets comply with NSF 61 / 9 & AB 1953 lead-free standards.
Ideal for
- High-volume restaurant and commissary kitchens
- Food & beverage processing lines
- Pharmaceutical and R&D laboratories
- Industrial & manufacturing hand-wash stations
- School, stadium & theme-park concessions
At-a-glance specifications
| Model | FC-FM-80FV |
|---|---|
| Stations | 4 (toe-push operated) |
| Overall dimensions (W × D × H) | 80″ W × 19 ½″ D × 42 ½″ H |
| Bowl size (per sink) | 16″ front-to-back × 8″ deep (full 80″ shared width) |
| Backsplash height | 8 ½″ |
| Material & finish | 16 ga type 304 stainless steel, satin finish |
| Faucet mounting | 4 single holes, splash mount |
| Included faucets | 4 × K-121 gooseneck spouts |
| Valves | 4 × K-104 toe-push valves (mixing, built-in check valves) |
| Drain | 3 ½″ rear basket drain (K-6) |
| Legs / feet | 1 5⁄8″ Ø tubular stainless steel legs with flanged bullet feet |
| Shipping weight | 168 lb |
| Certifications | NSF (sink & faucets) |
What’s in the box
- Advance Tabco FC-FM-80FV four-station sink assembly
- (4) K-104 toe-push mixing valves (mounted)
- (4) K-121 splash-mount gooseneck spouts (mounted)
- (1) 3 ½″ rear basket drain with strainer
- Tubular leg frame with flanged feet & pedal support bar
- Stainless steel “Z” wall brackets & support shelf
- Installation hardware & instructions
Optional accessories (sold separately)
- K-06 splash-mount faucet mounting kit
- K-13 stainless steel wall-mount soap dispenser
- K-411 strainer plate for 3 ½″ drain
- TA-19 adjustable stainless bullet feet
- Replacement pedal, valve & spout kits
Why Advance Tabco?
- Made in the USA for 90+ years
- Industry-leading Smart Fabrication™ capabilities
- Backed by responsive, factory-direct customer service
Images may show accessories or installation fixtures that are not included. Always consult local plumbing codes before installation.
