Advance Tabco FC-FM-60FV Hand Sinks
$4,227.00
Unit price
/
Unavailable
Description

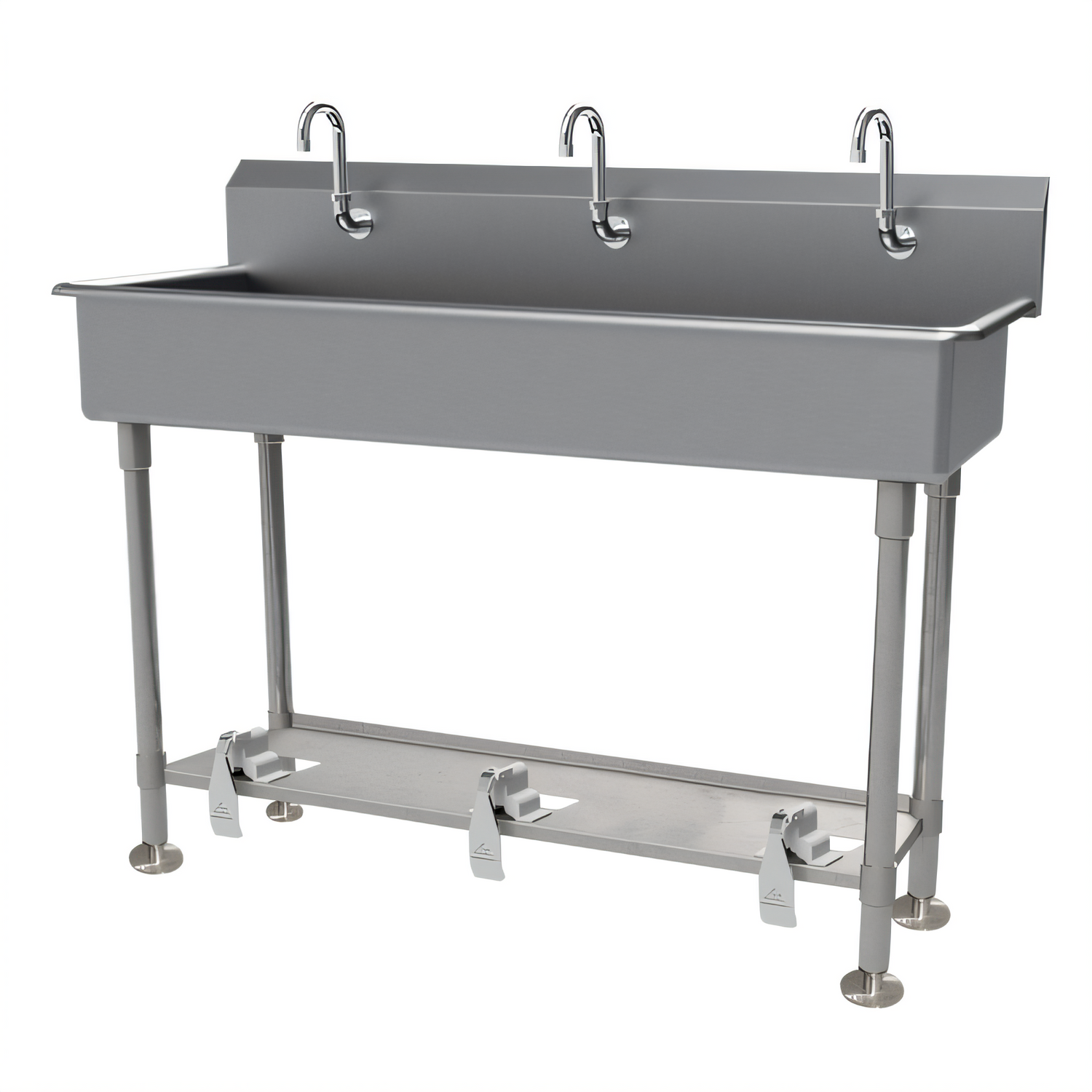

Advance Tabco FC-FM-60FV Multi-Wash Hand Sink – 60" 3-Station, Toe-Push Operated
16 gauge 304 stainless steel | floor mounted with splash-mount faucetsBuilt for the busiest food-service, healthcare and industrial facilities, the Advance Tabco FC-FM-60FV delivers durable, hands-free washing for three users at once. A rugged 16 gauge stainless trough, integrated 8 ½" backsplash and toe-activated valves keep your operation hygienic, code-compliant and easy to maintain.
Key features
- Hands-free operation – three K-104 toe-push mixing valves with linked pedal support rail
- (3) pre-punched single holes in backsplash with K-121 3 ½" gooseneck spouts included
- Extra-tough 16 ga. type 304 stainless steel construction with easy-clean satin finish
- Spacious 60" continuous bowl – 16" front-to-back and 8" deep
- 8 ½" high backsplash protects surrounding walls from overspray
- 1 5/8" Ø tubular stainless steel legs with welded gussets & flanged feet for secure floor anchoring
- Rear 3 ½" basket drain (K-6) included for fast, clog-resistant drainage
- All TIG-welded seams blended to a seamless, sanitary finish
- Includes two stainless “Z” wall brackets and an under-bowl support shelf with rear turn-up
- NSF listed; faucets comply with NSF 61/9 & AB 1953 lead-free standards
Technical specifications
| Manufacturer / Model | Advance Tabco FC-FM-60FV |
|---|---|
| Stations | 3 |
| Overall dimensions | 60" W × 19 ½" D × 42 ½" H (to top of backsplash) |
| Rim height | 34" |
| Bowl size | 60" W × 16" F-B × 8" deep (continuous trough) |
| Backsplash | 8 ½" high, splash-mount faucet deck |
| Faucet provision | (3) single 1 ⅛" holes; includes (3) K-121 gooseneck spouts |
| Valve type | (3) K-104 toe-push mixing valves, 3⁄8" NPT female inlets |
| Drain | K-6 3 ½" rear basket drain (1 ½" IPS outlet) |
| Material & finish | 16 ga. type 304 stainless steel, satin polish |
| Legs / feet | 1 ⅝" Ø tubular 304 SS legs with flanged feet |
| Shipping weight | Approx. 129 lb / 30 cu. ft. |
| Certifications | NSF (sink & faucet), lead-free compliance |
Common applications
- Restaurant and commercial kitchen hand-wash stations
- Food-processing and packaging lines
- Laboratory or pharmaceutical wash areas
- Industrial manufacturing facilities
Optional accessories
- K-13 stainless steel wall-mount soap dispenser
- K-06 splash-mount faucet installation kit
- K-411 strainer plate for 3 ½" drain
- TA-19 adjustable stainless bullet feet
- Replacement valve & pedal kits (K-17, K-18, K-19)
California Prop 65 Notice: Components that include faucets, valves or spouts may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit p65warnings.ca.gov.
Need a different length or knee/electronic operation? Contact us for custom Advance Tabco Smart Fabrication™ solutions.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
42.5in
Width
60.0in
Depth
19.5in
Shipping Weight
118.0lbs
Features
multi-station
Faucet
faucet included
Bowl Width (left to right)
20" & up
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Height (rim to drain)
8" deep
Style
freestanding
Specifications
Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 60"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (3) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF
