Advance Tabco  |  SKU: FC-FM-40FV  |  UPC: 747545216571

Advance Tabco FC-FM-40FV Hand Sinks

$3,442.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Installation & operation
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

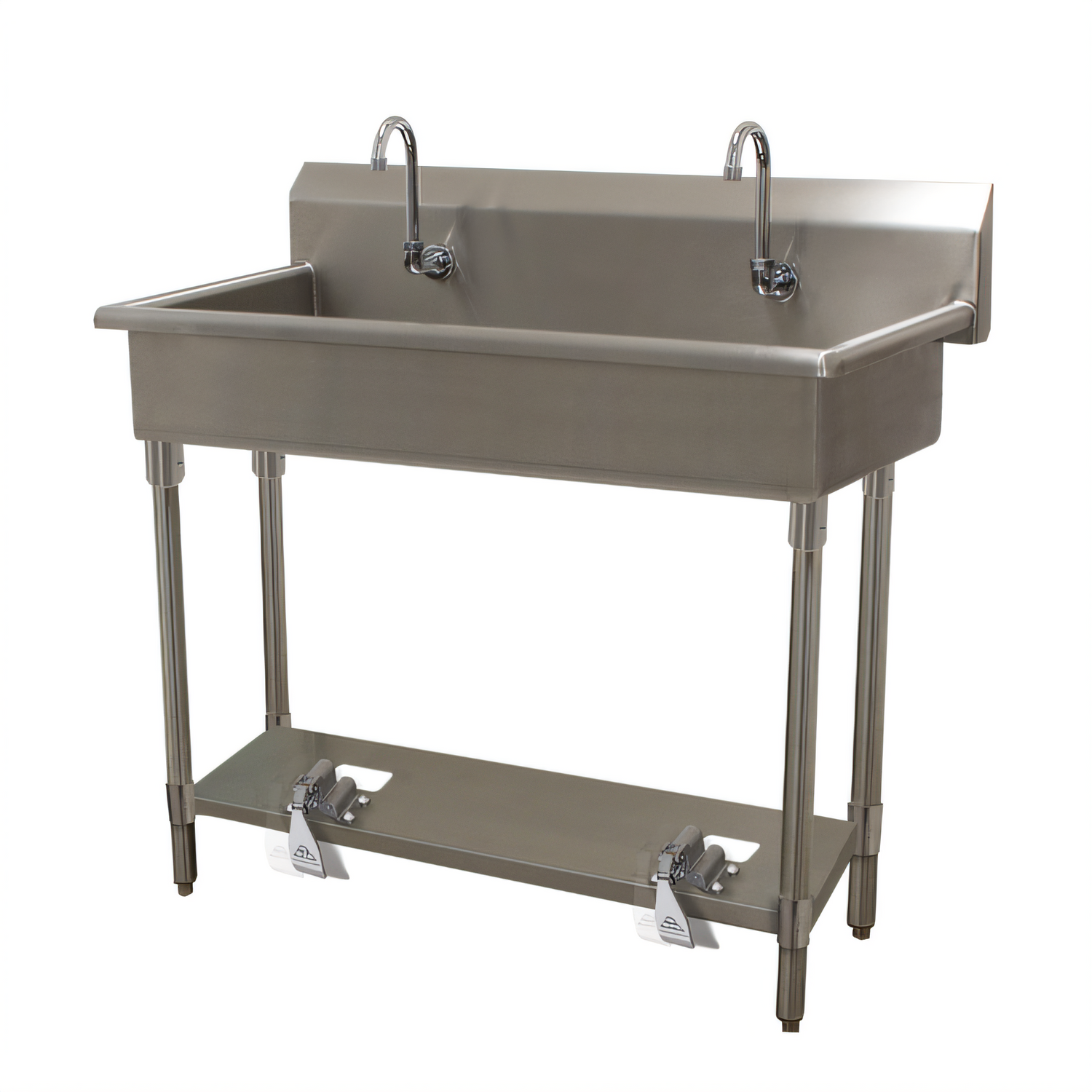

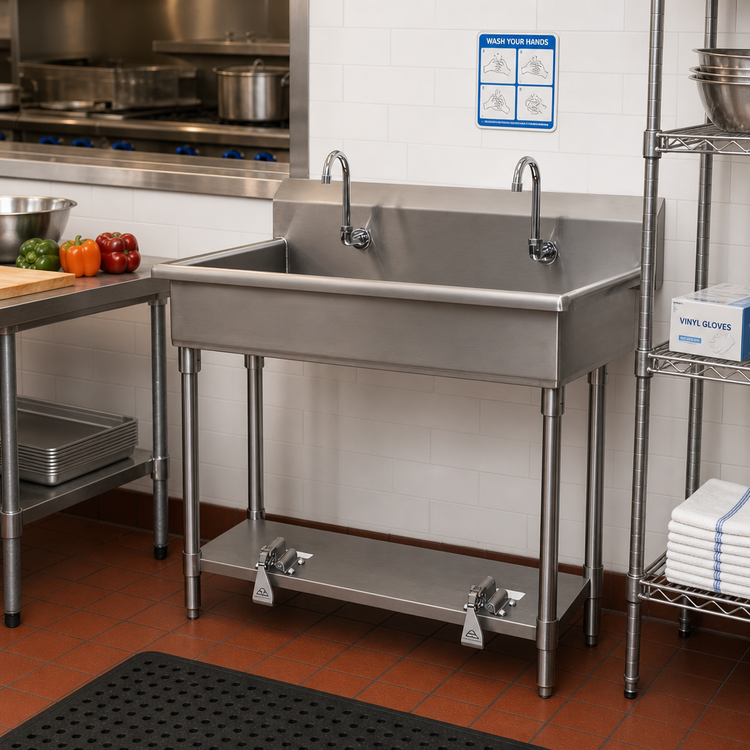

Advance Tabco FC-FM-40FV Two-Station Multi-Wash Hand Sink

40" floor-mounted sink with toe-push valves  |  16-gauge 304 stainless steel

Built for demanding, high-volume environments, the FC-FM-40FV delivers two completely hands-free washing stations in one compact, easy-to-sanitize unit. 16-gauge type 304 stainless steel, TIG-welded seams and a rugged leg frame ensure years of trouble-free service while the toe-push valves eliminate cross-contamination at the point of use.

Key Features

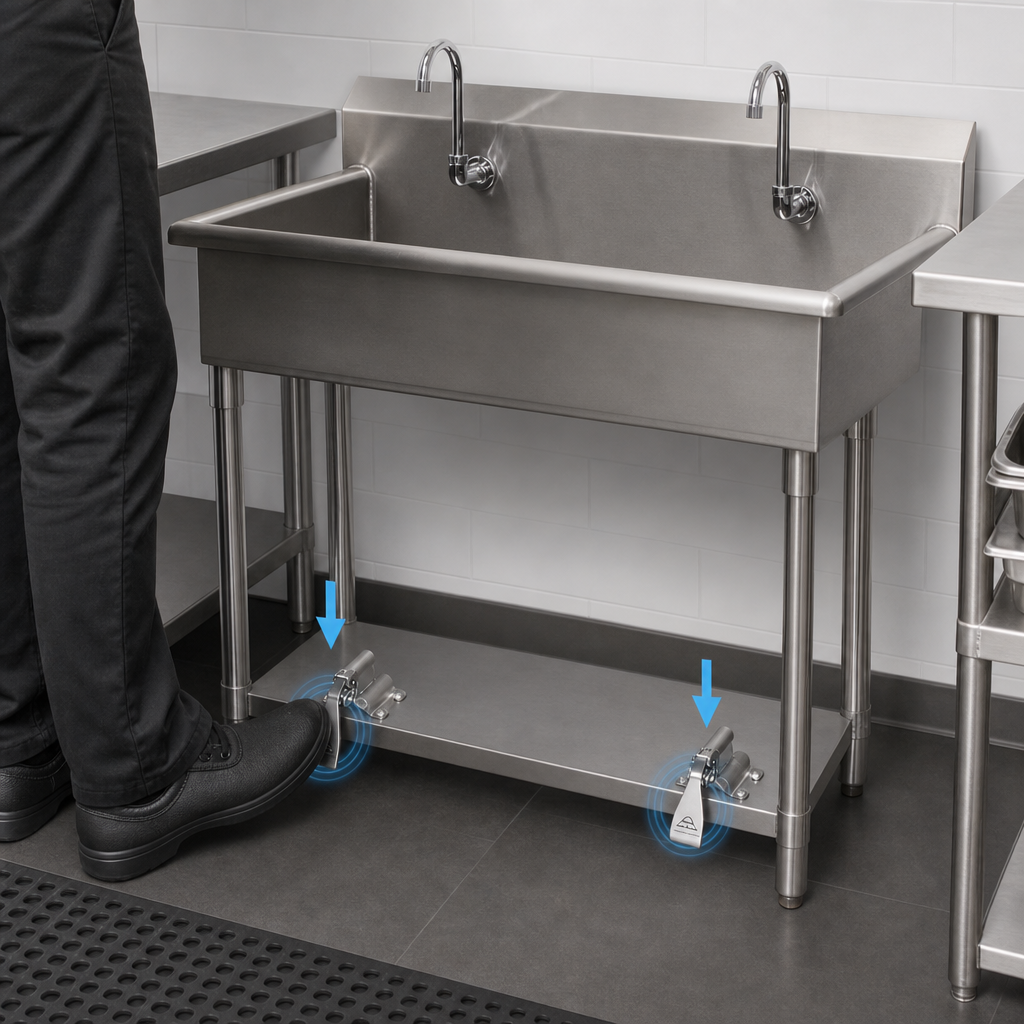

  • Hands-free operation with (2) K-104 toe-push valves and pedal bracket support bar.
  • (2) single-hole punches fitted with K-121 3 ½" splash-mount gooseneck spouts.
  • Deep 8" bowls offer plenty of room for thorough scrubbing; 16" front-to-back working area.
  • 8 ½" integral backsplash helps keep surrounding walls dry and sanitary.
  • 3 ½" rear basket drain (K-6) with strainer plate for fast, clog-free drainage.
  • 1 5⁄8" Ø tubular stainless legs with welded gussets, flanged feet and adjustable bullet inserts.
  • All TIG-welded 16-gauge type 304 stainless steel with satin finish—corrosion-resistant and easy to clean.
  • NSF listed; faucets conform to NSF/ANSI 61-9 & AB 1953 lead-free requirements.

At-a-Glance Specifications

Model FC-FM-40FV
Stations 2
Operation Toe-push foot valves (hands-free)
Overall Dimensions 40" W × 19 ½" D × 42 ½" H
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8 ½"
Faucet Mounting (2) single-hole punches with included gooseneck spouts
Drain 3 ½" rear basket drain with strainer
Construction 16-gauge type 304 stainless steel, TIG-welded, satin finish
Legs / Feet 1 5⁄8" Ø stainless legs, flanged feet (adjustable)
Shipping Weight 106 lb.
Certifications NSF, Lead-Free Faucets

Perfect For

  • Commercial kitchens & food-prep areas
  • Food processing and packaging plants
  • Laboratories, clean rooms & pharmaceutical facilities
  • Employee wash-up stations in high-traffic operations

Looking for soap dispensers, extra strainer plates or replacement valve kits? Explore our full line of Advance Tabco accessories & parts.

California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

40.0in

Depth

19.5in

Shipping Weight

90.0lbs

Bowl Height (rim to drain)

8" deep

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

freestanding

Features

multi-station

Faucet

faucet included

Specifications

Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 40"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (2) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF
