Advance Tabco  |  SKU: FC-FM-120KV

Advance Tabco FC-FM-120KV Hand Sinks

$6,736.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Optional mixing valve
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

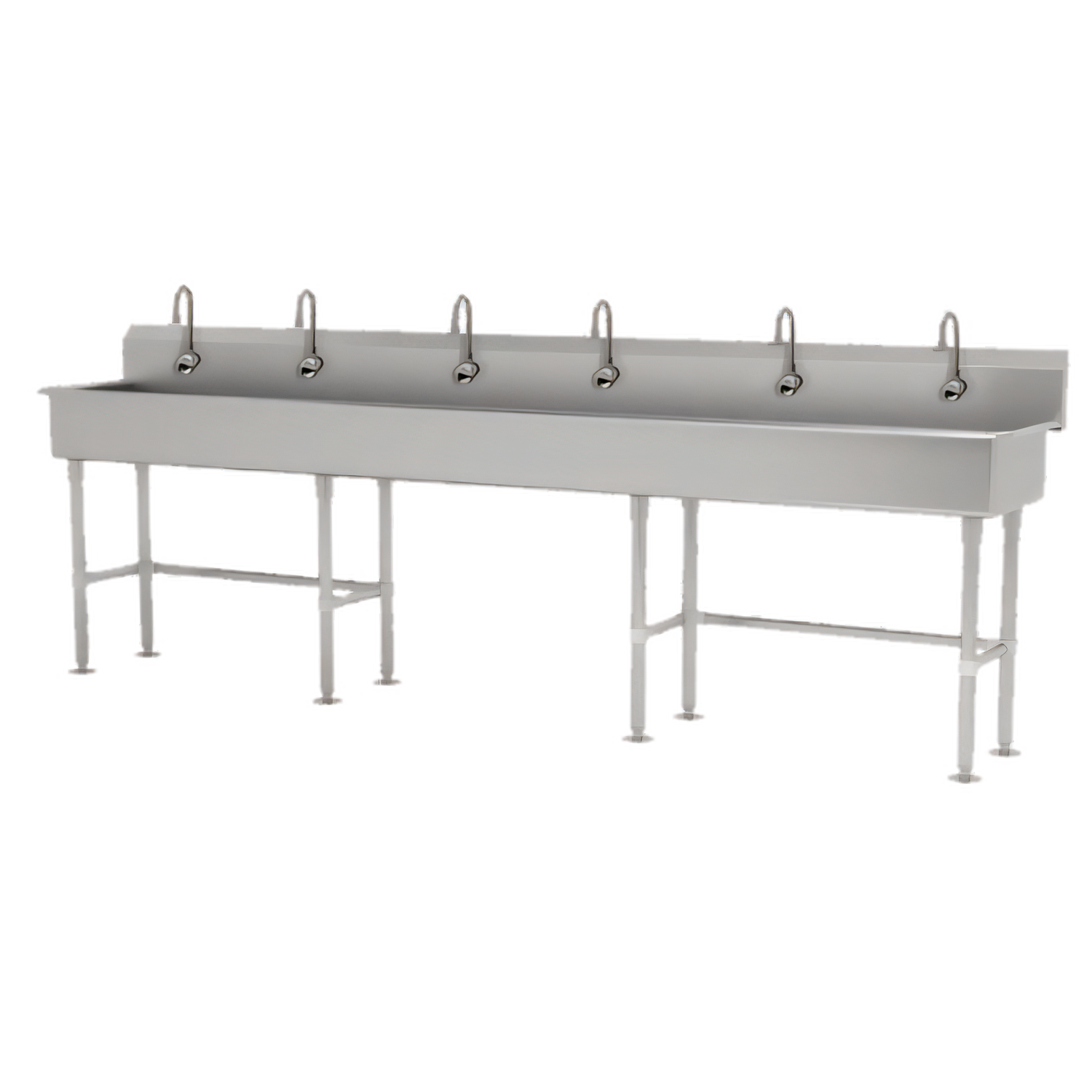

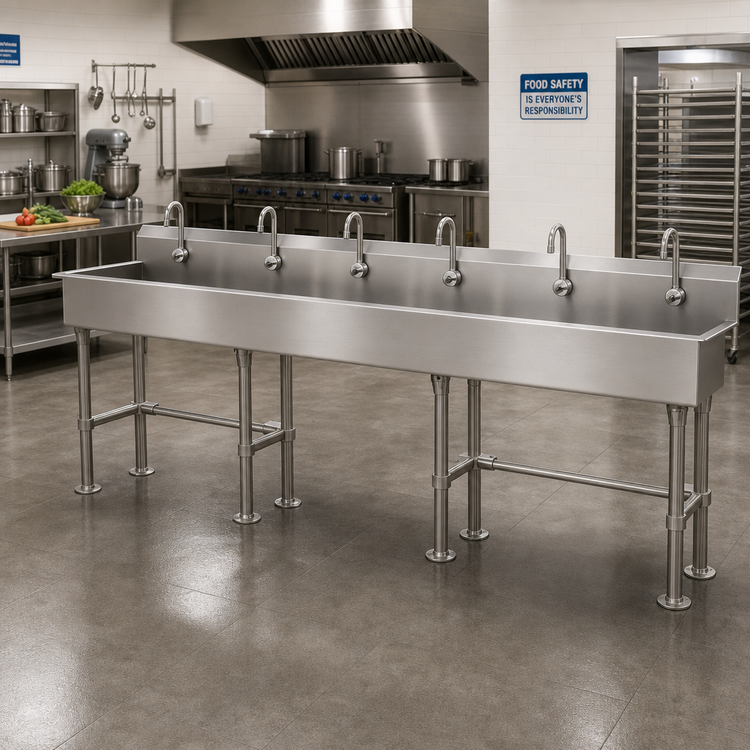

Advance Tabco 120" Multi-Wash Hand Sink – 6 Station, Knee Valve

16 ga 304 SS • Splash-Mount Faucet Provision • NSF Listed

Engineered for the high-volume demands of foodservice, healthcare, and industrial environments, this six-station Advance Tabco hand sink combines rugged 16-gauge type 304 stainless steel with true hands-free knee-valve operation. The result is a sanitary, easy-to-maintain wash station that keeps lines moving and your HACCP program on track.

Why You’ll Love It

  • Hands-free knee valve minimizes touch points and cross-contamination.

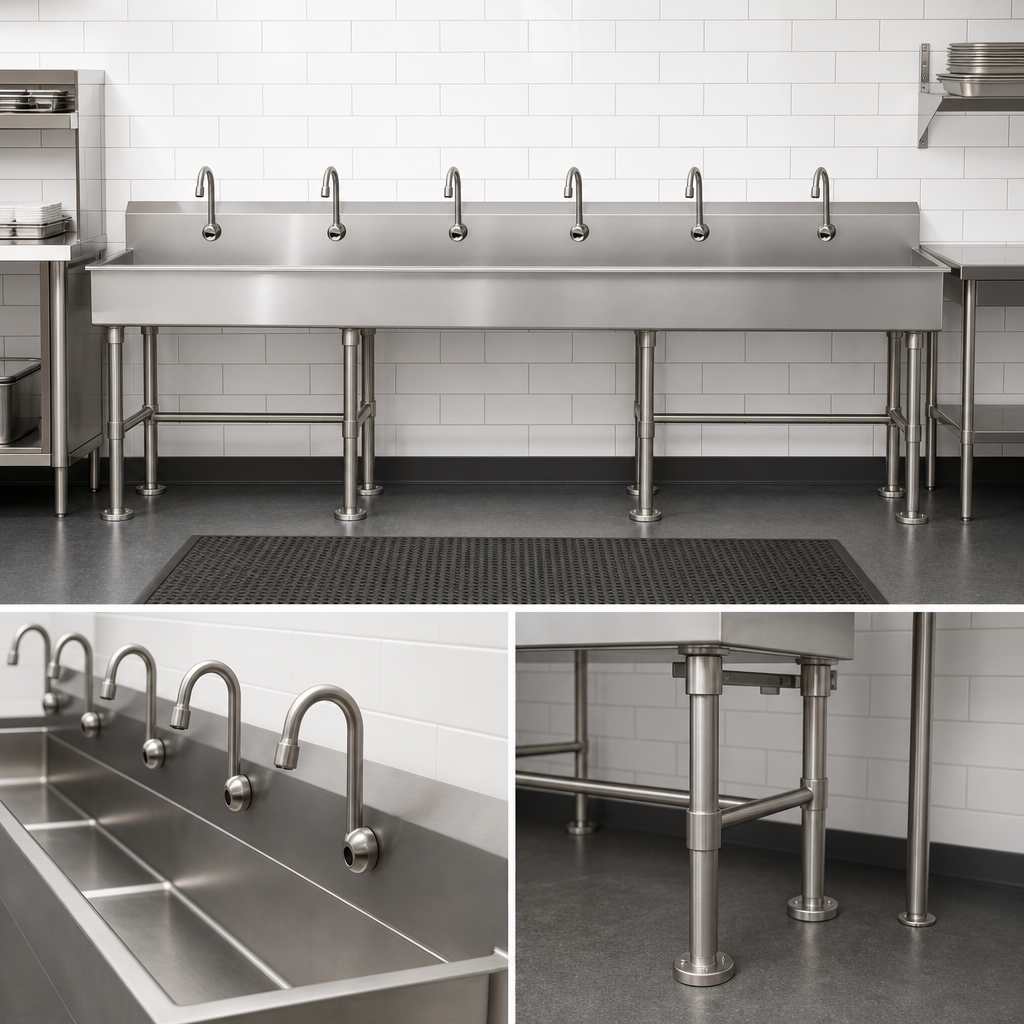

  • Six single-hole punchings (8" O.C.) accept the included gooseneck spouts or your preferred splash-mount faucets.
  • 120" wide body with 16" front-to-back x 8" deep bowls allows six users to wash comfortably at once.
  • 8 ½" high integral backsplash contains splashes and meets most health-code requirements.
  • Three 3 ½" rear basket drains speed water removal and resist clogging.
  • 1 5⁄8" Ø stainless steel tubular legs with adjustable cross-bracing and flanged feet deliver rock-solid stability on any floor.
  • All TIG-welded seams are ground and polished to a uniform satin finish for a professional look that’s easy to wipe clean.
  • NSF Listed for guaranteed food-safety compliance.

Technical Specifications

Overall Dimensions 120" W × 19 ½" D × 42 ½" H (to top of backsplash)
Work Height 34" (from floor to rim)
Bowl Size (each) 16" F/B × 8" deep
Backsplash 8 ½" high with 1" return at top
Stations / Faucet Holes 6 stations – single 1 ⅛" hole per station, 8" on-center
Material & Gauge 16 ga type 304 stainless steel (sink, legs, cross-bracing)
Drain Assembly (3) 3 ½" rear basket drains included
Mounting Floor mounted; legs with adjustable flanged feet
Operation Knee valve (hands-free). Hot & cold inlets 3⁄8" NPT.
Certifications NSF
Shipping Weight Approx. 170 lb

Perfect For

  • School & university cafeterias
  • Healthcare & laboratory hand-wash stations
  • High-volume QSR & commissary kitchens
  • Food-processing & packaging facilities
California Prop 65: Components that come in contact with water may contain materials known to the State of California to cause cancer, birth defects, or other reproductive harm.

Need tempered water? Add the optional K-425 thermostatic mixing valve for effortless code compliance.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

218.0lbs

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Features

multi-station

Style

freestanding

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with knee valve, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, gooseneck spouts, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF
