Advance Tabco FC-FM-120FV Hand Sinks
Description

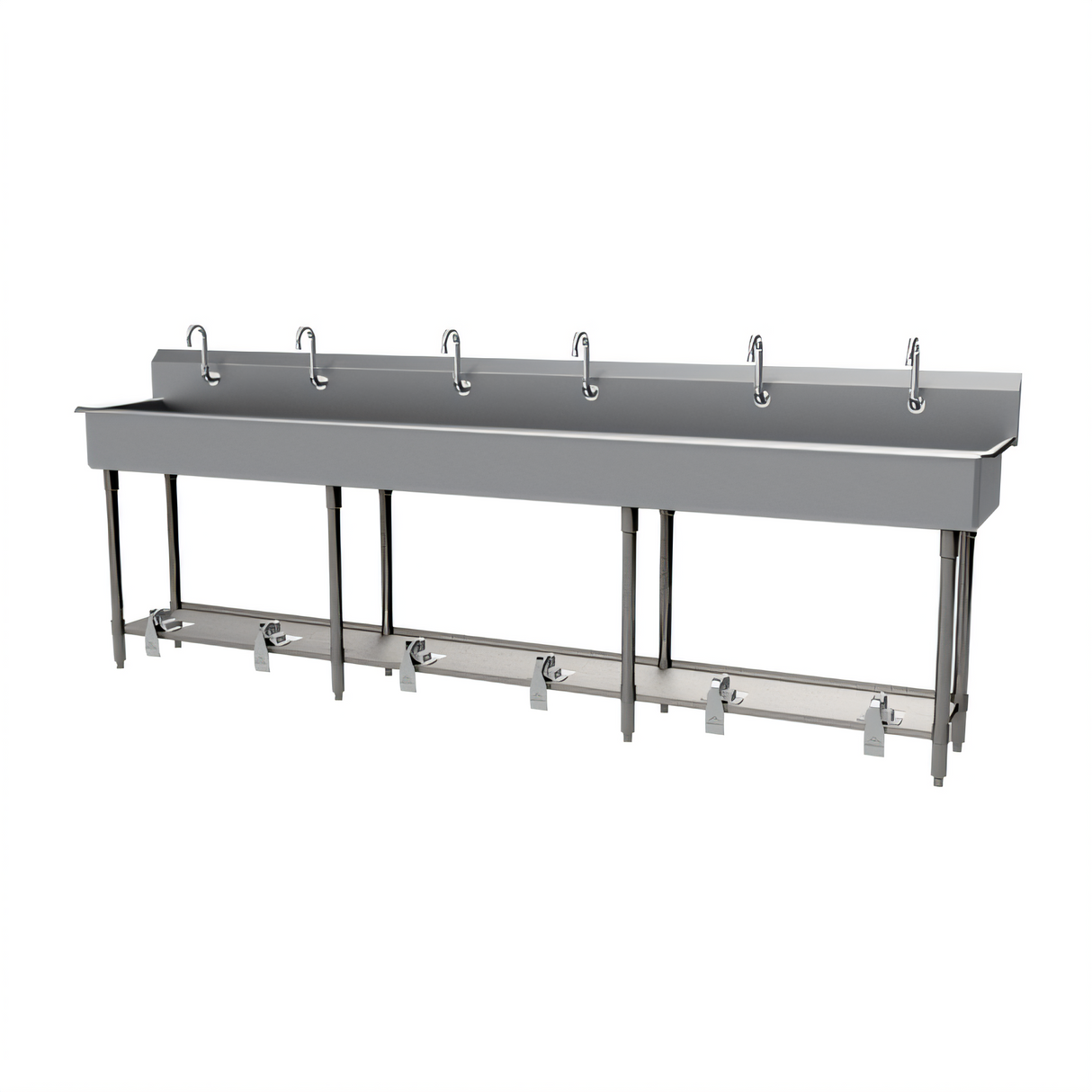

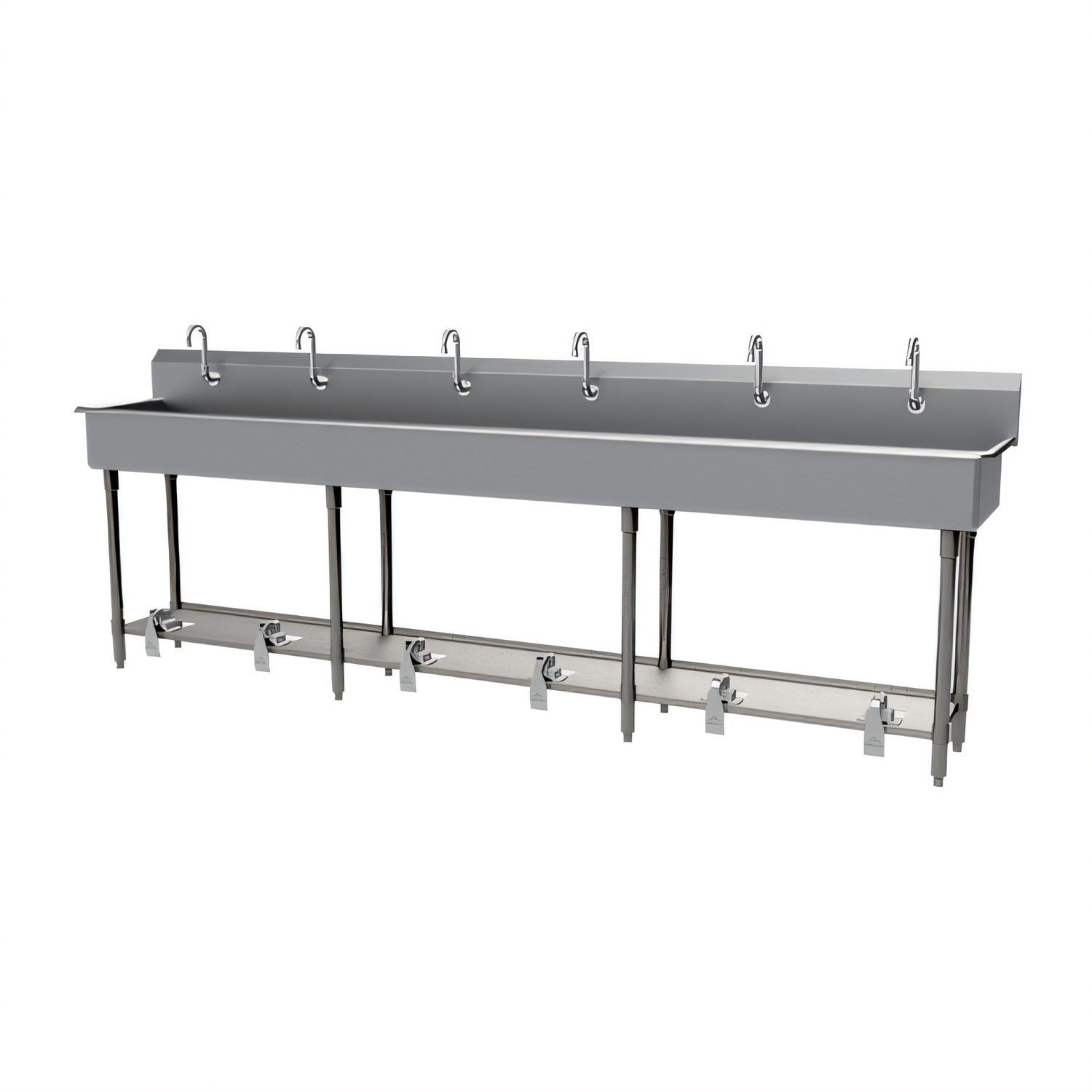

FC-FM-120FV Six-Station Multiwash Hand Sink
by Advance Tabco – 120" Toe-Push Operated, Floor MountedEngineered for high-volume hand-washing, the Advance Tabco FC-FM-120FV delivers six fully independent stations in one ultra-rugged, 16 ga. 304 stainless steel body. Hands-free toe pedals, splash-mount gooseneck spouts and an 8½" backsplash help your team maintain the highest sanitary standards while keeping traffic moving.
Why This Sink Stands Out

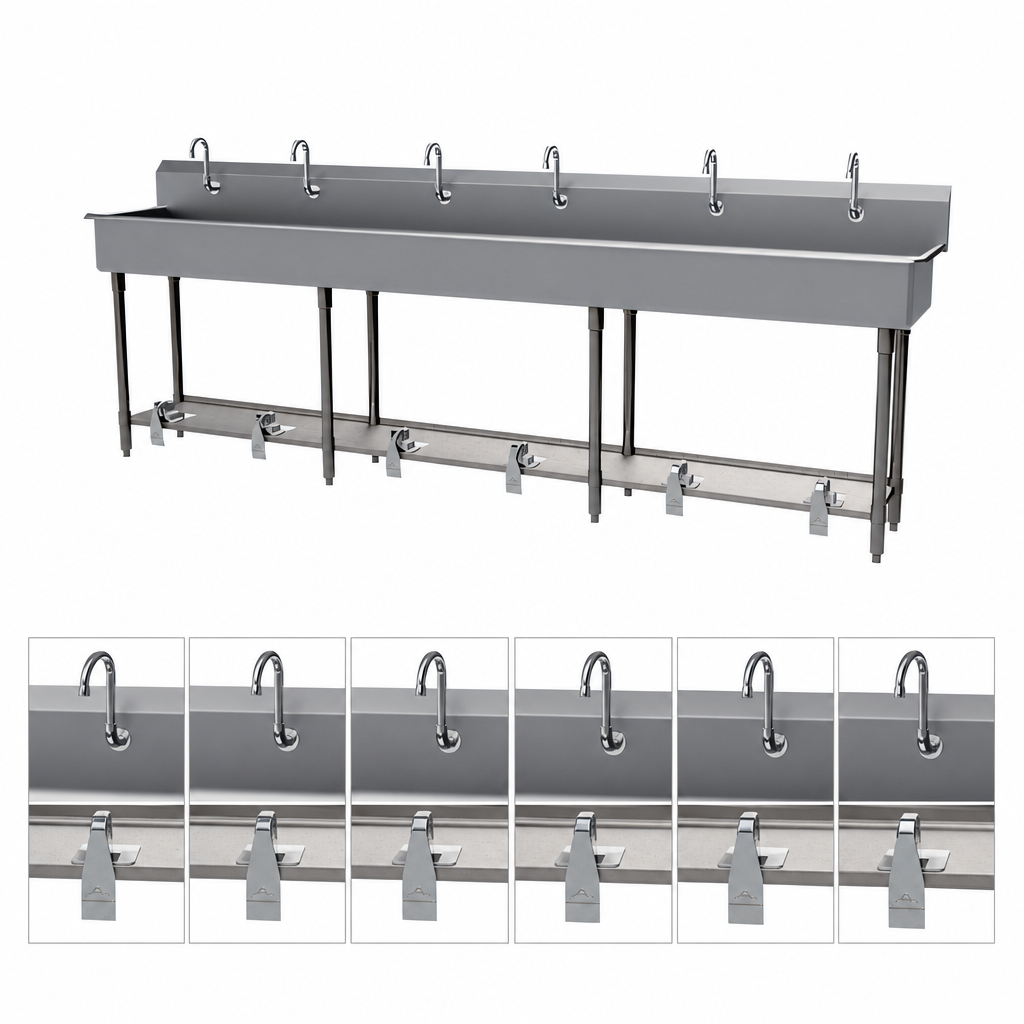

- Six users at once – 120" long trough with six single faucet holes.
- Hands-free operation – (6) K-104 toe-push valves reduce cross-contamination.
- NSF & Lead-Free – Components conform to NSF 61/9 and AB 1953 standards.
- Built to last – 16 ga. type 304 stainless steel, TIG-welded and satin finished.
- Complete package – Includes gooseneck spouts, rear basket drains, tubular legs with flanged bullet feet & wall support brackets.
- Easy clean-up – 8" deep bowls and a continuous 8½" backsplash contain splashes.
Made for Demanding Spaces

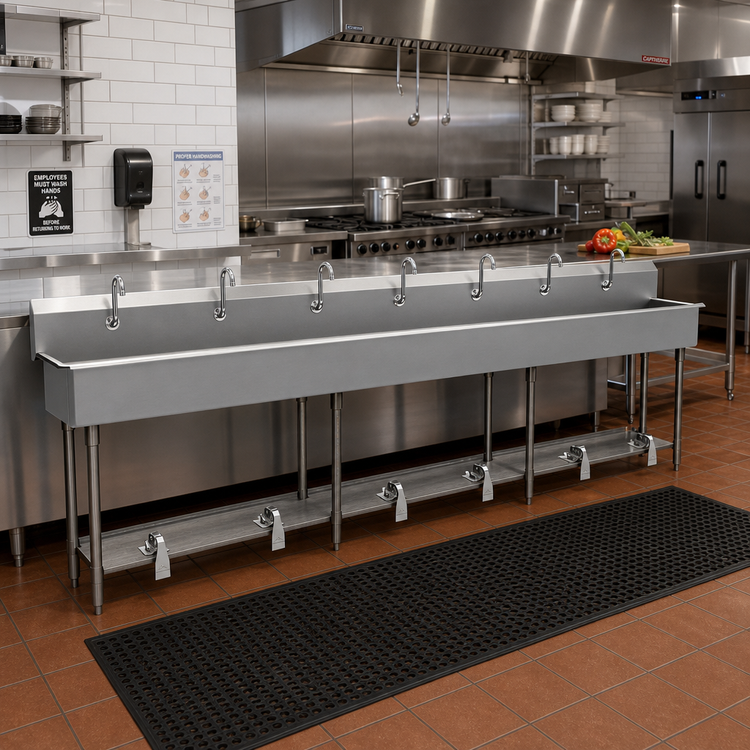

From commissary kitchens to pharmaceutical clean rooms, this multi-station sink is designed to thrive where uptime and hygiene are non-negotiable. Heavy-duty 1⅝" tubular legs with adjustable flanged feet keep the unit rock-solid on uneven floors, while die-formed “Z” wall brackets add extra rigidity. Welds are blended to a smooth, easy-to-sanitize satin finish.
What’s Included
- (6) K-104 stainless-steel toe-push valves
- (6) K-121 splash-mount 3 ½" gooseneck spouts
- (3) K-6 rear basket drains with strainer plates
- Stainless-steel tubular legs w/ flanged bullet feet
- (3) Stainless-steel “Z” wall brackets & pedal support shelf
Technical Specifications
| Stations | 6 |
|---|---|
| Overall Dimensions | 120" W × 19 ½" D × 42 ½" H |
| Bowl Size (each) | 16" front-to-back × 8" deep |
| Backsplash Height | 8 ½" |
| Faucet/Spout Mounting | Single splash-mount hole per station (6 total) |
| Operation | Toe-push valves (one per station) |
| Drain(s) | (3) 3 ½" rear basket drains |
| Material & Finish | 16 ga. 304 stainless steel, satin finish |
| Legs | 1 ⅝" Ø stainless tube with flanged feet |
| Weight | ≈ 252 lb |
| Approvals | NSF Certified; Faucets comply with NSF 61/9 & AB 1953 |
Unit ships knocked-down. Assembly, mounting hardware and final plumbing connections should be completed by a qualified installer in accordance with local code.
