Advance Tabco  |  SKU: FC-FM-120EFADA

Advance Tabco FC-FM-120EFADA Hand Sinks

$9,410.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

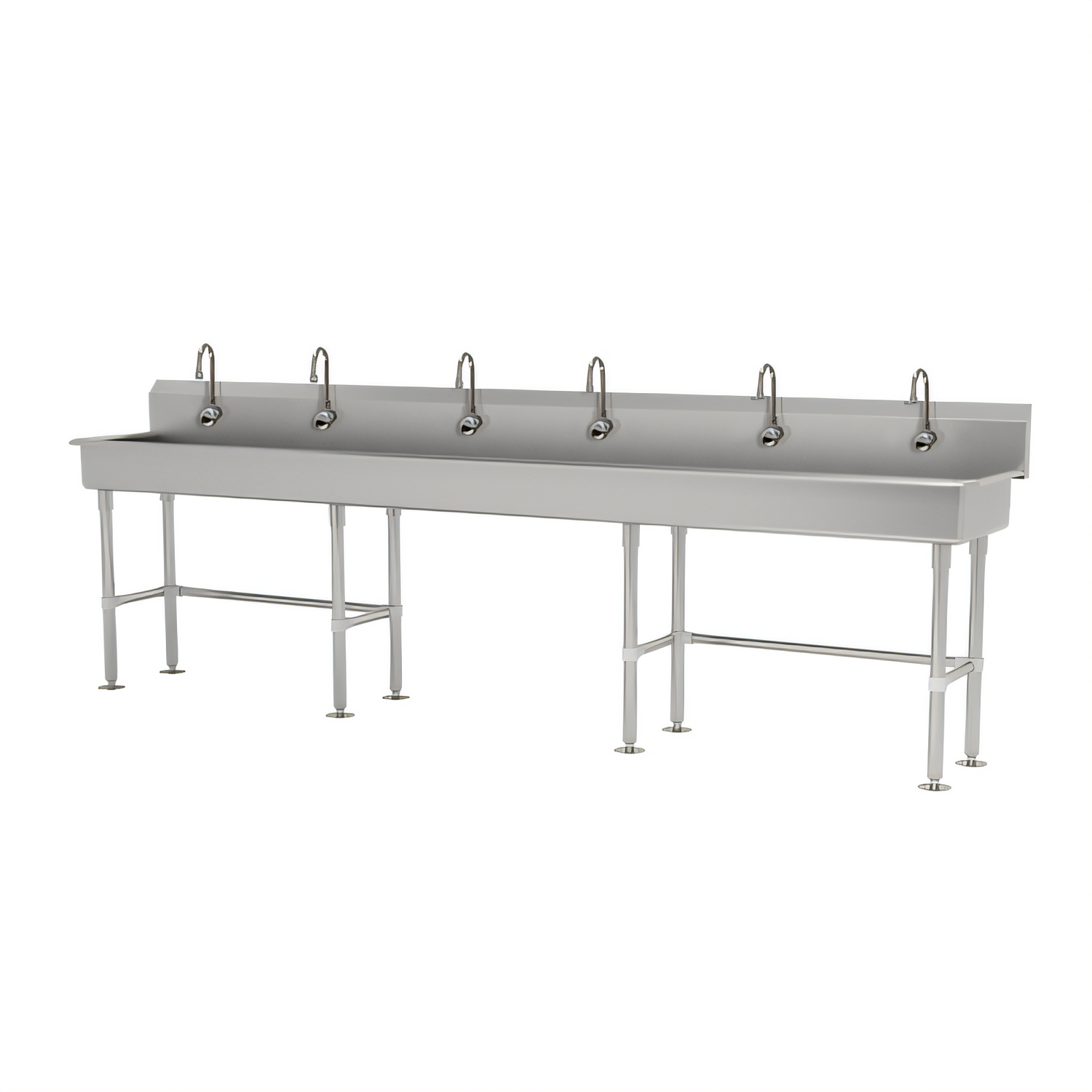

Advance Tabco FC-FM-120-EFADA Multi-Station Hand Sink

6-Station • 120" Wide • ADA Compliant • Electronic Faucets Included

Provide safe, touch-free handwashing for high-traffic areas with this 120" Advance Tabco Multiwash sink. Engineered from heavy-duty 16 ga. 304 stainless steel and equipped with six K-175 electronic faucets, it meets NSF and ADA requirements while delivering long-lasting performance in the busiest facilities.

Key Benefits

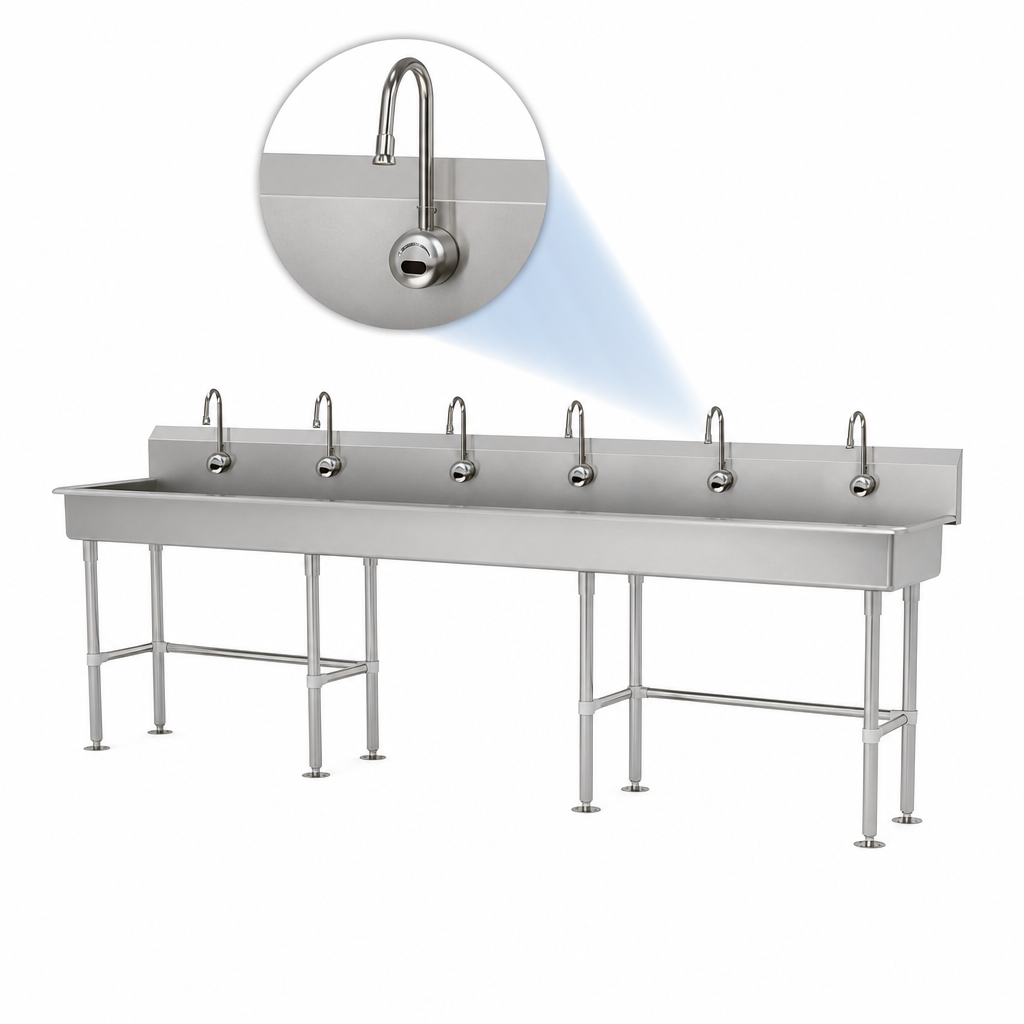

  • Six hands-free K-175 gooseneck faucets for maximum hygiene and water savings
  • Shallow 5" bowl depth ‐ fully ADA compliant for wheelchair accessibility
  • 8 ½" high backsplash contains splashes and protects surrounding walls
  • Single splash-mount faucet hole at each station for simplified plumbing
  • TIG-welded 16 ga. type 304 stainless steel with satin finish resists corrosion and cleans easily
  • Tubular stainless steel legs with adjustable cross-bracing and flanged feet for rock-solid stability
  • 3 ½" rear basket drain speeds drainage and traps debris
  • Factory-punched for quick installation ‐ arrives ready to plumb
  • NSF listed for sanitation and built to California Prop 65 standards

Ideal Applications

  • School cafeterias & classrooms
  • Healthcare and research labs
  • Stadium, arena and theme-park restrooms
  • Food-processing or back-of-house prep areas

Specifications

Model FC-FM-120-EFADA
Stations / Faucets 6 electronic (hands-free)
Overall Dimensions (W × D × H) 120" W × 19 ½" D × 42 ½" H
Bowl Size (each) 16" front-to-back × 5" deep
Backsplash Height 8 ½"
Material / Gauge 304 stainless steel, 16 ga.
Drain 3 ½" rear basket drain (included)
Legs & Feet 1 5/8" Ø tubular stainless legs with flanged feet & adjustable cross-brace
Compliance NSF | ADA | Prop 65
Power Battery or transformer power pack for electronic faucets (sold separately)

Need a shorter length, deeper bowl, or wall-mount configuration? Contact us for additional Advance Tabco Multi-Station options.

Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. For more information, visit the California Prop 65 website.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

170.0lbs

Bowl Height (rim to drain)

5" deep

Style

freestanding

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, with (6) electronic faucets, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) single faucet holes, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF, ADA compliant
