Advance Tabco  |  SKU: FC-FM-120-F

Advance Tabco FC-FM-120-F Hand Sinks

$5,808.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

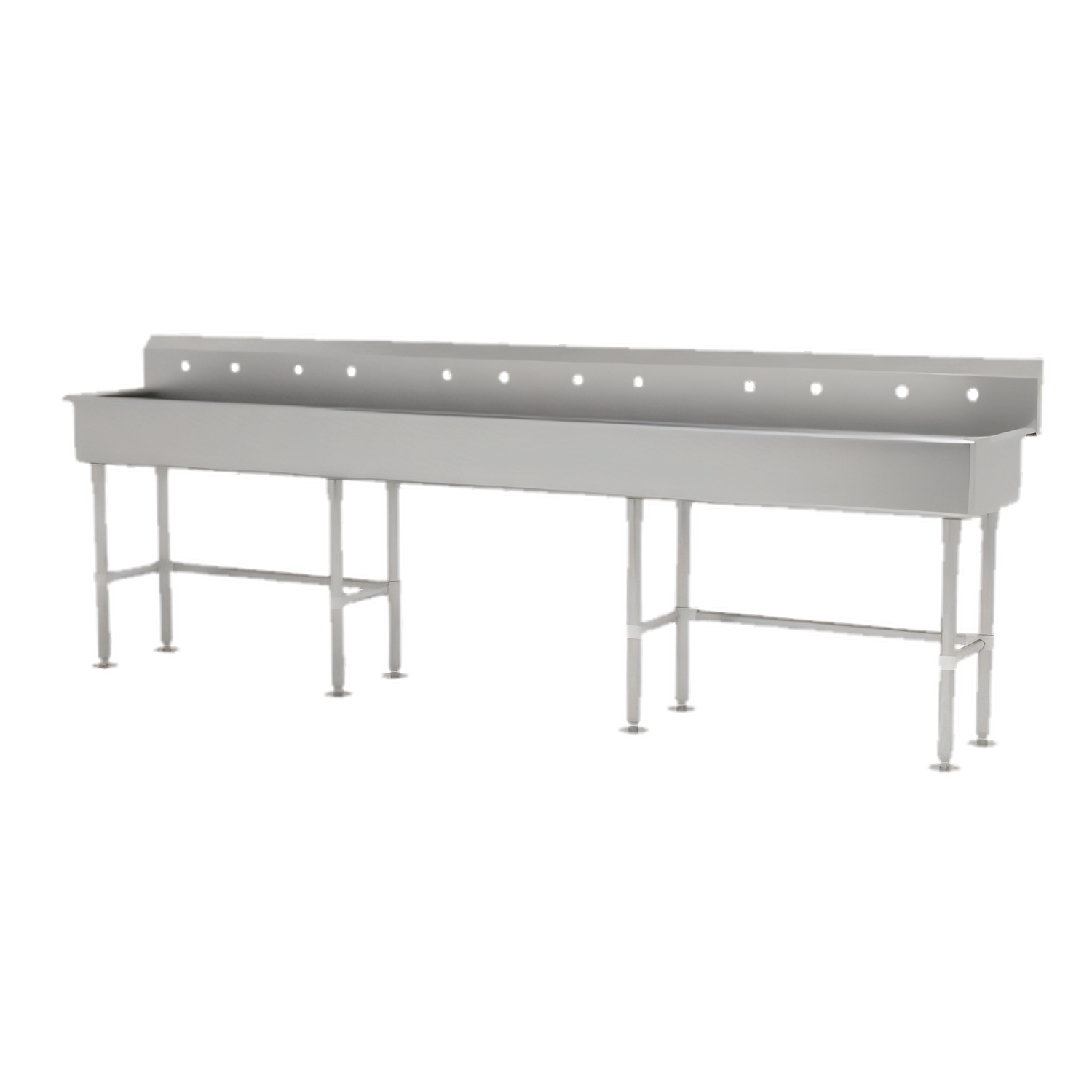

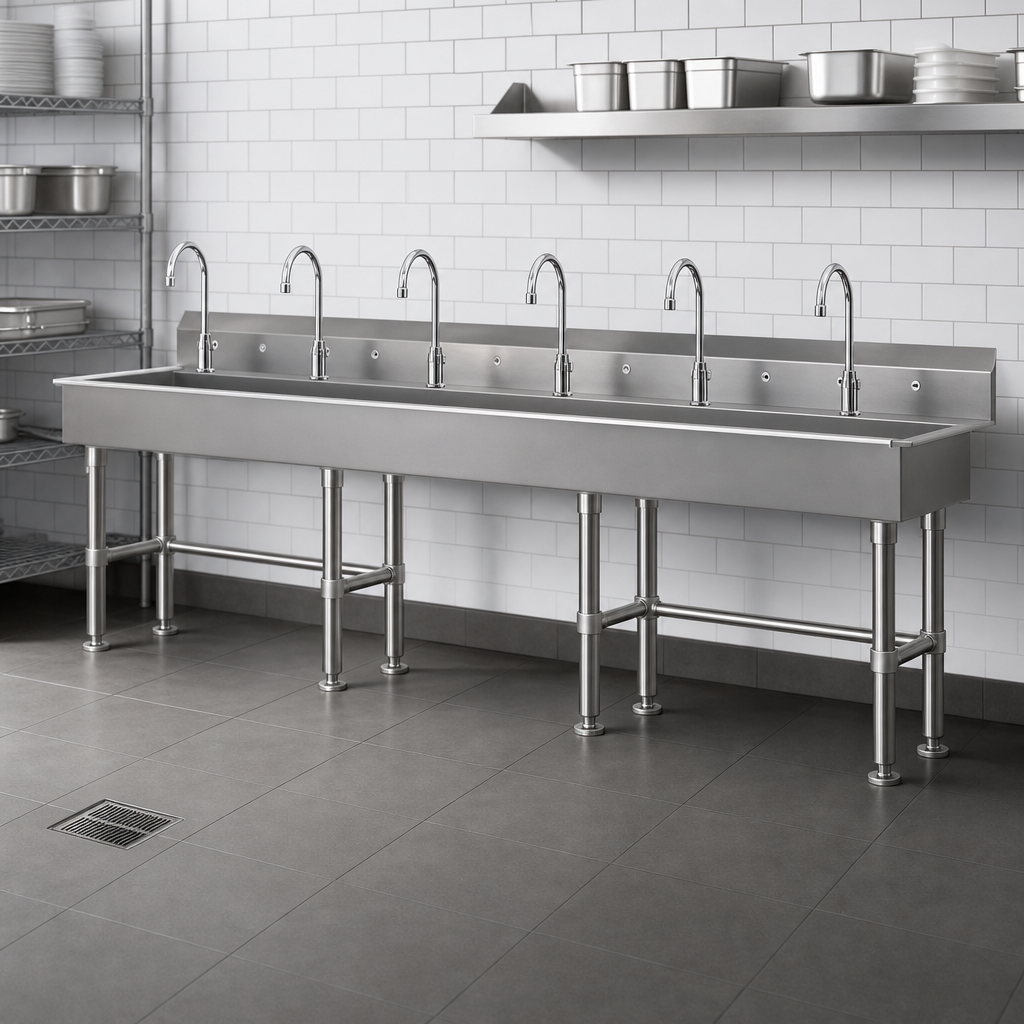

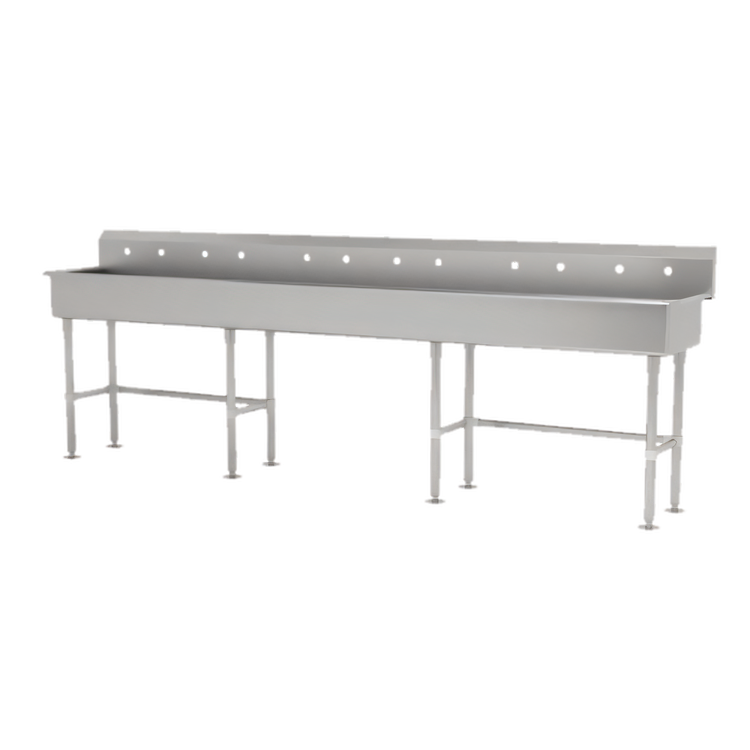

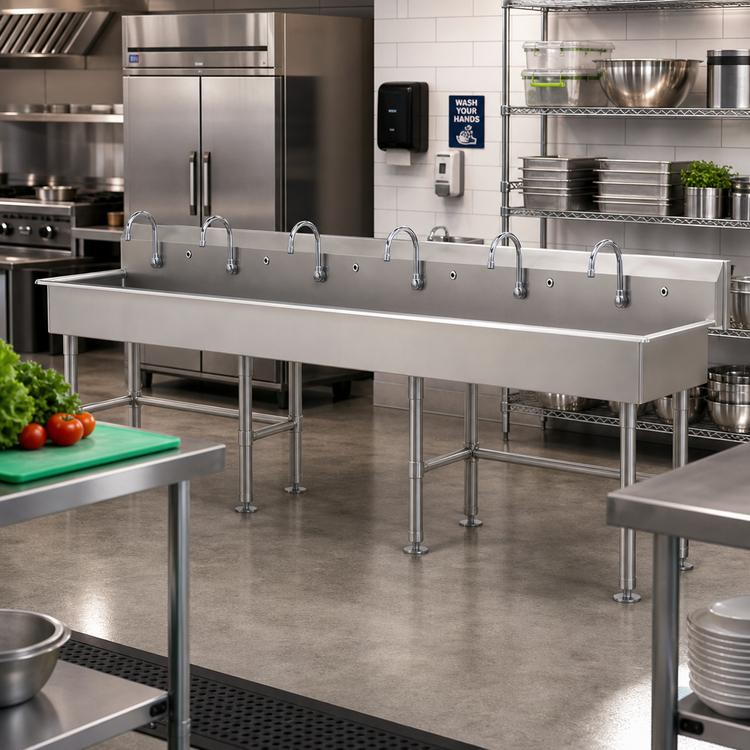

Advance Tabco FC-FM-120-F 6-Station Multi-Wash Hand Sink

120" wide • 16 ga 304 stainless • includes 6 gooseneck faucets

Give busy prep rooms, classrooms or employee wash areas a durable, easy-to-clean hand-washing solution built for high throughput. Measuring a full 10 ft wide, the FC-FM-120-F combines six splash-mount faucets, deep 16" front-to-back bowls and rock-solid tubular leg bracing—everything you need for reliable multi-user performance straight out of the box.

Key Features

  • Six K-159 8-1/2" gooseneck faucets included  (8" O.C. pre-punched holes).
  • Full-length 8-1/2" backsplash contains splashes and protects walls.
  • 16 ga type 304 stainless steel – TIG-welded and satin-finished for a hygienic, corrosion-resistant surface.
  • Individual bowls measure 16" front-to-back × 8" deep for comfortable hand washing and light ware rinsing.
  • Three 3-1/2" rear basket drains speed up water evacuation and make trap connections simple.
  • 1-5/8" dia. tubular stainless legs with adjustable cross-bracing and flanged feet for rock-solid floor anchoring.
  • NSF listed for commercial foodservice use.

Specifications

Model FC-FM-120-F
Number of Stations 6
Overall Dimensions (W × D × H) 120" × 19-1/2" × 42-1/2"
Bowl Size (each) 16" front-to-back × 8" deep
Backsplash Height 8-1/2"
Faucets Included (6) K-159 splash-mount gooseneck, 8" centers
Drain Assemblies (3) 3-1/2" basket drains (rear outlet)
Material & Gauge 16 ga 304 stainless steel
Legs / Base 1-5/8" O.D. stainless tubing with adjustable cross-brace and flanged feet
Construction All TIG-welded; welds blended to a satin finish
Certifications NSF
Approx. Shipping Weight 182 lb

Faucet supply lines and waste piping are not included. See Advance Tabco plumbing rough-in guide for recommended mounting heights and clearances.

CALIFORNIA PROP 65 WARNING: This product can expose you to chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

182.0lbs

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Faucet

faucet included

Features

multi-station

Style

freestanding

Bowl Height (rim to drain)

8" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, includes (6) faucets, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (6) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF
