Advance Tabco  |  SKU: FC-FM-120-ADA-F

Advance Tabco FC-FM-120-ADA-F Hand Sinks

$5,786.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

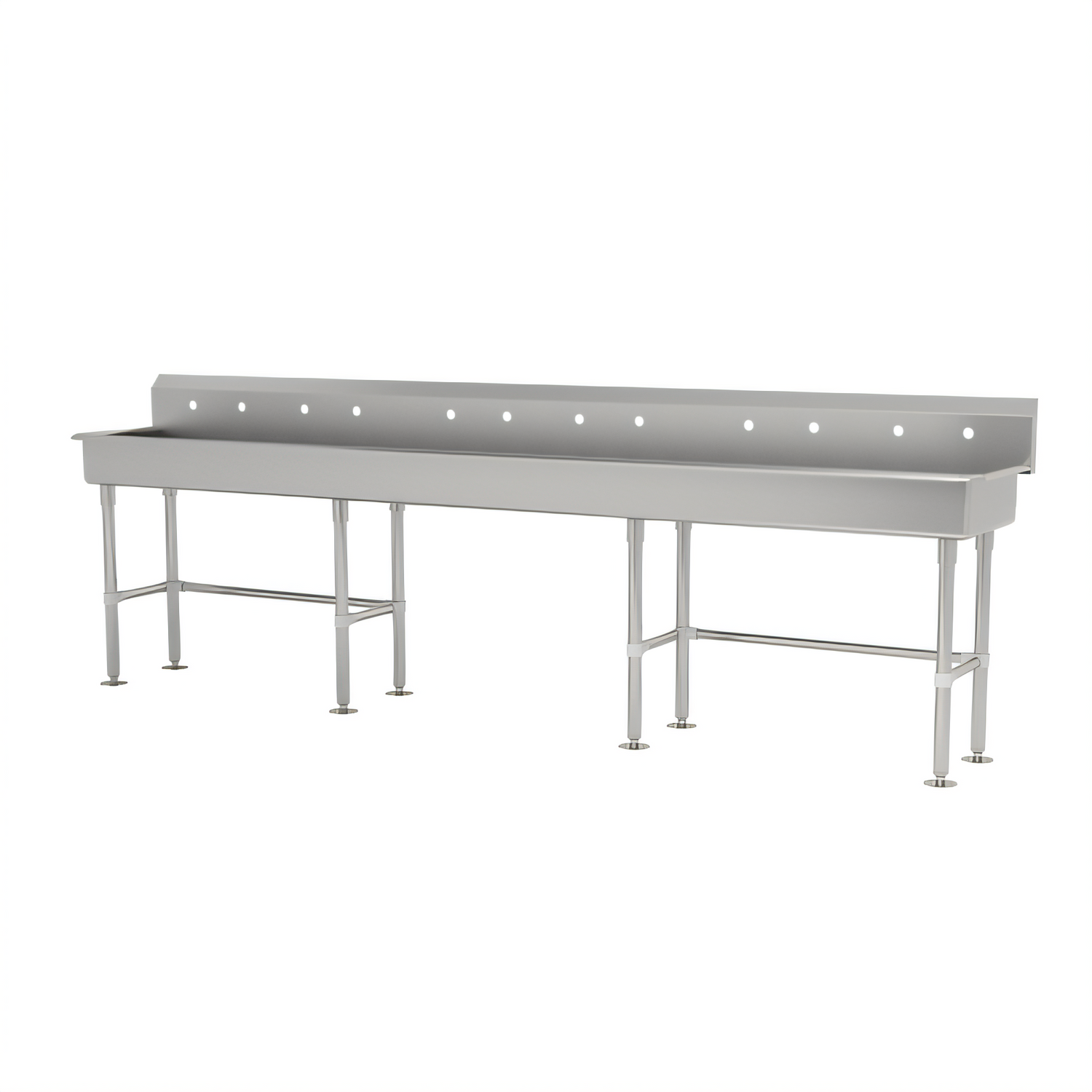

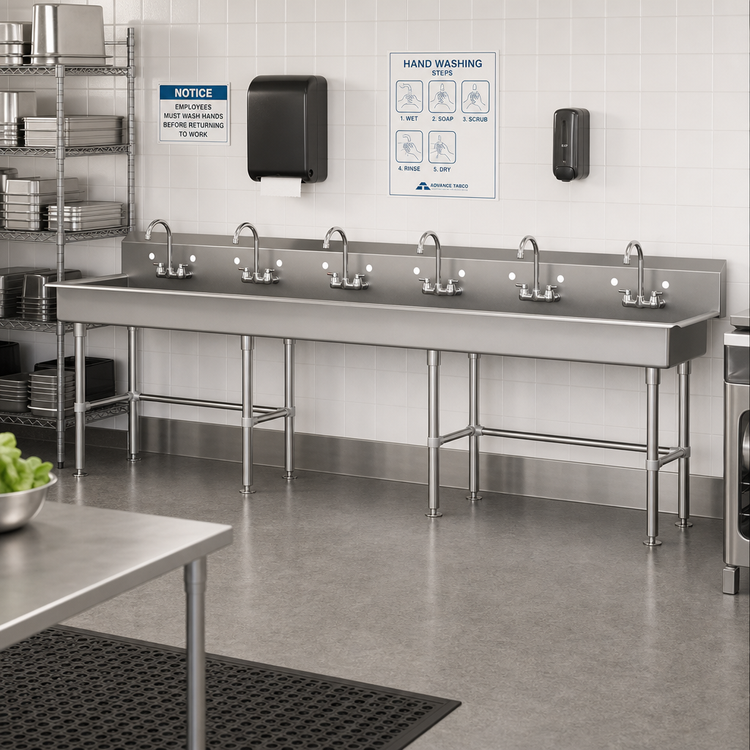

Advance Tabco 6-Station Multi-Wash Hand Sink – ADA Series

Model FC-FM-120-ADA-F

Keep hand-washing lines moving in the busiest kitchens, classrooms or industrial sites. This 120" wide, six-person sink arrives ready to install with wrist-blade faucets, ADA-compliant bowl depth and the rugged reliability of 16-gauge 304 stainless steel.

Key Features

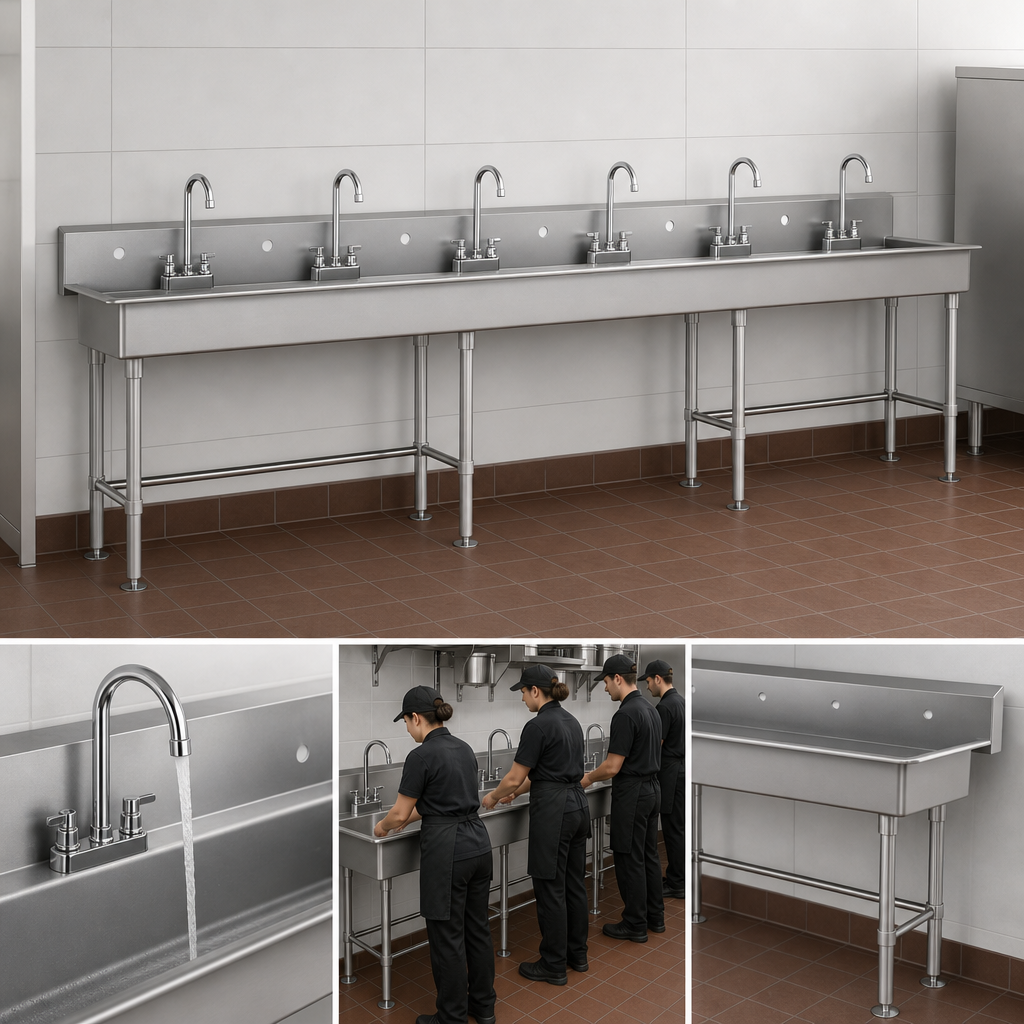

  • Six separate hand-wash stations – perfect for high-traffic environments
  • Includes (6) K-161-LU 8 ½" gooseneck faucets with sanitary wrist blades
  • ADA-compliant 5" deep bowls for accessible use without sacrificing capacity
  • 16 ga. Type 304 stainless steel construction resists corrosion and chemicals
  • 8 ½" backsplash with (6) sets of 8" O.C. pre-punched faucet holes
  • 1 5⁄8" tubular stainless steel legs with adjustable cross-bracing & flanged feet
  • 3 ½" rear basket drains (included)
  • TIG-welded seams, blended to a sanitary satin finish
  • NSF listed for food-service sanitation
Ideal Applications
  • Commercial kitchens & commissaries
  • Food-processing plants
  • Education & institutional cafeterias
  • Healthcare & laboratory prep areas
Specifications
Overall Width 120 in. (3048 mm)
Overall Depth 19 ½ in. (495 mm)
Overall Height 42 ½ in. (1080 mm) to top of backsplash
Bowl Size (each) 16 in. front-to-back × 5 in. deep
Backsplash 8 ½ in. high, splash-mount faucet punchings
Faucet Centers 8 in. on-center
Material / Gauge 16 ga. Type 304 stainless steel
Drain Size 3 ½ in. basket style (rear)
Compliance NSF & ADA
California Proposition 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Advance Tabco manufactures every sink in the USA and backs it with a 1-year workmanship warranty.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF, ADA Compliant

Height

42.5in

Width

120.0in

Depth

19.5in

Shipping Weight

182.0lbs

Faucet

faucet included

Features

multi-station

Bowl Depth (front to back)

15" - 19" front-to-back

Bowl Width (left to right)

20" & up

Style

freestanding

Bowl Height (rim to drain)

5" deep

Specifications

Multiwash Hand Sink, splash mount faucet provision, with stainless steel legs and flanged feet, includes (6) faucets with wrist blades, 120"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (6) sets of faucet holes 8" OC, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF, ADA compliant
