Advance Tabco  |  SKU: FC-FM-100FV  |  UPC: 747545216472

Advance Tabco FC-FM-100FV Hand Sinks

$6,095.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Parts list
Related Searches
Hand Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

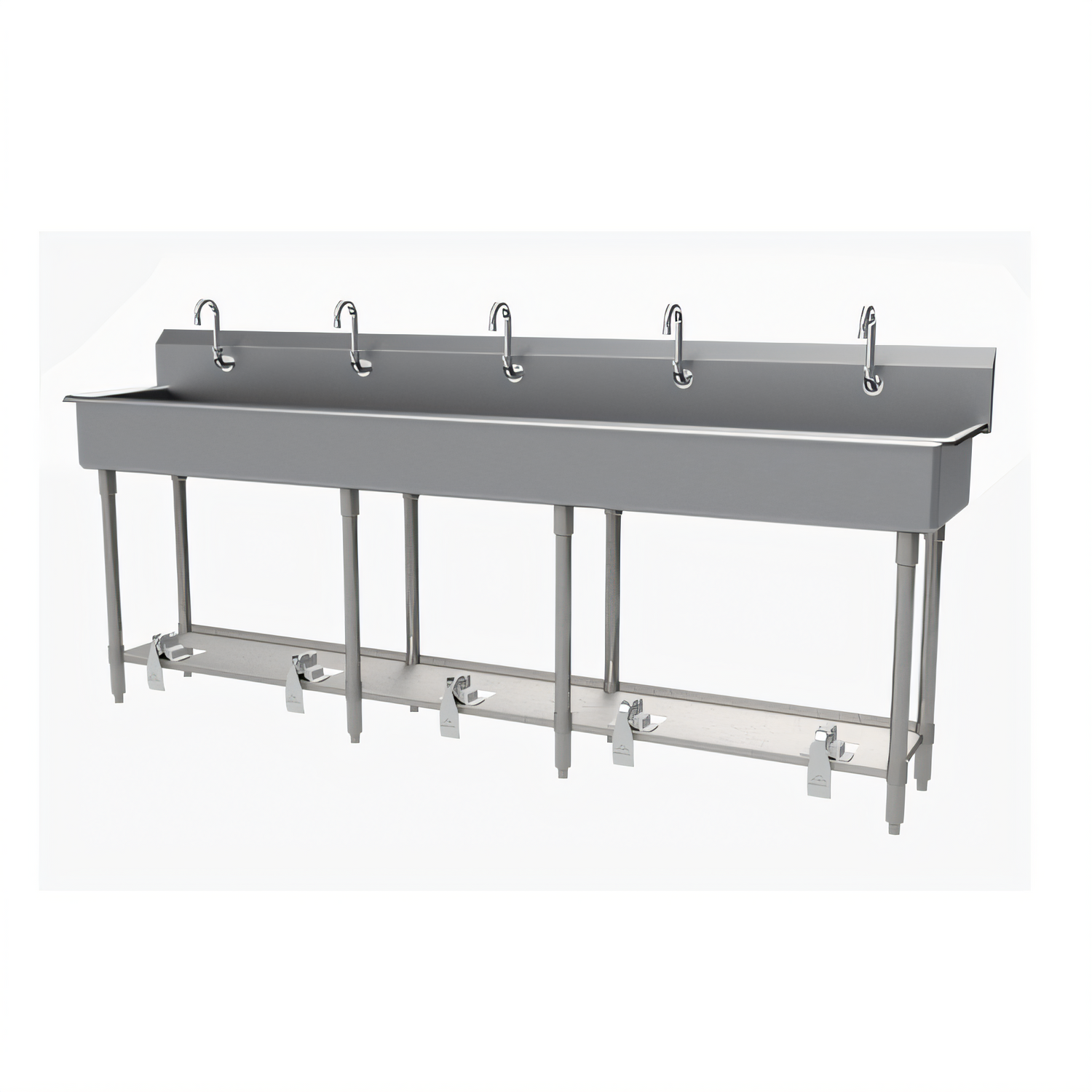

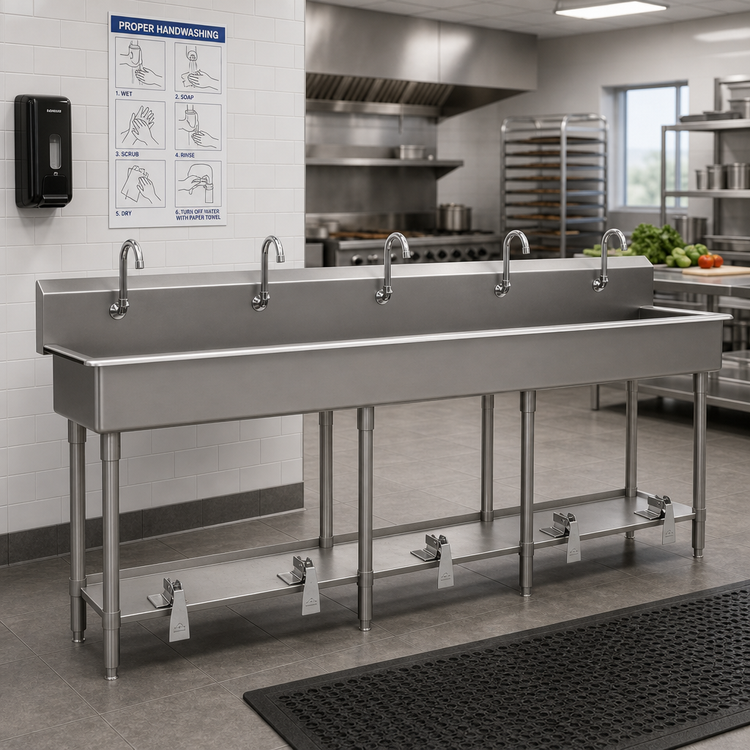

Advance Tabco FC-FM-100FV Five-Station Toe-Push Hand Sink – 100"

High-capacity, hands-free washing in rugged 16 ga. 304 stainless steel

Built for the busiest back-of-house and industrial environments, the Advance Tabco FC-FM-100FV Multiwash Sink combines rock-solid construction with hygienic, touch-free operation. Five stations, each with its own toe-push valve and gooseneck spout, keep staff moving while helping you meet the strictest food-safety codes.

Key features

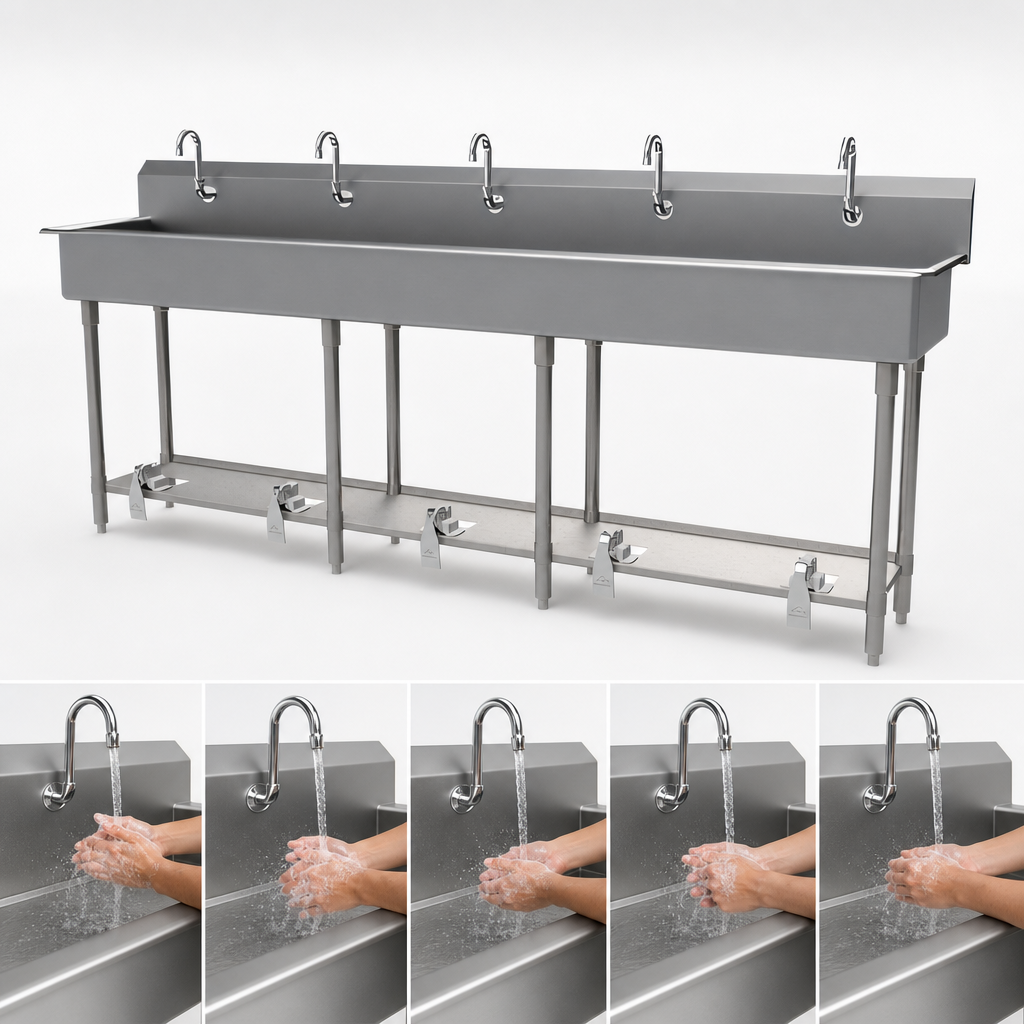

  • Five individual wash stations on a space-saving 100" platform
  • Hands-free K-104 toe-push valves minimize cross-contamination
  • (5) splash-mount faucet holes pre-punched, each fitted with a K-121 gooseneck spout
  • 8 1/2" high backsplash contains splatter and protects walls
  • 16" front-to-back bowls are 8" deep for comfortable hand-washing
  • Fully TIG-welded 16 ga. type 304 stainless steel sink body, legs & gussets
  • 1 5/8" tubular legs with adjustable flanged feet for rock-solid floor mounting
  • Rear support shelf & pedal bracket safeguard plumbing lines
  • Rear 3 1/2" basket drain(s) for fast, clog-free water removal
  • NSF listed for regulated foodservice & healthcare installations
Specifications
Model FC-FM-100FV
Stations 5
Overall size (W × D × H) 100" × 19 1/2" × 42 1/2"
Bowl size (each) 16" front-to-back × 8" deep
Backsplash height 8 1/2"
Gauge / material 16 ga. type 304 stainless steel
Faucet prep (5) single holes, splash mount
Operation Toe-push foot valves (hands-free)
Included spouts (5) K-121 gooseneck
Drain 3 1/2" basket style (K-6)
Legs / feet 1 5/8" Ø tubular SS with flanged bullet feet
Shipping weight 208 lb.
Certifications NSF
Ideal for
  • High-volume restaurant prep & dish areas
  • Food processing & packaging plants
  • School, university & stadium kitchens
  • Laboratories & clean rooms
  • Industrial manufacturing wash-down stations

Looking for a different length, valve style or ADA configuration? Ask about custom Advance Tabco fabrication to perfectly fit your space.

California Prop 65 Notice: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.5in

Width

100.0in

Depth

19.5in

Shipping Weight

180.0lbs

Bowl Height (rim to drain)

8" deep

Faucet

faucet included

Bowl Width (left to right)

20" & up

Bowl Depth (front to back)

15" - 19" front-to-back

Features

multi-station

Style

freestanding

Specifications

Multiwash Hand Sink, splash mount faucet provision, with toe-operated push valve, 100"W x 19-1/2"D x 42-1/2"H (overall), 16" front-to-back x 8" deep (bowl size), 8-1/2"H backsplash, punched with (5) single faucet holes, gooseneck spouts, includes stainless steel legs & flanged feet, pedal bracket support, includes 3-1/2" rear basket drain, 16 gauge 304 stainless steel construction, NSF
