Advance Tabco | SKU:
FC-FM-1-ADA
Advance Tabco FC-FM-1-ADA Hand Sinks
$2,504.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-FM-1-ADA Hand Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-FM-1-ADA Hand Sinks
$2,504.00
Unit price
/
Unavailable
Description

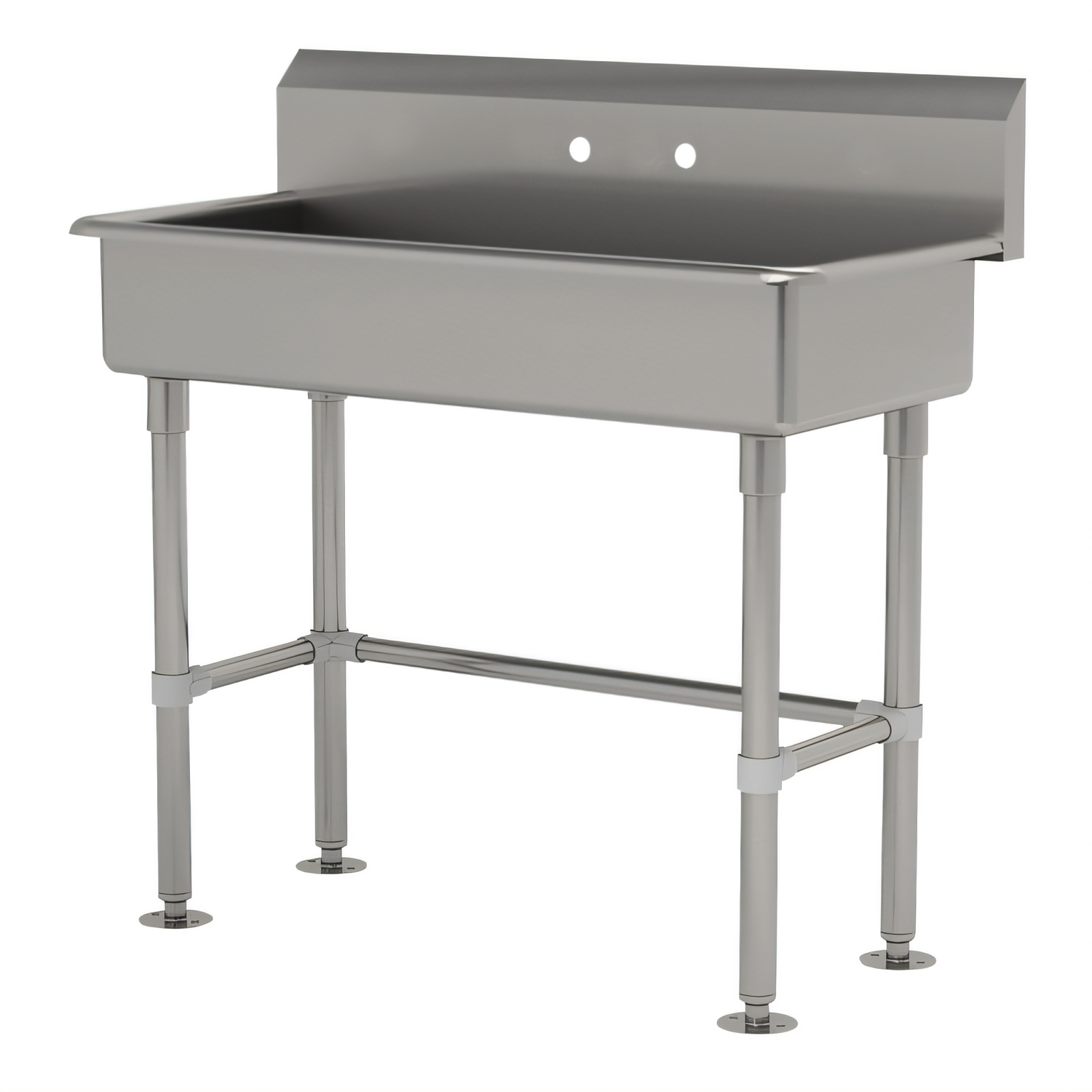

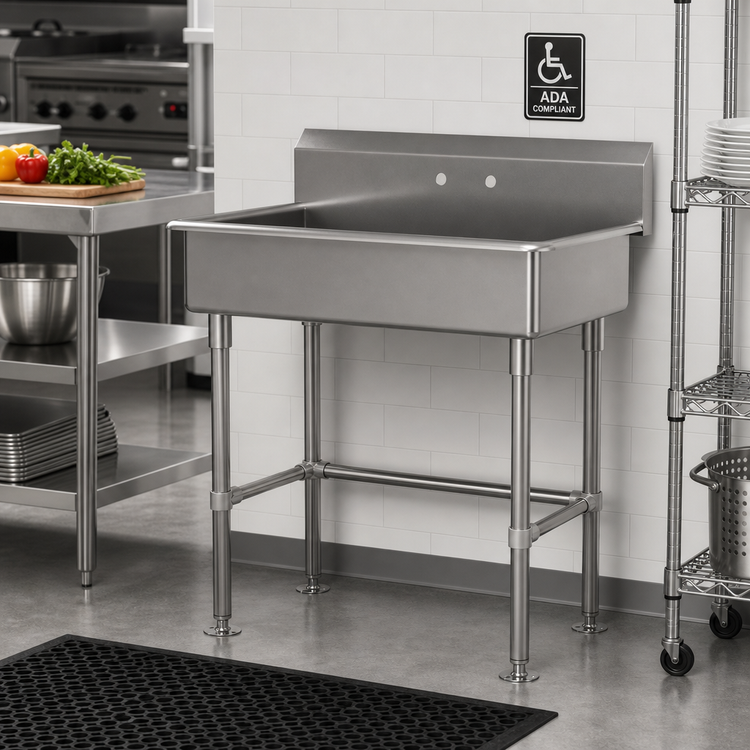

Advance Tabco FC-FM-1-ADA Floor-Mounted Service Sink
40" One-Station | 16 Ga 304 Stainless | ADA & NSF CertifiedBuilt for rigorous commercial use, the FC-FM-1-ADA delivers the strength of 16-gauge type 304 stainless steel in an ADA-compliant design that keeps janitorial and utility areas clean, safe and efficient.
Key Features

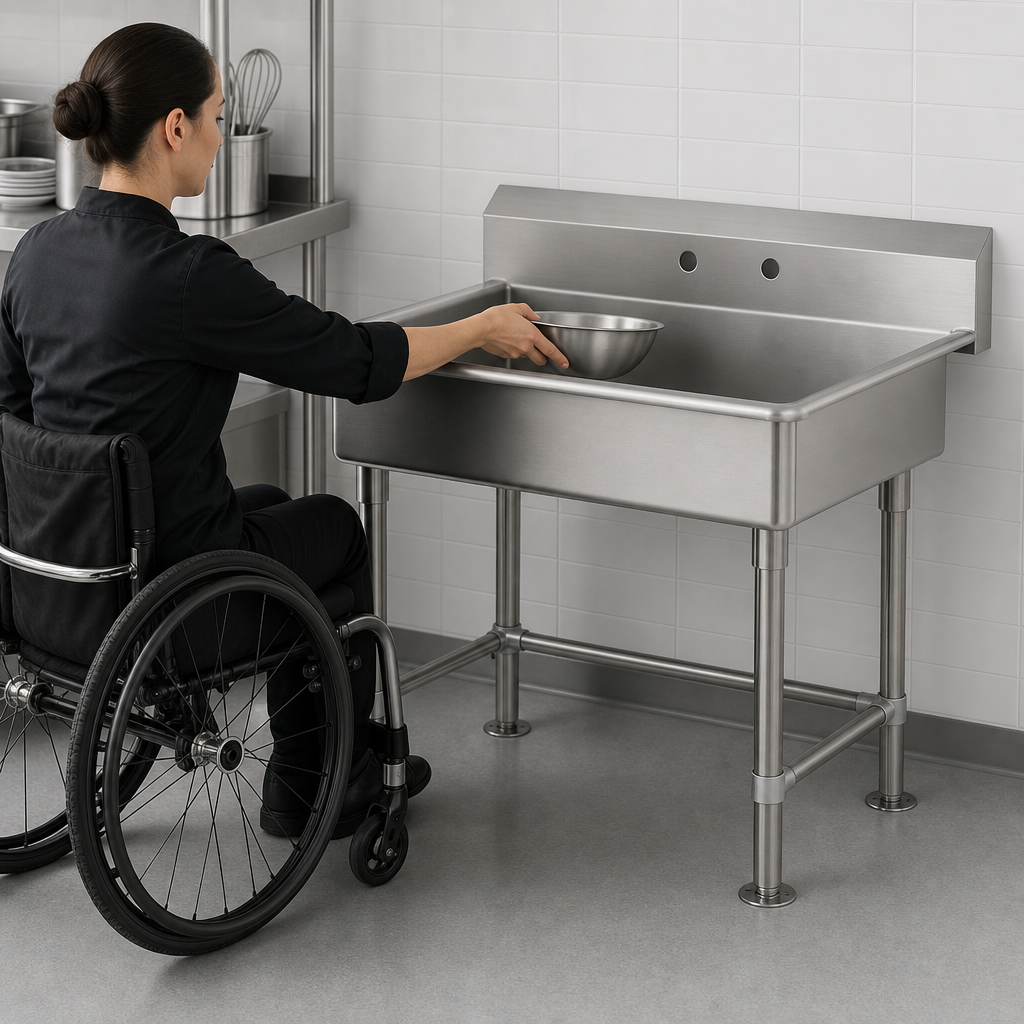

- ADA compliant — 34" rim height and ample knee clearance meet ANSI A117.1.
- Robust 16-gauge 304 stainless steel bowl, backsplash, legs and cross-bracing.
- Splash-mount faucet provision — punched for one 8" on-center set (faucet sold separately).
- 8-1/2" integrated backsplash protects surrounding walls from overspray.
- Bowl measures 14" front-to-back x 5" deep — ideal for bucket filling and rinsing tasks.
- Includes 1-1/2" I.P.S. stainless steel basket drain with removable strainer.
- 1-5/8" tubular stainless steel legs with adjustable rear & side cross-bracing for added rigidity.
- Flanged feet anchor securely to the floor for long-term stability.
- TIG-welded seams are blended to a smooth satin finish for a clean, professional appearance.
- NSF listed for effortless health-code compliance.
Dimensions & Clearances
| Overall width | 40" (1016 mm) |
|---|---|
| Overall depth | 19 3/4" (502 mm) |
| Overall height (to top of backsplash) | 42 1/2" (1080 mm) |
| Rim height (ADA) | 34" (864 mm) |
| Bowl front-to-back | 14" (356 mm) |
| Bowl depth | 5" (127 mm) |
| Backsplash height | 8 1/2" (216 mm) |
| Faucet mounting | 8" on-center splash-mount (1 set of holes) |
| Material thickness | 16 ga (1.5 mm) type 304 stainless steel |
| Ship weight | ≈ 87 lb (39 kg) |
Ideal Applications
- Janitorial & housekeeping closets
- Commercial kitchens & commissaries
- Healthcare & senior-care facilities
- Laboratories & industrial plants
Faucet not included. Compatible splash-mount faucets are available separately.
Made in the USA and backed by Advance Tabco’s limited one-year warranty.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF, ADA Compliant
Height
42.5in
Width
40.0in
Depth
19.75in
Shipping Weight
72.0lbs
Style
freestanding
Faucet
faucet not included
Bowl Depth (front to back)
15" - 19" front-to-back
Bowl Width (left to right)
20" & up
Bowl Height (rim to drain)
5" deep
Specifications
Service Sink, splash mount faucet provision, with stainless steel legs and flanged feet, 40"W x 19-3/4"D x 42-1/2"H (overall), 14" front-to-back x 5" deep (bowl size), 8-1/2"H backsplash, punched with (1) set of faucet holes 8" OC, includes 1-1/2" basket drain, 16 gauge 304 stainless steel construction, ADA compliant, NSF
