Advance Tabco FC-FM-1-ADA-F Hand Sinks
Description

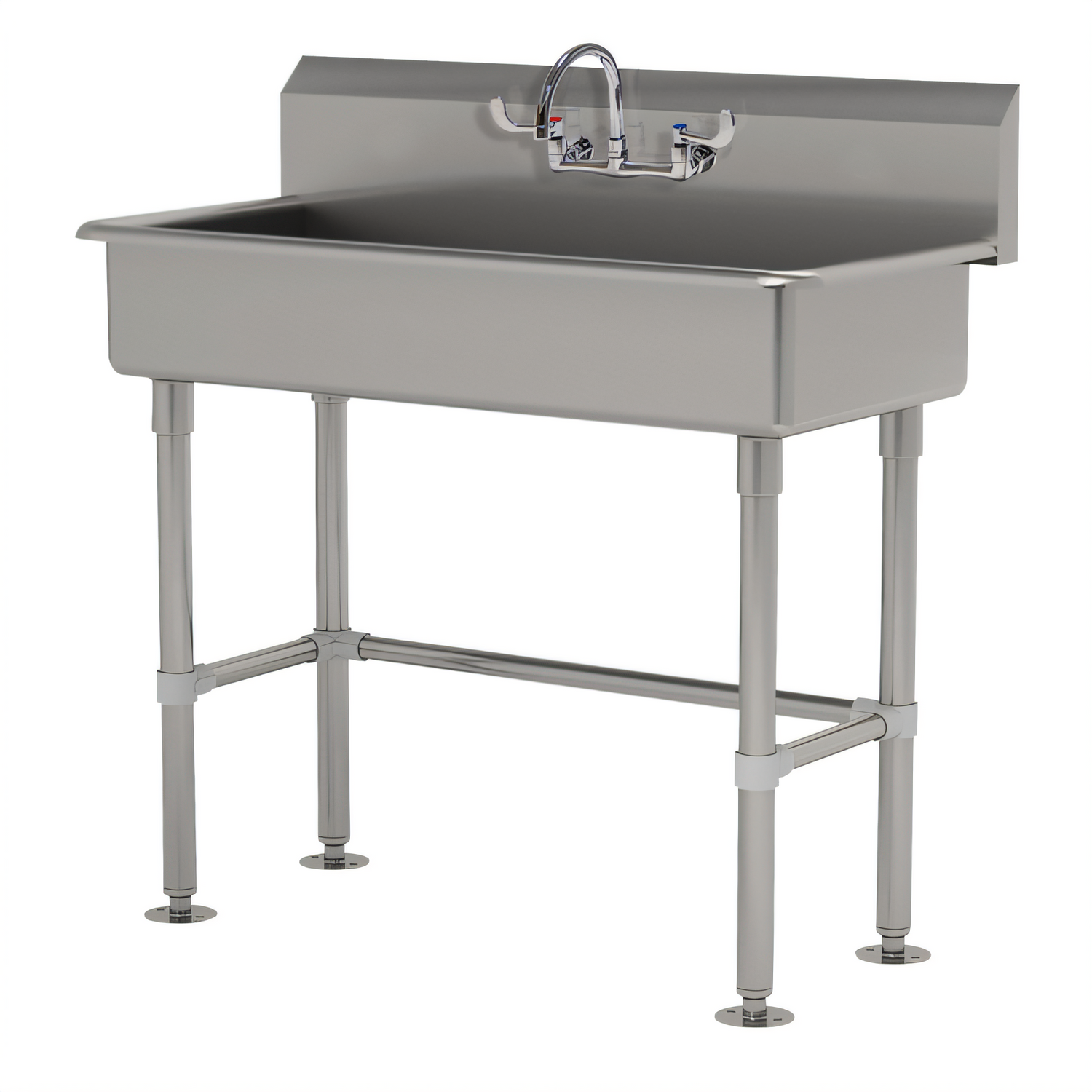

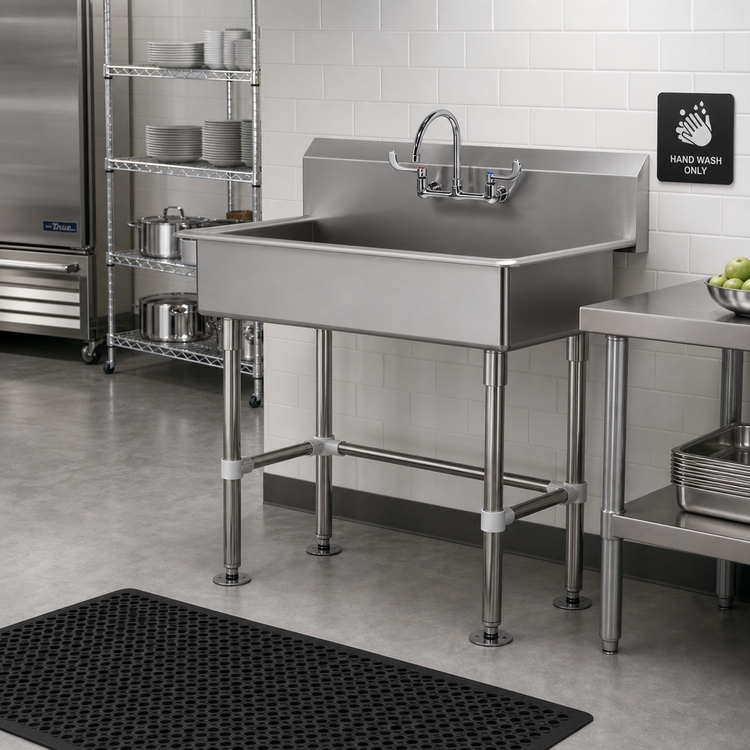

Advance Tabco FC-FM-1-ADA-F Single-Station Service Sink
40" floor-mounted | includes wrist-blade faucet & drain | 16 ga 304 SSBuilt for the toughest cleanup jobs and engineered for ADA front-approach compliance, the FC-FM-1-ADA-F gives you a generous 40" wide work area in a compact, floor-mounted footprint. Heavy-duty 16-gauge type 304 stainless steel, a factory-installed gooseneck faucet with wrist handles, and a 1-½" basket drain make this sink a plug-and-play solution for janitorial closets, maintenance rooms, and commercial facilities that demand reliability and code compliance.
Key Features
- One-station, ADA-compliant design — 34" deck height allows unobstructed front approach.

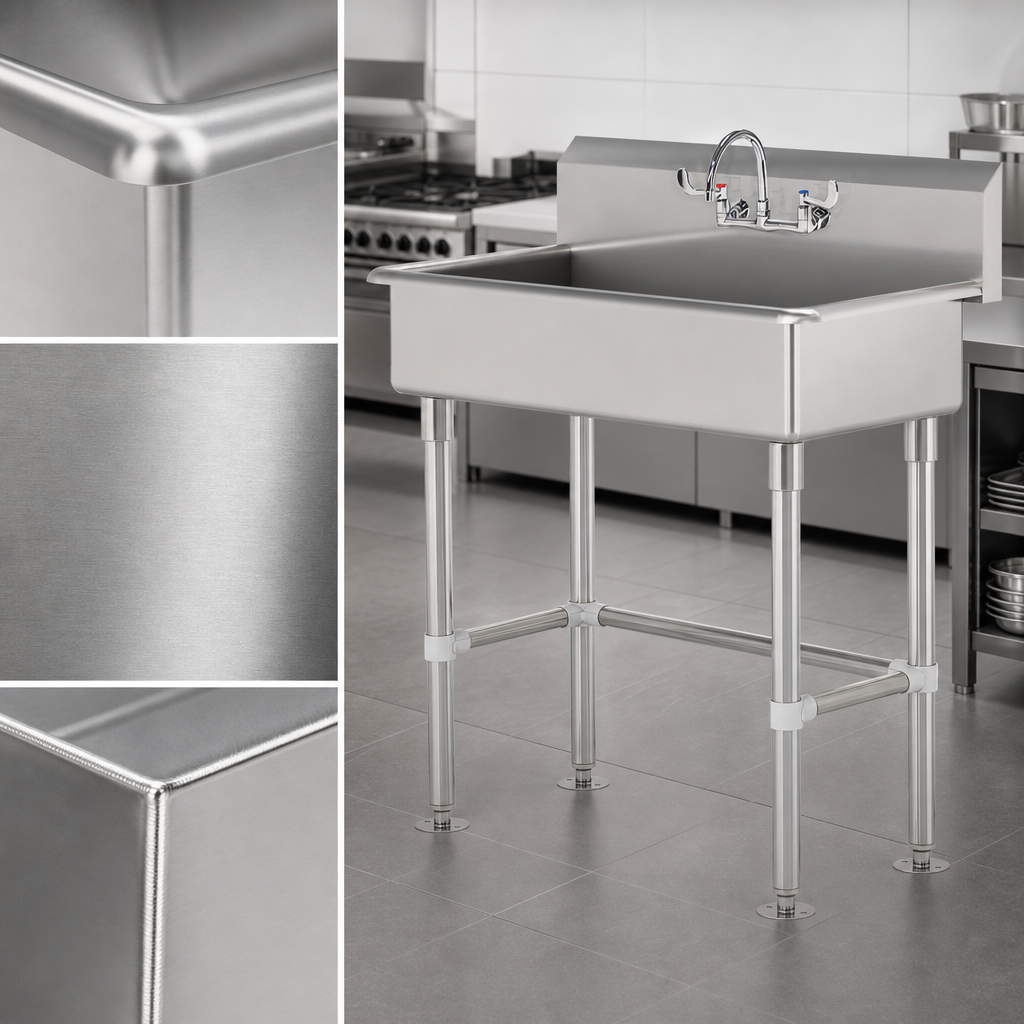

- Rugged 16 ga type 304 stainless steel bowl, backsplash & apron for maximum corrosion resistance.
- 8-½" integral backsplash shields walls and is pre-punched for an 8" O.C. splash-mount faucet.
- Factory-supplied K-161-LU 6" gooseneck faucet with lead-free construction & easy-grip wrist blades.
- 5" deep bowl with 14" front-to-back working space handles mop buckets, pails, and bulky items.
- 1-½" stainless steel basket drain included for quick, clog-free drainage.
- 1-⅝" Ø tubular stainless steel legs with flanged feet and adjustable side/rear cross-bracing for rock-solid stability.
- Fully TIG-welded seams blended to a uniform satin finish — ready for high-visibility areas.
- NSF listed & AB1953 compliant for potable-water contact; built in the USA.
Ideal For
- Facility & school maintenance rooms
- Hospital & laboratory janitorial stations
- Food-service back-of-house cleanup
- Industrial production areas
Specifications
| Model | FC-FM-1-ADA-F |
|---|---|
| Overall Dimensions | 40" W × 19-3/4" D × 42-1/2" H (to top of backsplash) |
| Bowl Interior | 14" front-to-back × 5" deep |
| Backsplash Height | 8-1/2" |
| Material & Finish | 16 ga type 304 stainless steel, satin finish |
| Faucet Holes | (1) set, 8" centers (splash mount) |
| Included Faucet | K-161-LU 6" gooseneck with wrist blades, lead-free/NSF 61 |
| Drain | 1-½" basket drain assembly |
| Legs & Feet | 1-⅝" Ø tubular 304 SS legs with flanged feet; adjustable SS cross-bracing |
| Weight | ≈ 89 lb (ship) |
| Certifications | ADA, NSF, AB1953, NSF 61 Sec. 9 |
What’s in the Box
- Advance Tabco FC-FM-1-ADA service sink assembly
- K-161-LU splash-mount gooseneck faucet with wrist blades
- 1-½" stainless steel basket drain
- Tubular legs, flanged feet & cross-brace hardware
Images may show additional accessories or multiple-station models for illustration. Only the items listed above are included.
