Advance Tabco  |  SKU: FC-4-2424-24RL  |  UPC: 747545128799

Advance Tabco FC-4-2424-24RL Compartment Sinks

$4,347.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

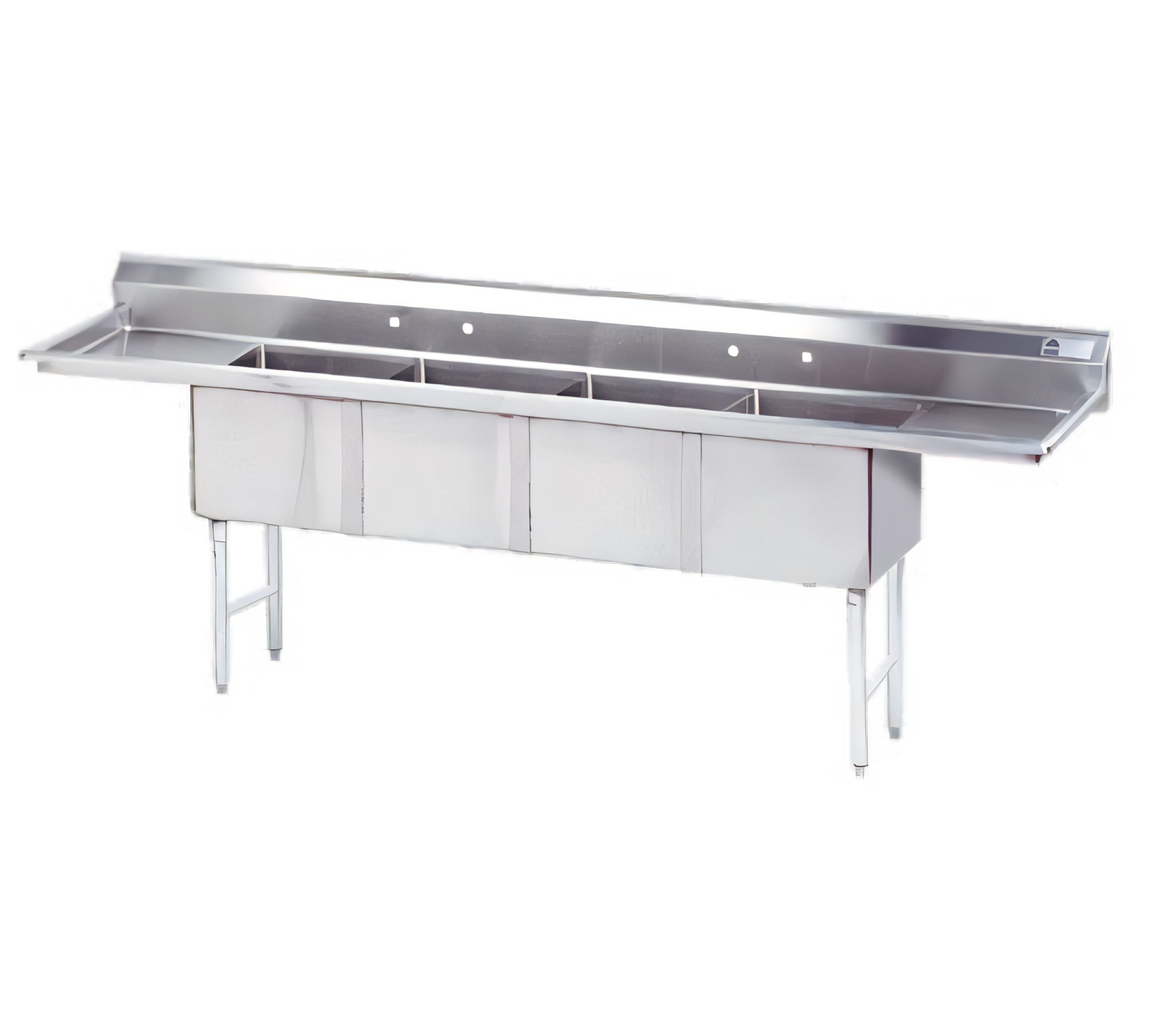

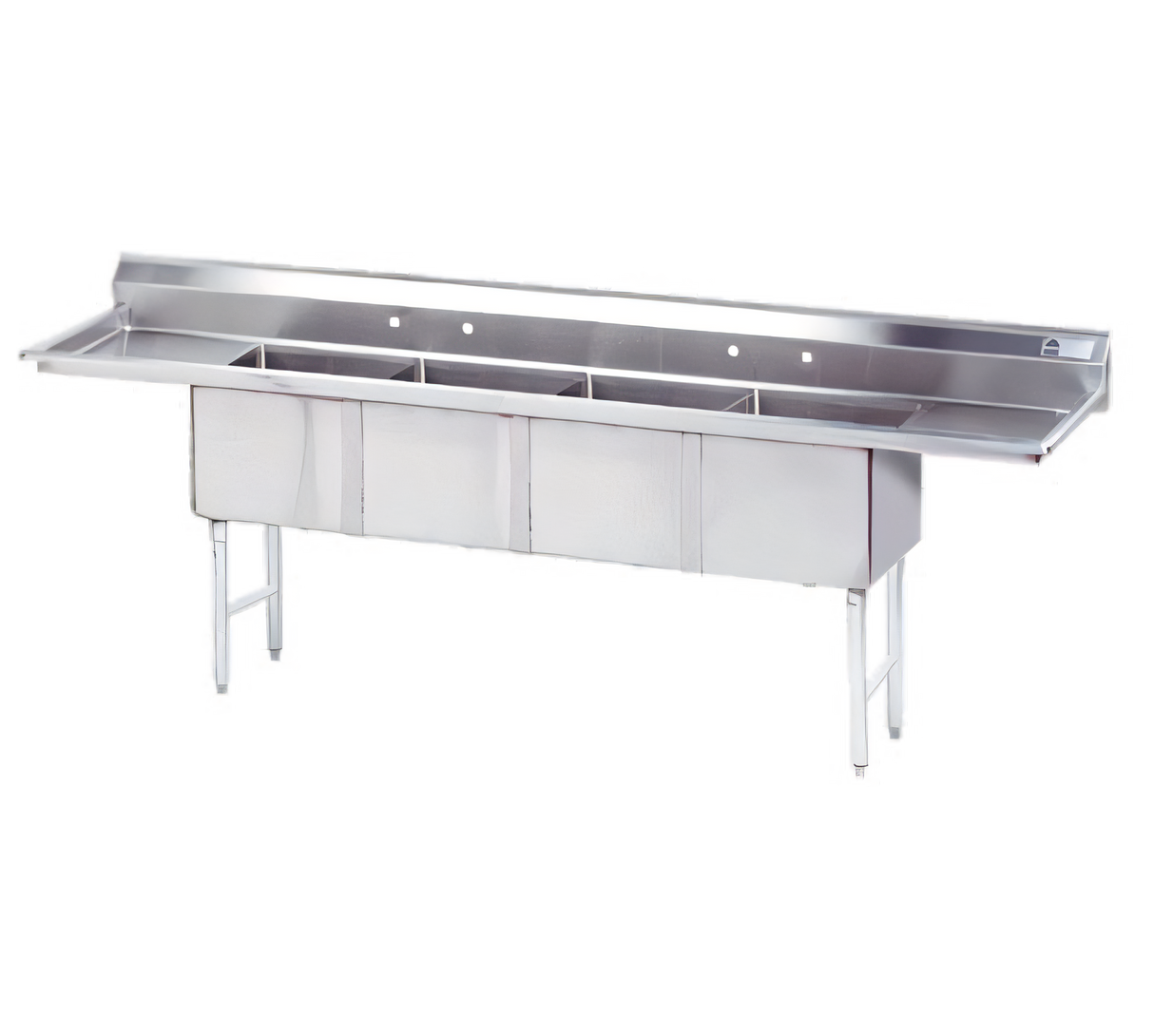

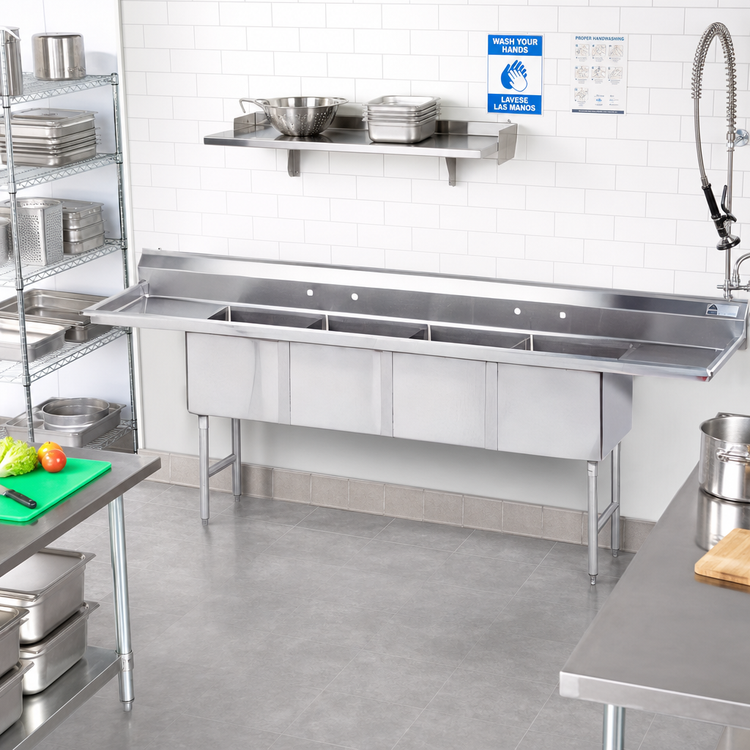

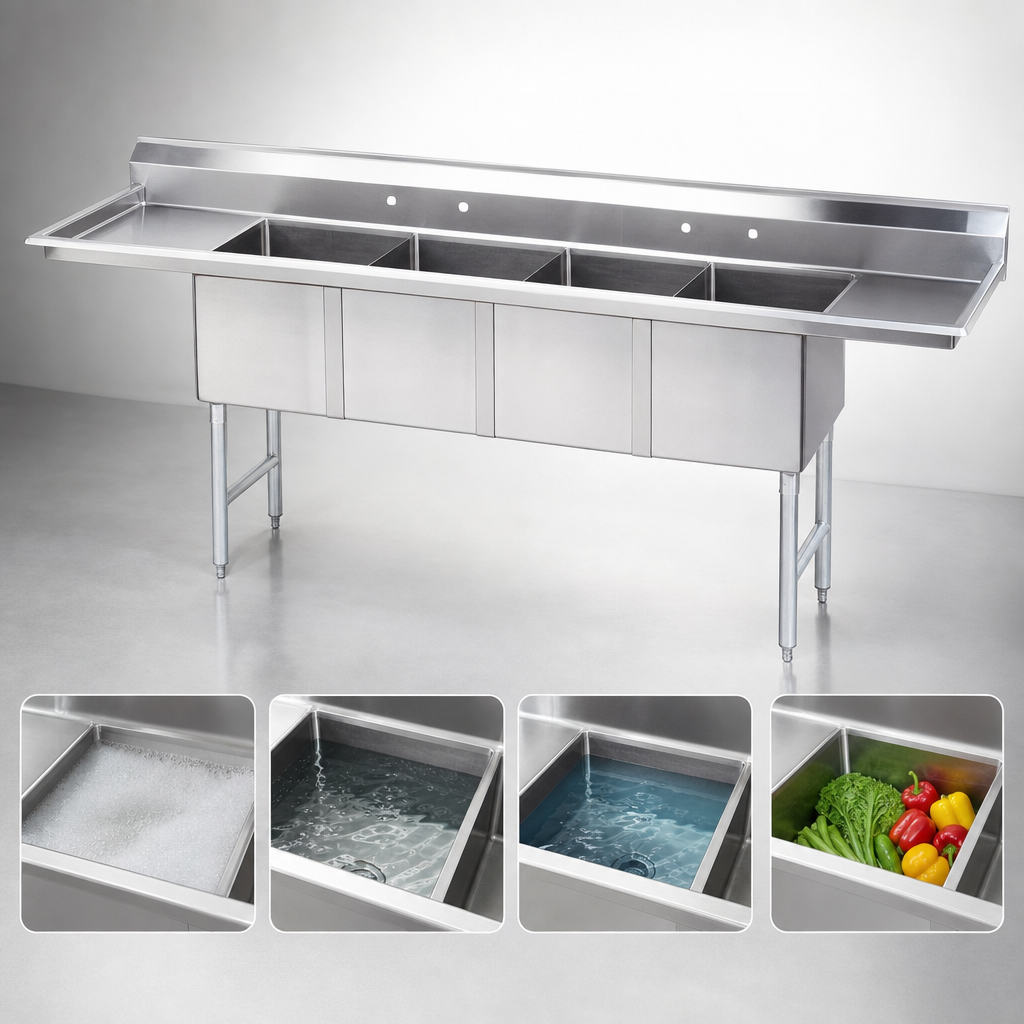

Advance Tabco FC-4-2424-24RL 4-Compartment Fabricated Sink

144" L x 30" W • Dual 24" Drainboards • 16 ga 304 Stainless Steel

Designed for demanding food-service environments, this NSF-listed sink combines four oversized 24" x 24" x 14" bowls with right- and left-hand 24" drainboards—giving you a complete wash, rinse, sanitize and soak station in one rugged, easy-to-clean unit.

Key Features

  • Four TIG-welded 24" x 24" x 14" deep bowls provide maximum capacity for sheet pans, stock pots and bus tubs.
  • Integrated 24" drainboards on both sides speed up loading, drying and staging.
  • 16 gauge type 304 stainless steel offers superior corrosion resistance and durability.
  • Rolled rim edge adds strength; 3/4" coved bowl corners meet NSF clean-ability requirements.
  • Tile-edge backsplash with (2) sets of 8" on-center faucet holes for easy wall mounting.
  • 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless steel bullet feet level the sink on uneven floors.
  • Satin-finished welds blend seamlessly with adjacent surfaces for a professional appearance.
  • Includes four 1 ½" IPS stainless steel basket drains (centered in each bowl).

Specifications

Model FC-4-2424-24RL
Compartments 4
Bowl Interior (W × L × D) 24" × 24" × 14"
Drainboards 24" Right & 24" Left (integral)
Overall Dimensions (L × W) 144" × 30"
Material 16 ga 304 Stainless Steel
Backsplash Tile-edge splash with 8" O.C. faucet punchings
Faucet Holes (2) Sets – 8" on-center
Legs / Bracing 1 ⅝" Ø S/S legs with adjustable side cross-bracing
Feet 1" Adjustable stainless steel bullet feet
Drain Size 1 ½" IPS basket type (included)
Shipping Weight Approx. 355 lb.
Certifications NSF

Ideal Applications

  • High-volume restaurants & commissaries
  • School, hospital and corporate cafeterias
  • Seafood, butcher and produce prep rooms
  • Catering operations requiring simultaneous multi-stage cleaning
Important: Two compatible faucets are required and are sold separately.

Looking for pre-rinse faucets, scrap baskets or custom options? Reach out to our team—we’re happy to help.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

42.0in

Width

144.0in

Depth

30.0in

Shipping Weight

384.0lbs

Base Type

legs with side crossrails

Compartment (front - back)

24"

Top Gauge

16 gauge

Overall Length

130" - 198"

Base Construction

stainless steel

Compartment Width (side - side)

24"

Top Stainless Series

300 series

Sink Depth (rim - drain)

14"

Drainboards

with left & right-hand drainboards

Splash Height

8"

Specifications

Fabricated Sink, 4-compartment, 24" right & left drainboards, bowl size 24" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 144" L/R, NSF (requires (2) faucets)
