Advance Tabco FC-4-1824-18RL Compartment Sinks
Description

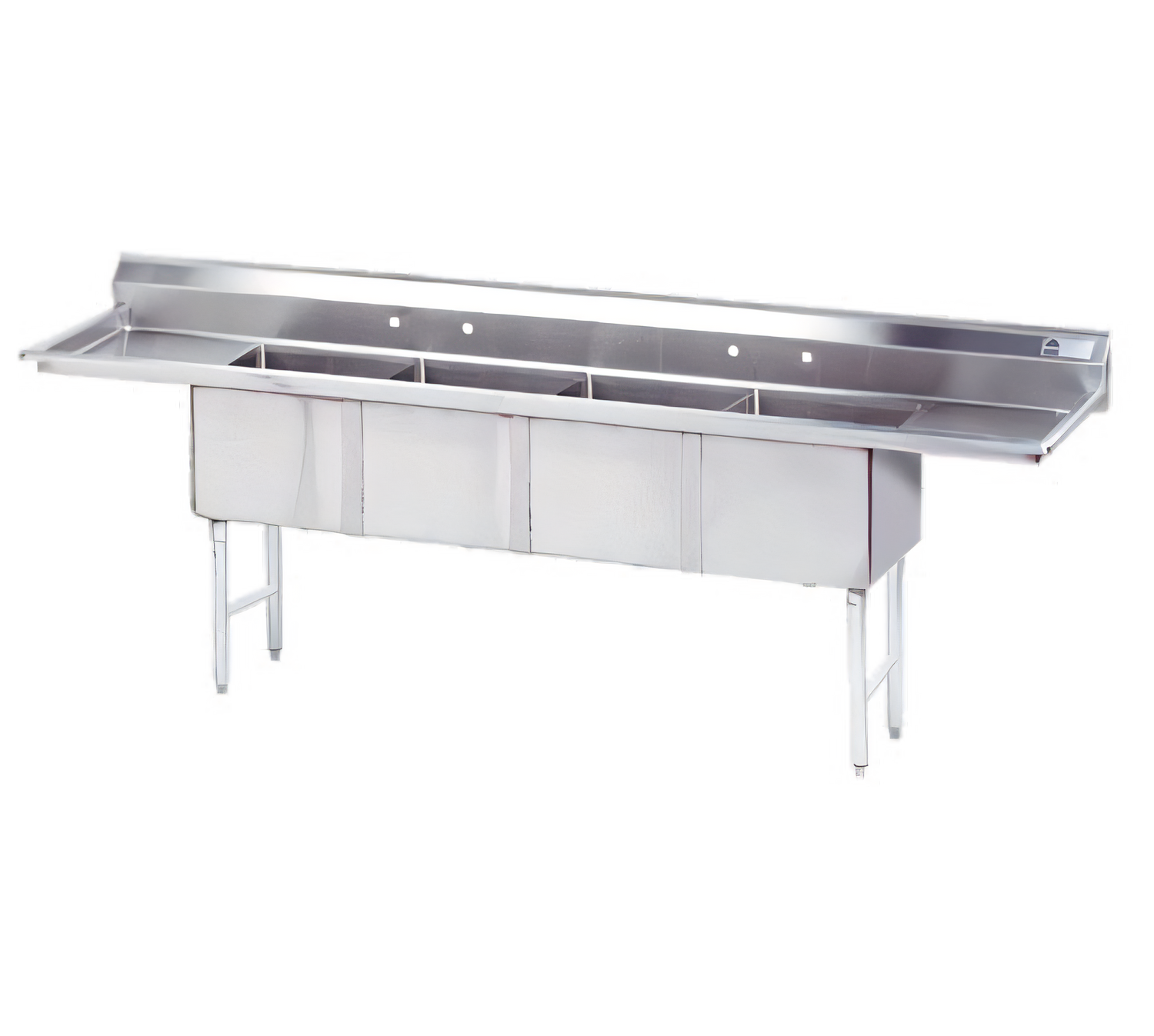

Advance Tabco FC-4-1824-18RL 4-Compartment Fabricated Sink with 18" Drainboards
108" L x 30" W • 16-Gauge 304 Stainless Steel • NSF ListedEngineered for heavy, everyday use, this four-compartment sink delivers the capacity, durability and sanitation standards today’s high-volume kitchens demand. Dual 18" drainboards streamline your workflow, while rugged 16-gauge type 304 stainless steel construction stands up to constant abuse from dishes, sheet pans and cookware.
Key Features

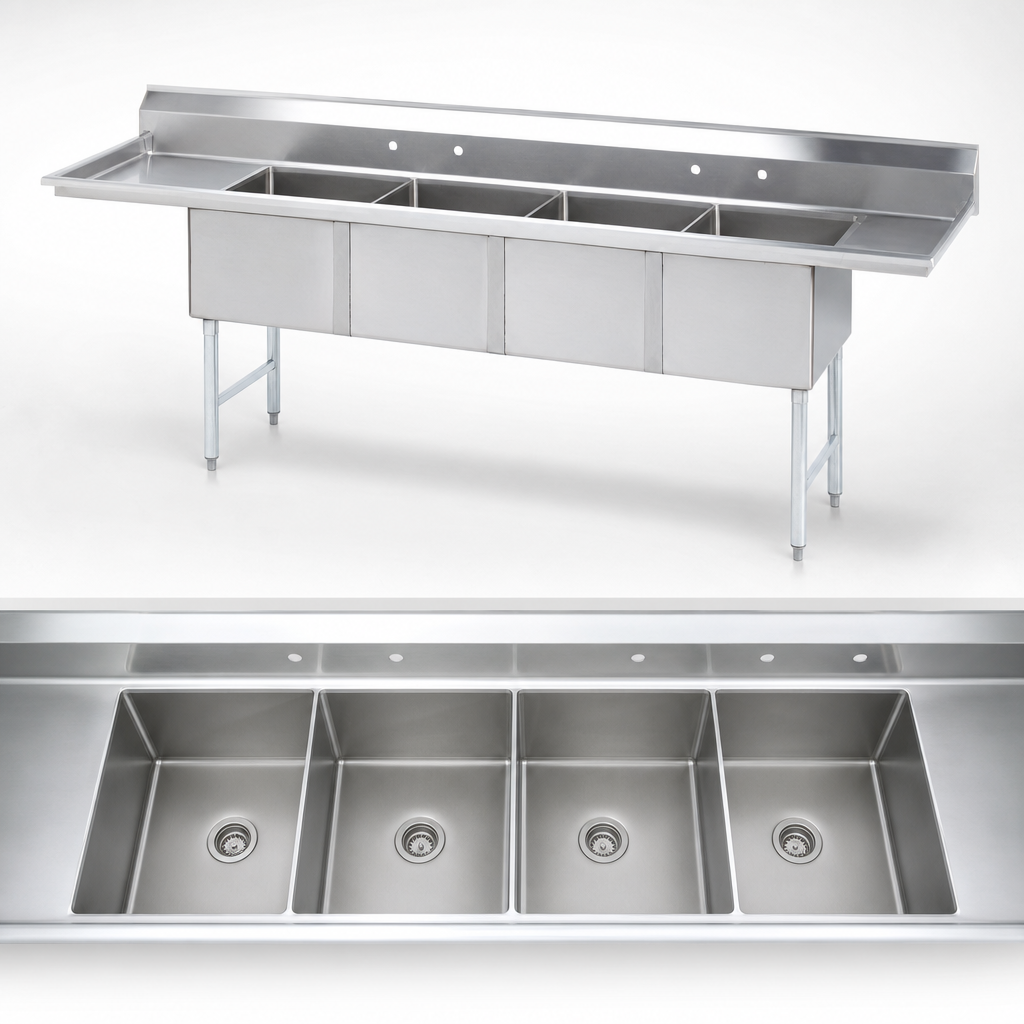

- Four welded bowls – each 18" W x 24" F/B x 14" D for generous washing & rinsing space
- (2) 18" drainboards (right & left) for convenient loading and air-drying
- 16-gauge 304 stainless steel top, bowls, drainboards & backsplash resist corrosion and dents
- 3⁄4" coved bowl corners meet NSF cleaning requirements
- Rolled rim edge adds strength and protects against impact damage
- 9" backsplash with tile edge simplifies wall sealing and installation
- (2) sets of 8"-on-center faucet holes – perfect for pre-rinse and fill faucets
- (4) 1½" IPS stainless steel basket drains included; center-mounted in each bowl
- 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability
- 1" adjustable stainless steel bullet feet level the unit on uneven floors
- NSF certified for foodservice sanitation
Perfect For
- Full-service & quick-service restaurants
- School and hospital kitchens
- Catering commissaries & ghost kitchens
- Breweries, bakeries & food-production operations
Technical Specifications
| Manufacturer / Model | Advance Tabco FC-4-1824-18RL |
|---|---|
| Compartments | 4 |
| Bowl Dimensions (W x F/B x D) | 18" x 24" x 14" |
| Drainboard Length | 18" (right) & 18" (left) |
| Overall Dimensions (L x W) | 108" x 30" |
| Material / Gauge | 16-ga type 304 stainless steel |
| Backsplash | 9" H with tile edge & 2" return |
| Faucet Holes | (2) sets, 8" on-center (faucets required, sold separately) |
| Drains | (4) 1 ½" IPS stainless steel basket drains (included) |
| Legs / Bracing | 1 ⅝" Ø SS legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Approx. Shipping Weight | 325 lb. |
| Certifications | NSF |
Fabricated vs. Drawn Sinks
- Heavier gauge metal for longer service life
- Fully TIG-welded seams—no crevices for bacteria to hide
- Satin-blended finish matches adjacent surfaces for a professional look
Specifications are subject to change without notice as part of Advance Tabco’s continuous product improvement program.
