Advance Tabco | SKU:
FC-3-3030-24RL
Advance Tabco FC-3-3030-24RL Compartment Sinks
$5,774.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-3-3030-24RL Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-3-3030-24RL Compartment Sinks
$5,774.00
Unit price
/
Unavailable
Description

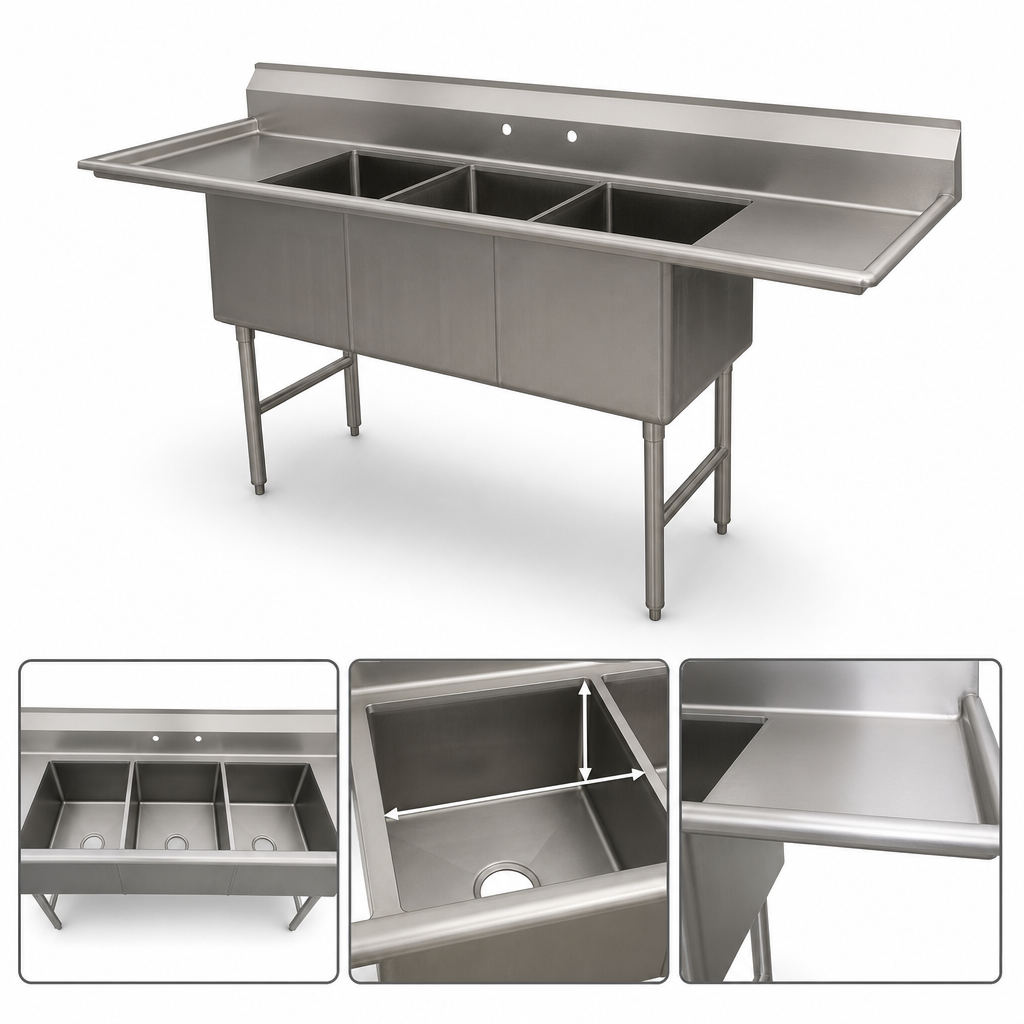

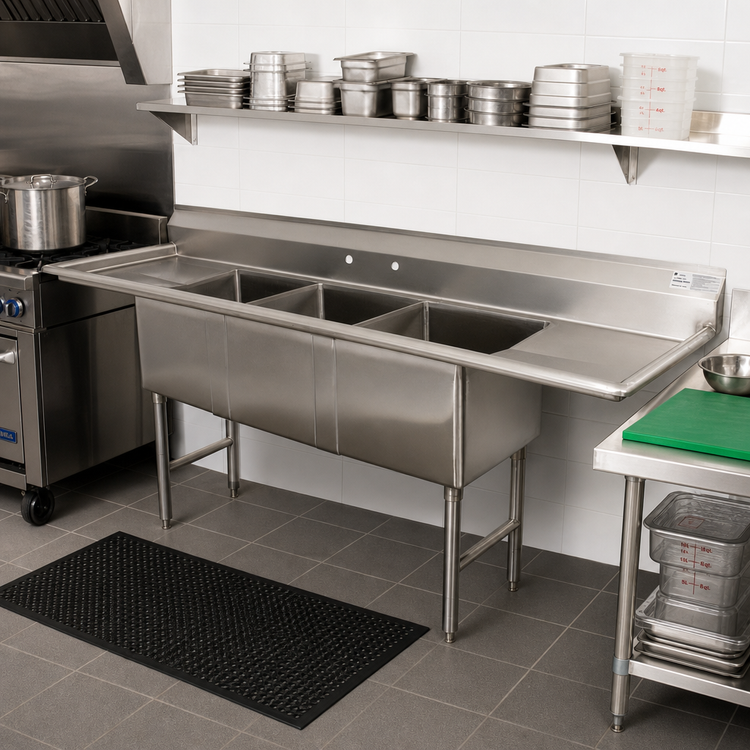

Advance Tabco FC-3-3030-24RL 3-Compartment Fabricated Sink with Dual 24" Drainboards
30" × 30" × 14" Bowls • 16 Gauge 304 Stainless Steel • NSF ListedEngineered for the toughest prep- and ware-washing tasks, this fully fabricated sink delivers industrial-strength durability, generous capacity, and smooth workflow from wash to rinse to sanitize.
Key Benefits
- Three extra-large 30" × 30" bowls, 14" deep, with ¾" coved corners that meet NSF sanitation standards.
- 24" drainboards on both right & left sides keep dirty and clean wares organized.
- Heavy-duty 16 ga. type 304 stainless steel construction resists corrosion, chemicals, and daily impacts.
- Rolled rim edge adds strength and employee comfort while loading heavy pots and pans.
- Tile-edge 9" backsplash makes wall installation fast and watertight.
- Pre-punched 8" on-center faucet holes (requires two faucets, not included).
- Fully TIG-welded seams blended to a uniform satin finish—no crevices to trap food soil.
- (3) 1 ½" IPS stainless steel basket drains are factory installed and included.
- 1 5⁄8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
Product Specifications
| Model | FC-3-3030-24RL |
|---|---|
| Compartments | 3 |
| Bowl size (W × F/B × Depth) | 30" × 30" × 14" |
| Drainboards | 24" Right & 24" Left (2 total) |
| Overall dimensions | 36" F/B × 138" L/R |
| Material / Gauge | 16 ga. 304 stainless steel |
| Backsplash | Tile edge, (2) sets of 8" O.C. faucet holes |
| Legs & Bracing | 1 5⁄8" Ø S/S legs, adjustable side cross-brace |
| Feet | 1" adjustable stainless steel bullet feet |
| Drains | (3) 1 ½" IPS stainless steel basket drains (centered) |
| Certifications | NSF |
| Approx. ship weight | 470 lb. |
Faucets required but not included. Add two compatible 8" on-center wall-mount faucets to complete your installation.
Dimensions are ± 0.5". Advance Tabco reserves the right to modify specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
138.0in
Depth
36.0in
Shipping Weight
390.0lbs
Sink Depth (rim - drain)
14"
Splash Height
8-1/2"
Base Construction
stainless steel
Top Gauge
16 gauge
Overall Length
109" - 170"
Compartment Width (side - side)
30"
Compartment (front - back)
30"
Drainboards
with left & right-hand drainboards
Base Type
legs with side crossrails
Top Stainless Series
300 series
Specifications
Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 30" x 30" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 138" L/R, NSF (requires 2 faucets)
