Advance Tabco | SKU:
FC-3-3024-30RL
Advance Tabco FC-3-3024-30RL Compartment Sinks
$4,520.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-3-3024-30RL Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-3-3024-30RL Compartment Sinks
$4,520.00
Unit price
/
Unavailable
Description

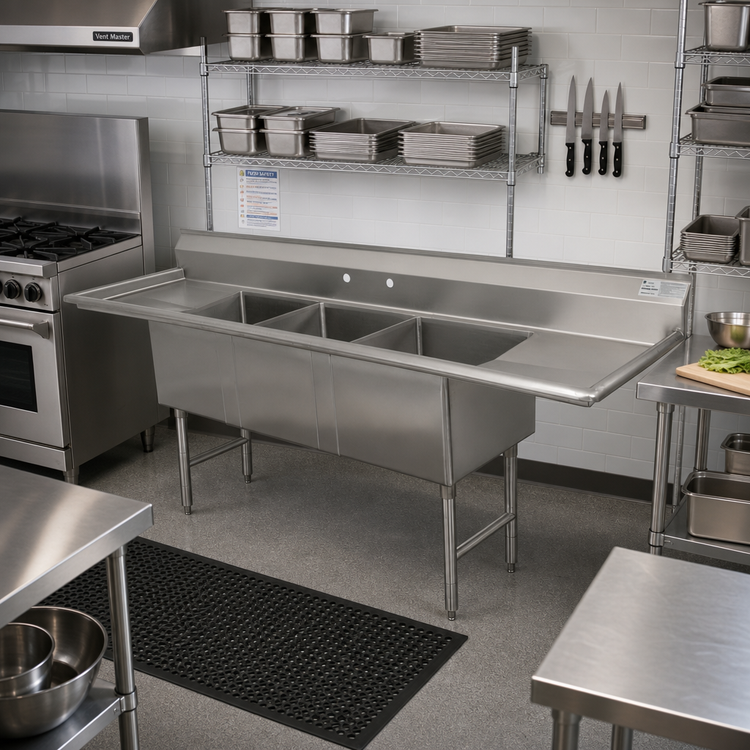

Advance Tabco FC-3-3024-30RL | 3-Compartment Fabricated Sink
150" L × 30" W overall • Dual 30" drainboards • NSF listedEngineered for high-volume dishrooms, prep areas, and commissaries, this heavy-duty stainless-steel sink delivers the rugged performance food-service professionals rely on every day.
Key Features

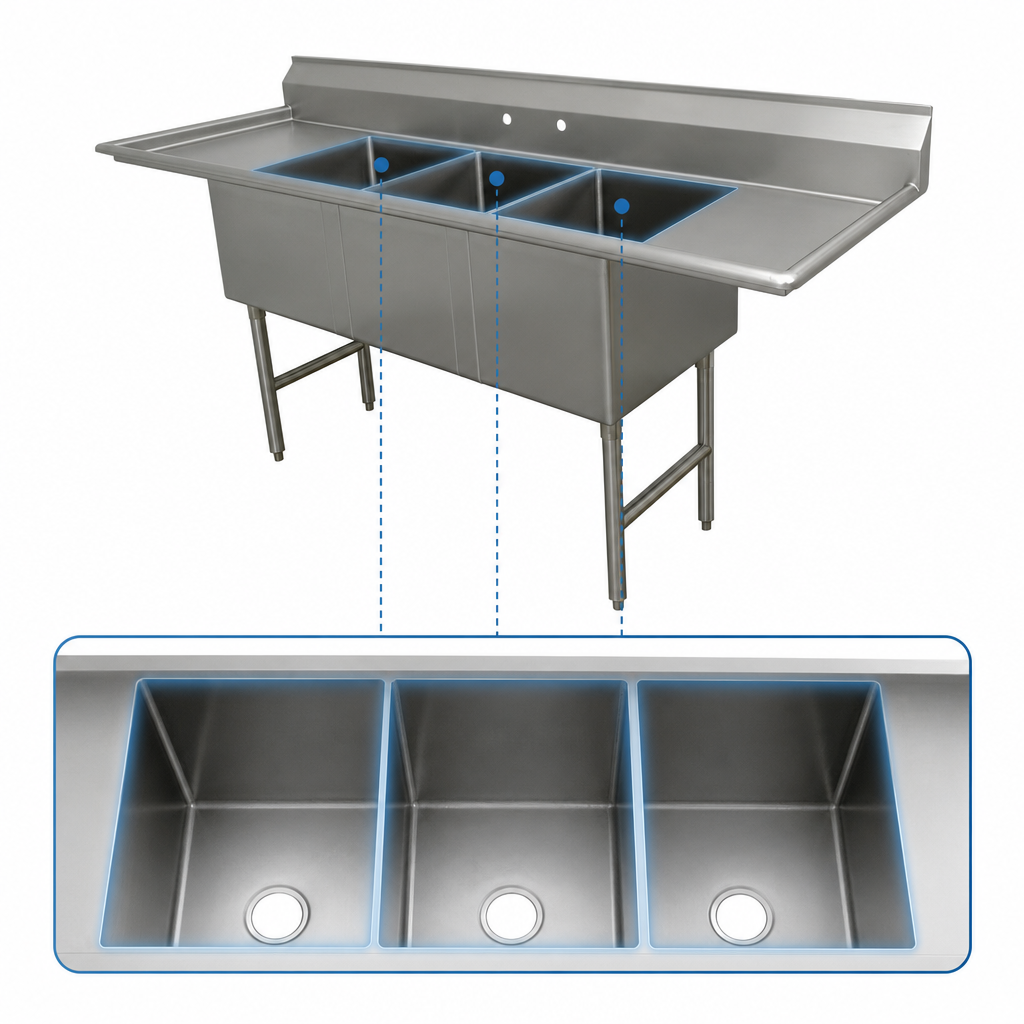

- Three spacious bowls—each 30" W × 24" F/B × 14" D—accommodate sheet pans, stock pots, and bulky wares.
- Fabricated from 16-gauge 304 stainless steel for maximum corrosion and impact resistance.
- 30" right & 30" left drainboards offer generous landing zones for dirty and clean items.
- Tile-edge 9" backsplash speeds installation while protecting adjacent walls.
- Rolled rim edges add strength and a comfortable work surface.
- Pre-punched 8" on-center faucet holes—simply drop in your deck-mount faucets and go.
- TIG-welded bowls with ¾" coved corners meet stringent NSF cleanability standards.
- 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing stabilize the extra-long frame.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
- 1 ½" IPS stainless basket drains (centered in each bowl) are included.
Specifications
| Model | FC-3-3024-30RL |
|---|---|
| Compartments | 3 |
| Bowl Interior (W × F/B × D) | 30" × 24" × 14" |
| Drainboards | 30" Right & 30" Left (integral, rolled rim) |
| Overall Dimensions | 150" L × 30" W |
| Material / Gauge | 16-ga 304 Stainless Steel |
| Backsplash | Tile-edge, 9" H (typ.) with 8" O.C. faucet punchings |
| Legs & Bracing | 1 ⅝" Ø S/S legs with adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Drains | 1 ½" IPS stainless basket strainers (3 included) |
| Certifications | NSF |
| Approx. Shipping Weight | 445 lb. |
Faucets required: This sink needs two deck-mount faucets on 8" centers (sold separately).
Optional accessories—including K-700 removable side splashes, lever waste drains, and more—are available through Advance Tabco Smart Fabrication™.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
150.0in
Depth
30.0in
Shipping Weight
395.0lbs
Sink Depth (rim - drain)
14"
Compartment Width (side - side)
30"
Drainboards
with left & right-hand drainboards
Top Gauge
16 gauge
Base Construction
stainless steel
Splash Height
8-1/2"
Overall Length
109" - 170"
Compartment (front - back)
24"
Base Type
legs with side crossrails
Top Stainless Series
300 series
Specifications
Fabricated Sink, 3-compartment, 30" right & left drainboards, bowl size 30" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 150" L/R, NSF (requires 2 faucets)
