Advance Tabco FC-3-3024-24RL Compartment Sinks
Advance Tabco FC-3-3024-24RL Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-3-3024-24RL Compartment Sinks
Description

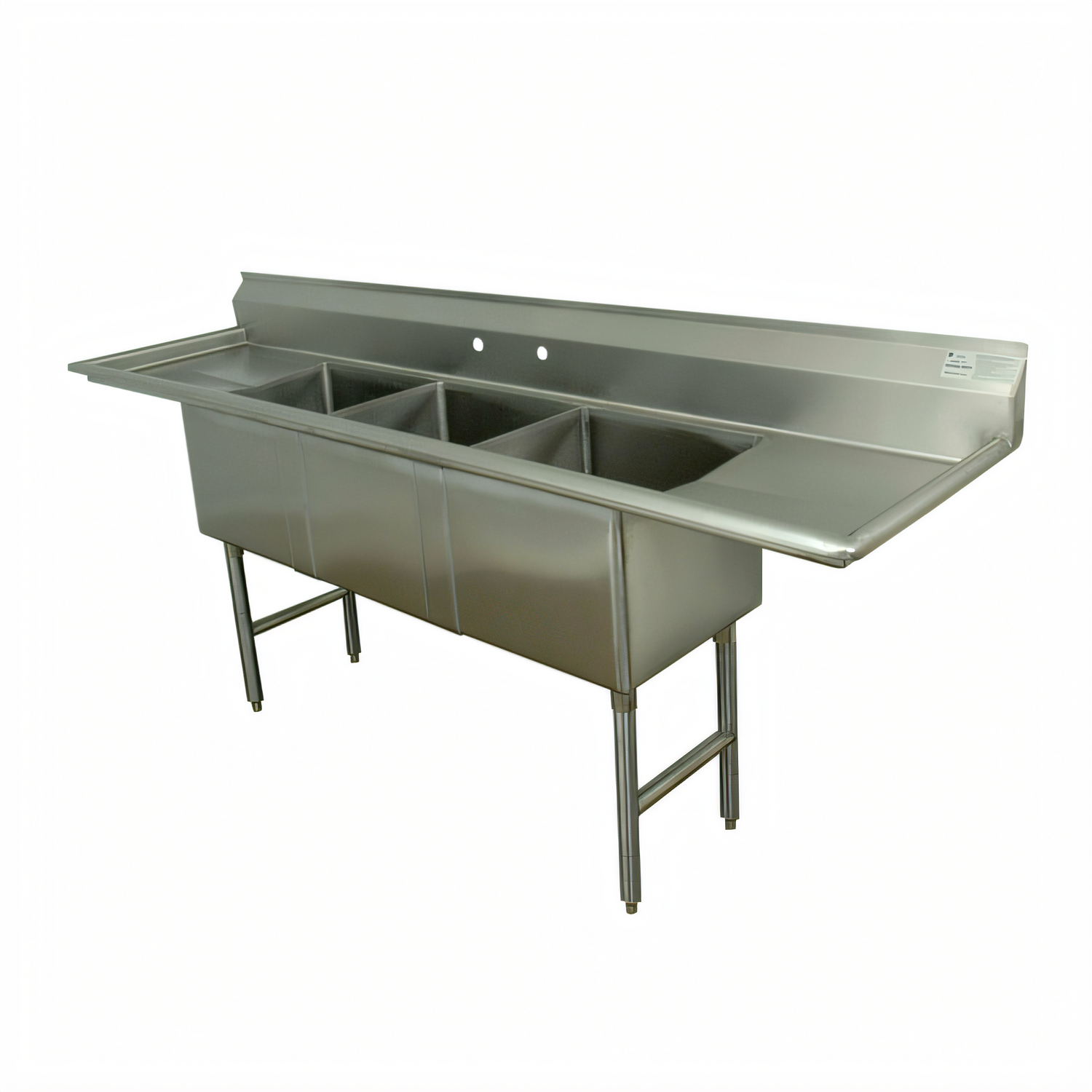

Advance Tabco 138" 3-Compartment Fabricated Sink w/ Dual 24" Drainboards
Model FC-3-3024-24RL · NSF Listed · 16 ga 304 Stainless SteelEngineered for relentless commercial use, this Advance Tabco fabricated sink pairs three oversized 30" × 24" × 14" bowls with full 24" drainboards on both sides—delivering the capacity, strength and workflow efficiency your busiest dishroom demands.
Why this sink stands out
- Heavy-duty 16 ga 304 stainless steel fights corrosion and everyday abuse.
- Spacious 30" × 24" compartments easily accommodate sheet pans, stock pots and hotel pans.
- 14" bowl depth adds volume for soaking or ware-washing large items.
- 24" right & left drainboards double your landing/drying area—no add-on tables required.
- Rolled rim edge and TIG-welded seams deliver superior rigidity and a smooth, snag-free profile.
- 3/4" coved corners meet NSF standards and make wipe-downs fast and thorough.
- 9" tile-edge backsplash simplifies wall installation and protects surrounding surfaces.
- Pre-punched 8" on-center faucet holes—ready for two deck-mount faucets (sold separately).
- 1 ⅝" Ø stainless steel legs with adjustable side cross-bracing keep the 138" span rock solid.
- 1" adjustable stainless steel bullet feet level the unit on uneven floors.
- (3) 1 ½" IPS stainless steel basket drains included—no need to purchase separately.
Technical specifications
| Overall dimensions | 138" L × 30" F/B × 44 ⅞" H (to top of backsplash) |
|---|---|
| Compartment size (3) | 30" L × 24" W × 14" D |
| Drainboard size | 24" L (left) & 24" L (right) |
| Material / gauge | Type 304 stainless steel, 16 gauge |
| Backsplash | 9" H with tile edge and 2" return |
| Faucet mounting | (2) sets of 8" O.C. deck holes, 1-⅛" diameter |
| Water supply | ½" IPS hot & cold connections |
| Drains | (3) 1 ½" IPS stainless steel basket drains (centered) |
| Legs / feet | 1 ⅝" Ø S/S legs, adjustable side cross-bracing, 1" S/S bullet feet |
| Certification | NSF |
| Approx. shipping weight | 400 lb |
Perfect for
- High-volume restaurants & cafeterias
- Hotel & banquet kitchens
- Food processing / commissary operations
- Supermarket prep & wash rooms
Need side splashes, wall brackets or compatible faucets? Contact us and we’ll bundle everything you need for a seamless install.
