Advance Tabco | SKU:
FC-3-2430-36L
Advance Tabco FC-3-2430-36L Compartment Sinks
$3,964.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco FC-3-2430-36L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-3-2430-36L Compartment Sinks
$3,964.00
Unit price
/
Unavailable
Description

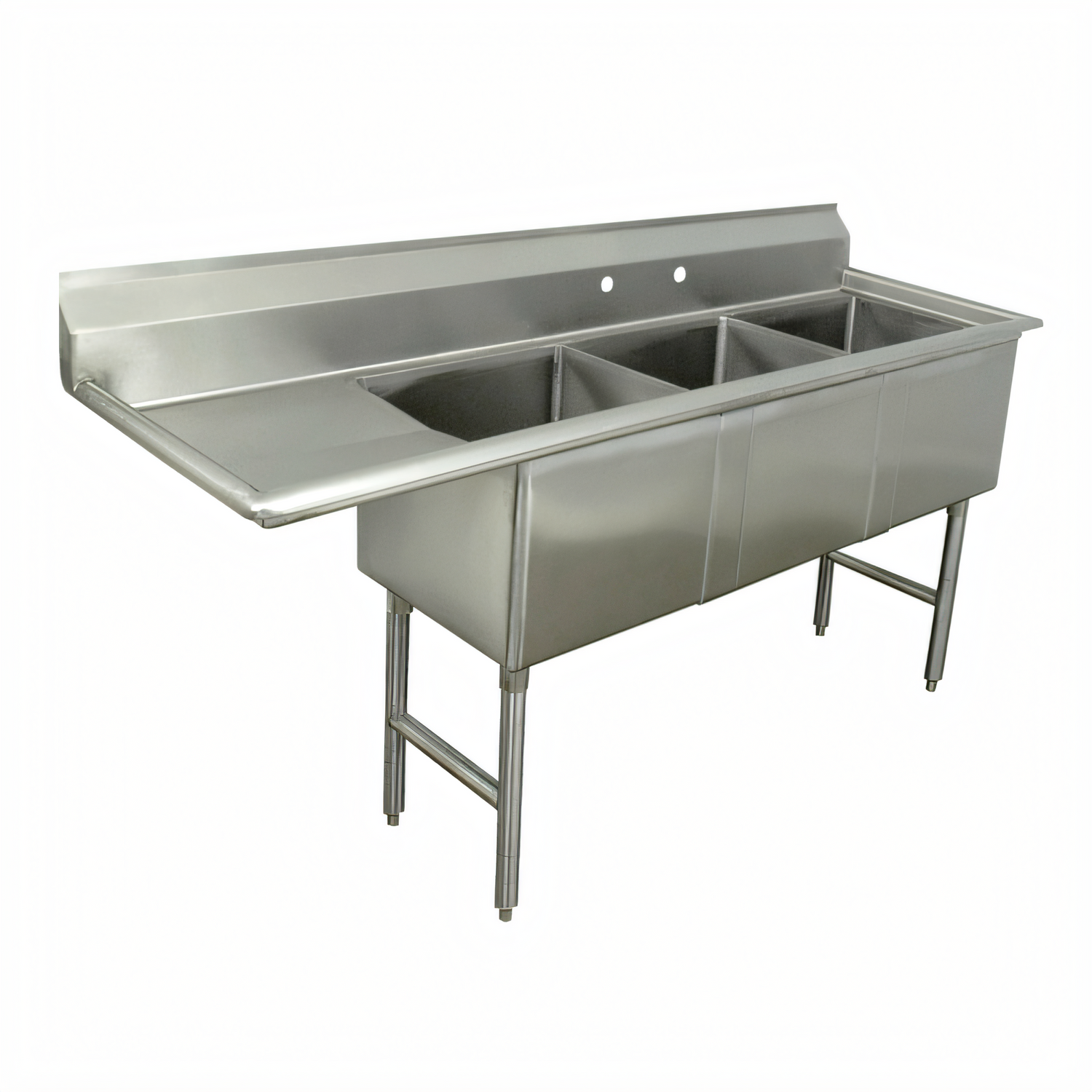

Advance Tabco FC-3-2430-36L Fabricated 3-Compartment Sink
36" Left Drainboard • 24" × 30" × 14" Bowls • 16 ga. 304 SSEngineered for busy kitchens that demand reliability, this NSF-listed sink combines heavy-duty construction with the everyday functionality Advance Tabco is known for.
Why You’ll Love It
- Spacious 24" × 30" × 14" bowls—perfect for the classic wash, rinse & sanitize workflow.
- Generous 36" left-side drainboard keeps clean dishes or prepware out of the way.
- 16-gauge, type 304 stainless steel stands up to corrosive cleaners and high-volume use.
- 3/4" coved corners and 14" depth meet NSF sanitation requirements for easy scrubbing.
- Tile-edge 9" backsplash delivers a water-tight, grout-friendly wall transition.
- Rolled rim edge adds rigidity and eliminates sharp edges for safer handling.
- Pre-drilled 8" on-center faucet holes—just bolt on two commercial faucets and plumb.
- 1⅝"-diameter stainless legs with adjustable side cross-bracing resist wobble.
- 1" adjustable stainless bullet feet level the unit on uneven floors.
What’s Included
- (3) 1½" IPS stainless basket drains (centered in each bowl)
- (1) Fully welded 36" left drainboard with raised marine edge
- All gussets, leg hardware & fasteners
Technical Specs
| Model | FC-3-2430-36L |
|---|---|
| Compartments | 3 |
| Bowl interior (W × L × D) | 24" × 30" × 14" |
| Drainboard | 36" – Left |
| Overall dimensions (L × F/B) | 111" L × 36" F/B |
| Material thickness | 16 ga. |
| Stainless alloy | Type 304 (18-8) |
| Backsplash | 9" tile edge with 8" O.C. faucet holes |
| Water supply | ½" IPS hot & cold |
| Waste drains | 1½" IPS basket style (included) |
| Legs / bracing | 1⅝" Ø S/S legs & adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF |
| Faucets required | 2 (sold separately) |
Heads-up: Faucets are not included. Select two 8" O.C. wall-mount faucets to complete installation.
Dimensions are typical ±½". Advance Tabco reserves the right to change specifications without notice.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
111.0in
Depth
36.0in
Shipping Weight
360.0lbs
Sink Depth (rim - drain)
14"
Compartment Width (side - side)
24"
Drainboards
with left-hand drainboard
Compartment (front - back)
30"
Top Gauge
16 gauge
Top Stainless Series
300 series
Splash Height
8-1/2"
Base Construction
stainless steel
Overall Length
109" - 170"
Base Type
legs with side crossrails
Specifications
Fabricated Sink, 3-compartment, 36" left drainboard, bowl size 24" x 30" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 36" F/B x 111" L/R, NSF (requires 2 faucets)
