Advance Tabco FC-3-2424 Compartment Sinks
Advance Tabco FC-3-2424 Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco FC-3-2424 Compartment Sinks
Description

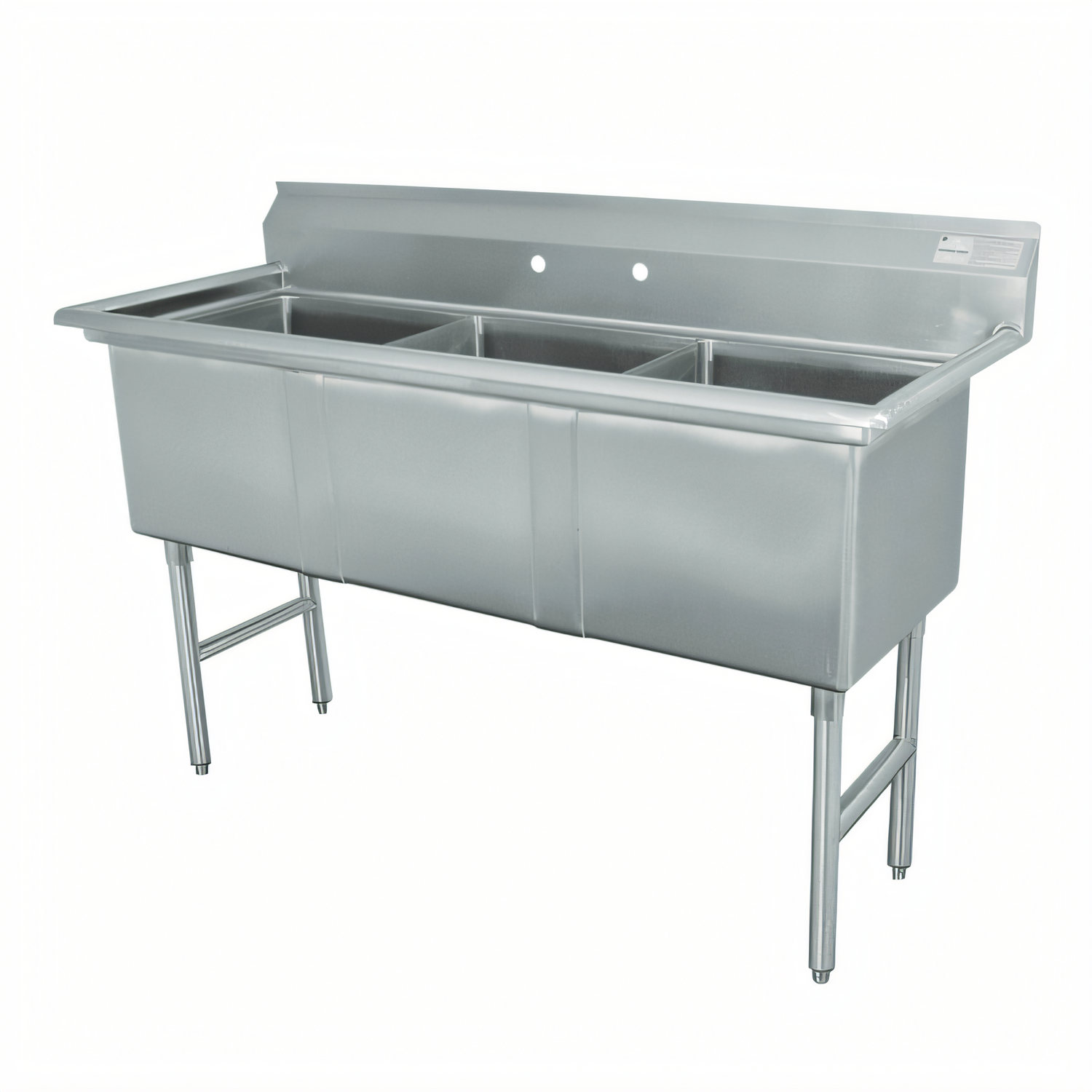

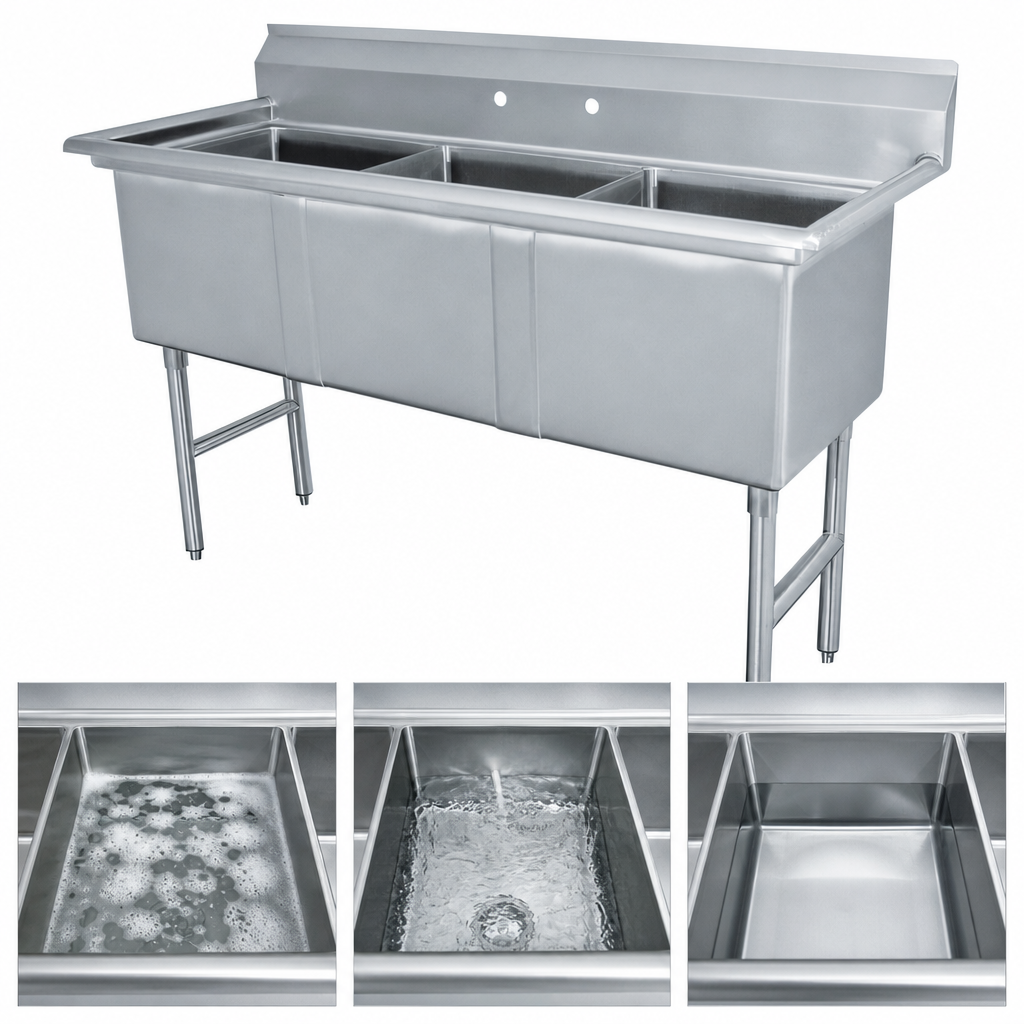

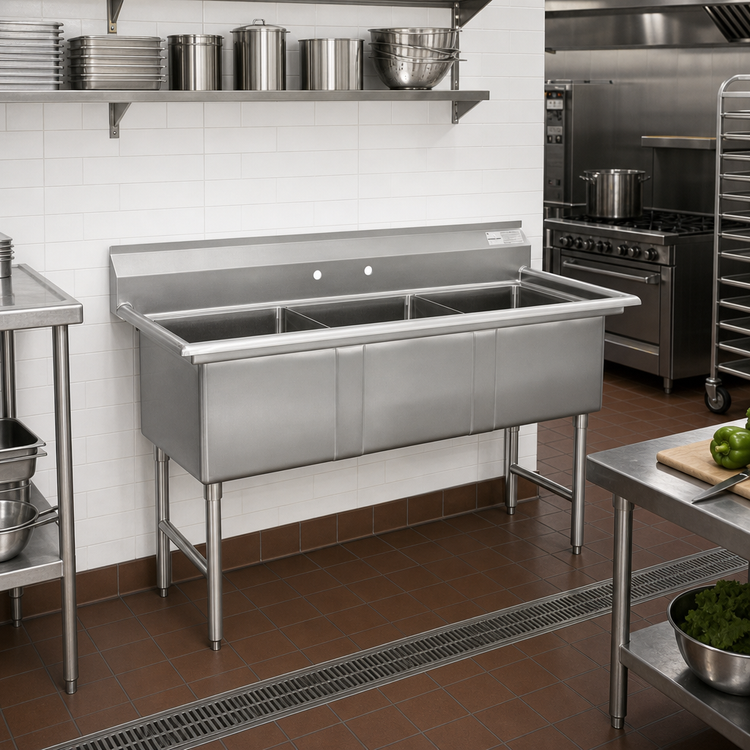

Advance Tabco FC-3-2424 Fabricated 3-Compartment Sink
24" × 24" × 14" bowls • 77" left-to-right • 29-1/2" front-to-back • No drainboardsBuilt for demanding prep and ware-washing stations, the NSF-listed FC-3-2424 delivers industrial-grade durability in a compact footprint. Each 14-inch-deep bowl is formed from heavy-duty 16 ga. 304 stainless steel, TIG-welded for a seamless, easy-to-sanitize work surface that stands up to the daily grind.
Highlights
- (3) spacious 24" × 24" × 14" bowls handle large sheet pans and stock pots.
- High 9-3/4" tile-edge backsplash speeds installation and protects walls.
- Rolled rim edge adds strength and eliminates sharp corners.
- (2) sets of 8" on-center deck holes accept standard commercial faucets.
- 1-5/8" Ø stainless steel legs with adjustable side cross-bracing for rock-solid stability.
- 1" adjustable stainless steel bullet feet level the sink on uneven floors.
- Center-mount 1-1/2" IPS stainless steel basket drains (included).
- Completely TIG-welded and satin-blended for a smooth, professional finish.
- NSF certified for food-service sanitation.
Key Specifications
| Model | FC-3-2424 |
|---|---|
| Compartments | 3 |
| Bowl dimensions (W × F/B × D) | 24" × 24" × 14" |
| Overall size (L × F/B) | 77" × 29-1/2" |
| Gauge / Material | 16 ga. type 304 stainless steel |
| Backsplash height | 9-3/4" with tile edge |
| Faucet holes | (2) sets, 8" on-center, 1-1/8" dia. |
| Drains | (3) 1-1/2" IPS basket drains (included) |
| Legs / Feet | (4) 1-5/8" Ø S/S legs with cross-bracing & 1" adjustable bullet feet |
| Shipping weight | 175 lb |
| Certifications | NSF |
What’s Included
- Fully assembled sink body
- (3) stainless steel basket drains
- Leg set with side cross-bracing & bullet feet
You May Also Need
- (2) deck-mount faucets, 8" OC
- Optional K-700 removable side splashes
- Thread sealant, water supply lines & trap (site-specific)
All dimensions are typical and subject to a ±0.5" manufacturing tolerance. Advance Tabco reserves the right to modify specifications without prior notice.
