Advance Tabco FC-3-2424-24RL Compartment Sinks
$2,675.00
Unit price
/
Unavailable
Description

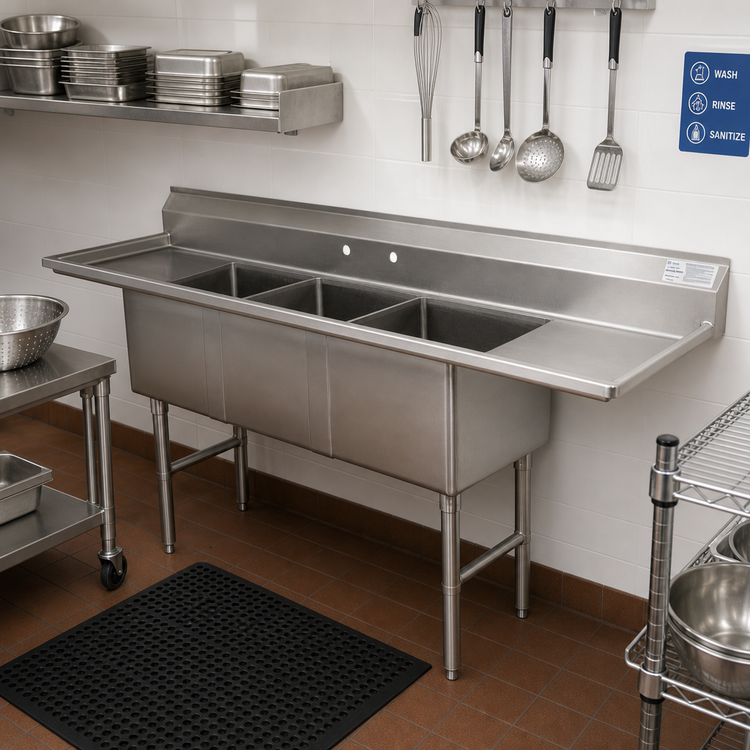

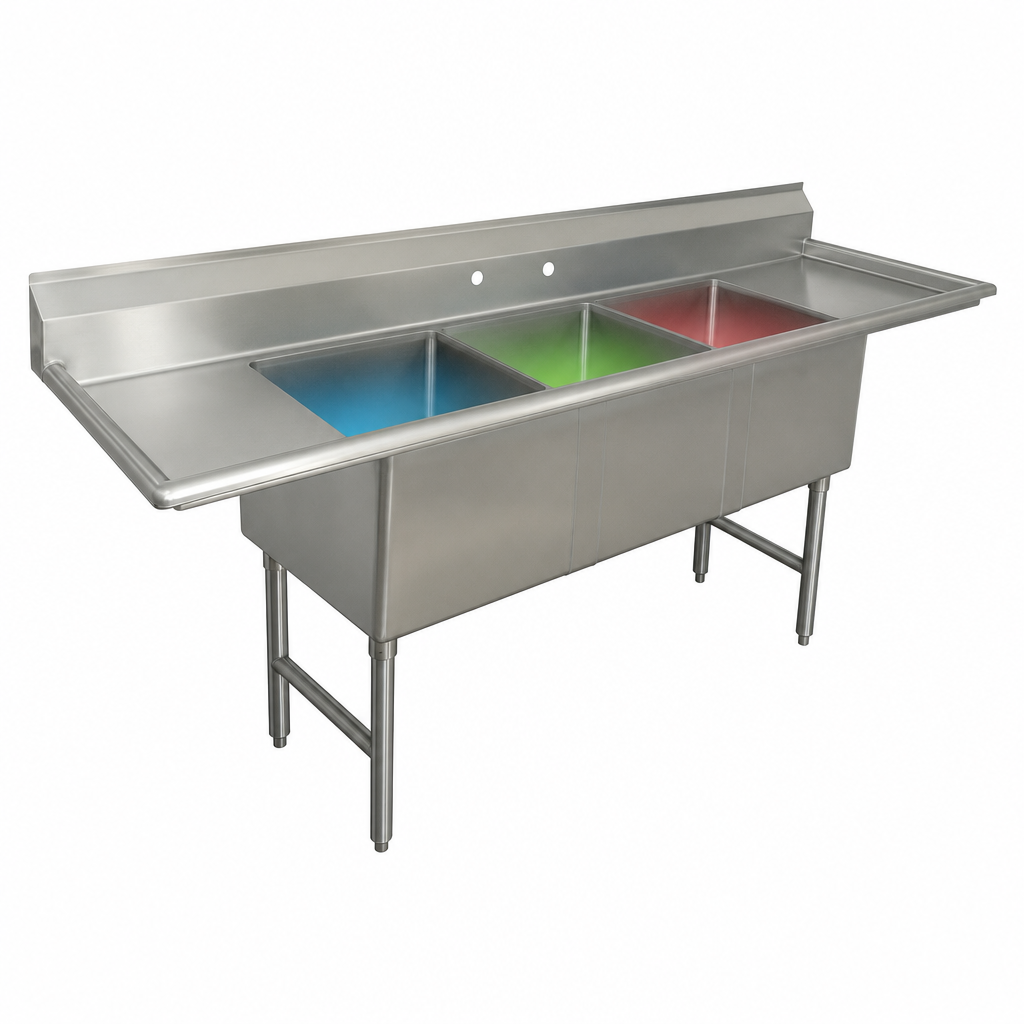

Advance Tabco FC-3-2424-24RL 3-Compartment Fabricated Sink
24" Right & Left Drainboards | 120" x 30" | 16 Ga 304 Stainless SteelBuilt to thrive in the toughest dishroom or prep area, this NSF-listed sink delivers maximum capacity, rock-solid durability and the workflow-boosting convenience of dual 24" drainboards.
Key Features
- Three roomy 24" × 24" × 14" bowls for wash, rinse & sanitize sequences
- 16 gauge type 304 stainless steel—corrosion-resistant & easy to sanitize
- Full-length 24" drainboards on both the right and left sides keep dishes moving
- Tile-edge 9" backsplash speeds installation and helps contain splashes
- Rolled rim edge adds strength and provides a smooth, snag-free work surface
- TIG-welded construction with satin-blended seams for a professional, hygienic finish
- (2) sets of 8" on-center faucet holes—ready for separate pre-rinse & fill faucets
- (3) 1 ½" stainless steel basket drains (centered in each bowl) included
- 1 ⅝" Ø stainless legs with adjustable side cross-bracing for rock-solid stability
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
At-a-Glance Specifications
| Model | FC-3-2424-24RL |
|---|---|
| Compartments | 3 |
| Bowl Interior (W × L × D) | 24" × 24" × 14" |
| Drainboards | 24" right & 24" left (integral) |
| Overall Size (L × W) | 120" L × 30" F/B |
| Material & Gauge | 16 ga type 304 stainless steel |
| Backsplash Height | 9" with tile edge |
| Faucet Holes | (2) sets, 8" on center, ½" IPS supply |
| Drain Outlets | 1 ½" IPS S/S basket type (included) |
| Shipping Weight | ≈ 350 lb |
| Certifications | NSF |
Ideal For
- High-volume restaurants & cafeterias
- Catering & commissary kitchens
- Food-processing & packaging areas
- Hotel, resort & institutional dishrooms
Faucets required: This sink is pre-punched for two faucets (not included).
Choose compatible 8" O.C. wall-mount faucets to complete installation.
Need custom modifications or accessories such as scrap block drains, pre-rinse faucets or side splashes? Our Smart Fabrication™ team can help—contact us for a fast quote.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Certifications
NSF
Height
43.0in
Width
120.0in
Depth
30.0in
Shipping Weight
315.0lbs
Top Stainless Series
300 series
Sink Depth (rim - drain)
14"
Compartment Width (side - side)
24"
Base Construction
stainless steel
Compartment (front - back)
24"
Overall Length
109" - 170"
Splash Height
8-1/2"
Base Type
legs with side crossrails
Top Gauge
16 gauge
Drainboards
with left & right-hand drainboards
Specifications
Fabricated Sink, 3-compartment, 24" right & left drainboards, bowl size 24" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 120" L/R, NSF (requires (2) faucets)
