Advance Tabco FC-3-2424-24L-X Special Value Series Compartment Sinks
Description

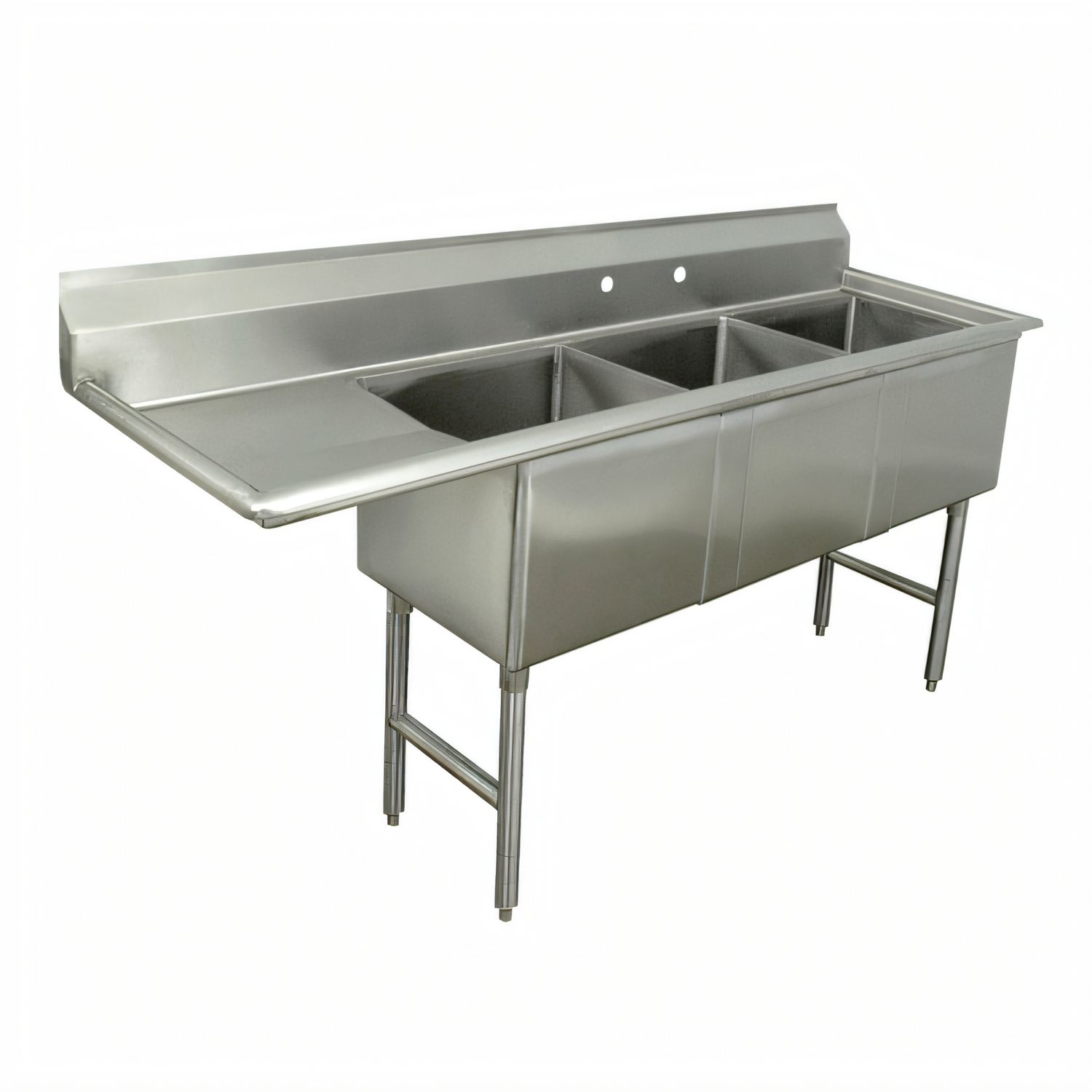

Advance Tabco “Special Value” 3-Compartment Sink
Model FC-3-2424-24L – 24" Left Drainboard
16 ga 304 Stainless Steel • NSF Listed • Fabricated Economy Series
Built for busy commercial kitchens that need rugged performance without the premium price tag, the Advance Tabco Special Value Series delivers big-sink utility in an economical footprint. Three spacious 24" × 24" × 14" compartments handle prep, wash, rinse and sanitize tasks with ease, while a full-size 24" drainboard on the left keeps workflow organized and efficient.
Key Advantages
- Heavy-duty 16-gauge, type 304 stainless steel stands up to daily abuse and harsh chemicals.
- Rolled rim edge and TIG-welded seams add strength and long-term durability.
- 3/4" coved bowl corners meet NSF standards and make clean-ups fast and simple.
- Tile-edge 8" backsplash speeds installation against tiled or drywall surfaces.
- Included 1 ½" stainless basket drains (centered) keep water moving while trapping debris.
- Stainless 1 5⁄8" Ø legs with adjustable side cross-bracing maintain rock-solid stability.
- 1" adjustable stainless bullet feet let you level the sink quickly on uneven floors.
Standard Features
- (3) fabricated bowls – 24" W × 24" F/B × 14" D
- (1) 24" left-hand drainboard with punched drain lines
- (2) sets of 8" on-center deck holes for wall or splash-mount faucets
- All welds blended to a uniform satin finish
- Die-formed gussets welded to reinforced plates for extra support
- 1⁄2" IPS hot & cold supplies pre-punched in backsplash
Technical Specifications
| Model # | FC-3-2424-24L |
|---|---|
| Compartments | 3 |
| Bowl Size (each) | 24" W × 24" F/B × 14" D |
| Drainboard | 24" left-side, integrally welded |
| Overall Dimensions | 98 1⁄2" L × 30" F/B |
| Material / Gauge | 16-ga type 304 stainless steel |
| Backsplash Height | 8 1⁄2" with tile edge |
| Faucet Holes | (2) sets, 8" O.C., 1 1⁄8" dia. |
| Drains (included) | (3) 1 1⁄2" IPS stainless basket drains – center of bowls |
| Legs / Bracing | 1 5⁄8" Ø S/S legs, adjustable side cross-bracing |
| Feet | 1" adjustable stainless bullet feet |
| Shipping Weight | Approx. 330 lb. |
| Certification | NSF |
Advance Tabco continually improves its products; specifications are subject to change without notice.
