Advance Tabco  |  SKU: FC-3-2424-24L  |  UPC: 747545128713

Advance Tabco FC-3-2424-24L Compartment Sinks

$2,533.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

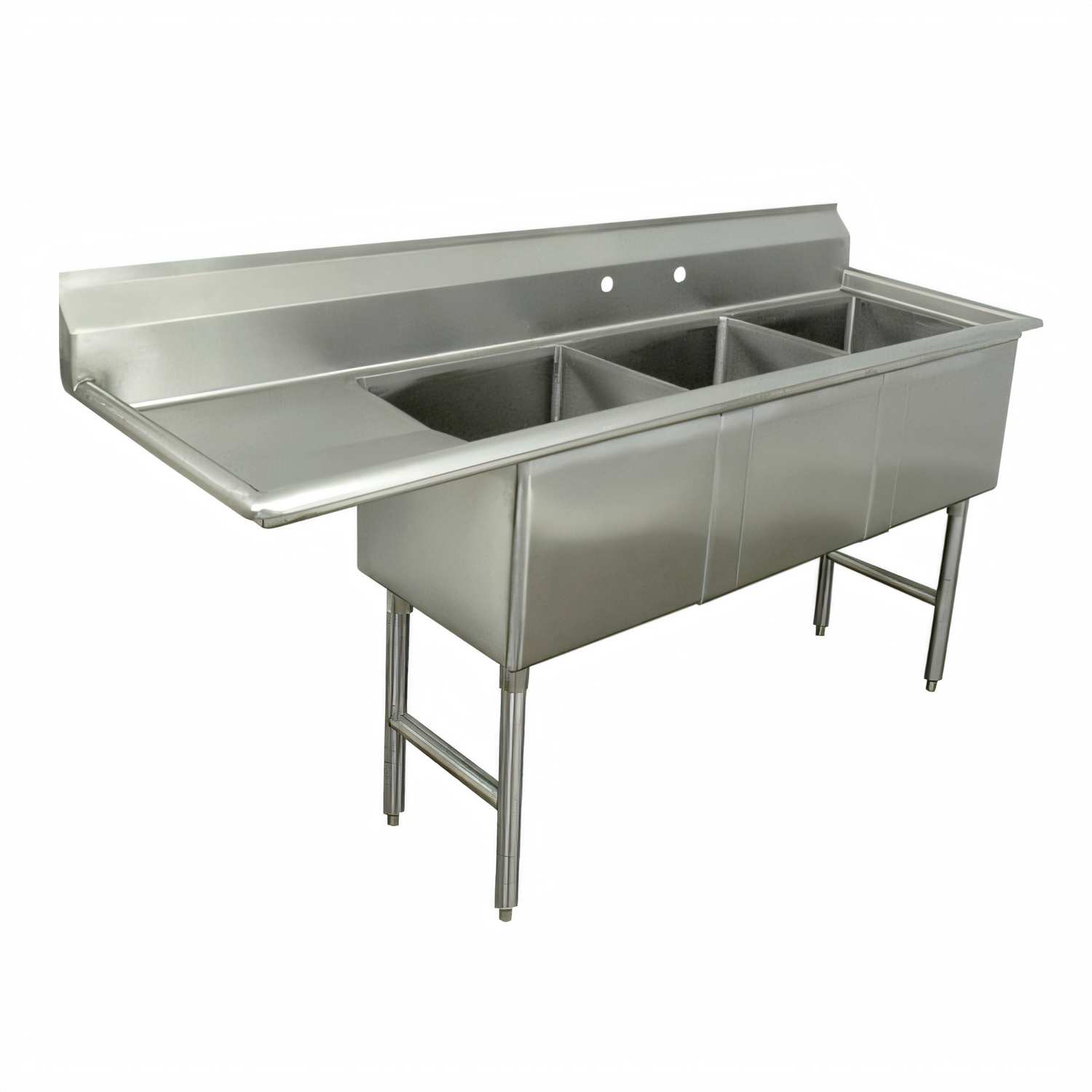

Advance Tabco 3-Compartment Fabricated Sink, 24" Left Drainboard

Model FC-3-2424-24L  |  98-1/2" L x 30" W  |  NSF Listed

Built from heavy-duty 16-gauge 304 stainless steel, this Advance Tabco sink gives your dish room the rugged capacity of three full-size 24" x 24" bowls plus a generous 24" left-hand drainboard—perfect for back-of-house operations that refuse to compromise on sanitation, workflow, or durability.

Why You’ll Love It

  • Three 24" x 24" x 14" deep fabricated bowls handle large sheet pans, stock pots & bulk ware with ease.
  • 24" sloped drainboard (left side) speeds drying while keeping the work top clutter-free.
  • 16-gauge Type 304 stainless steel resists corrosion, harsh chemicals & daily wear.
  • Rolled rim edge adds strength and eliminates sharp corners for safer handling.
  • 8-1/2" high backsplash with tile edge simplifies wall sealing and prevents water intrusion.
  • (2) sets of 8" on-center faucet holes accept a pre-rinse plus a fill faucet simultaneously.
  • 1-5/8" Ø stainless legs with adjustable side cross-bracing for rock-solid stability.
  • 1" adjustable stainless bullet feet level the unit on uneven floors.
  • Center-mounted 1-1/2" IPS basket drains included—ready for direct connection.
  • NSF certified for foodservice sanitation compliance.

Perfect For

  • High-volume restaurants & commissaries
  • Hotels, resorts & banquet kitchens
  • Breweries, bakeries & food-processing labs
  • Any operation needing a heavy-duty, code-compliant ware-washing center

Technical Specifications

Model FC-3-2424-24L
Overall Dimensions 98-1/2" L × 30" W × 43" H (to top of backsplash)
Compartments 3 bowls – each 24" L × 24" W × 14" D
Drainboard 24" left side, integrally pitched
Backsplash 8-1/2" high with tile edge
Material / Gauge 16-ga 304 stainless steel (sink & top)
Faucet Holes (2) sets on 8" centers, 1-1/8" dia.
Drains (3) 1-1/2" IPS basket drains (included)
Legs / Bracing 1-5/8" Ø S/S legs with adjustable side cross-bracing
Feet 1" height-adjustable stainless bullet feet
Shipping Weight ≈ 330 lb
Certifications NSF

Faucets are not included. Two compatible 8" OC faucets are required for operation.

Heads up! This sink ships via freight truck. Please verify door and hallway clearances (98-1/2" length) before ordering to ensure smooth delivery.

Features & Specs

Manufacturer

Advance Tabco

Certifications

NSF

Height

43.0in

Width

98.5in

Depth

30.0in

Shipping Weight

281.0lbs

Compartment Width (side - side)

24"

Overall Length

97" - 108"

Top Stainless Series

300 series

Drainboards

with left-hand drainboard

Compartment (front - back)

24"

Sink Depth (rim - drain)

14"

Base Construction

stainless steel

Splash Height

8-1/2"

Base Type

legs with side crossrails

Top Gauge

16 gauge

Specifications

Fabricated Sink, 3-compartment, 24" left drainboard, bowl size 24" x 24" x 14" deep, 16 gauge 304 stainless steel, tile edge splash, rolled edge, (2) sets of 8" OC faucet holes, stainless steel legs with adjustable side cross-bracing, 1" adjustable stainless steel bullet feet, overall 30" F/B x 98-1/2" L/R, NSF (requires (2) faucets)
